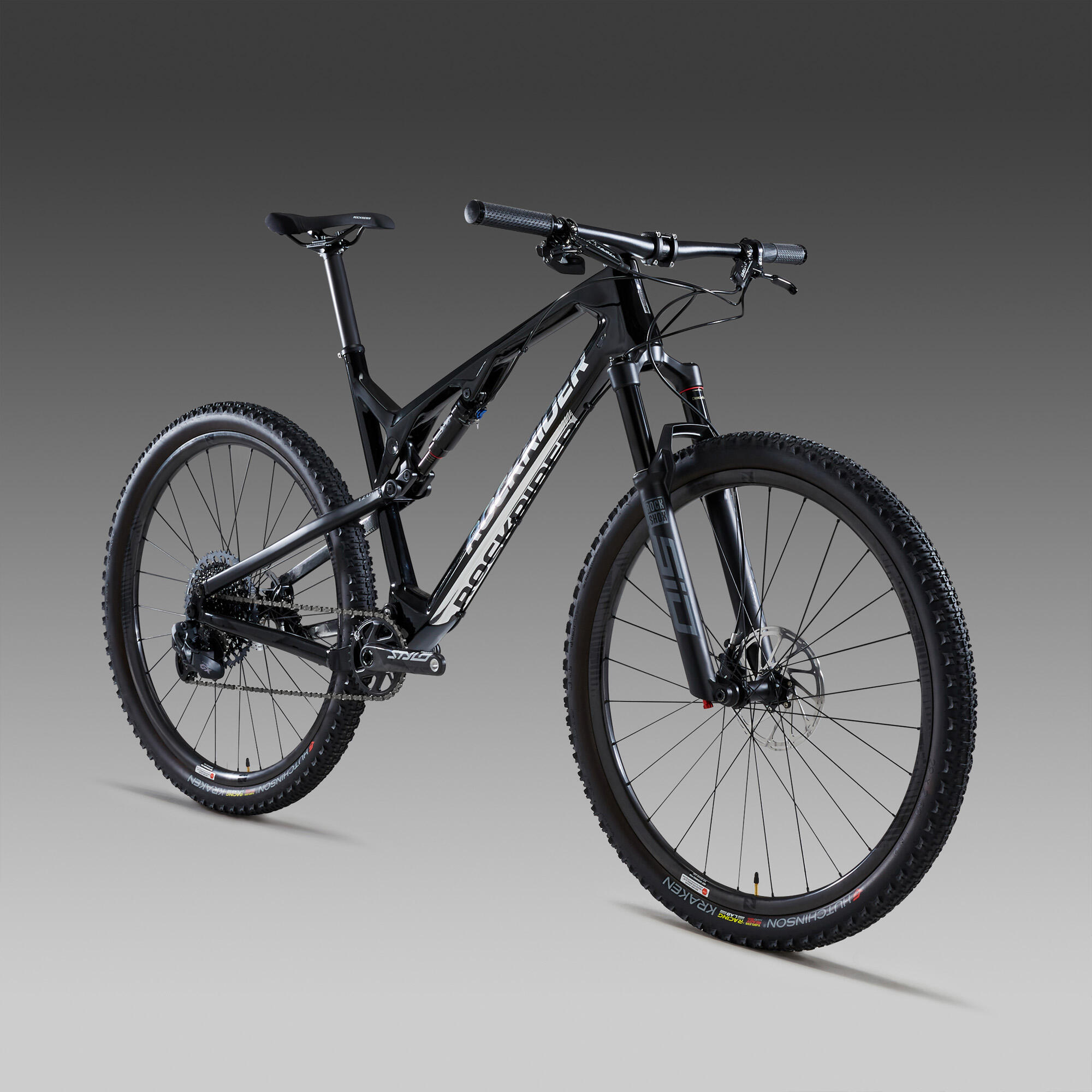

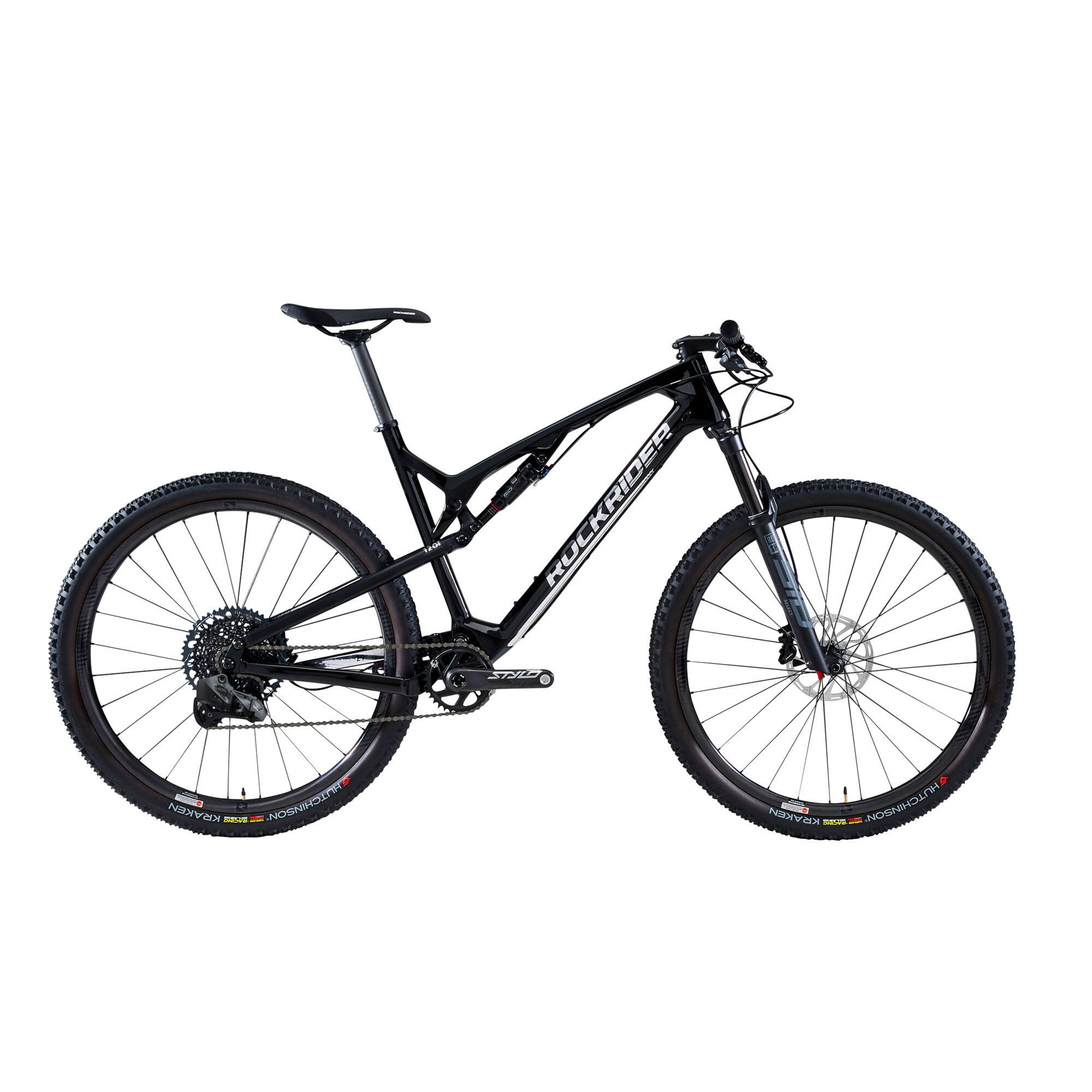

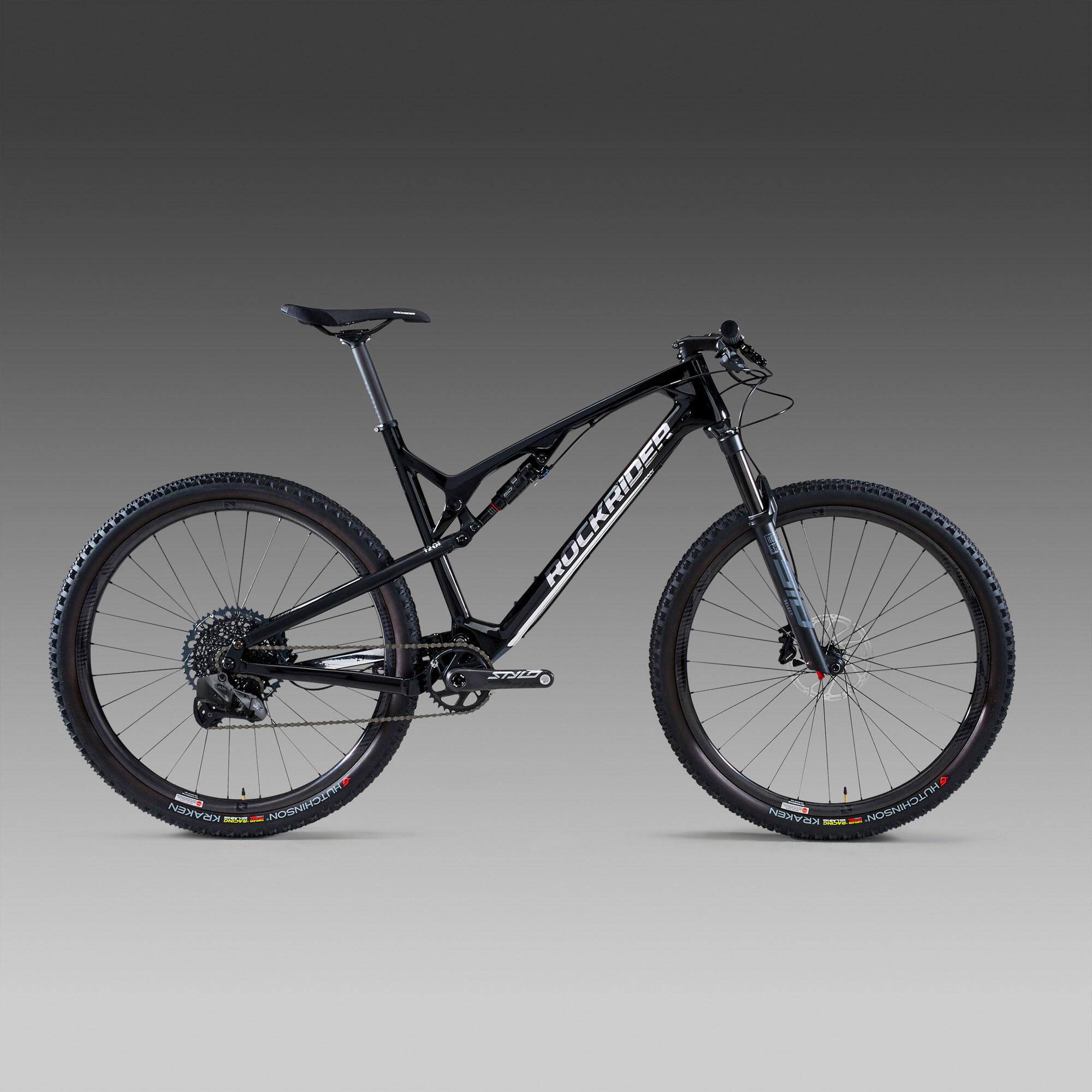

29" Full Suspension Carbon Mountain Bike XC 920 S LTD SRAM GX AXS

Name: 29" Full Suspension Carbon Mountain Bike XC 920 S LTD SRAM GX AXS
Availability: OutOfStock

Ride smart with the new SRAM GX AXS wireless drivetrain. High-end components for performing on your favourite courses.

ID 8641560

Sold and shipped by

How to get it

efficiency
Accelerate on rugged ground thanks to the 120 mm travel
lightweight
Full suspension frame with carbon front triangle and aluminium rear triangle
precision
SRAM GX AXS wireless groupset Reynolds carbon wheels
shock absorption
RockShox SID Select 120 mm fork SIDLuxe Select+ 120 mm shock
braking power
Sram Level TL brakes

Description

Design details

Description
Our team of engineers has designed this mountain bike to win races. The high-end parts, such as the new Sram GX AXS wireless drivetrain, the SID SELECT fork with 35 mm damping rods, the SIDLuxe SELECT+ shock, and the Reynolds carbon wheels, make it the ultimate weapon for performing at XC and XC marathon. This model has won several major races around the world with our technical partners Joseph De Poortere and Milton Ramos.
Frame

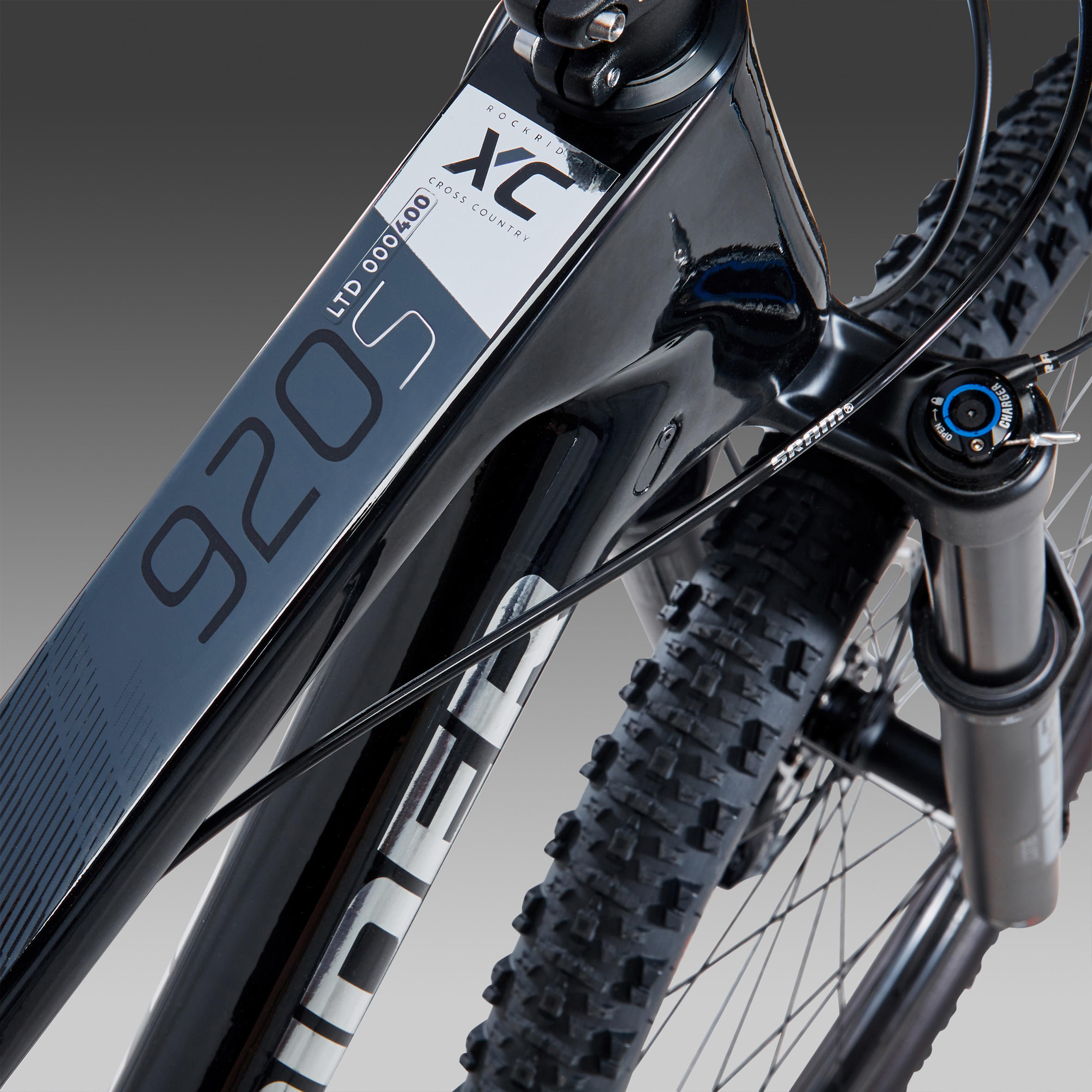

Carbon front triangle 6061/6013 alu rear triangle Carbon linkage 148 mm x 12 mm BOOST rear axle Pressfit 92 bottom bracket Single chainring only Bottom bracket access hatch 31.6 mm seat tube with internal cable routing for dropper posts (needs special caps to be mounted - product ref 8571387) Compatible with 1 bottle cage Weight in size S: 2.2 kg
Air-sprung fork

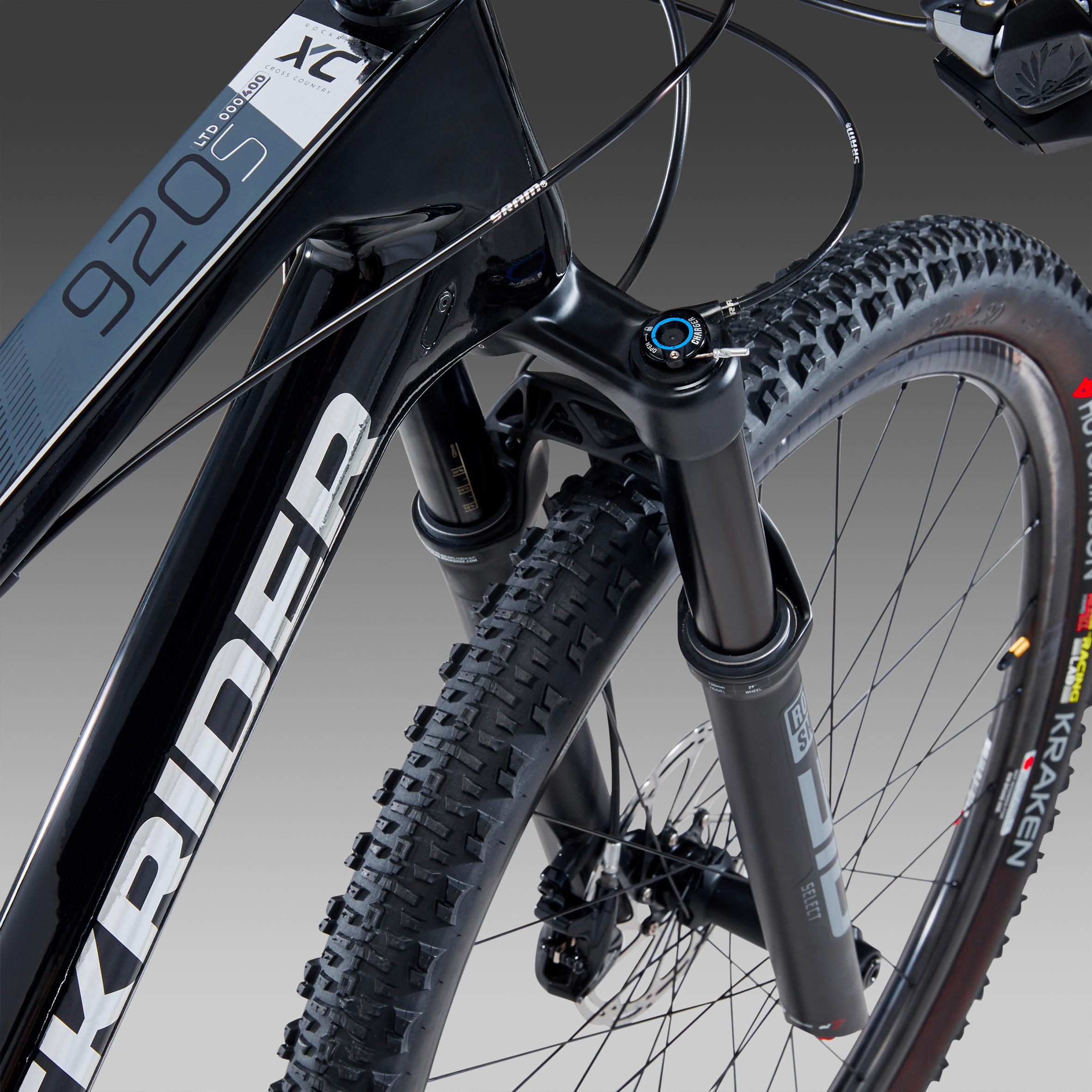

RockShox SID Select 120 mm 35 mm dampers Thru axle BOOST format RockShox Twistlock 2-position remote lockout
Shock

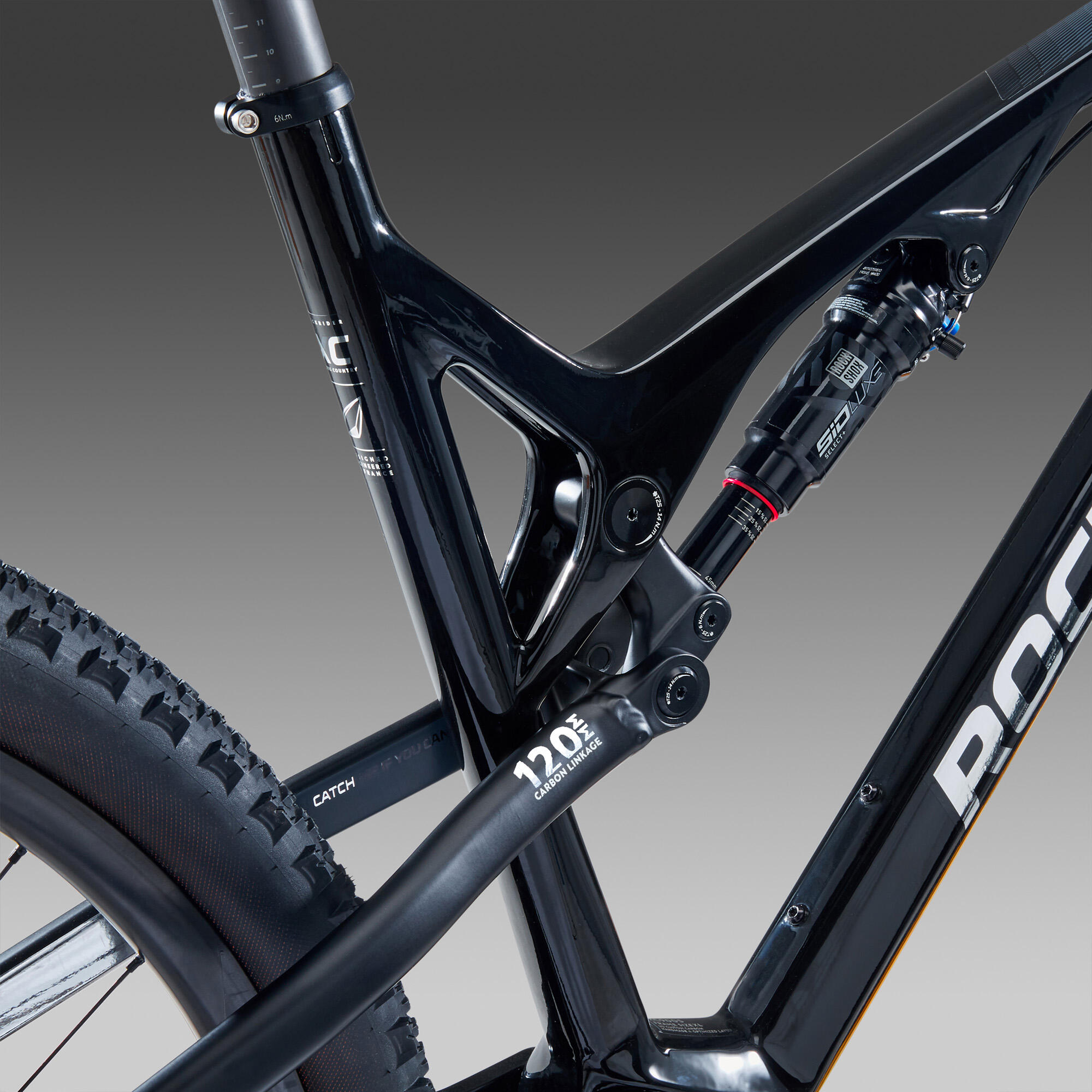

RockShox SIDLuxe Select+ 120 mm travel - Dimensions: 190x45 (25x10 nozzles) RockShox Twistlock 2-position remote lockout
SINGLE CHAINRING DRIVETRAIN

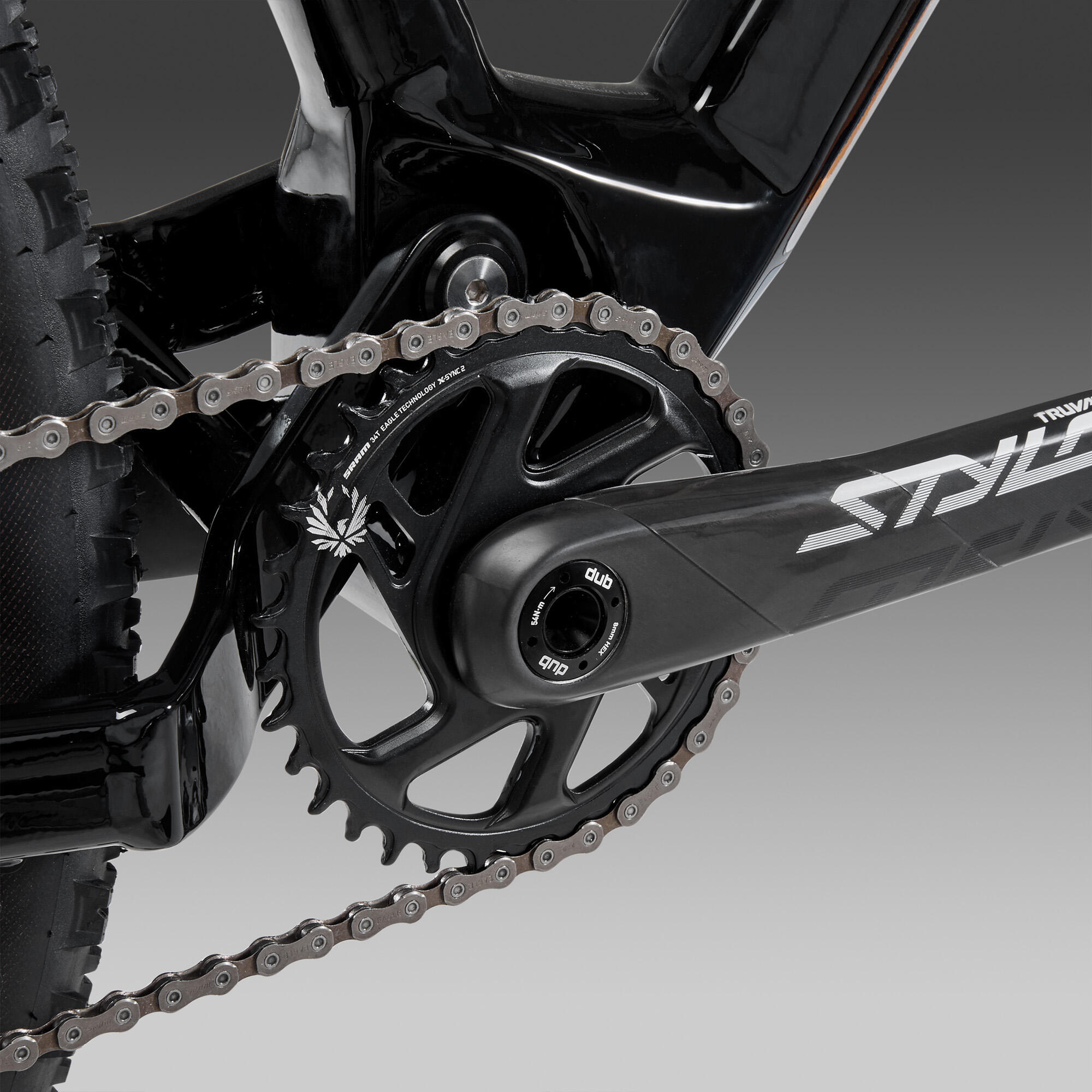

Sram GX AXS wireless Sram XG1275 10-52 cassette Sram X1 carbon chainset 34 T (compatible with 30, 32 and 36 T) Erratum: SRAM battery cover not included (pictures for illustration purposes only)
Hydraulic brakes
Sram Level TL 180 mm front disc, 160 mm back disc
Carbon wheels
REYNOLDS TR309/289 XC 29 Rim material: carbon fibre Rim technology: hookless, Tubeless Ready Rim width (front/rear): inner 30mm / 28mm, outer 35.5 mm / 33.5 mm Rim height: 21mm Hubs: Reynolds TR MTN - 10 degree engagement, 4 pawls Spokes (front/rear): 24 / 28 - Sapim Sprint Disc attachment: Centerlock Weight of both wheels: 1665 g Lifetime warranty (if registered on the Reynolds site)
Handlebars

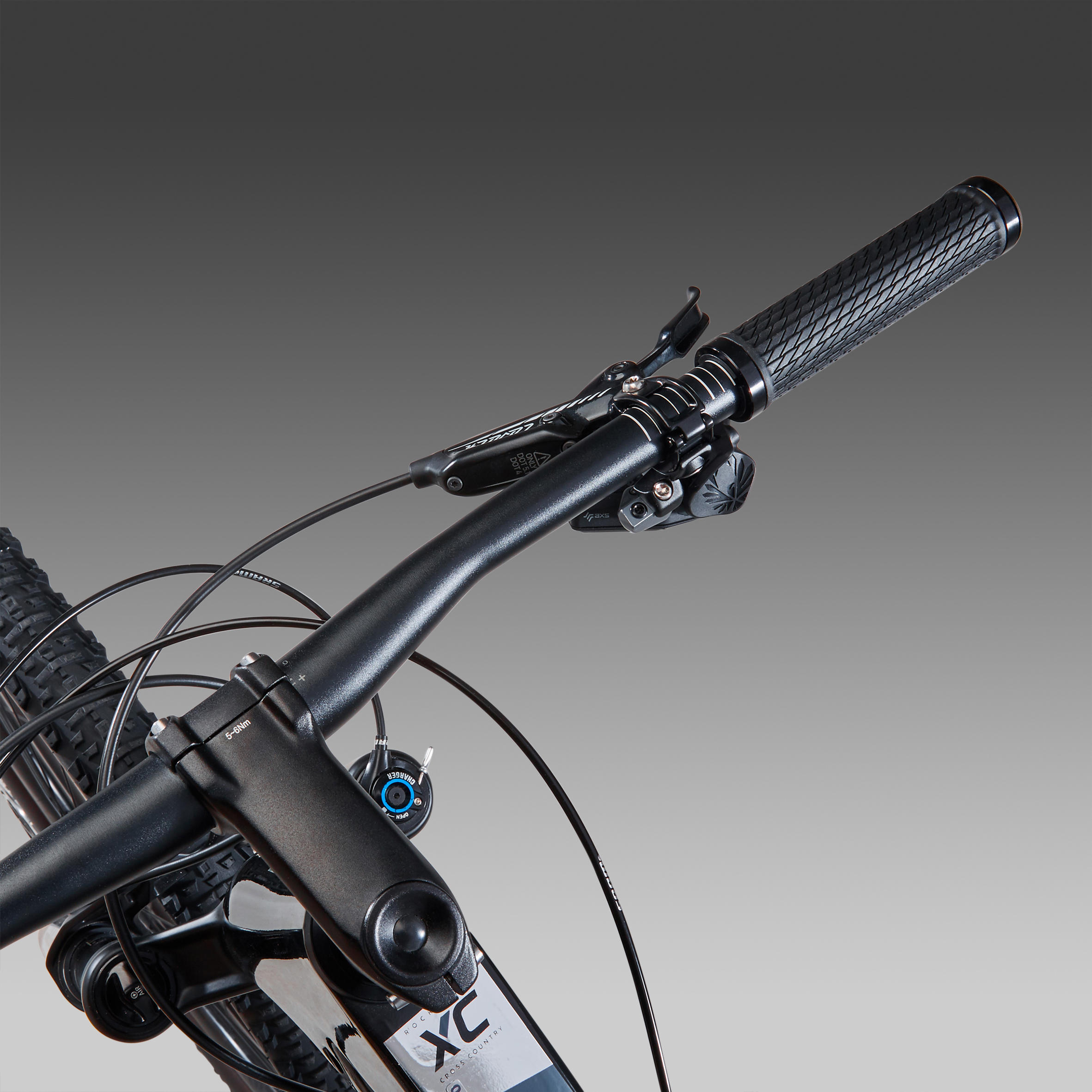

Rockrider aluminium flat Width: 720 mm Angle: 6.5° 256 g
Stem
Rockrider Aluminium Angle - 20° 60 mm in size S 70 mm in size M 80 mm in size L 90 mm in size XL
Saddle

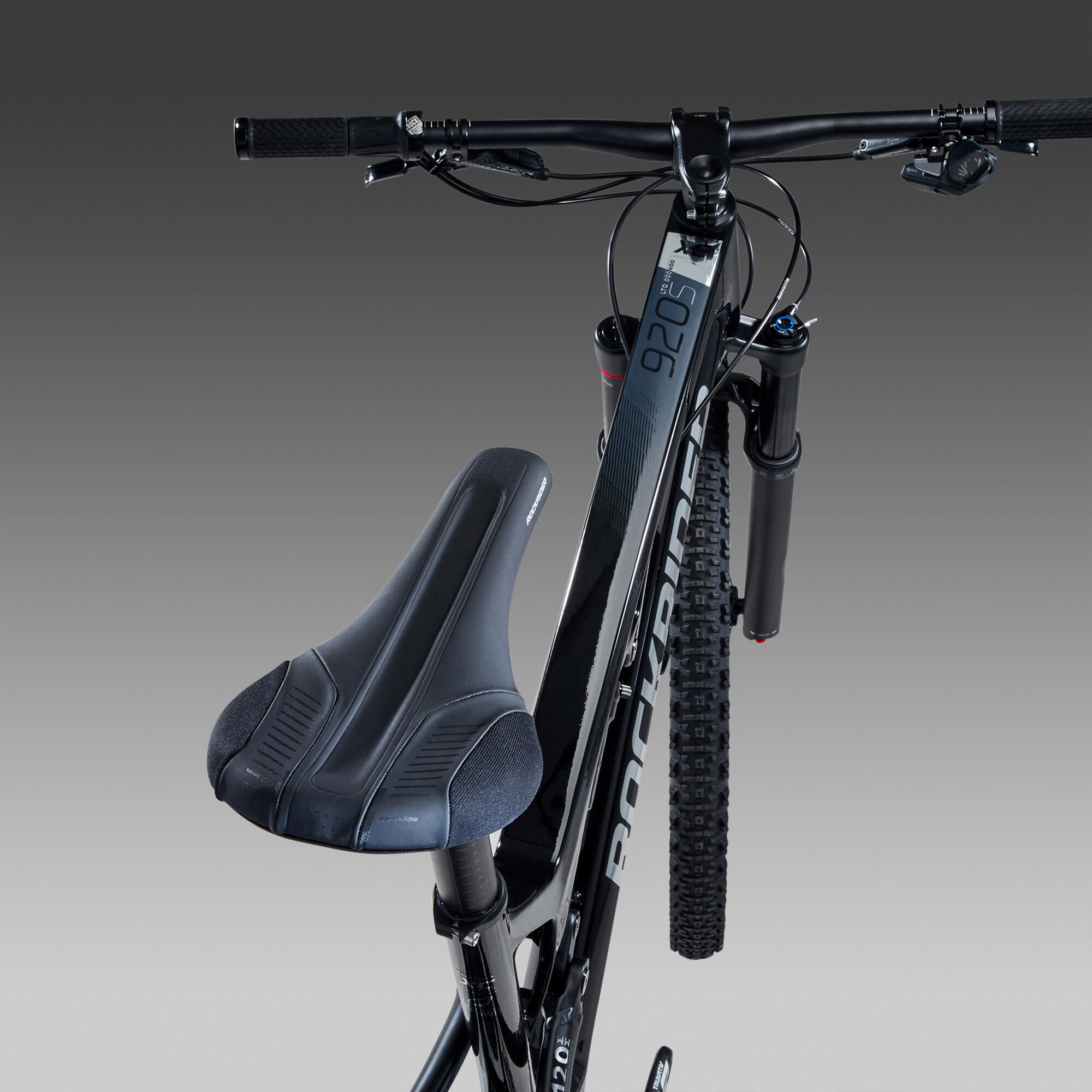

Rockrider XC Ergofit 265 g
Carbon seat post
Carbon Rockrider Diameter: 31.6 mm Weight: 245 g in 400 mm 400 mm for sizes M, L and XL 350 mm for size S
Tubeless ready tyres

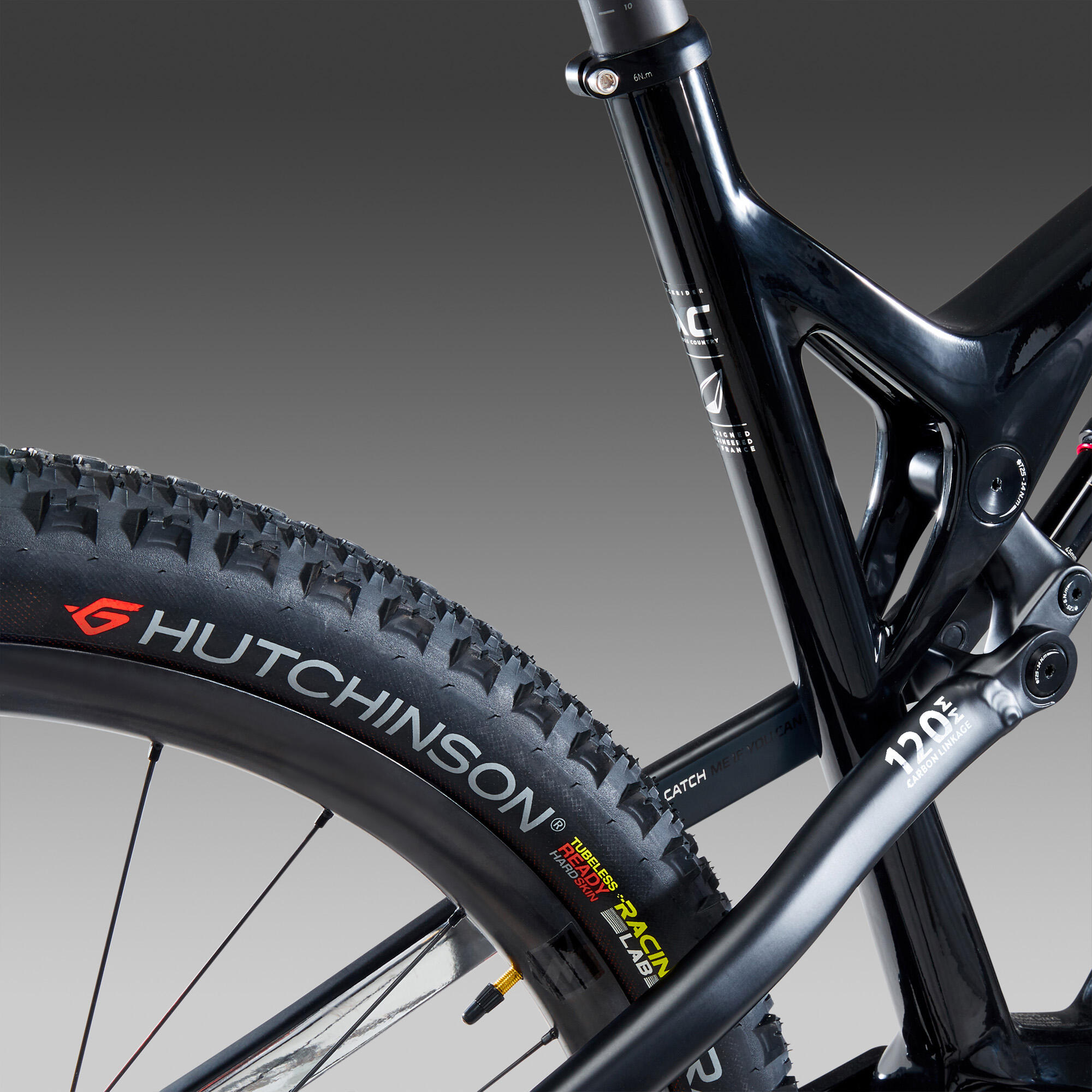

Hutchinson Kraken 2.3" tubeless ready Made in France Reinforced 120 TPI casing
Weight
11.3 kg for the full bike in size M (weighed in tubeless-ready version, without pedals)
PRODUCT CARE
To keep this bike rolling smoothly, you should perform regular maintenance, including: - degreasing the chain and lubricating it regularly - degreasing the disc brakes - checking for wear on the drivetrain - regularly servicing the suspension fork (ideally every 50 hours of use) - regularly reinjecting the tubeless ready tyres with sealant
