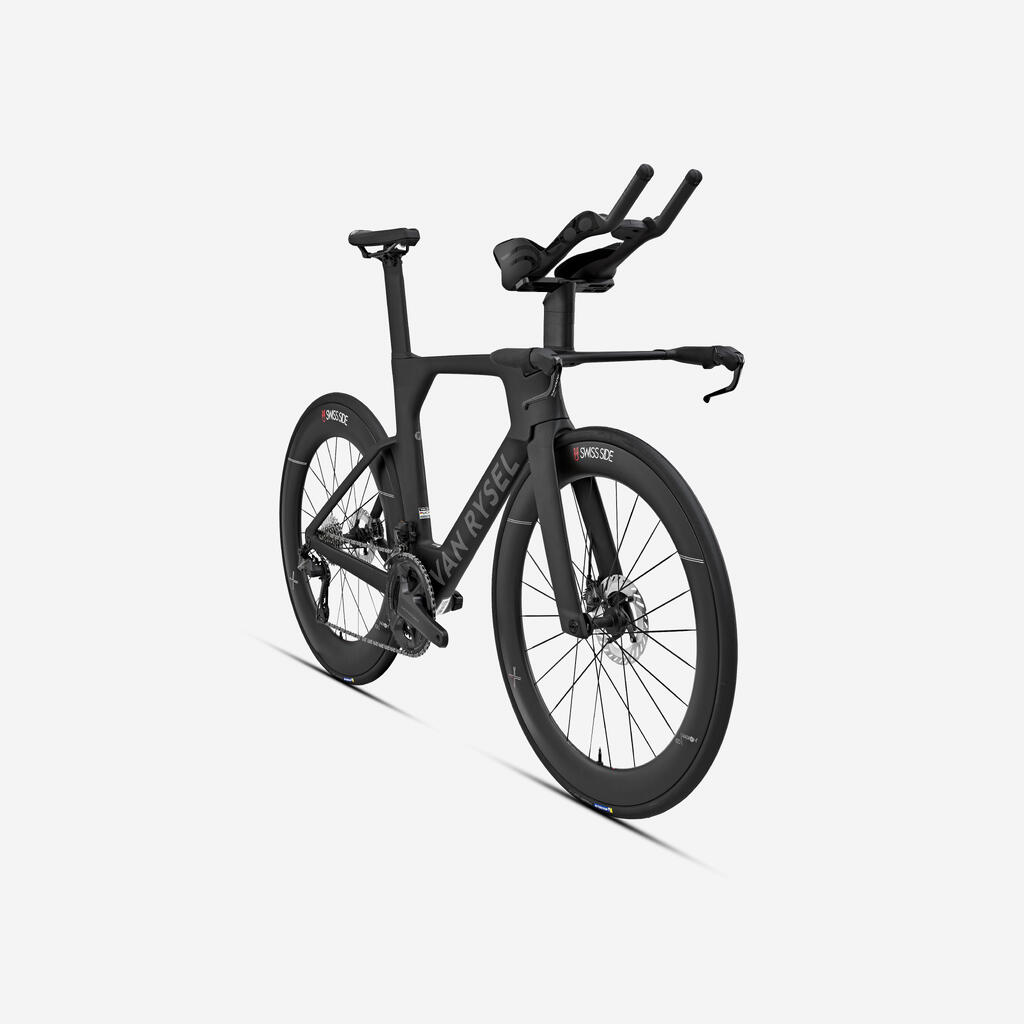

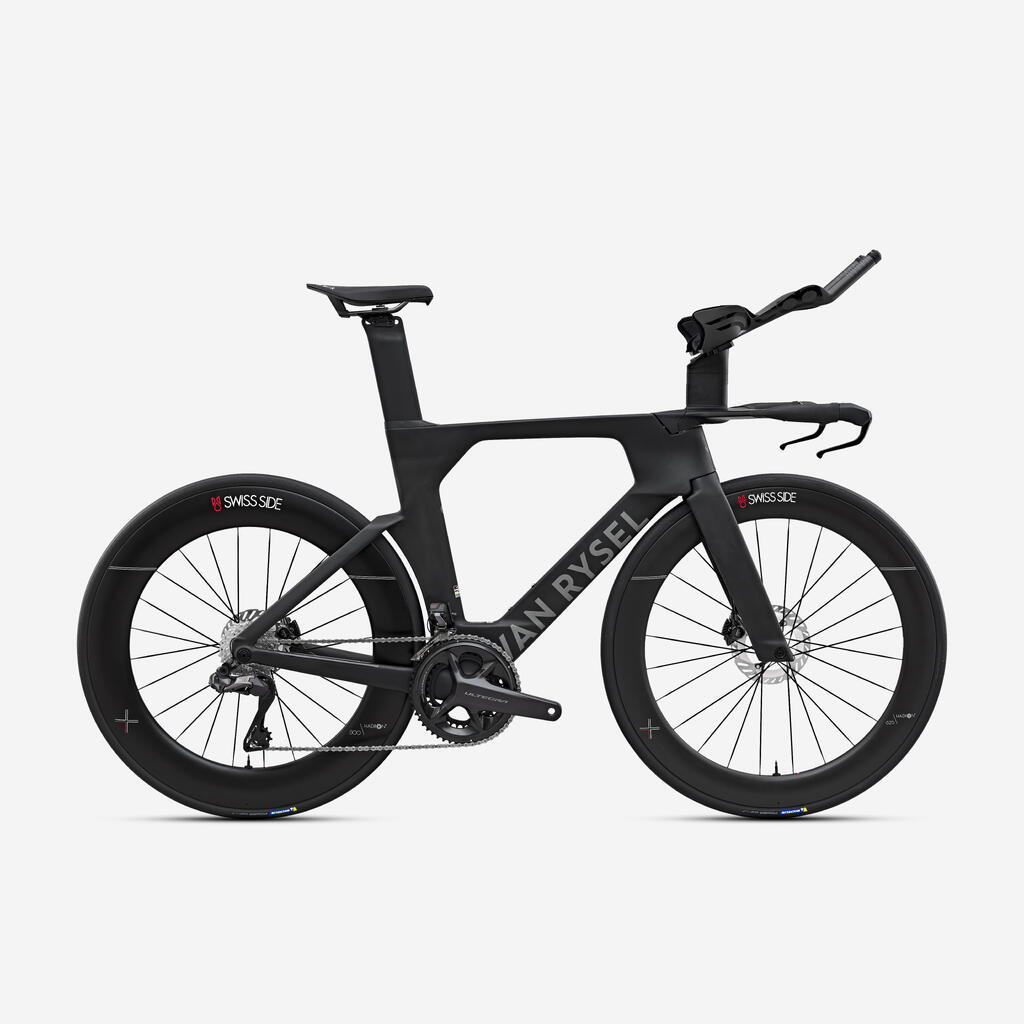

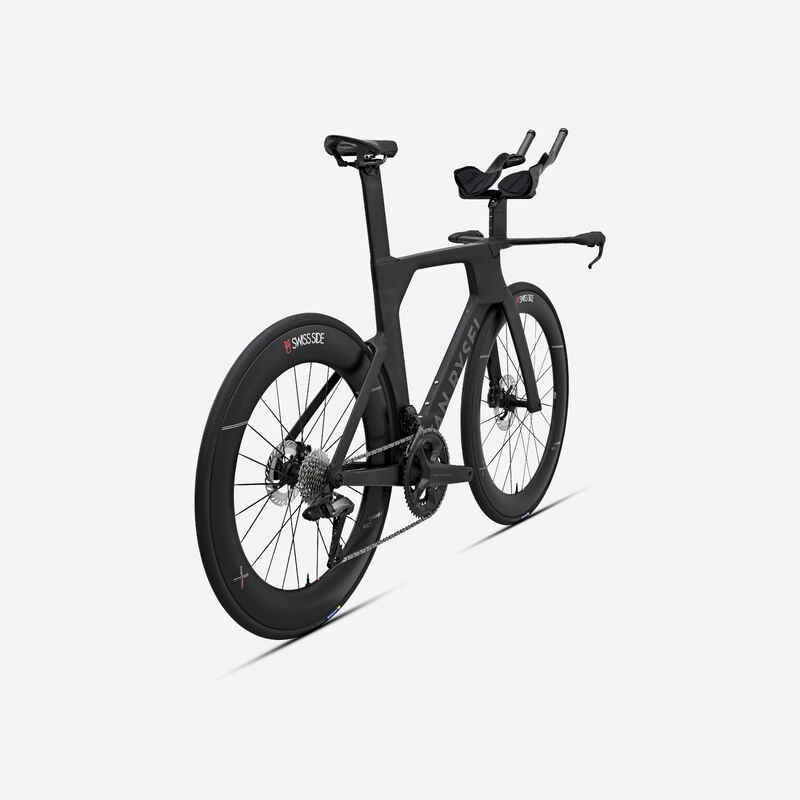

Raw Carbon XCR UCI Ultegra DI2
The XCR was co-designed with our Decathlon Ag2r cycling team. It is the fruit of a collaboration with Swiss Side, a company specialising in aerodynamics.
Each line was carefully designed to offer the least possible resistance to movement, making it one of the fastest time trial bikes in its category.
BENEFITS
Aerodynamics
Developed in CFD and a wind tunnel with Swiss Side to optimise every mm²
Easy assembly / dismantling
Thanks to its platform attachment, the cockpit detaches with 2 screws
Adjustable

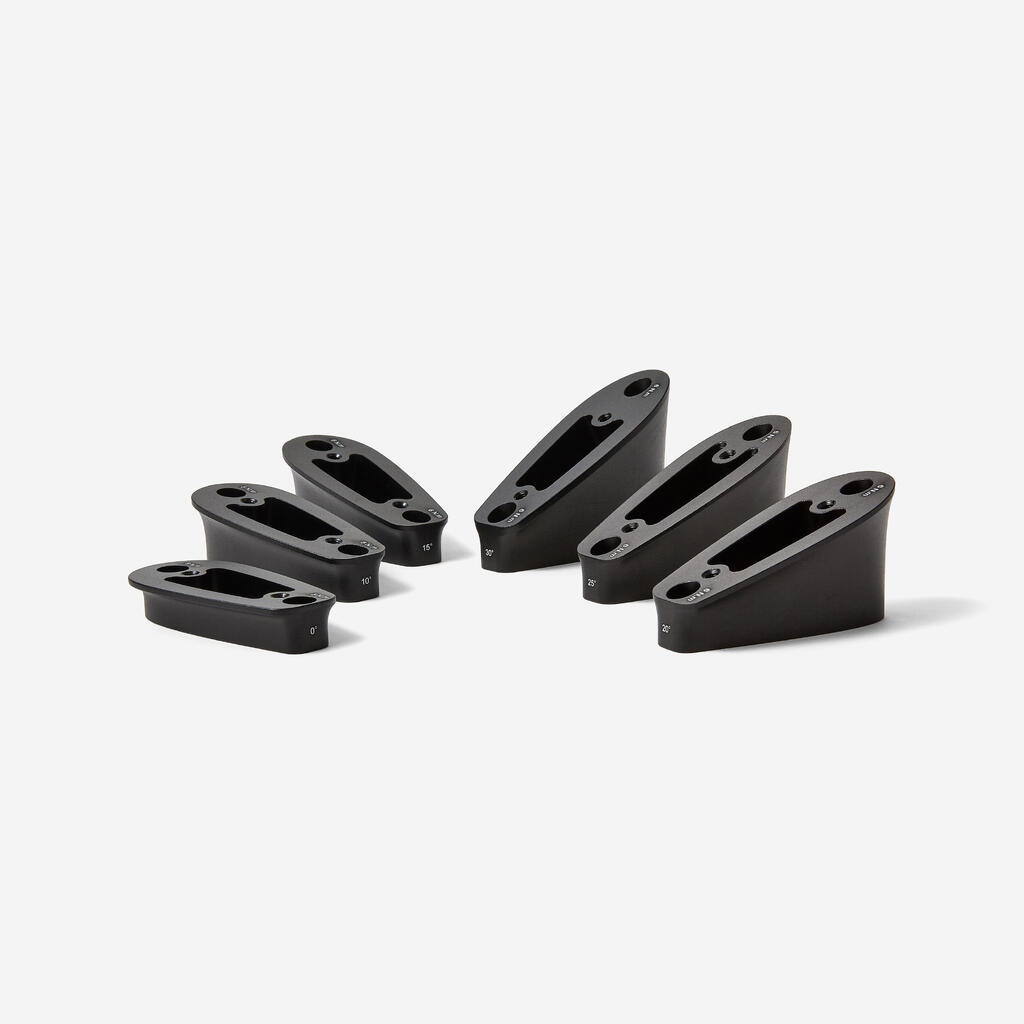

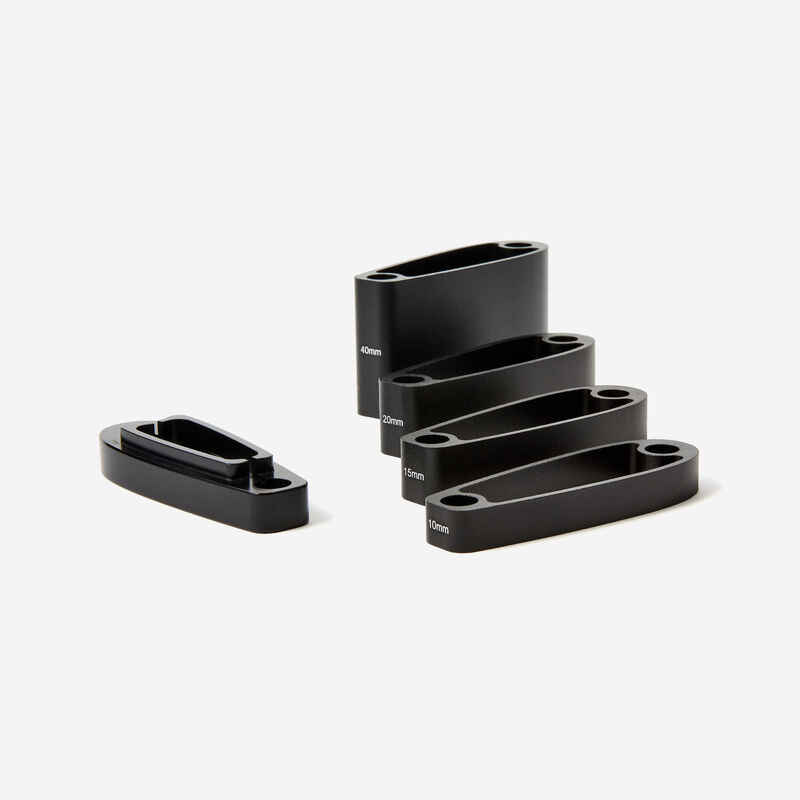

Multiple spacers for cockpit height and angle adjustments
Weight
8.5 kg in size M Frame: 1329 g Fork: 470 g
Efficiency
High modulus carbon frame and fork
TECHNICAL INFORMATIONS
XCR UCI / XCR TRIATHLON: WHAT'S THE DIFFERENCE
The XCR UCI was designed to meet UCI standards and thus limits the possible adjustments for riding position (depth and width)
The XCR Tri offers a riding position in compliance with the expectations of triathletes, with the ability to maximise adjustment lengths and widths using an attachment plate as well as triathlon-specific extensions and arm rests.
The Tri frame also includes a toolbox and a bento box.
Pedals
pedals not included

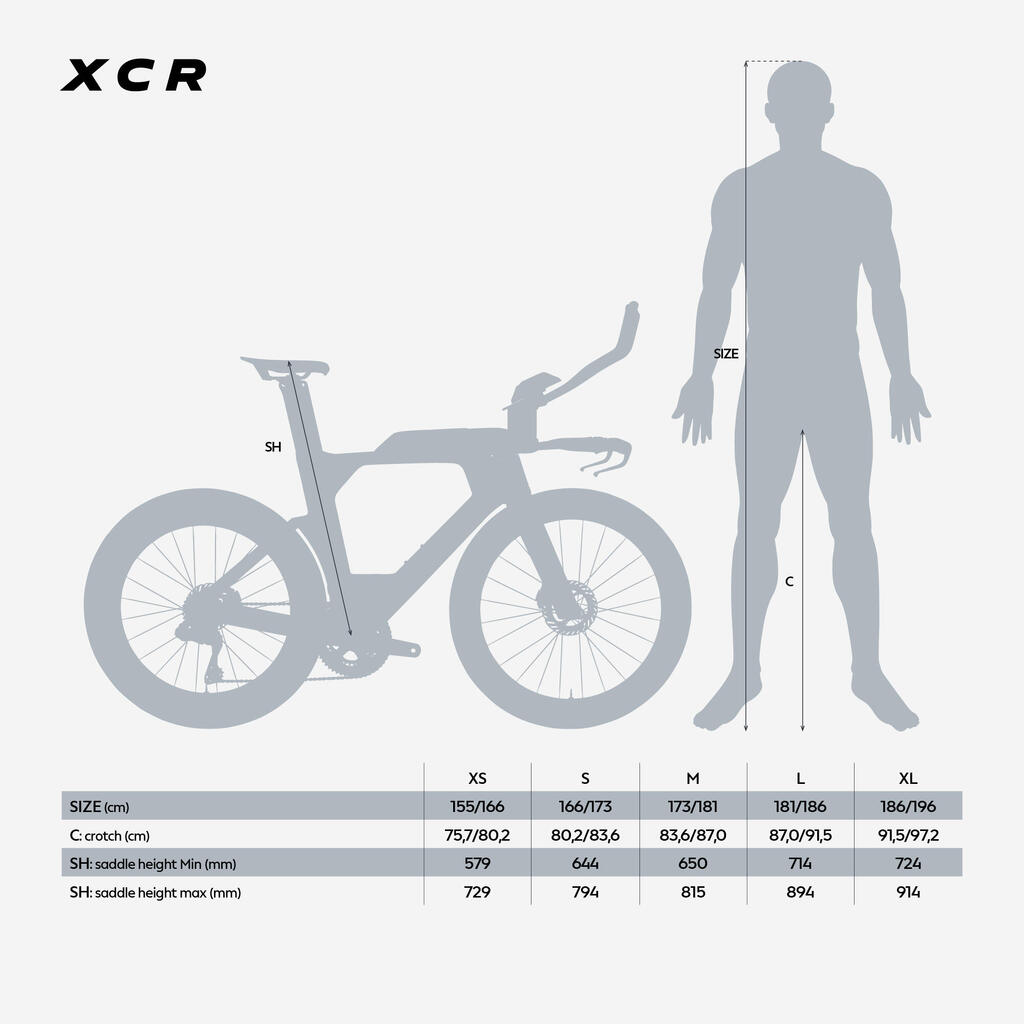

Which size?

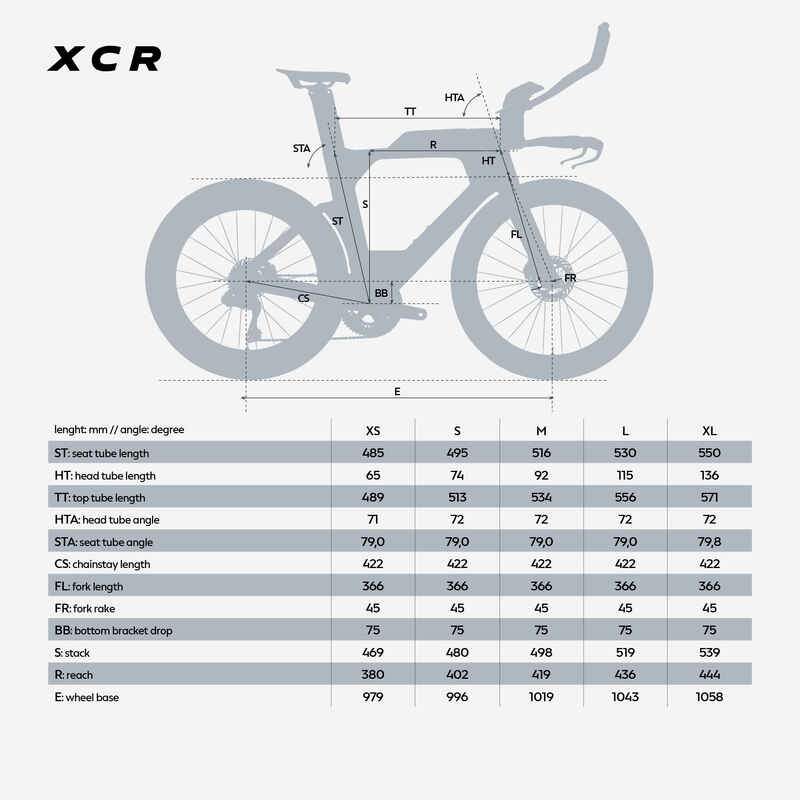

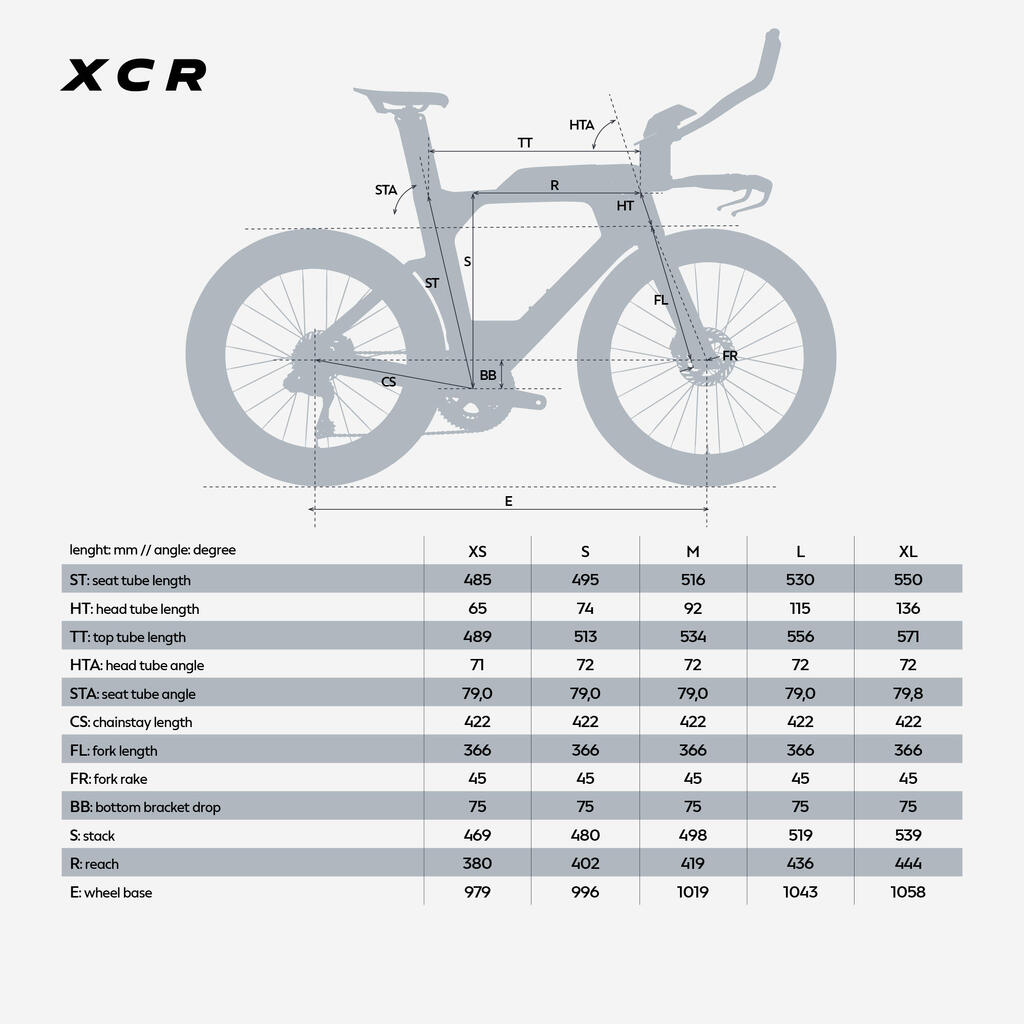

Please refer to the bike frame geometry table.
Ideally, we recommend doing a postural study in order to make the most of your bike's performance.
If you're between sizes, a shorter bike is better if you want something more responsive and lively. However, if you want to be comfortable when riding long distances, the bigger size is your best bet.
CARE ADVICE
Please note that it is important to regularly service your drive train, especially if you ride in difficult conditions (wet and/or dirty roads).
Regular maintenance will help your drive train to last for longer.
You should regularly check your chain with our chain wear indicator,
which is available on our website.
BEDDING IN PROCEDURE
Bed in your brakes on a flat, dry road with no obstacles.It's important to alternate between the front and rear brakes, and to work through the following steps:
Step 1: Ride at 15 km/h and gradually brake to slow yourself to 5 km/h, 10 times in a row.
Step 2: Ride at 20 km/h and gradually brake to slow yourself to 5 km/h, 10 times in a row.
Step 3: Ride at 25 km/h and gradually brake to slow yourself to 5 km/h, 10 times in a row.
Between each step, release and ride for a few dozen metres.
WARNING AND ADJUSTMENT
Please note: never squeeze the brakes without a wheel being attached, as you could get the brake pads stuck together.
If the rotor is touching the pads, here's how to realign the wheel and caliper:
- Loosen the wheel axle
- Brake hard and tighten the axle at the same time
- If the rotor is still touching the brakes, do the same thing and loosen the caliper
- If you're unable to resolve the issue, please visit one of our workshops.

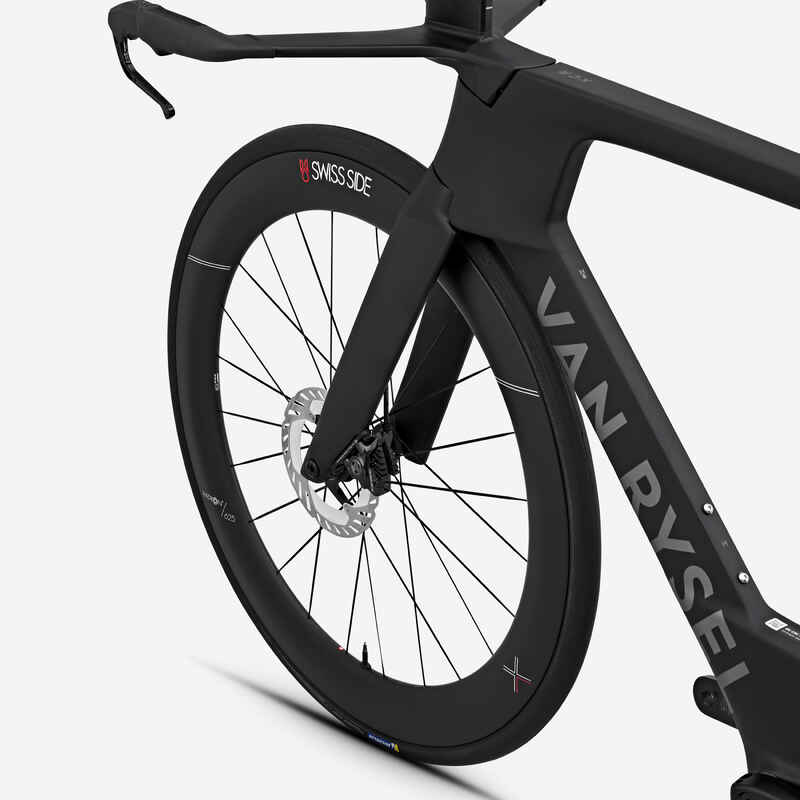

SWISS SIDE WHEELS / MICHELIN TYRES
The Swiss Side wheels are among the fastest on the market, and it makes complete sense that we chose the Hadron² Classic models, which are a gold standard in aerodynamics.
Front wheel: HADRON² Ultimate 625
Rear wheel: HADRON² Ultimate 800
With more economical DT Swiss spokes and hubs, the HADRON² Classic are the highest performance wheels.
Michelin Power Cup Tubeless ready 700x25 tyres
Recommended pressure: 5 - 8 bars
Max. tyre width: 30mm

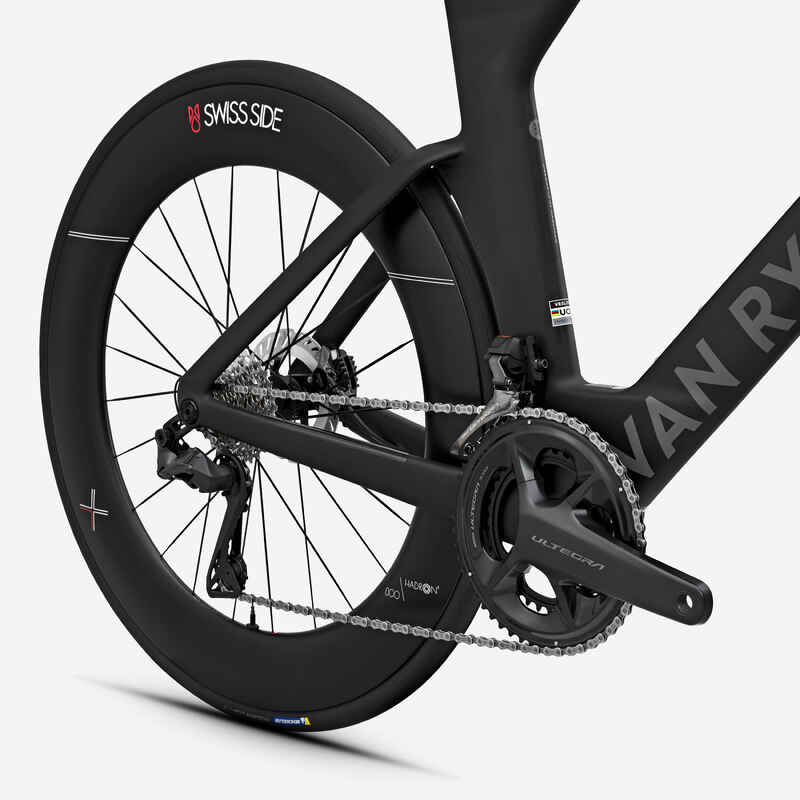

Shimano ULTEGRA Di2 groupset
We've chosen the CLM Triathlon Shimano Ultegra Di2 8170 groupset for its efficiency and reliability:
Shimano Dura Ace ST-R9180 left lever
Shimano Dura Ace ST-R9180 right lever
Pair of SW-R9160 buttons
Ultegra R8170 Hydraulic brake calipers
Ultegra FD-R8150 front derailleur
Ultegra RD-R8150 12-speed rear derailleur
R8170 11-30-speed cassette
R8170 52x36 bottom bracket
Crank sizes:
XS/S 170 mm
M/L 172.5 mm
XL 175 mm

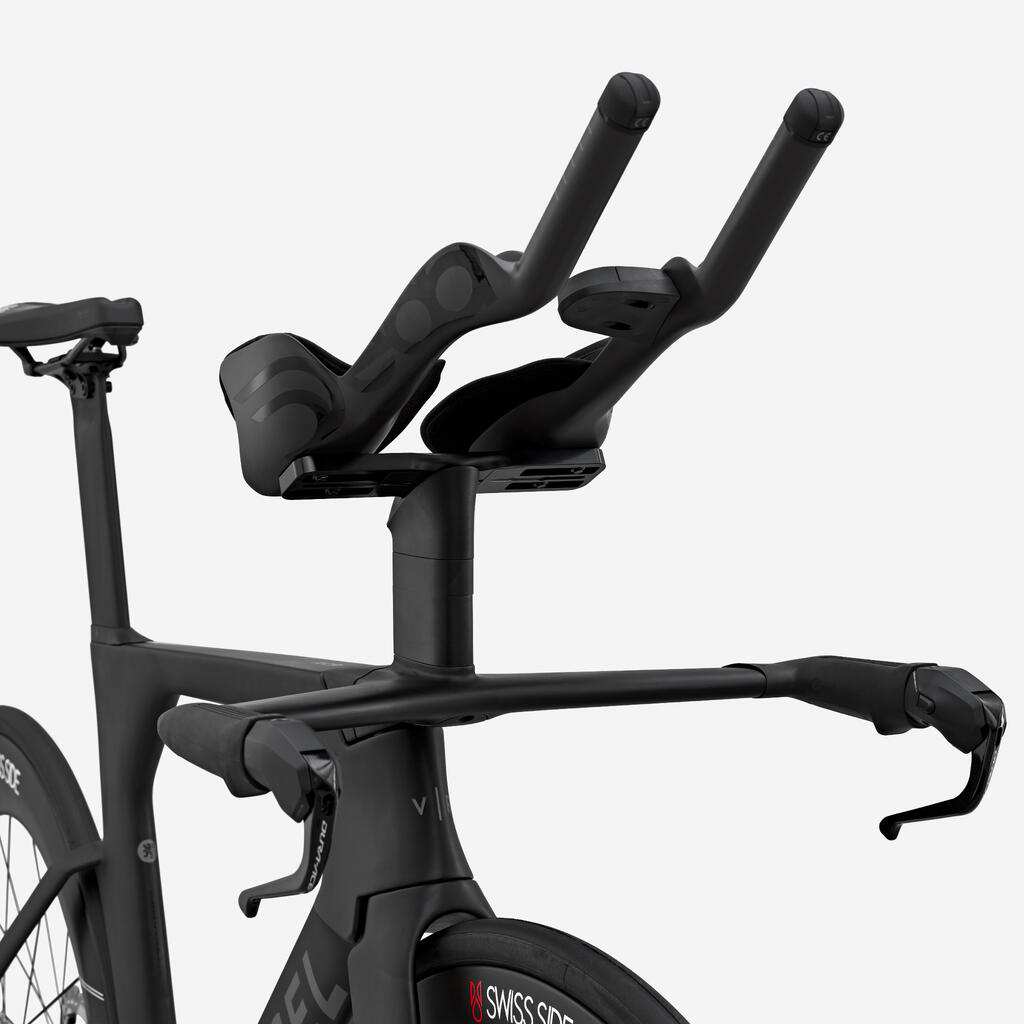

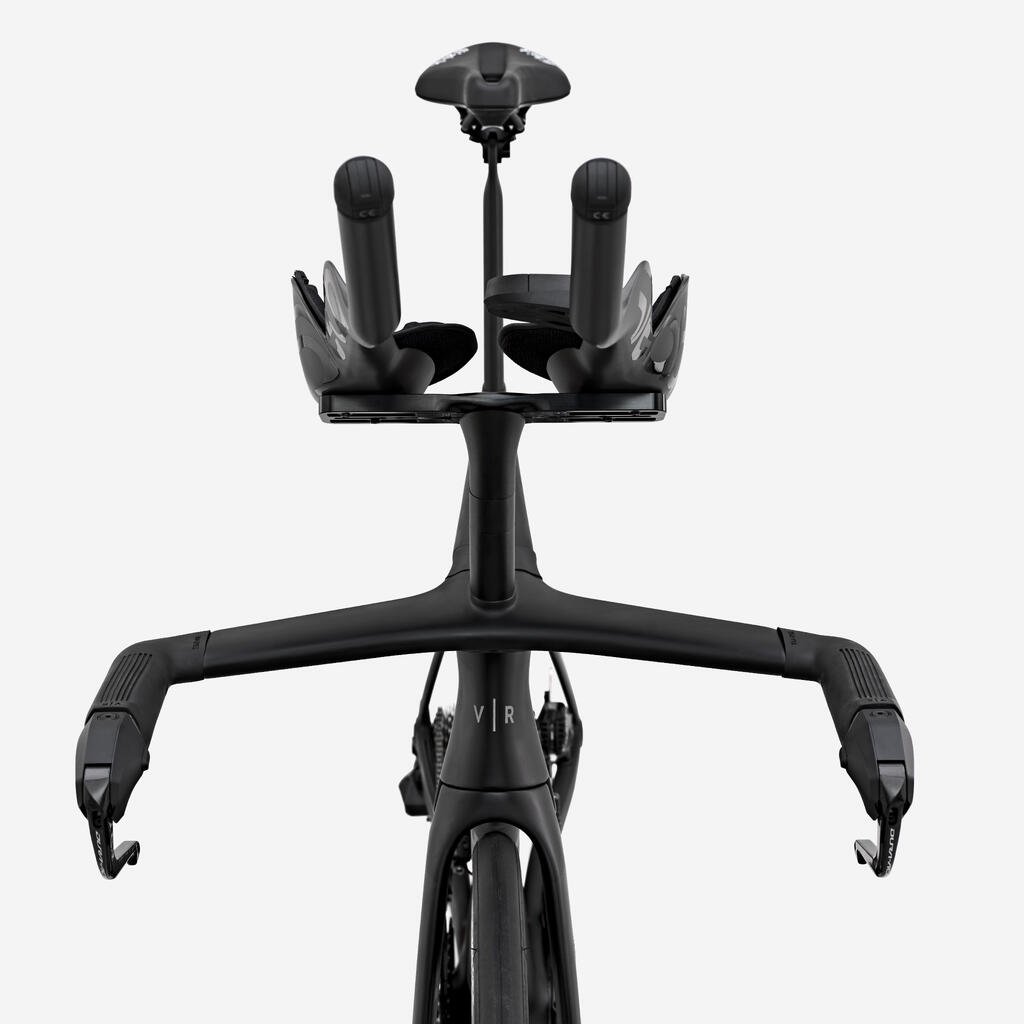

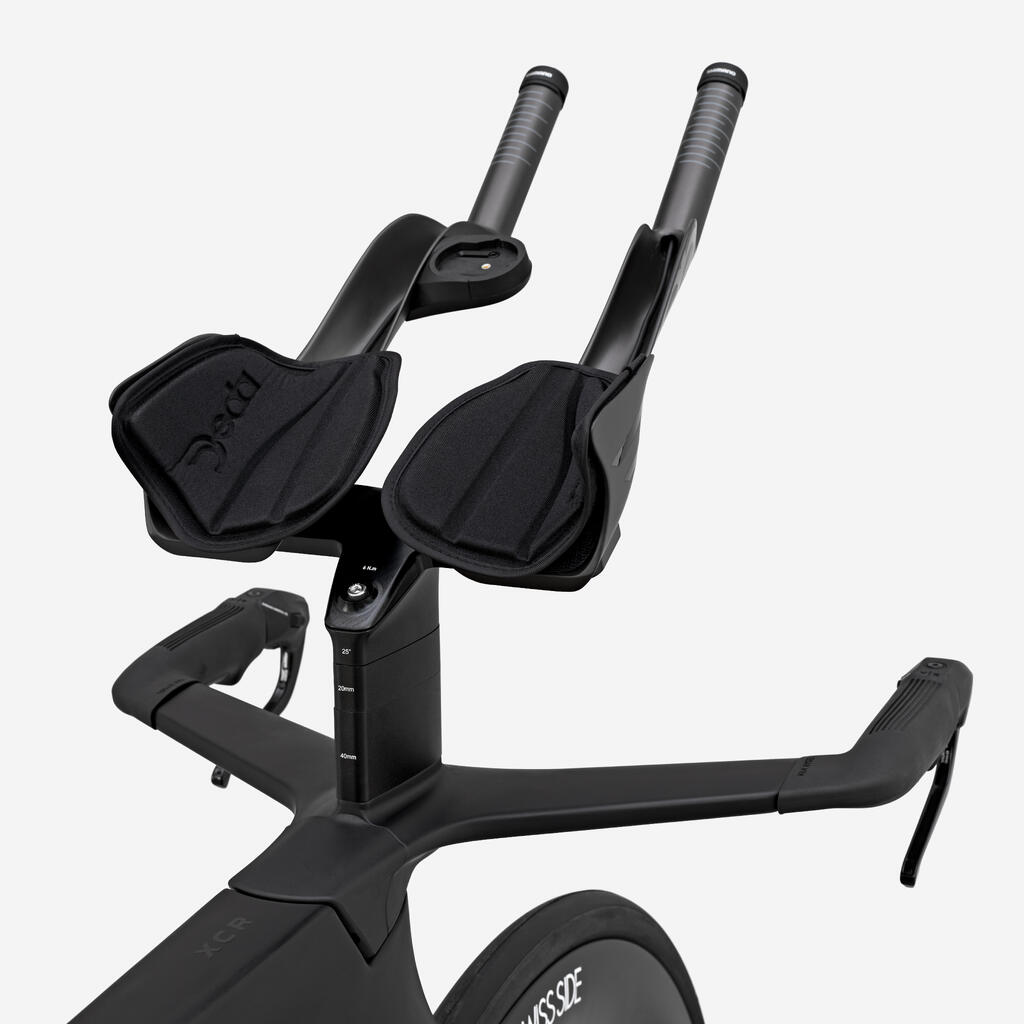

XCR UCI COCKPIT
The right position is an essential factor in performance, particularly when it comes to time trials.
We've designed a cockpit that allows for multiple adjustments: height, width, depth, and angle, using a variety of elements such as the extension support platform and various spacers.
As for the extensions, we've chosen the Deda Jet One carbon monocoque model for perfect ergonomics.

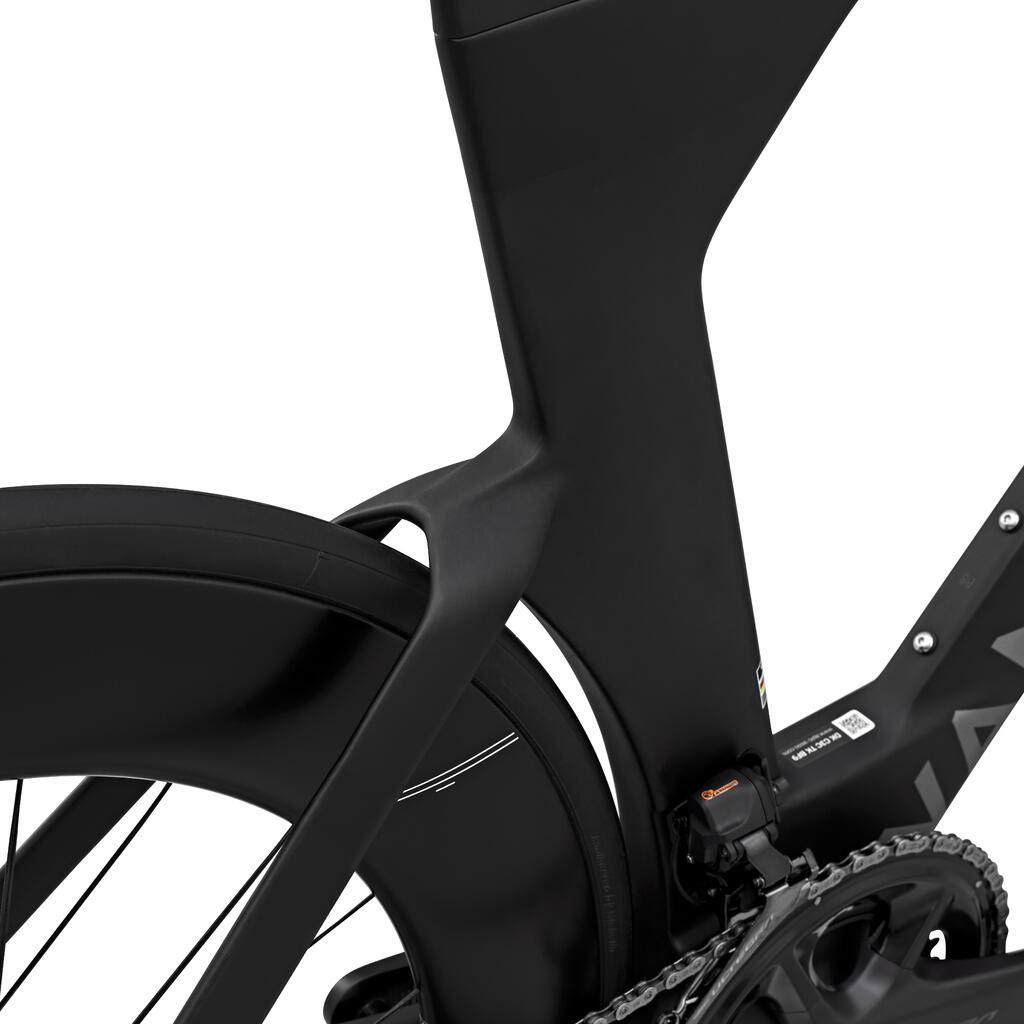

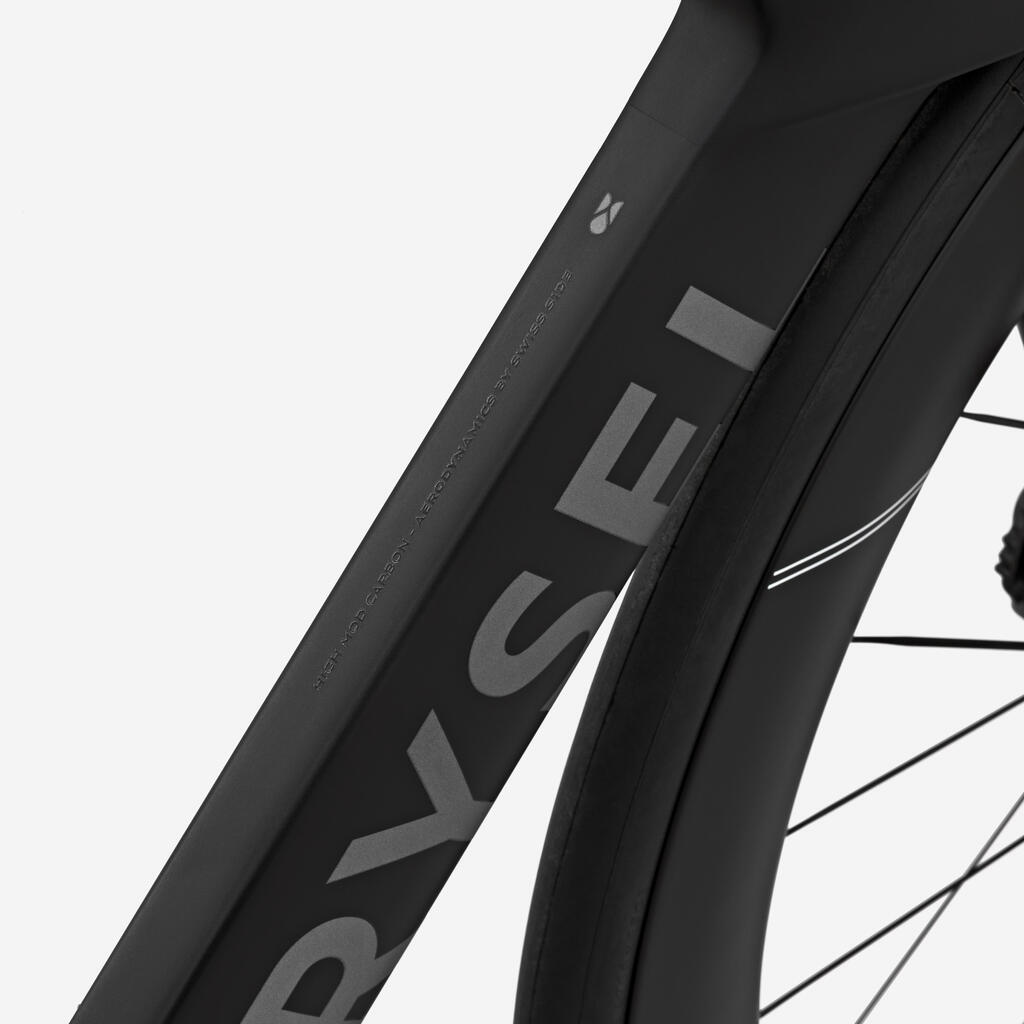

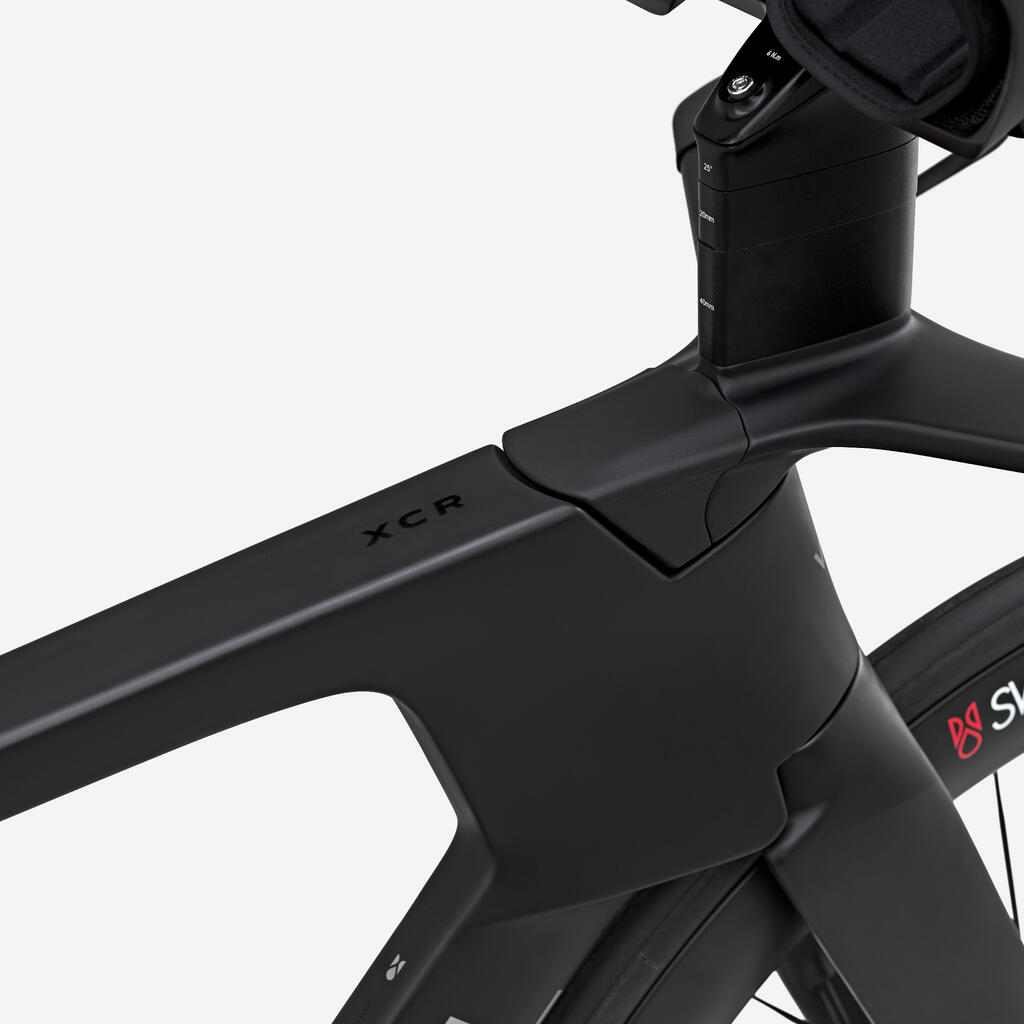

XCR UCI FRAME, A BEAST ON WHEELS!
The XCR frame is a high-modulus carbon frame that meets the demands of the highest-level cyclists.
It was designed with Swiss Side, whose expertise in aerodynamics allowed it to look for every opportunity for optimisation with no compromises.
It complies with UCI regulations and allows you to participate in time trials on roads.
The Decathlon AG2R Team and Van Rysel Roubaix cycling teams use the XCR on the world's greatest races, like the Tour de France.
SUPPORT
Find the user guide and all content available about the XCR by clicking the link below:
https://support.decathlon.fr/
composition
composition
Bike frame: 100.0% Carbon
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
TESTS AND WARRANTY
Agree by
Co-developed, tested, and approved by the Decathlon Ag2r Team and Van Rysel Roubaix professional cycling teams on the world's greatest races.
Parts guarantee
Our carbon frames and forks come with a 5-year warranty.
