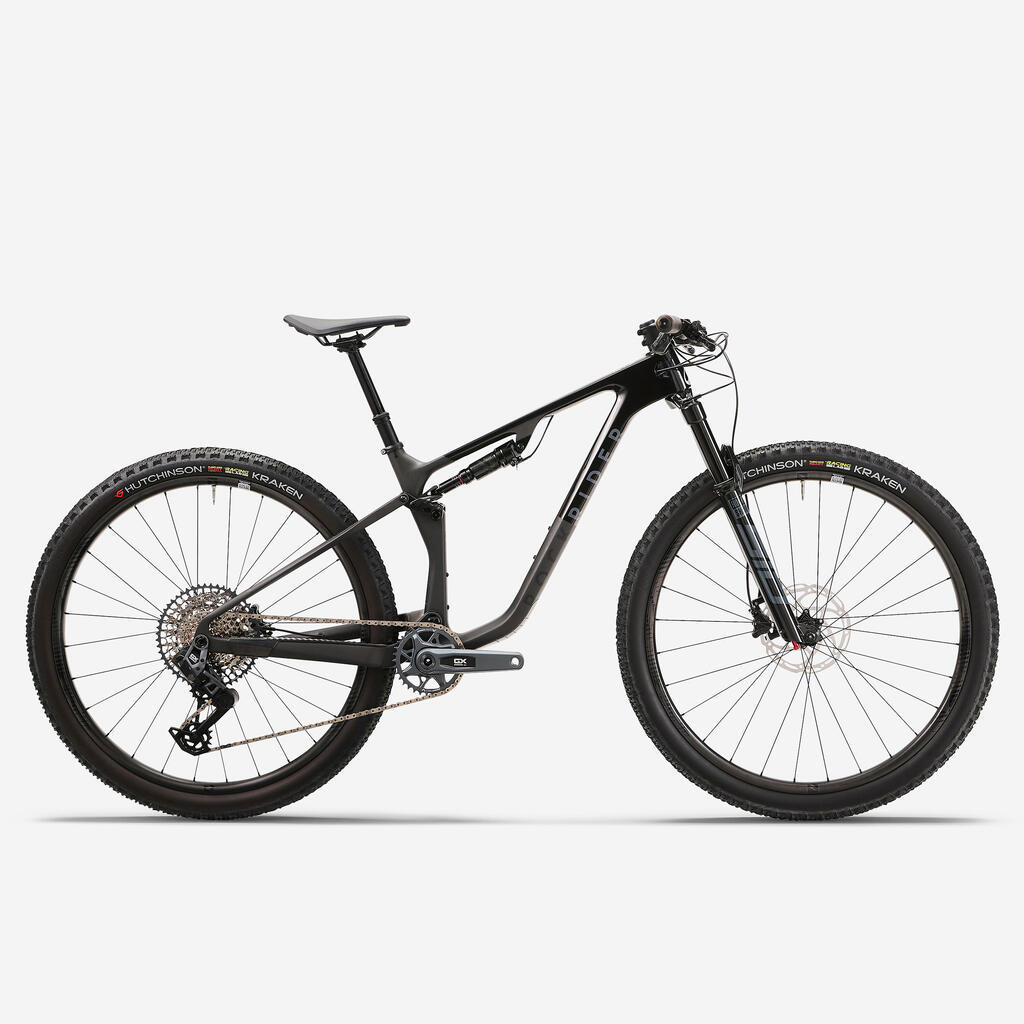

Mountain Bike Full Suspension XC Carbon Frame Race 940 S - Black
This MTB is designed for cross country (XCO and XCM) mountain bikers at a very high level of performance.
It was developed in collaboration with the Decathlon Ford Racing Team. With several World Cup podiums to its name and several medals in the national XCC and XCO championships!
BENEFITS
Directional control
31.6 mm light Tranz X Dropper telescoping seat post
Lightweight
Full carbon frame Weighs 1670 g in size M (gross without shock absorber)
Shock absorption
RockShox Sid 120 mm fork & RockShox Sid Luxe 120 mm shock absorber, 3 positions
Efficiency
Sram GX Eagle T-Type drive train, X-sync design
Braking power
TRP Slate X2 brakes with 180 mm front / rear discs
TECHNICAL INFORMATIONS
Weight
Size S: 11.4 kg
Size M: 11.5 kg
Size L: 11.6 kg
Size XL: 11.8 kg
Estimative net weight without pedals, with inner tube.
Frame
Composition: 100% carbon monocoque frame
Travel: 120 mm front/rear
Rear axle: 12 x 148 mm
Axle type: UDH
Chainset: PF92
Seat tube diameter: 31.6 mm
Bottle cage mount: double
Transmission
"SRAM GX AXS T TYPE"
Single chainring: 34 teeth.Cranks: 170 mm (S/M) / 175 mm (L/XL)
Rear derailleur: 12 speeds
Cassette: 10-52
Chain: SRAM GX T TYPE 12-speed
Compatible with 32/34/36/38, 52 and 55 mm chain line
Sold with a 32/34-tooth compatible anti-derailleur. 36/38-tooth anti-derailleur available from after-sales service.
Suspension
Fork: RockShox Sid Base
Travel: 120 mm
Dampers: 35 mm
Axle: thru axle
Format: 110 x 15 mm "Standard"
Lockout type: Remote 3 position
Shock: RockShox Sid Luxe Select +
Travel: 120 mm
Dimensions: 190 x 45 mm
wheelset
Reynolds TR309/289 XC 29
1665 g
Carbon fibre, hookless, Tubeless Ready rims
Width: 30 mm / 28 mm
Freehub: Reynolds TR MTN
Spokes (front/rear): 24 / 28 - Sapim Sprint (red version) - 28 / 28 - Sapim Sprint (black version)
Centerlock disc mount
Lifetime guarantee (subject to registration on the Reynolds website)
BRAKES
Hydraulic
TRP Slate X2
Number of pistons: 2
Front disc: 180 mm
Rear disc: 160 mm
Riding position
Rockrider aluminium stem
-20° angle
60 mm in size S
60 mm in size M
70 mm in size L
70 mm in size XL
Rockrider aluminium flat handlebar
760 mm wide
6.5° angle
256 g
Grips: Sram Silicone
/ Seat post
Saddle (red version)
FIZIK VENTO ARGO R5
Rail: Round rails in S-Alloy.
Weight: 225 g (regular)
Saddle (black version)
Rockrider Short Nose saddle
Length = 260 mm
Width = 148 mm
Weight = 308 g
Rail = 7.2 mm in diameter
Rail material = Steel
Seat post: Tranz X Dropper Seat Post 31.6 mm light
Travel: 120 mm size S and 150 mm size M, L, XL
Tyre
Front:
Hutchinson Kraken Racing Lab 29 x 2.30
Tubeless Ready
Race Ripost XC compound
127 TPI carcass
Weight: 700 g
Rear:
Hutchinson Kraken Racing Lab Hardskin 29 x 2.30
Hardskin protection
Tubeless Ready
Race Ripost XC compound
66 TPI carcass
Weight: 800g
PEDALS
Rockrider Flat Evo Resin
ACCESSORIES INCLUDED
- SRAM AXS battery charger
- 2 bottles of Hutchinson 120 ml sealant + 2 tubeless valves for switching to tubeless
- Torque spanner
- Top tube protector with instructions
- Front and rear lights
- Assembly instructions
- Disc spacer
composition
composition
Bike frame: 100.0% Carbon
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
Storage tips
After washing, pass a dry cloth to remove all traces of moisture. Lubricate the drive train and store the bike in a cool, dry place away from corrosive products and salty air.
Restrictions on use
Not suitable for MTB DH, Enduro and BMX use.
TESTS AND WARRANTY
Agree by
The Rockrider Ford Racing professional team during the 2023 season; Our engineers always have real riders test all our products in real conditions. These tests round out our lab tests and let us validate all our products before they hit store shelves.
Parts guarantee
5 years for the frame 2 years for parts (excluding normal wear)
