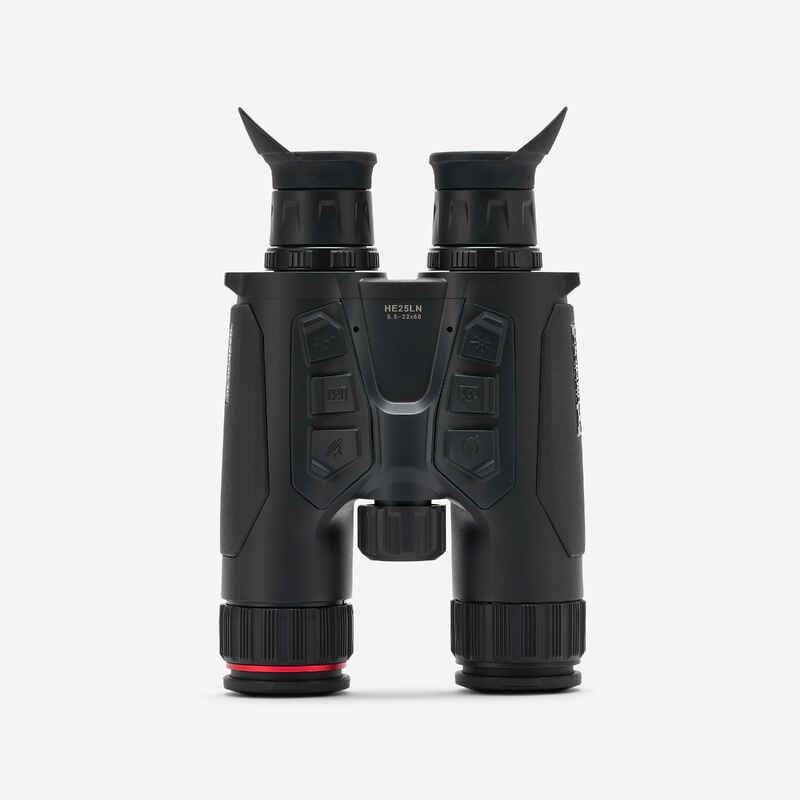

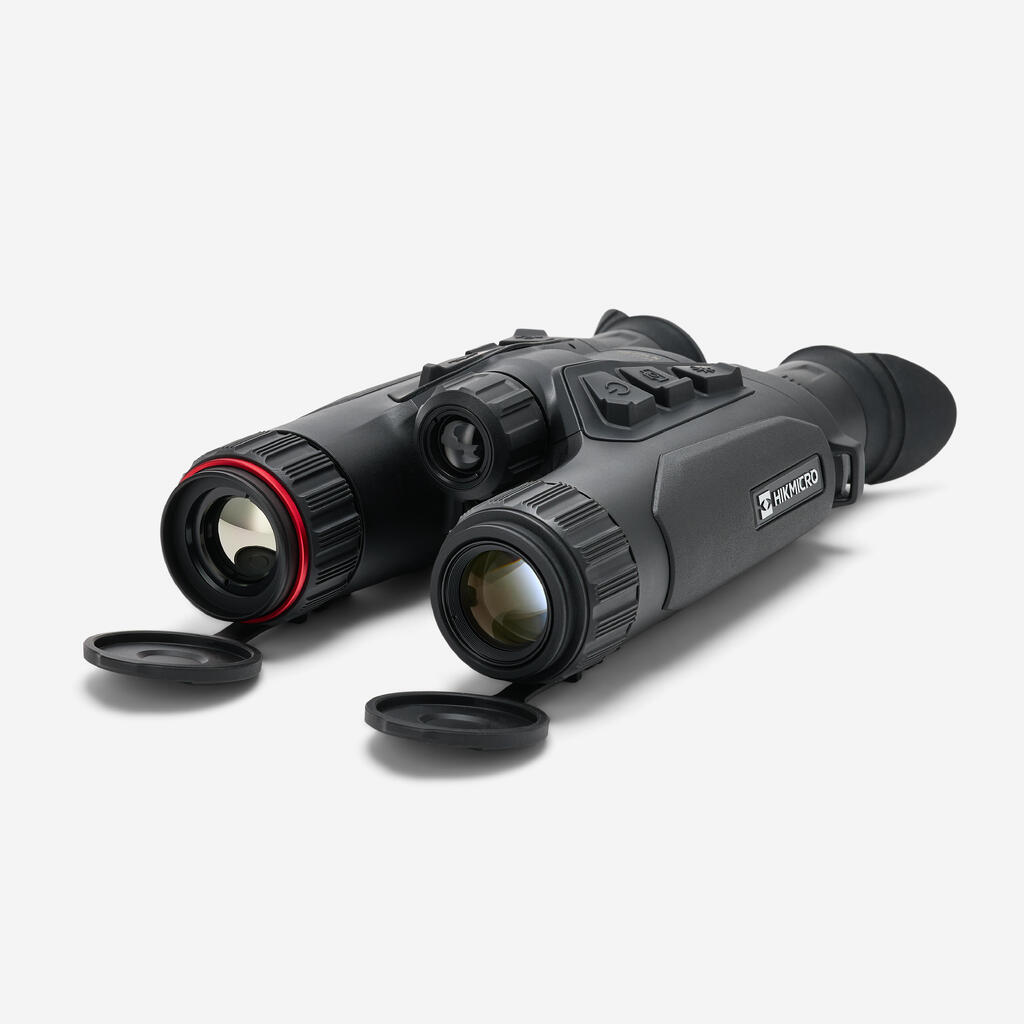

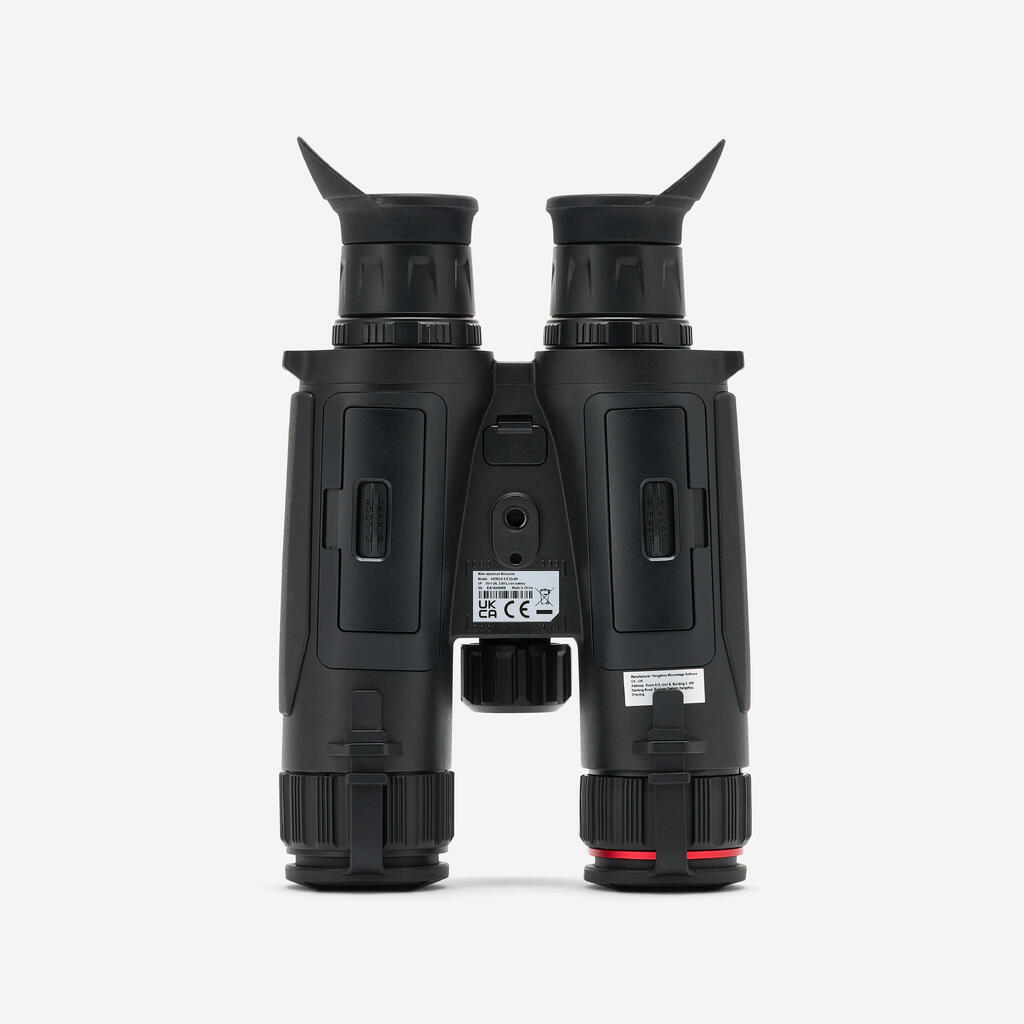

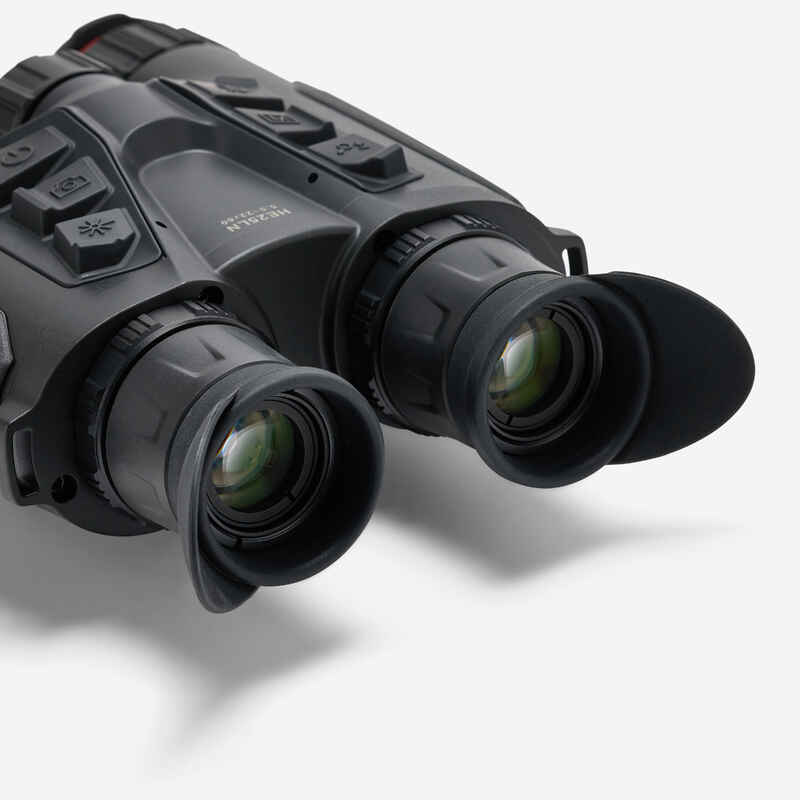

Thermal imaging binoculars Habrok 4K HE25LN 5.5-22X60
Designed to cope with any situation, day or night, thanks to two sensors - optical and thermal!
First there’s an optical sensor with a zoom of 5.5 to 22, and there is also a 256 × 192 thermal sensor coupled to a rangefinder with a 1000 metre range. All in all, a high-performance combo.
BENEFITS
Autonomy
Replaceable battery, up to 8 hours continuous operation
Magnification
In-image digital zoom from 5.5x to 22x in optical mode
Range
Maximum detection range of 1,200 metres
Image quality
256 × 192 thermal sensor connected to a 1920 x 1080 OLED display
Distance
A laser rangefinder with a range of 1000 metres
Field of vision
Focal length: 25 mm Field of vision at 100 m: 7.0° × 5.3° / 12.2 m × 9.3 m
Weight
795 g; dimensions: 138 mm × 68.2 mm × 223 mm
TECHNICAL INFORMATIONS
Screen
DISPLAY: 0.49 inch, OLED, 1920 × 1080
Pallets: Thermal Warm White, Warm Black, Warm Red, Fusion / Optical: Day, Night, Auto
FFC mode FLAT FIELD CORRECTION): Auto, Manual, External correction
Exit pupil: 8 mm
Eye relief: 15 mm
Dioptery: -5 D to +3 D
Brightness adjustment: Yes
Tone adjustment: Cold, warm
Contrast adjustment: Yes
Image pro: Yes
Zoom pro: Yes
System
Built-in memory: 64 GB
Video recording: Yes
Photo recording: Yes
Audio recording: Yes
Standby mode: Yes
PIP: Yes
Hotspot: Yes
Follow the hot point: Yes
GPS: Yes
Digital magnetic compass: Yes
Local album: Yes
Power source
Battery type: replaceable and rechargeable Li-ion battery
Battery operating time: 8 hours continuous operation with hotspot function deactivated (@25°C)
TYPE-C POWER SUPPLY: Yes
General
Protection level: IP67
Dimensions: 138 mm × 68.2 mm × 223 mm
Weight: 795 g without battery
Working temperature: -30°C to 55°C
Interpupillary adjustment range / 60 mm to 70 mm
Mounting adaptor: 1/4’’-20 UNC
Optical module
Image sensor: 1.88" progressive-scan CMOS
Max. resolution: 3840 × 2160
Focal length: 60 mm
Aperture: F2.2
Image enhancement: Yes
Min. focus distance : 3 m
Magnification: 5.5 - 22.0 (x4 zoom)
Field of view (h × v), degrees/m @100 m: 6.9° × 4.1° (h × v)/ 12.0 m × 7.2 m @ 100m
Smart IR: Yes
Illuminator wavelength: 940 nm
Night vision range: 350 m
Thermal module
Sensor : VOx uncooled focal plane arrays
Resolution: 256 × 192
Frame rate: 50 hz
No pixel: 12 μm
Spectral band: 8 µm – 14 µm
NETD: < 35 mk (@25°c, f# = 1.0)
Lens (focal length): 25 mm
Aperture: f 1.0
Digital zoom: 1 ×, 2 ×, 4 ×
Magnification: 4.3 - 17.2 (x4 zoom)
Detection range: 1200 m
Min. setting distance 3 m
Focus mode: Manual
Field of view (h × v), degrees/m @100 m: 7.0° × 5.3° (h × v)/ 12.2 m × 9.3 m @ 100m
Laser rangefinder
Laser safety class: Class 1
Wave length: 905 nm
Max. measurement range: 1000 m
Accuracy of measurement: ± 1 m
Min. measurement distance: 10 m
Main features
256 × 192 resolution with @12 μm thermal sensor
High sensitivity thermal detector NETD < 35 mK (@25°C, F# = 1.0)
25 mm F1.0 lens with detection range up to 1200 m
High resolution 3840 × 2160 4K CMOS sensor
60 mm F2.2 digital lens with 5.5x to 22x digital zoom
0.49-inch OLED display with 1920 x 1080 resolution
Integrated 940 nm IR lamp
Precision laser rangefinder (±1 m) with distance measurement up to 1000 m
Lightweight at 795 g
TESTS AND WARRANTY
Warranty
2 Years
