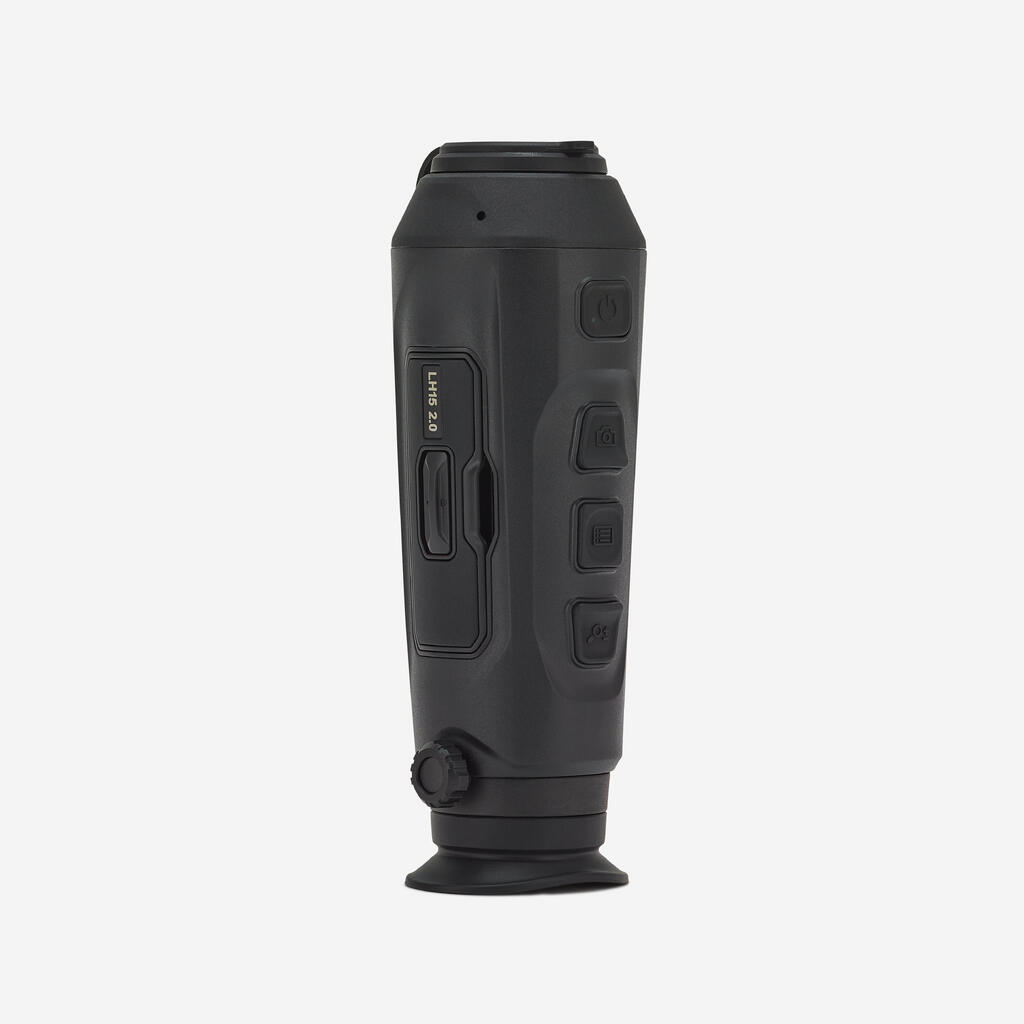

Thermal imaging field scope Lynx LH19 2.0 384x288 sensor
The lowest price in the 30 days before the discount was €1,380.00
This thermal vision field scope allows you to view and record images of animals in complete darkness, thanks to its infrared radiation.
A clear view in total darkness at up to 900 m! With a 384 × 288 thermal sensor and a 1024 × 768 OLED screen. Not a single animal will go unspotted. 4 colour modes.
BENEFITS
Autonomy
Replaceable battery, up to 8 hours continuous operation
Magnification
Zoom from 1.86x - 14.88x (8x): thermal digital zoom
Image quality
384 × 288 thermal sensor connected to a 1024 x 768 OLED display
Distance
Maximum detection range of 900 m.
Field of vision
Focal length: 19 mm field of vision at 100 m: 17.5°×13.1°/ 24.5 m× 18.3 m
Weight
272 g without battery, 164.0 mm × 56.0 mm× 60.8 mm
TECHNICAL INFORMATIONS
General
Power: 5 VDC/2 A, 1.5 W, Type-C interface
Operating temperature / Humidity: -20°C to 55°C; Humidity: 90% or below
Protection factor: IP67
Dimensions: 164 mm × 56 mm × 61 mm
Weight: 272 g without battery
Display screen
Monitor: 0.39 inch,
0.39 inch OLED screen with 1024 × 768 resolution
Pallets: Hot black, hot white, hot red, fusion
Digital zoom: 1.4 to 11.2x
Sensor:
Resolution: 384 × 288 pixels
Frequency: 50 Hz
Pixel pitch: 12 μm
NETD: ≤ 20 mk (@25°C), F#=1.1
Detection distance: 750 m
Focal: 15 mm
Field of view: 17.5° × 13.1° / 30.8 m × 23.0 m at 100 metres
Aperture: F1

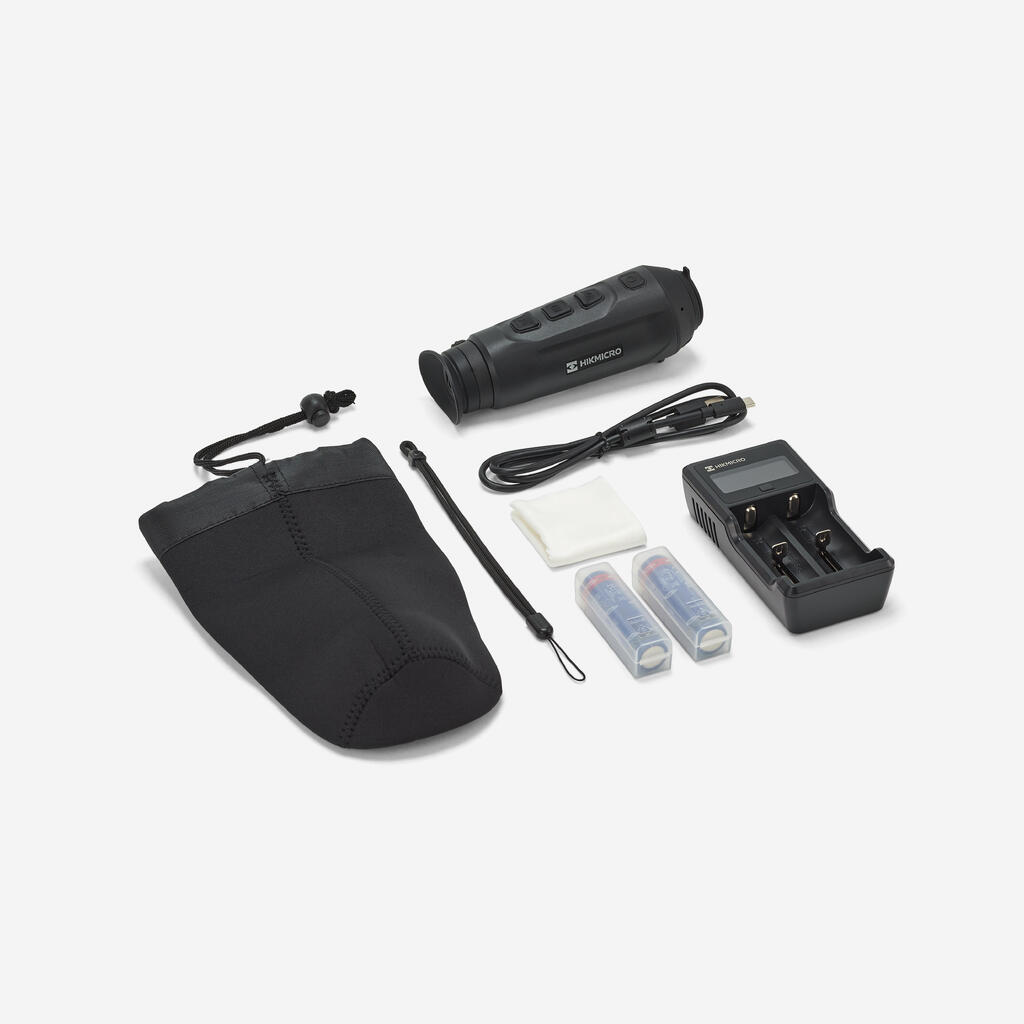

Comes with
1 quick start guide
1 anti-dust cloth
1 USB cord
1 protective pouch
1 wrist band
removable battery
Main features
High-sensitivity thermal module with 384 × 288 pixel resolution
NETD < 20 mK (@25 ° C F#=1.0)
Monitor with 1024 × 768 pixel resolution

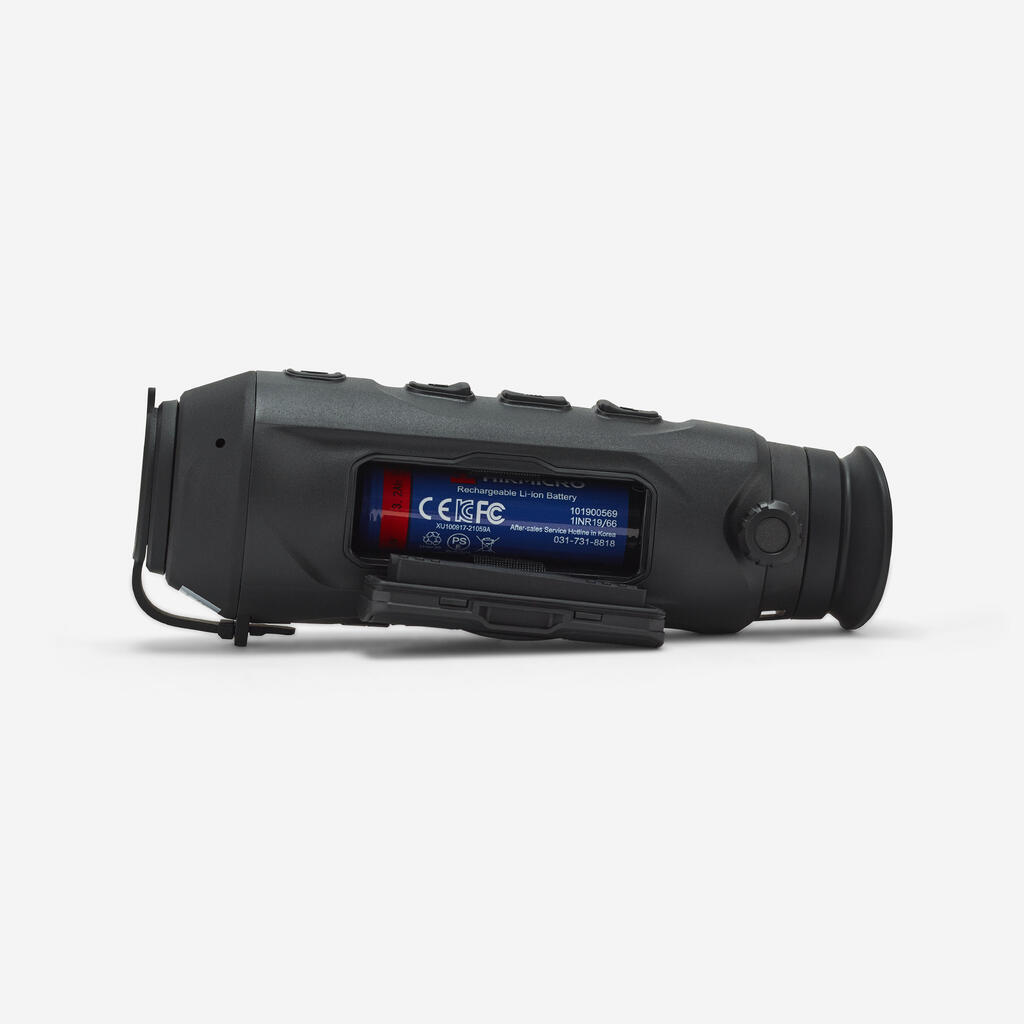

Removable and rechargeable battery
Up to 6.5 hours of autonomy on a single charge
Wi-Fi Hot spot
Type-C interface
Dimensions: 158.3 mm × 61 mm × 57 mm
Heat tracking: Yes
Detection range: 900 m
TESTS AND WARRANTY
Warranty
2 Years
