BTWIN
Ref.
8771485
4698195
Folding Bike Fold 560 Lacquered Aluminium
€620.00
Tax included
Store Availability
Store Availability

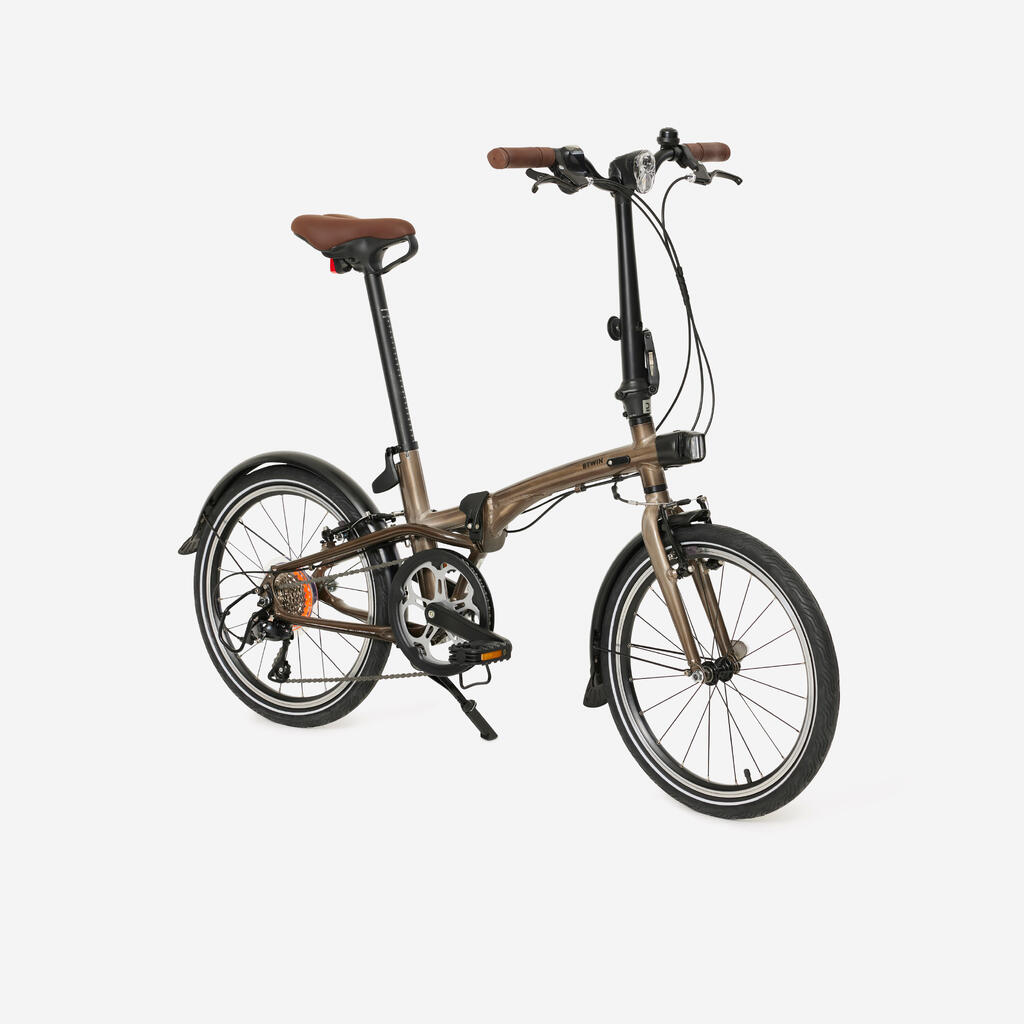

With its nine speeds and lightweight aluminium frame, this bike is the lightest, most efficient and comfortable of our 20" folding bikes.
BENEFITS
Compact design

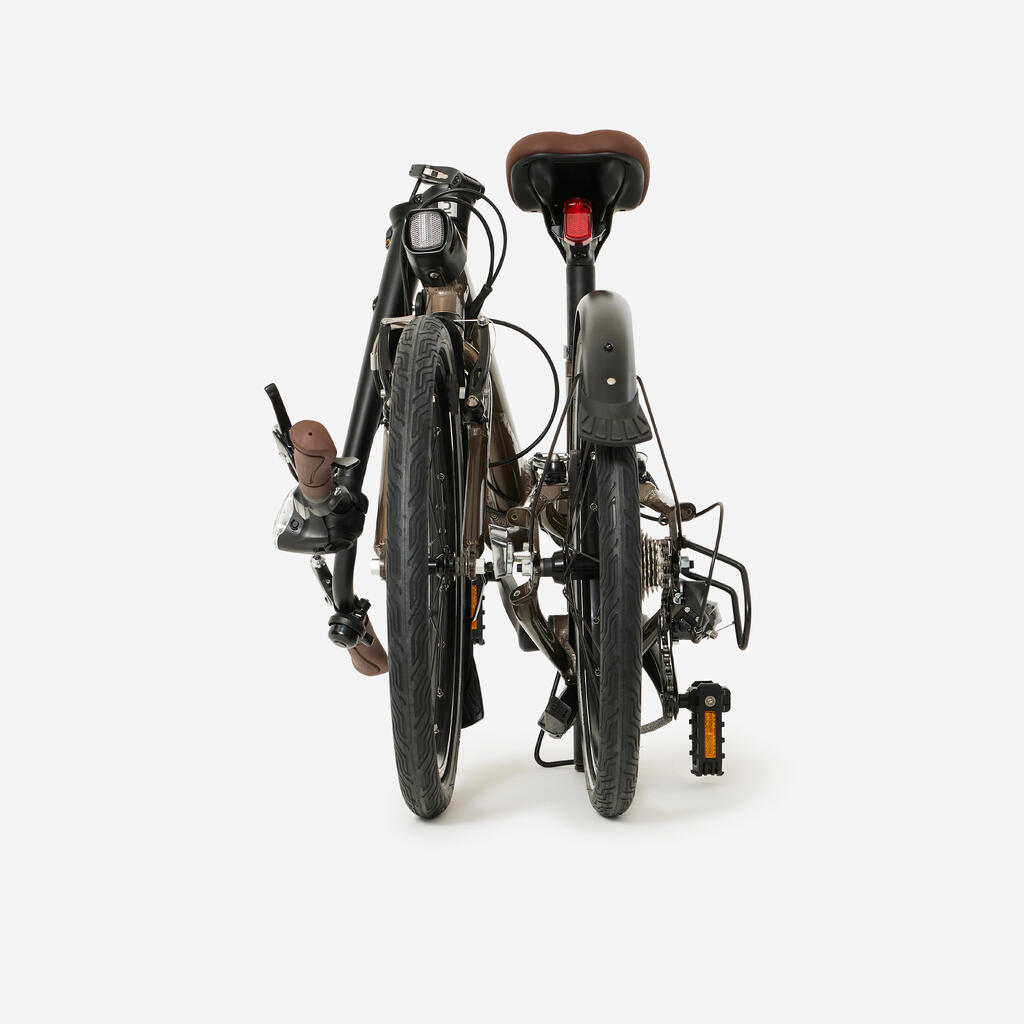

Folded L/H/W: 78 x 66 x 44 cm.Unfolded L/H/W: 148 x 110 x 59 cm
Easy opening / closing
Takes just 15 seconds to unfold and switch from pedestrian to cyclist.
Lifetime warranty
Lifetime warranty on the frame, stem (excl. hinge), rigid fork and handlebar.
Number of speeds
The nine speeds let you go faster and farther, even up hills.
Weight
12.2 kg

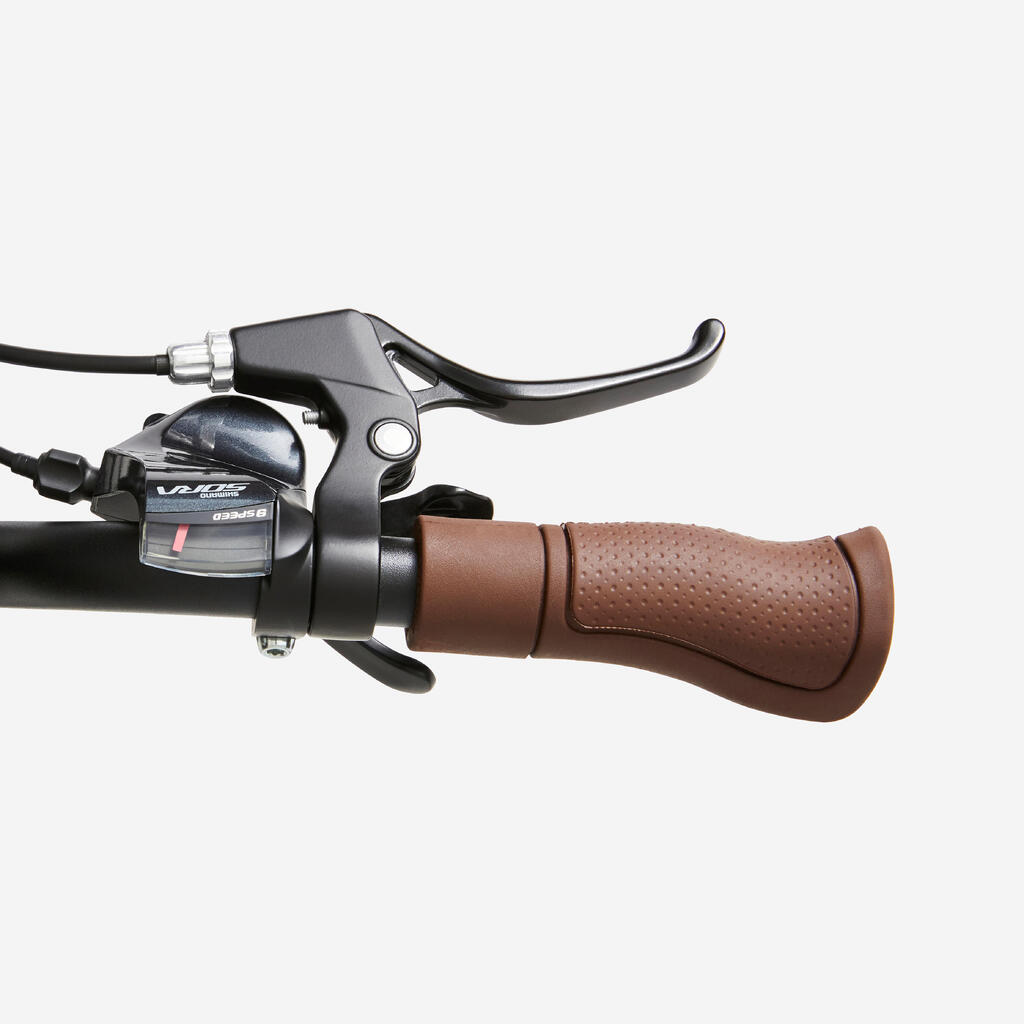

Sitting comfort
Enjoy the comfort of ergonomic handles and a saddle with memory foam.TECHNICAL INFORMATIONS
What's new in the 2024 version compared to the previous version.
Thanks to your feedback we have made changes to improve your experience.
- The lights are now USB rechargeable, more powerful and positioned higher. - Integration of the front carrying interface for the 25 L front bag (ref: 8735484). - Length-adjustable stand.
- Built-in interface for smartphone mount on handlebar.
- New lever on the seatpost clamp for better clamping force.- Magnets to keep it folded.
- Handle under the saddle.
- The lights are now USB rechargeable, more powerful and positioned higher. - Integration of the front carrying interface for the 25 L front bag (ref: 8735484). - Length-adjustable stand.
- Built-in interface for smartphone mount on handlebar.
- New lever on the seatpost clamp for better clamping force.- Magnets to keep it folded.
- Handle under the saddle.
Frame
6061 T6 aluminium frame—lightweight, dynamic and sturdy.

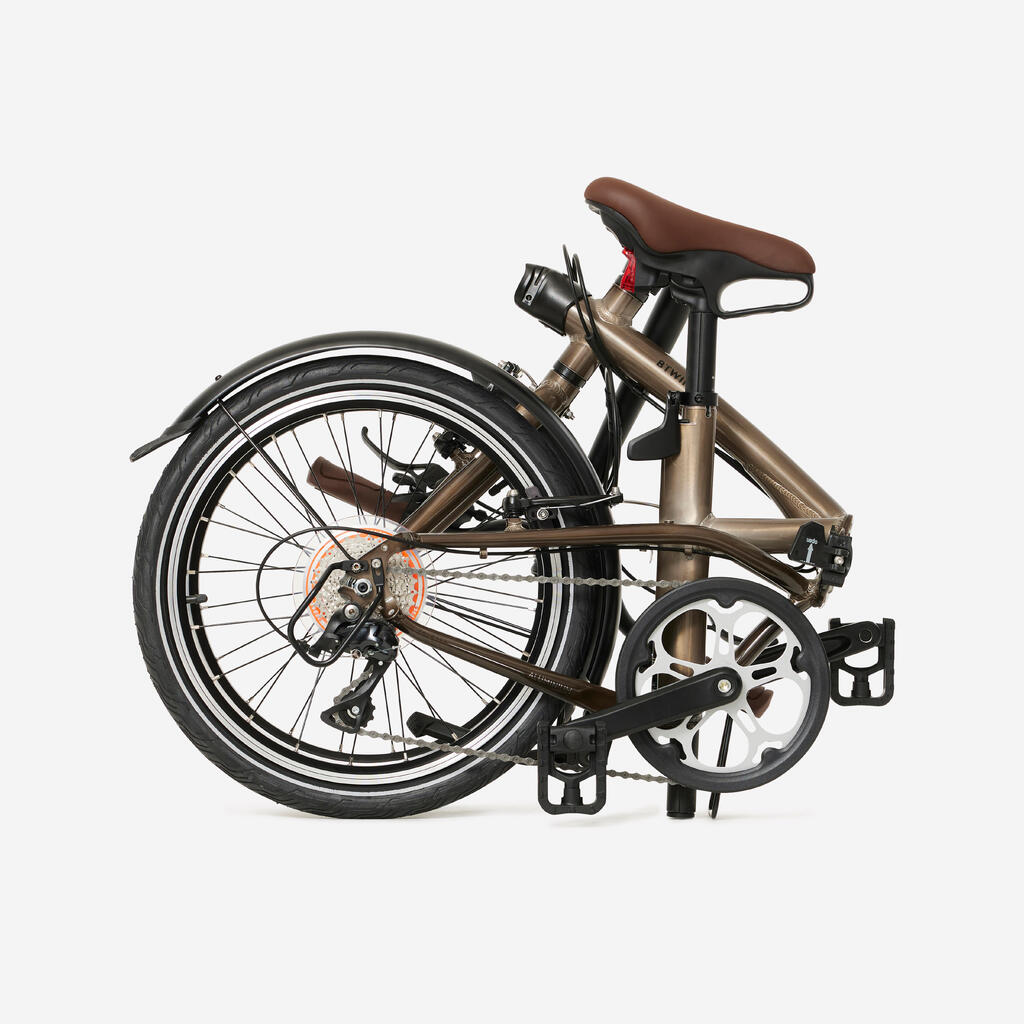

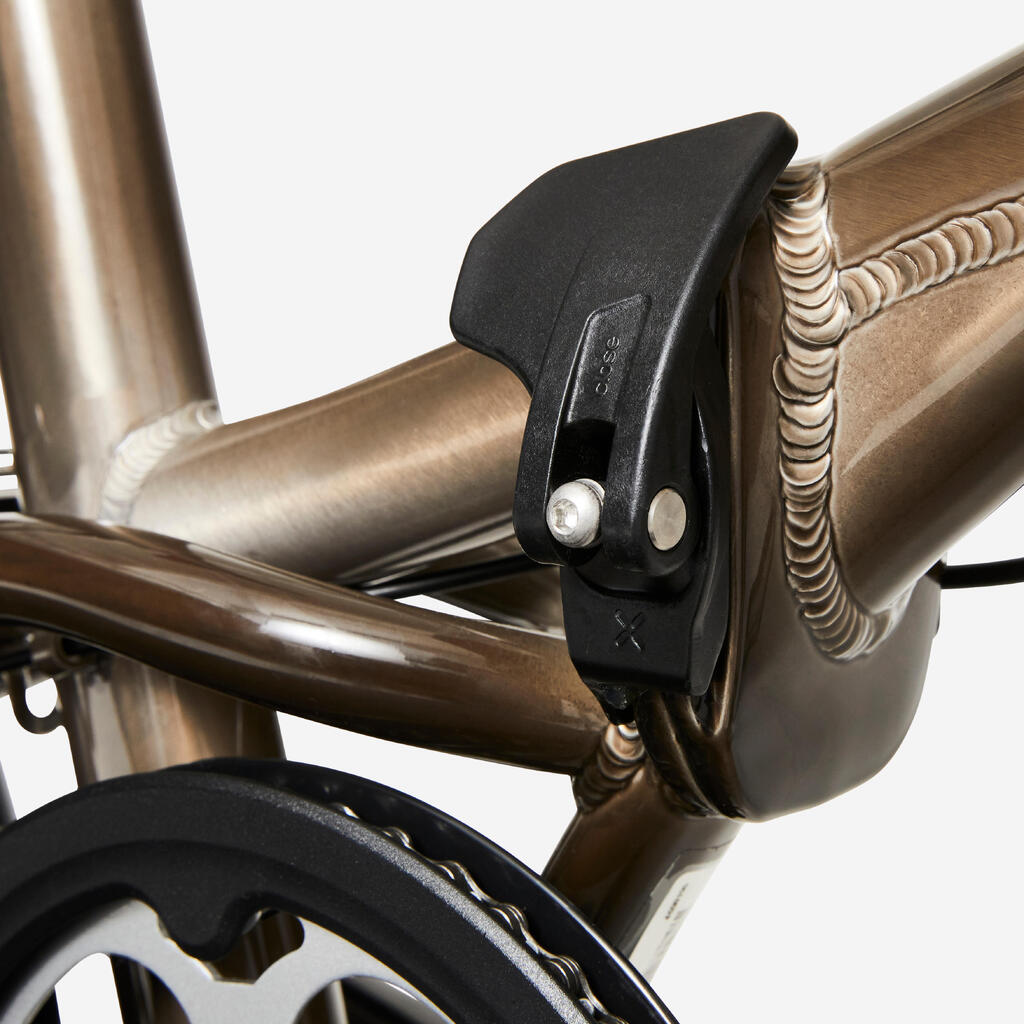

The very easy side-fold system with a lever helps to save up space: at home, at the office, in the boot of a car or in a camper... you'll forget your bike is even there.

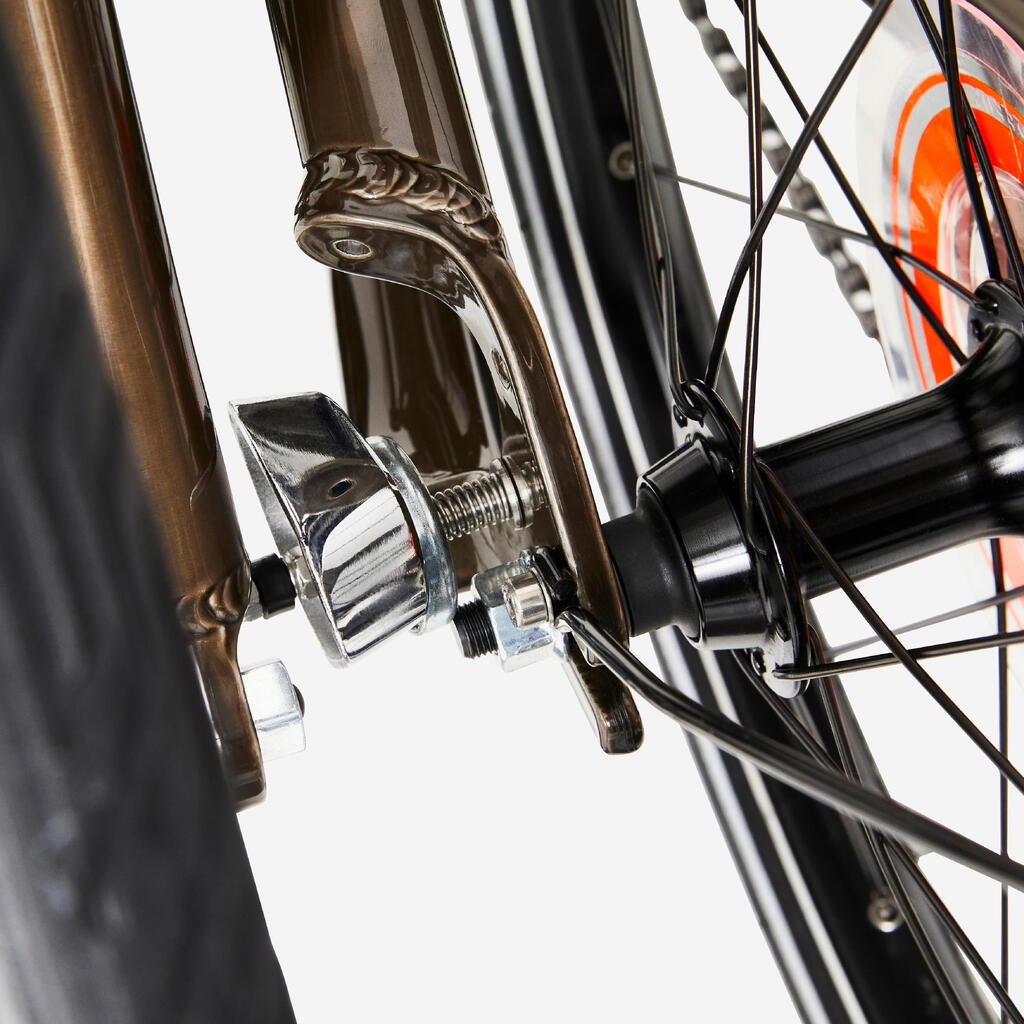

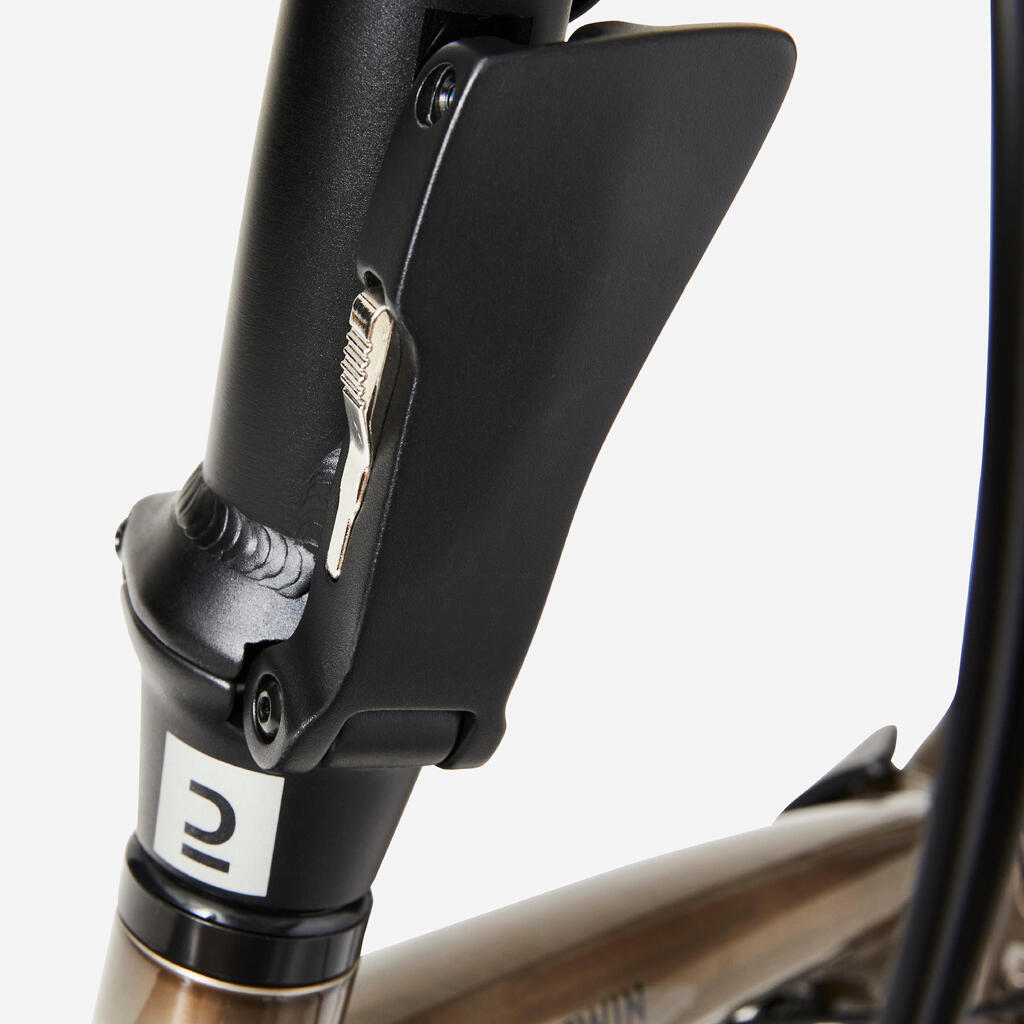

There is a mechanism to quickly lock the frame and stem so that you can keep the bike folded and transport it easily.
Frame with a stand for better stability once folded.
The very easy side-fold system with a lever helps to save up space: at home, at the office, in the boot of a car or in a camper... you'll forget your bike is even there.
There is a mechanism to quickly lock the frame and stem so that you can keep the bike folded and transport it easily.
Frame with a stand for better stability once folded.
Fork
Aluminium 6061 T6 fork for a lower weight.
Drivetrain

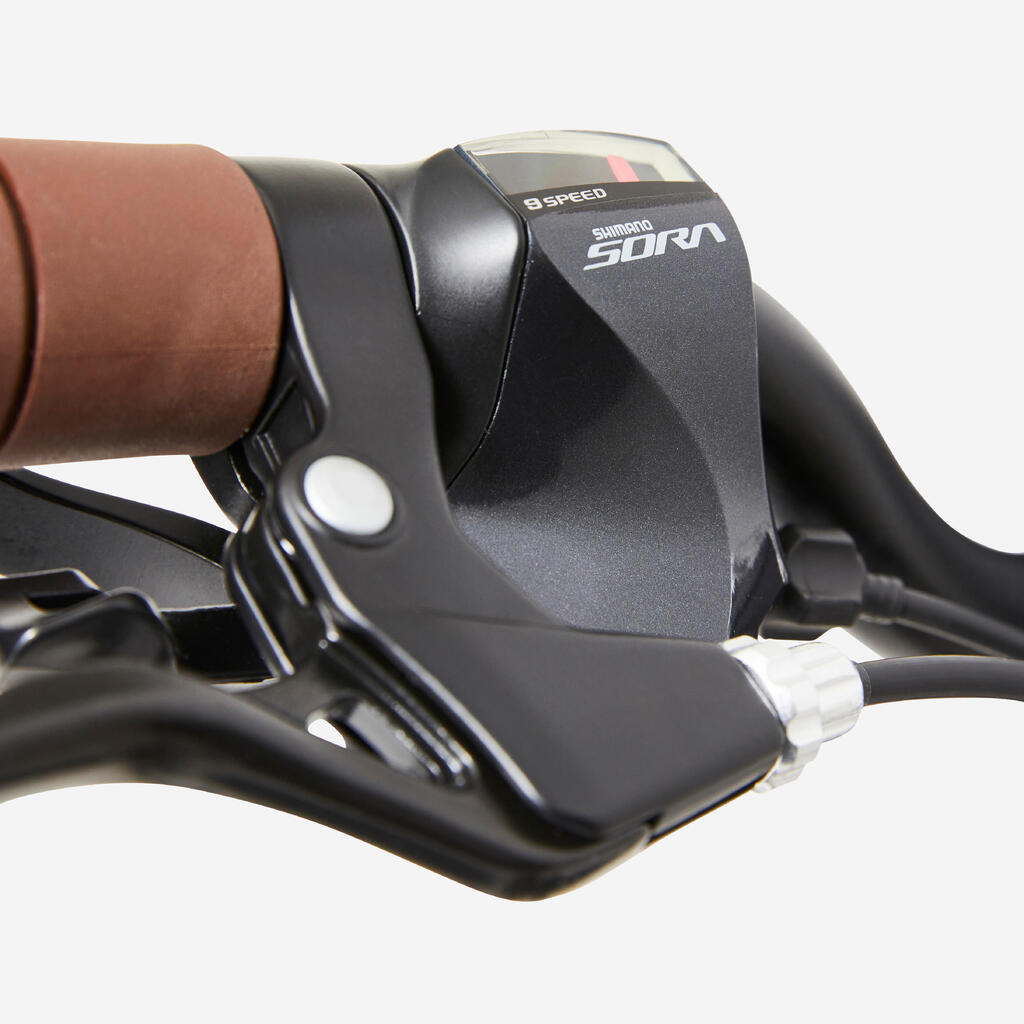

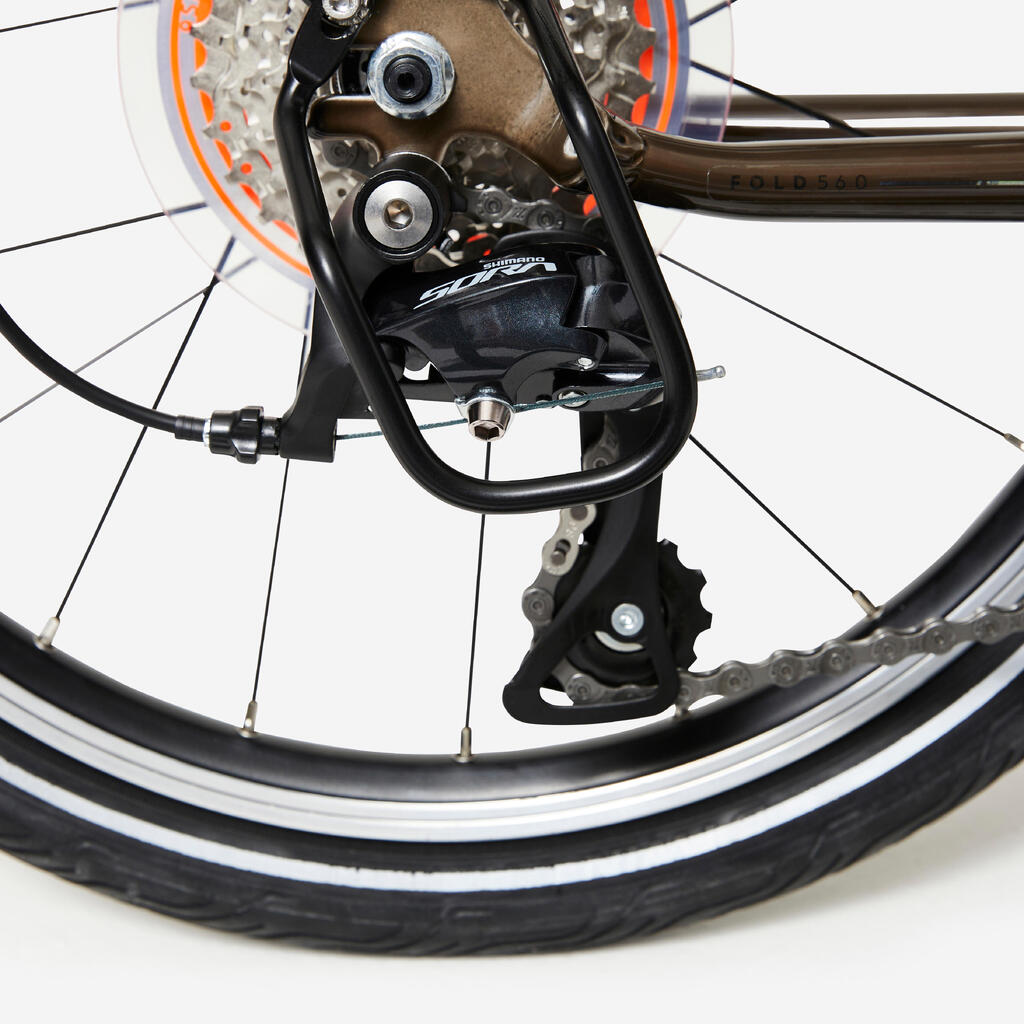

The Shimano Sora 9-speed drive train gives your bike increased precision and reliability when changing gears. The wide range of speeds lets you pedal hard on flats and effortlessly get back up to speed after stopping.
Metres of development: - smallest development: 2.90m per turn of the pedals, 28 teeth
- largest development: 7.2 m per turn of the pedals, 11 teeth
Metres of development: - smallest development: 2.90m per turn of the pedals, 28 teeth
- largest development: 7.2 m per turn of the pedals, 11 teeth
Brakes

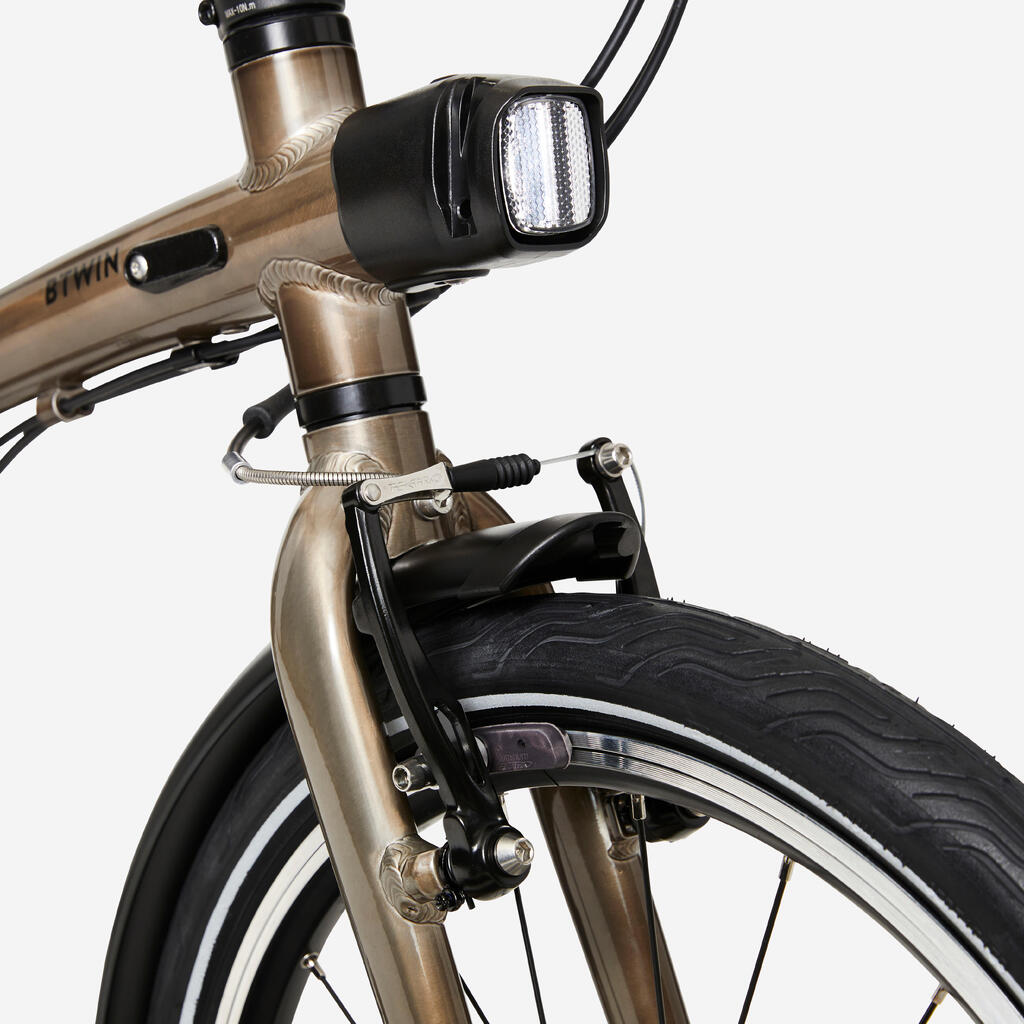

Aluminium V-brake and callipers guarantee effective and progressive braking.
Saddle & seatpost
- The comfy memory foam saddle is made without seams to prevent water getting in when riding in the rain.
- A new seatpost clamp designed to improve the clamping force.
It's also more pleasant to handle, with its ergonomic shape.
- Anti-theft, anti-rotation aluminium seat post 31.6mm in diameter.
- A new seatpost clamp designed to improve the clamping force.
It's also more pleasant to handle, with its ergonomic shape.
- Anti-theft, anti-rotation aluminium seat post 31.6mm in diameter.
Handlebar / stem / steering
What's new on the handlebar: a built-in quarter-turn clip interface for smartphone support.
The comfortable memory foam saddle is made without seams to prevent water getting in when riding in the rain.
Anti-theft, anti-rotation aluminium seat post 31.6mm in diameter.
The comfortable memory foam saddle is made without seams to prevent water getting in when riding in the rain.
Anti-theft, anti-rotation aluminium seat post 31.6mm in diameter.
Wheels
20 inches, double-walled machined rims.
Tyre
Tyres with anti-puncture reinforcement and reflective strips for improved lateral visibility.
Size 20 x 1.75.
We've developed these tyres using Skinwall technology for lower weight and higher performance.
Size 20 x 1.75.
We've developed these tyres using Skinwall technology for lower weight and higher performance.
Crankset
The fold-up pedals reduce bulk when the bike is folded. Once the pedals are folded up and the stem folded down, the bike can be stored against a wall and takes up very little space (26 cm wide). Aluminium cranks: 170mm.

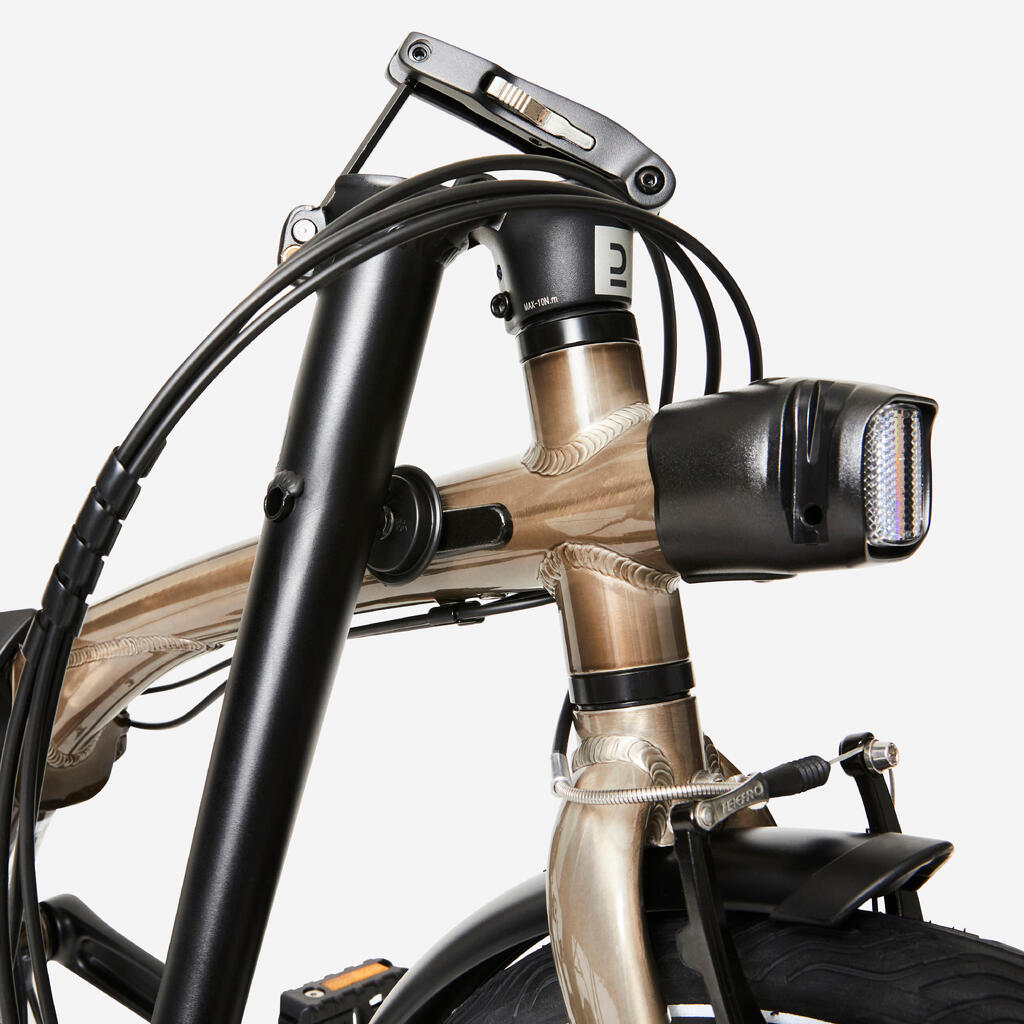

USB rechargeable front and rear lights
USB front light:
- 5-hour battery life.
- 10 lux for seeing and being seen.
- Clips onto a special bracket in the centre of the handlebar.

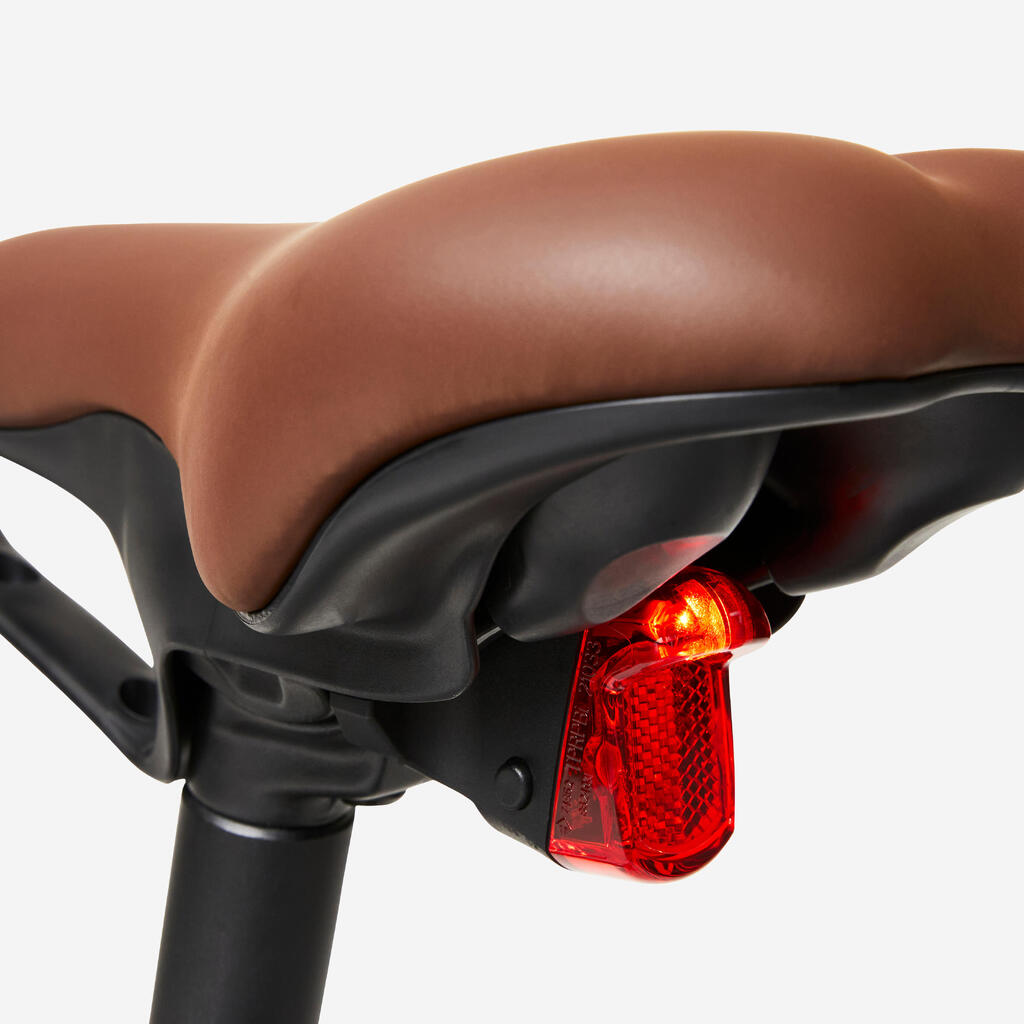

USB rear light:
- 6-hour battery life.
- 5.4 lumens.
- Clips onto the seat clamp. It's positioned nice and high so that you're really visible.
These lights comply with the French highway code and with German standards.
The dual port micro USB cable is supplied with the bike
- 5-hour battery life.
- 10 lux for seeing and being seen.
- Clips onto a special bracket in the centre of the handlebar.
USB rear light:
- 6-hour battery life.
- 5.4 lumens.
- Clips onto the seat clamp. It's positioned nice and high so that you're really visible.
These lights comply with the French highway code and with German standards.
The dual port micro USB cable is supplied with the bike
Specific accessories compatible with folding bikes.
- The 20" protective cover (ref: 8271631):
can be used to cover your bike when transporting it (Eurostar, car, train, etc.). The cover comes in a zip-up pouch that you can attach to the underside of your bike's saddle.
- 25L front bag for folding bikes (ref: 8735484) :
for carrying all of your belongings. Clips onto the front of the bike's frame in 1 second.
- smartphone holder (ref: 8595221) :
clips onto the bracket on the handlebar.
can be used to cover your bike when transporting it (Eurostar, car, train, etc.). The cover comes in a zip-up pouch that you can attach to the underside of your bike's saddle.
- 25L front bag for folding bikes (ref: 8735484) :
for carrying all of your belongings. Clips onto the front of the bike's frame in 1 second.
- smartphone holder (ref: 8595221) :
clips onto the bracket on the handlebar.
Compatible with rear pannier rack
Yes the frame has inserts so you can attach the special rear pannier rack for 20" folding bikes.

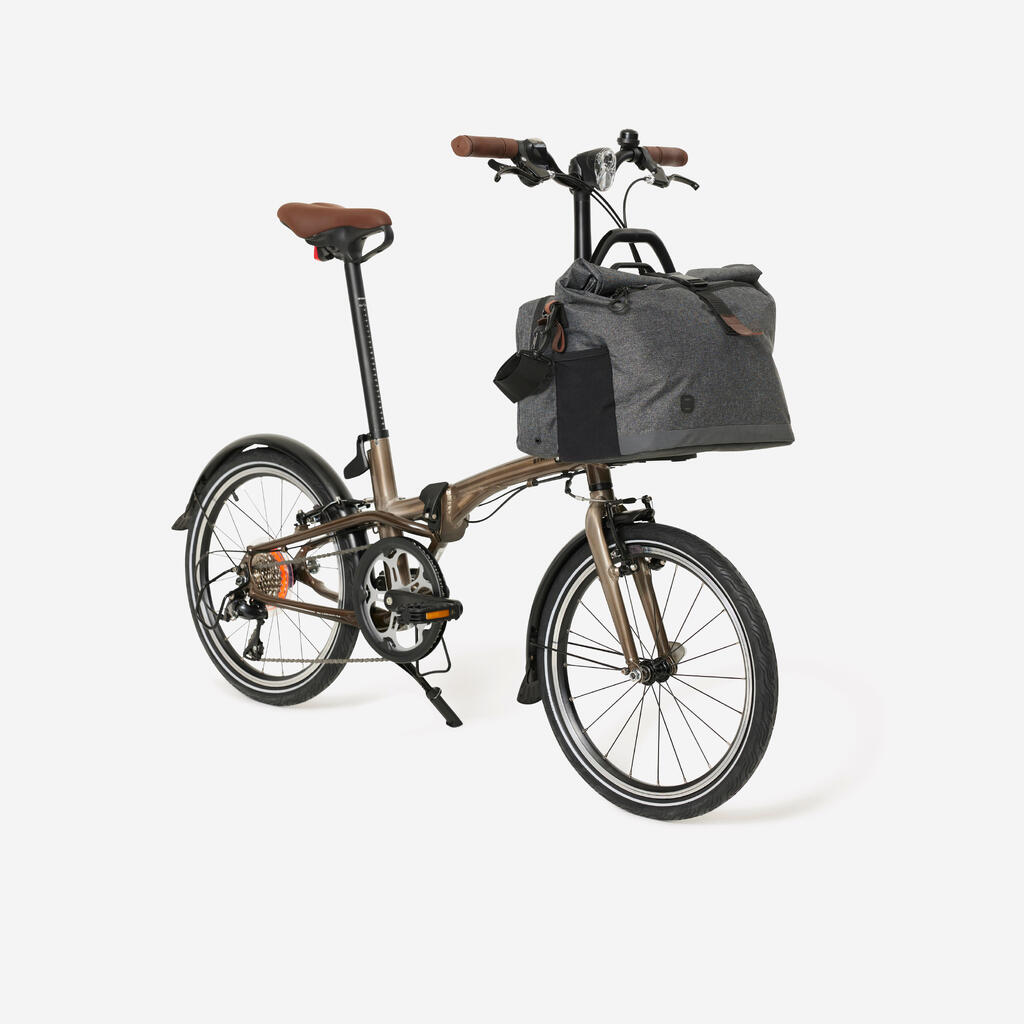

How can you carry your bags at the front?
The bike comes with mounting points on the frame (above the front wheel).
These mounting points can be used for an exclusive bag designed by the B'Twin teams:
our 25L front bag (ref: 8735484). It can be clipped on and taken off with 1 hand in 1 second.
As it sits on the frame, you won't notice its weight and the bike will remain stable.
You'll be able to control your bike as normal.
/!\ When your bag is full, you won't be able to lift up the front wheel to mount pavements.
These mounting points can be used for an exclusive bag designed by the B'Twin teams:
our 25L front bag (ref: 8735484). It can be clipped on and taken off with 1 hand in 1 second.
As it sits on the frame, you won't notice its weight and the bike will remain stable.
You'll be able to control your bike as normal.
/!\ When your bag is full, you won't be able to lift up the front wheel to mount pavements.
Accessories that AREN'T compatible
- Pannier racks that attach to the seat post are not compatible either.
- Child seats are not compatible.
- Trailers for children are not compatible.
Bike stability: 2 stands
Bike stability: 2 stands
- Adjustable stand with a button to adjust the length. The stand keeps the bike stable when it's unfolded (whether or not you have bags on it).
- Frame support stand that the bike rests on as you fold it and that protects the chainset.
- Adjustable stand with a button to adjust the length. The stand keeps the bike stable when it's unfolded (whether or not you have bags on it).
- Frame support stand that the bike rests on as you fold it and that protects the chainset.
Bike weight
12.2 kg
User size and weight
This bike's geometry is comfortable for cyclists between 1.45 and 1.85 m tall.
This bike complies with the requirements of standard ISO 4210.
The maximum weight is 100 Kg (cyclist + bike + baggage).
composition
composition
Bike frame: 100.0% Aluminium
Tips for storage and maintenance
DRYING IN A TUMBLE DRYER POSSIBLE. NORMAL TEMPERATURE, MAXIMUM EXHAUST AIR TEMPERATURE OF THE DRUM 80°C.
MAXIMUM WASH TEMPERATURE OF 30°C. VERY MODERATE TREATMENT.
IRON AT A MAXIMUM SOLEPLATE TEMPERATURE OF 150°C.
MAXIMUM WASH TEMPERATURE 70°C. NORMAL TREATMENT.
IRONING AT A MAXIMUM IRON SOLEPLATE TEMPERATURE OF 200°C.
Restrictions on use
Not suitable for tricks. Not compatible with baby carrier.
TESTS AND WARRANTY
Warranty
2 Years
