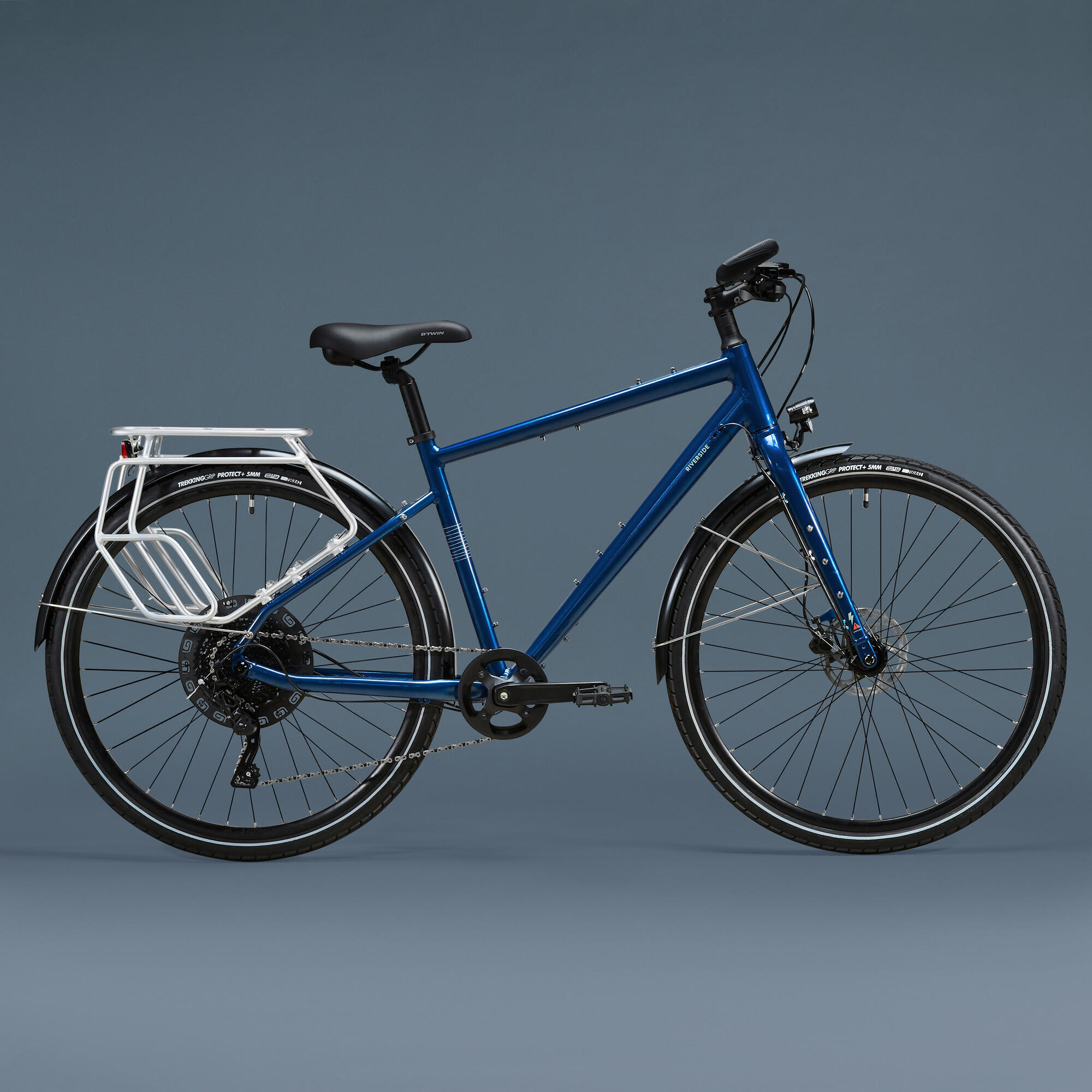

Touring Bike Riverside Touring 520

Name: Touring Bike Riverside Touring 520
Availability: OutOfStock

The Riverside Touring 520 is ideal for your first forays into bike touring with a bike that's designed to explore. It has a sturdy frame and components for adventures both near and far

ID 8575005

Sold and shipped by

How to get it

Robustness
Lifetime warranty on frame and fork. Loads of 170 kg; pannier rack 40 kg
modularity
33 inserts on the frame and fork for accessorising your bike
cycling comfort
Ergonomic saddle and grips, wide tyres, and geometry designed for touring
versatility
Puncture-proof tyres for peace of mind on roads and bike paths
compatibility
Compatible with our trailer attachment adapter (ref. 8618363)

Description

Design details

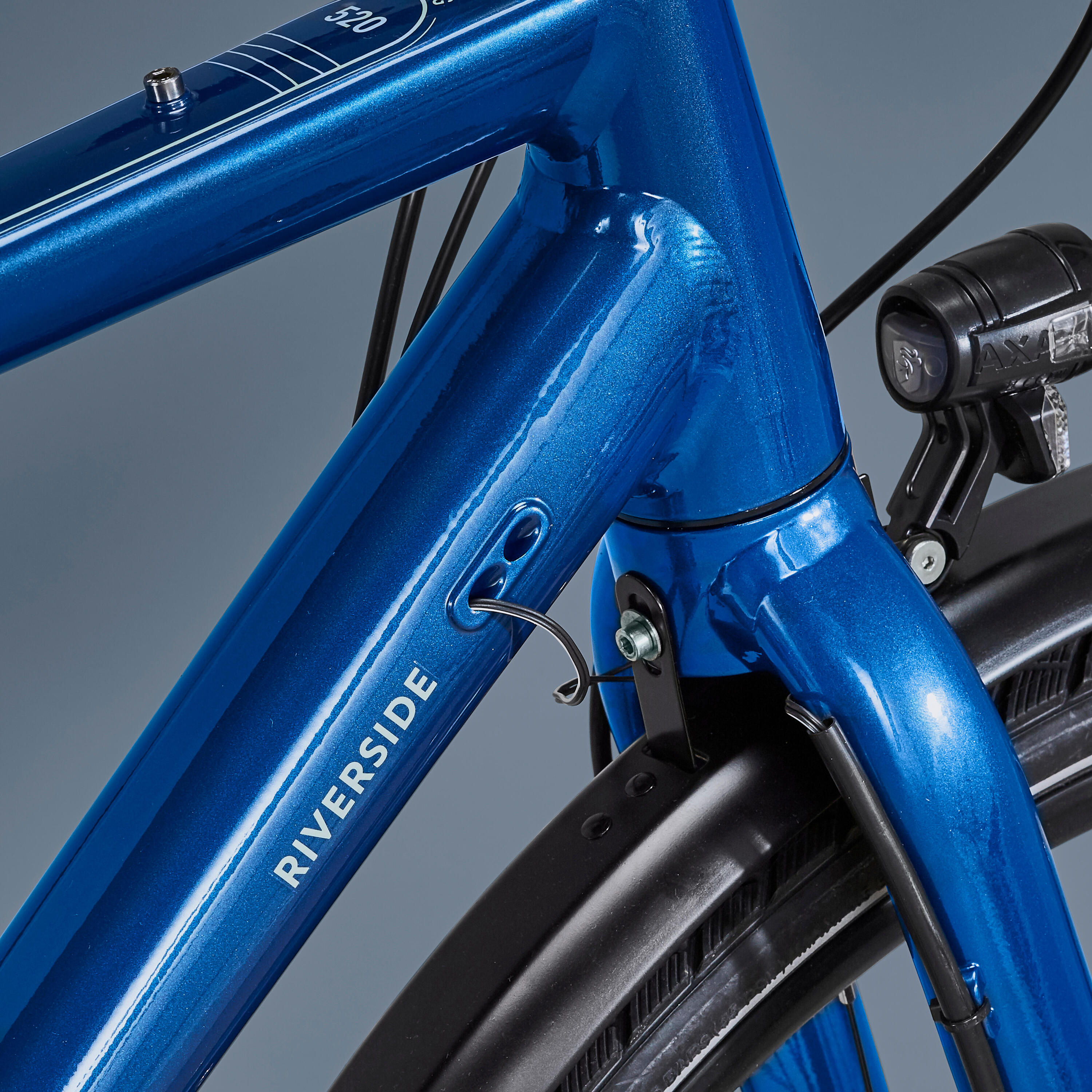

A sturdy, comfortable frame

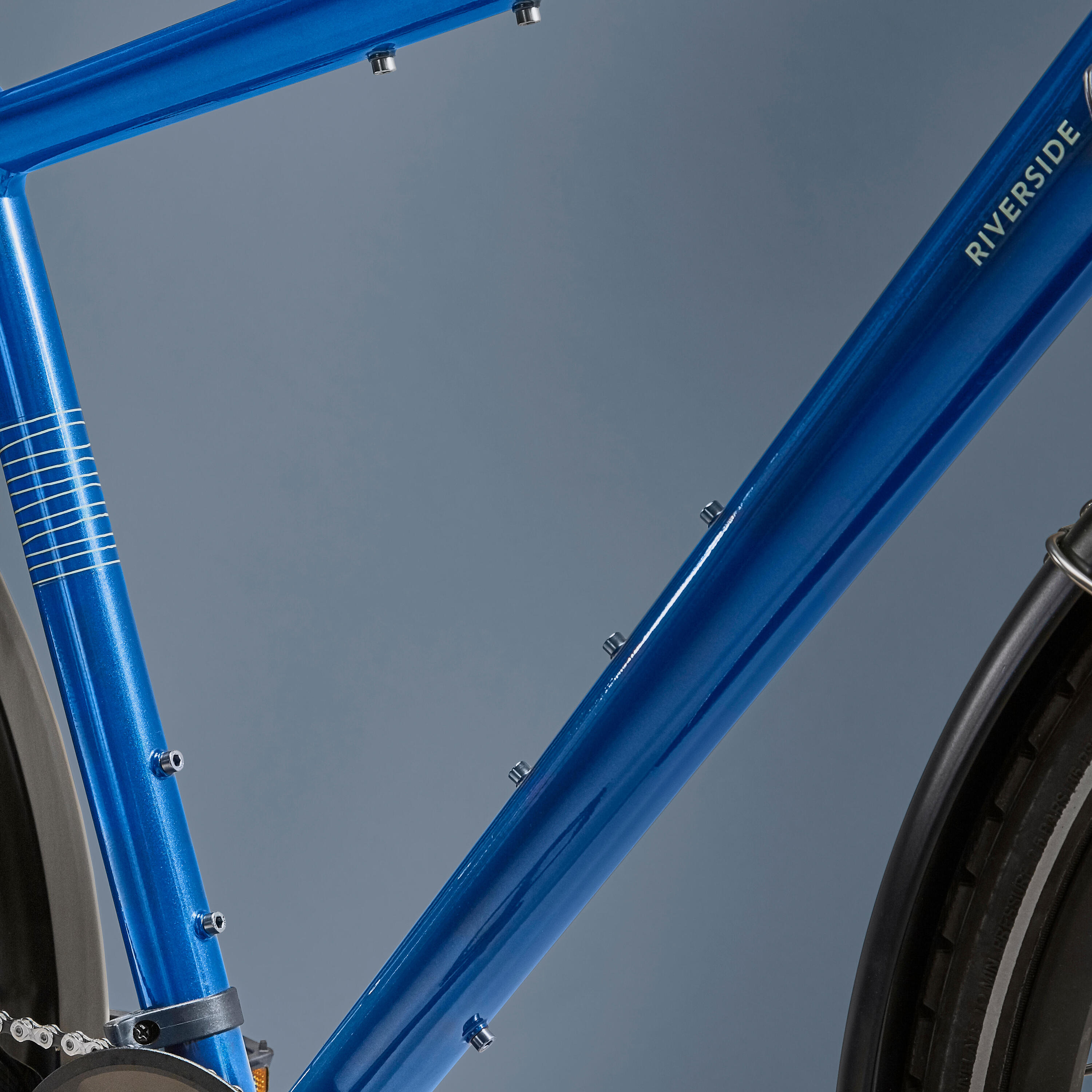

We have designed this triple-butted aluminium frame for maximum durability, sturdiness and comfort. More than 500,000 km of testing under its belt on all continents and in all weather conditions. Internal cable routing. 33 mounts on the frame and fork to attach all your accessories and pannier racks. Compatible with all pannier racks. Removable rear derailleur hanger. Trailer compatible using a specific and suitable thru axle (ref. 8618363)
Pannier rack
We have developed a uniquely robust rear pannier rack to carry your belongings. Six bolts attach it to the rear stays, allowing you to carry up to 40 kg of baggage or a child seat. This unique design choice also avoids the problem commonly encountered by bikepackers of the screws shearing.
Drivetrain

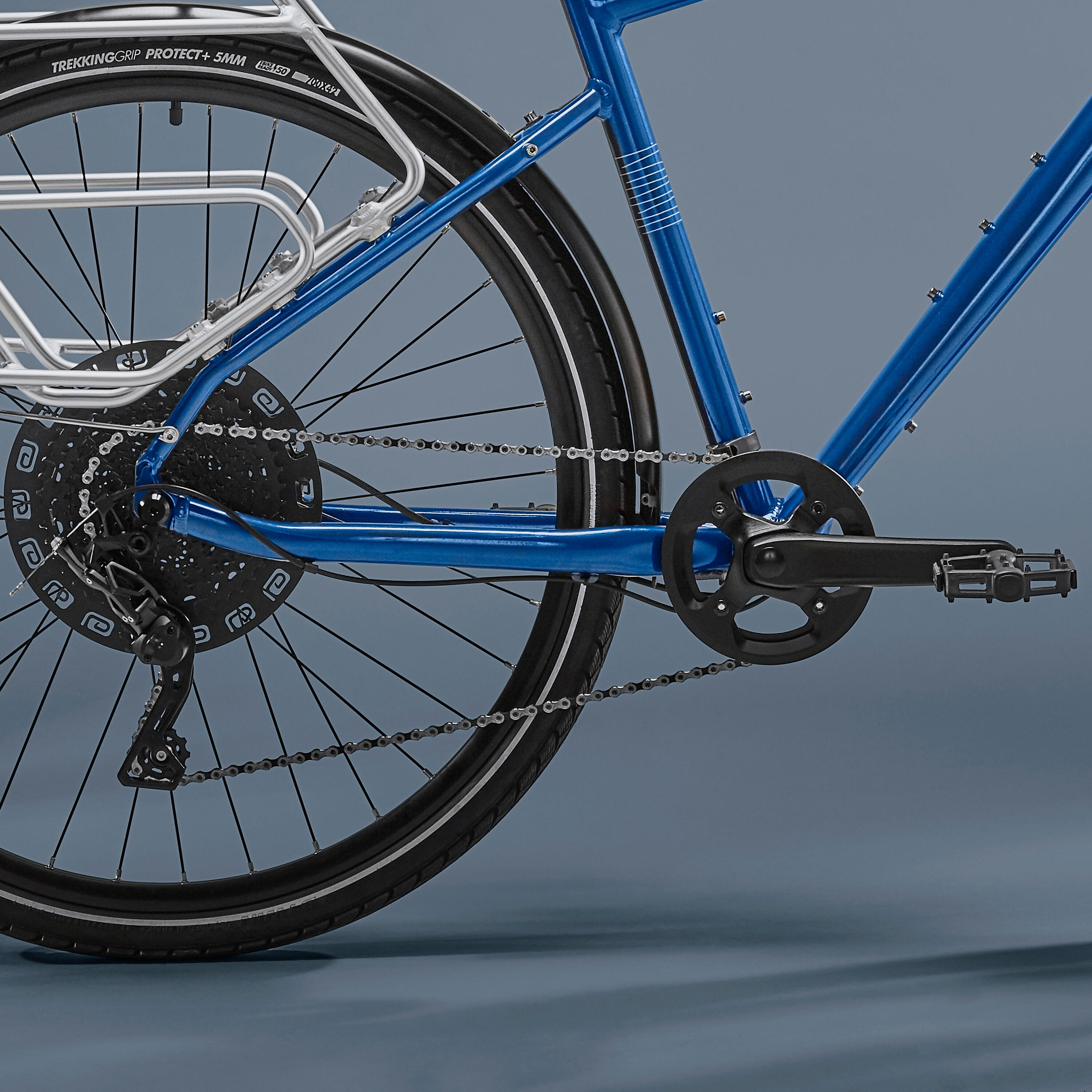

Riverside 36T single chainring Microshift 11-speed (11-46) cassette Crank length: 170 mm Microshift RD-M665M derailleur Chain: 11S KMC X11-1 Riverside toe clip compatible pedals
Hydraulic disc brakes

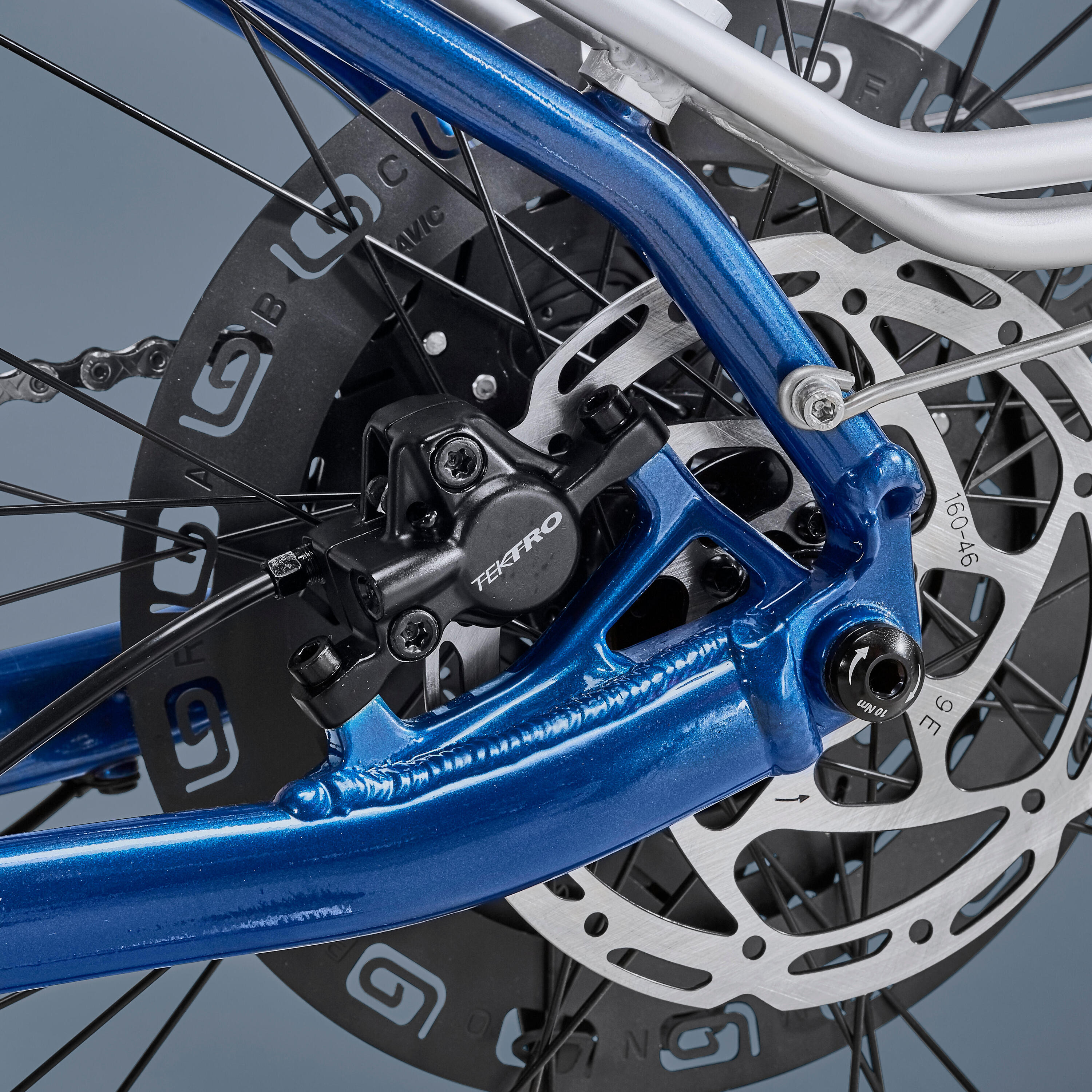

Safely ride over any terrain (dry/wet) thanks to the powerful, comfortable B'Twin by Tektro T275 hydraulic disc brakes Aluminium brake levers
Handlebars, steering, stem: maintain control
We have opted for a 620-mm-wide flat handlebar for sizes S and M, and 660 mm for sizes L and XL. Ergonomic grips with integrated bar ends. Stem: Size S: 60 mm / Size M: 80 mm / Size L: 100 mm / Size XL: 110 mm
Saddle: be comfortable

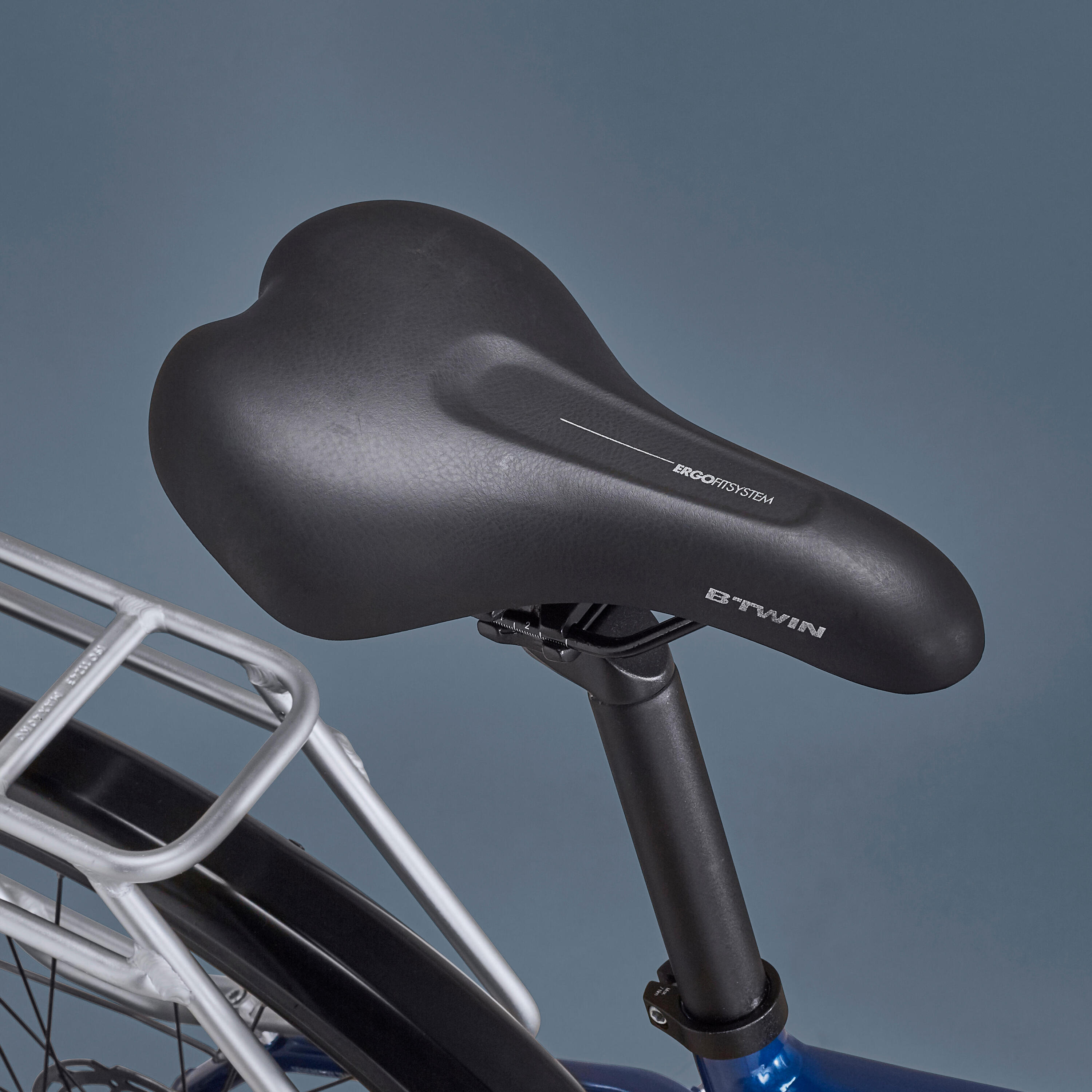

Because it's important that your seat position is suitable for touring, we have chosen an ergonomic saddle. Aluminium seat post with markings for easy adjustment. Seat post diameter: 31.6 mm Seat post dimensions: S, M, L: 350mm; XL: 400 mm.
Wheels and tyres

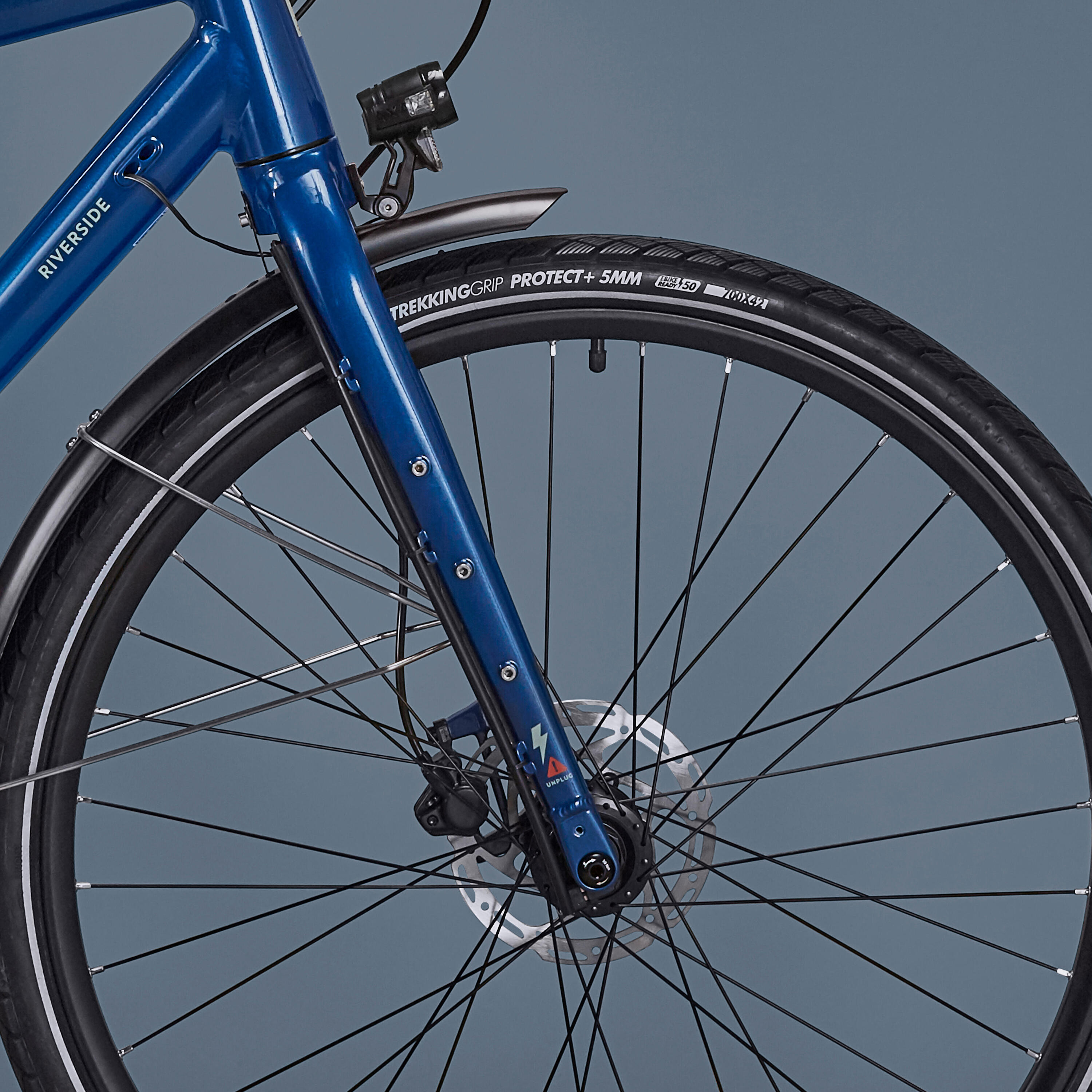

We have chosen B'Twin Trekking 9 Grip Protect+ tyres. Dimensions: 28 x 1.75 (42-622). They offer excellent puncture resistance thanks to their 5 mm liners. Riverside Touring double-walled, 36 spoke, 19c rims. 100/142 x 12 mm thru axle. Fastens with an Allen key. Deore XT dynamo hubs to power the lighting To use a trailer, you will need to purchase an adapter (ref. 8618363)
Travel components
Riverside Touring mudguard with aluminium stays. Shimano Deore XT dynamo hub: 6V - 0.5A, 3W Front light: Axa 30 Lux. Rear light: Axa Blueline with a steady light function for 4 minutes of light when stationary

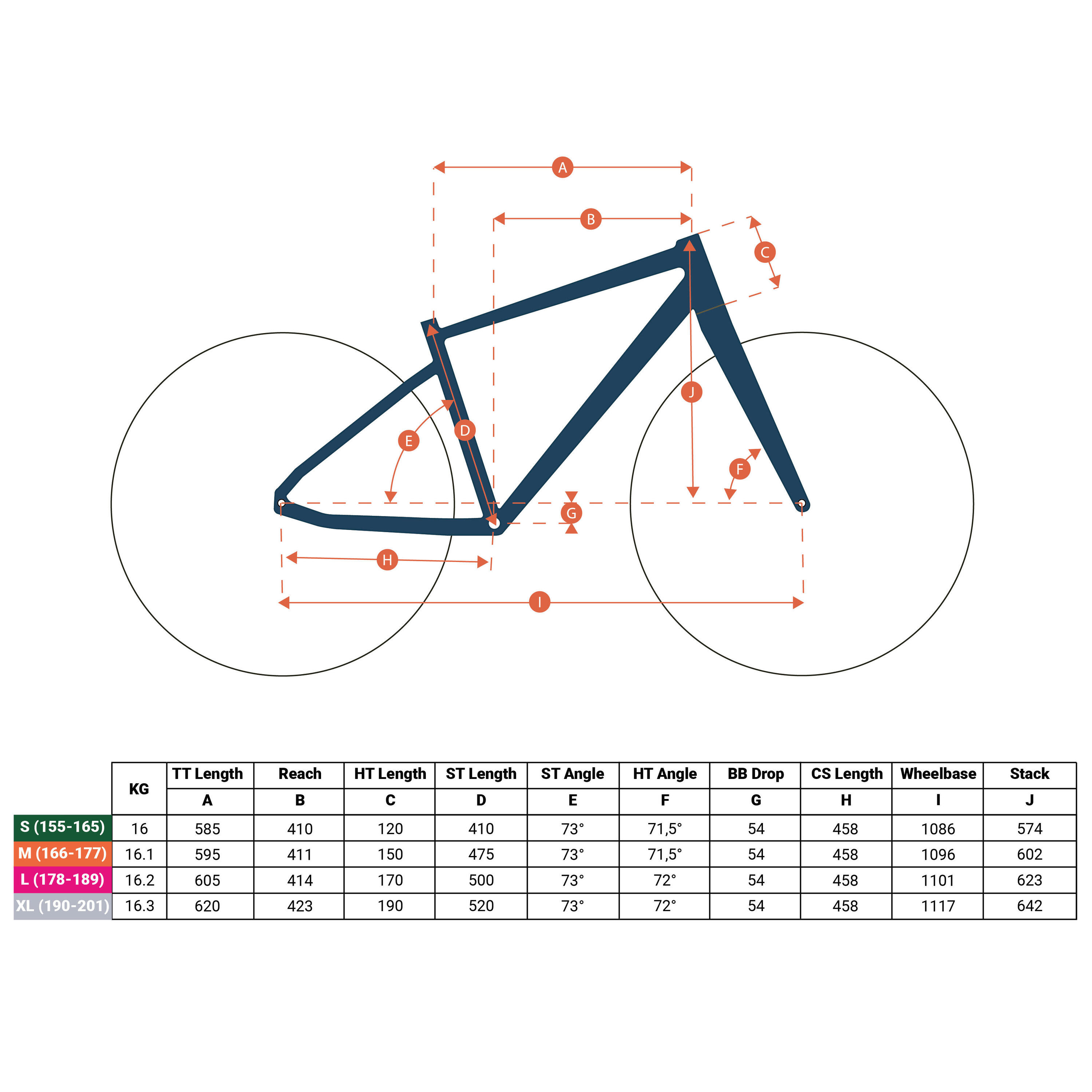

Choosing the right touring bike size
4 sizes available: Size S from 1.55 m to 1.65 m Size M from 1.66 m to 1.77 m Size L from 1.78 m to 1.89 m Size XL from 1.90 m to 2.01 m.
Bike weight (assembled)
16 kg
Trailer compatibility
If you wish to attach a trailer to your bike, you will need to purchase a trailer attachment adapter for 12x172 thru axle The adapter reference number is 8618363
