Freeride Wingfoil Board 120L - WNG900
€720.00
Tax included
Store Availability
Store Availability
Navigating in low winds is now possible. Designed for flying quickly with good stability, this robust wingfoil board offers an optimal glide quality.
BENEFITS
Compatibility
Standard double US box, compatible with most foils.
Adjustable
6x3 strap positions at the front + 1x5 at the back (2 straps/V strap/3 straps).
Forgiveness
Tolerance to light touches thanks to the profile and board rails.TECHNICAL INFORMATIONS
Glide performance
We designed an exclusive shape, in collaboration with shaper Erwan Le Gallic, with the aim of encouraging glide and rapid take-off while ensuring excellent stability when not in the air.
- The flat hull on the tail and the double concave at the front reduce friction for effortless take-offs.
- Advanced max. width on the front of the board to promote the glide.

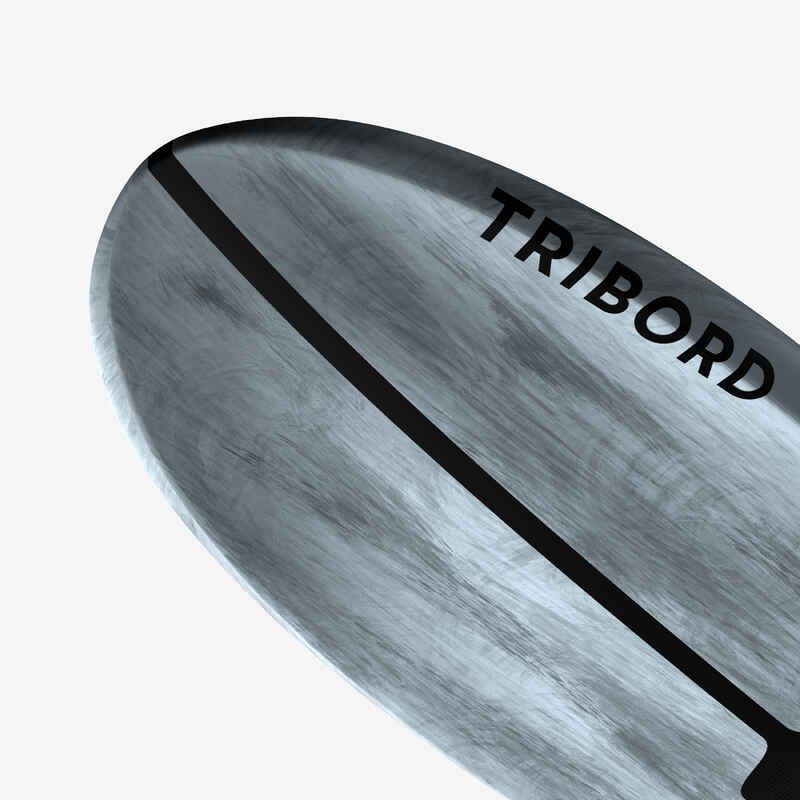

- Slightly slimmer nose that reduces the risk of movement
- The flat hull on the tail and the double concave at the front reduce friction for effortless take-offs.
- Advanced max. width on the front of the board to promote the glide.
- Slightly slimmer nose that reduces the risk of movement
How to choose your board What level is it best for?
- 85 litres: More compact version for more fluid manoeuvres.
- 100 litres: Best compromise between gliding, handling and stability.
- 120 litres: Better lateral stability thanks to the wider tail.
Autonomous riders:
85 litres, OK if under 75 kilos
100 litres, OK if under 90 kilos
120 litres, OK if over 90 kilos
Beginner riders:
100 litres, OK if under 70 kilos
120 litres, OK if over 70 kilos
- 100 litres: Best compromise between gliding, handling and stability.
- 120 litres: Better lateral stability thanks to the wider tail.
Autonomous riders:
85 litres, OK if under 75 kilos
100 litres, OK if under 90 kilos
120 litres, OK if over 90 kilos
Beginner riders:
100 litres, OK if under 70 kilos
120 litres, OK if over 70 kilos
Tolerance
- We've designed the lines to allow you to soften light touches, ensuring good tolerance. The board is forgiving of navigation errors or during jumps: It easily gets going again and doesn't stop when it touches the water.
- The distribution of volumes has been optimised in order to enable the rider to have a centre of gravity (foot position) positioned in the same place as you stop, during the take-off phase, and in flight.
- The distribution of volumes has been optimised in order to enable the rider to have a centre of gravity (foot position) positioned in the same place as you stop, during the take-off phase, and in flight.
Construction and robustness
- Board constructed with a 2 mm PVC sandwich (100 kg/m3) on the deck and hull - for maximum robustness.
- Reinforcements in carbon fibre 200 g/m² on the box.
- PVC box reinforcement crossing the whole board.
- Reinforcements in carbon fibre 200 g/m² on the box.
- PVC box reinforcement crossing the whole board.
Comfort 1/2
- Slightly concave on the deck (topside of the board) for comfort and confidence in pressures. This allows for good reactivity and less effort required when pressing on your heels
- Board is extremely stable during the assembly of the foil thanks to 3 points of contact with the ground
- Reinforcement on the nose (TPU patch) to avoid damaging the board while you're assembling the foil
- The deck of the board has rounded corners to avoid discomfort as you get onto the board
- Board is extremely stable during the assembly of the foil thanks to 3 points of contact with the ground
- Reinforcement on the nose (TPU patch) to avoid damaging the board while you're assembling the foil
- The deck of the board has rounded corners to avoid discomfort as you get onto the board
Comfort 2/2
- Pad with double thicknesses for the groove to guarantee good grip (necessary in strapless and during pressure changes) without reducing comfort.
- Smooth section incorporated into the centre of the rear pad: You won't need to look at your feet during manoeuvres, you can get your bearings thanks to this change of texture.
- Handles under the board to make it easier to transport (the board is horizontally balanced when the foil is assembled).
- Smooth section incorporated into the centre of the rear pad: You won't need to look at your feet during manoeuvres, you can get your bearings thanks to this change of texture.
- Handles under the board to make it easier to transport (the board is horizontally balanced when the foil is assembled).
Resistance
- The corner of the tail is curved, which means that you won't damage the board with the leash.
- Decompression valve with a membrane on the rear of the board: Avoids heat and pressure damaging the board (e.g. Transit by plane, heat, storage in a car).
- You must not unscrew the valve as this may compromise the seal of your board.
- Decompression valve with a membrane on the rear of the board: Avoids heat and pressure damaging the board (e.g. Transit by plane, heat, storage in a car).
- You must not unscrew the valve as this may compromise the seal of your board.
Compatibility
- Compatible with various strap set-ups thanks to its 5 x 3 inserts at the front (double strap / V-straps / diagonal strap) and 5 straight strap adjustments at the rear.

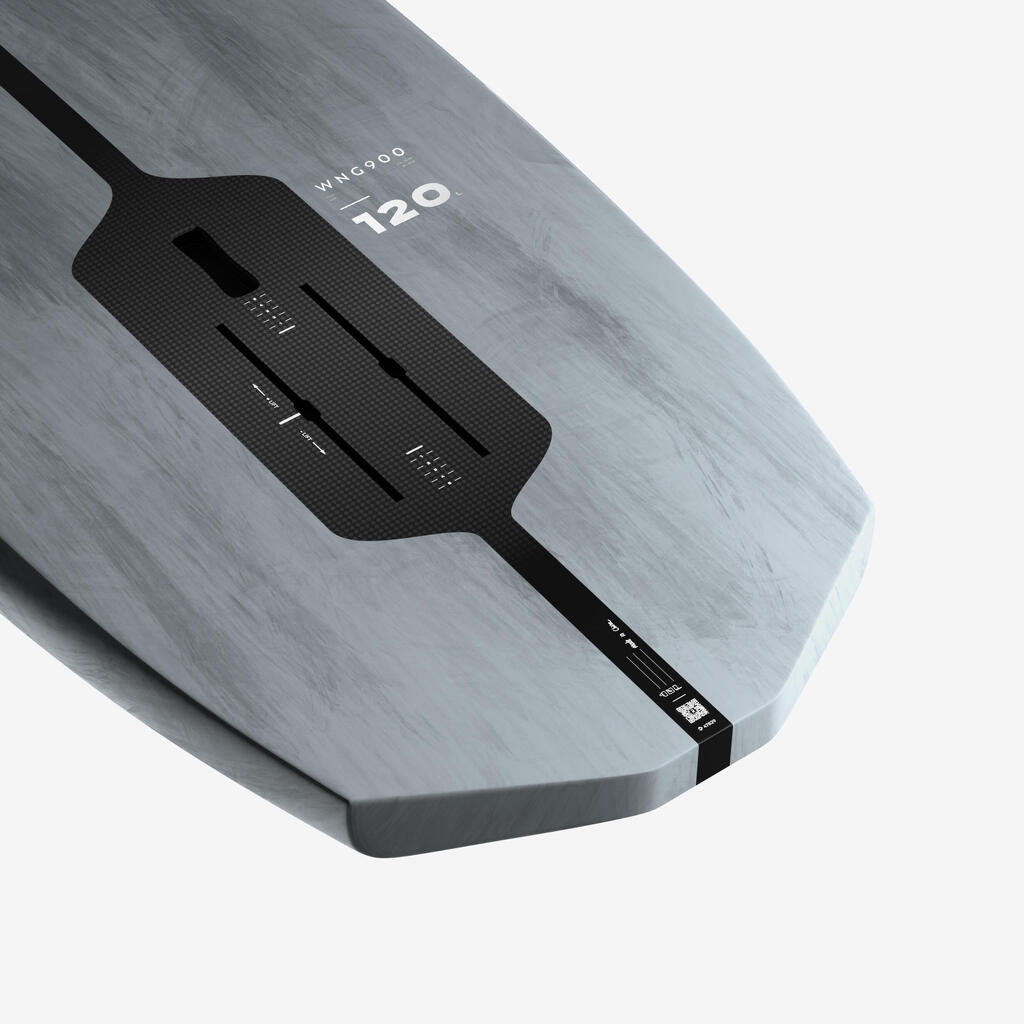

- Double US box 27 cm assembly system.
- Double US box 27 cm assembly system.
The board is sold with
- The board is sold on its own: The leash and straps are not included.
- For the straps, use screws with a diameter of 6 mm. The length of the screw must not exceed 20 mm when it is passed through the strap, as this may damage your board.
- For the straps, use screws with a diameter of 6 mm. The length of the screw must not exceed 20 mm when it is passed through the strap, as this may damage your board.
Technical features
85 L
Length: 5'4'' / 163 cm
Width: 26'' / 65 cm
Max. thickness: 13.3 cm
Weight (Pad included): 6.6 kg (+/- 5%)
100 L
Length: 5'10'' / 177 cm
Width: 27'' / 69 cm
Max. thickness: 13.6 cm
Weight (Pad included): 7.3 kg (+/- 5%)

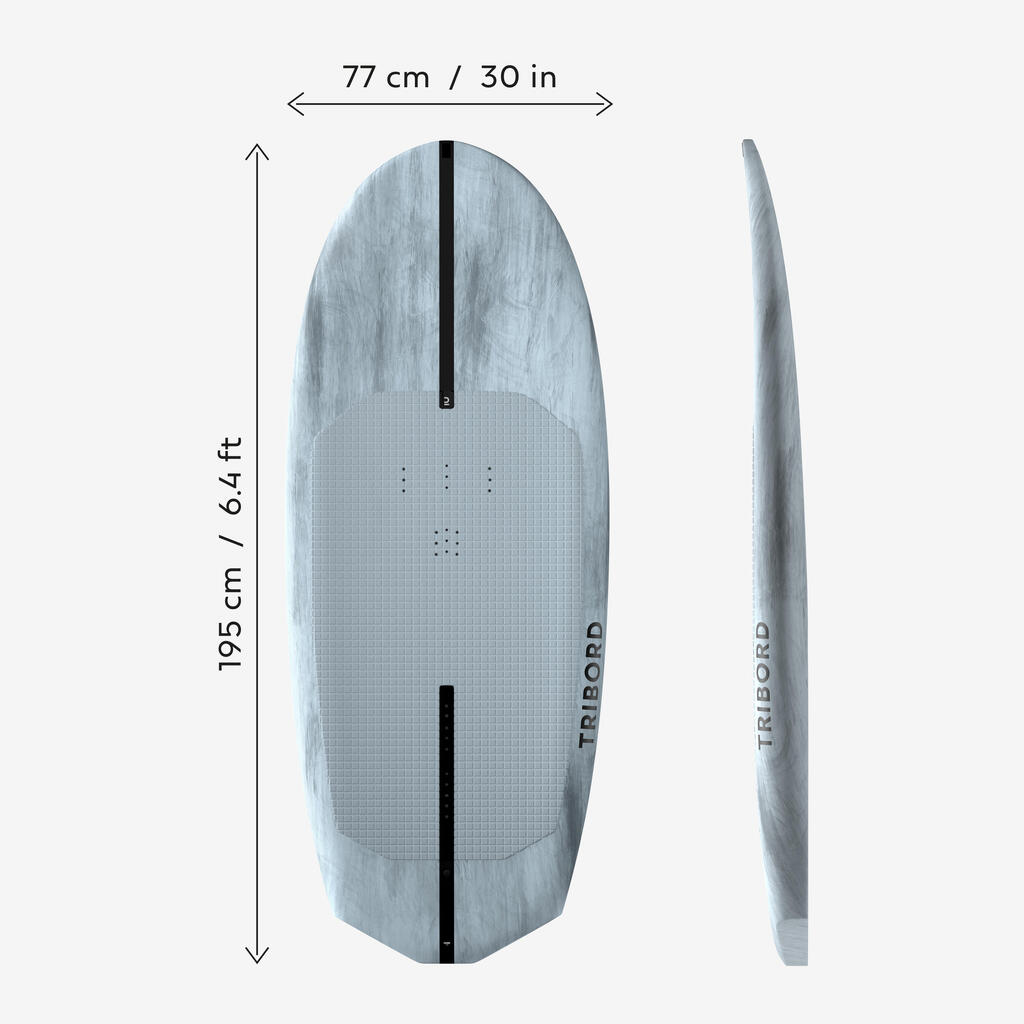

120 L
Length: 6'5'' / 195 cm
Width: 30'' / 77 cm
Max. thickness: 13.2 cm
Weight (Pad included): 8.6 kg (+/- 5%)
Length: 5'4'' / 163 cm
Width: 26'' / 65 cm
Max. thickness: 13.3 cm
Weight (Pad included): 6.6 kg (+/- 5%)
100 L
Length: 5'10'' / 177 cm
Width: 27'' / 69 cm
Max. thickness: 13.6 cm
Weight (Pad included): 7.3 kg (+/- 5%)
120 L
Length: 6'5'' / 195 cm
Width: 30'' / 77 cm
Max. thickness: 13.2 cm
Weight (Pad included): 8.6 kg (+/- 5%)
Contact
If you have any questions, please don't hesitate to get in touch via the following address:
[email protected]
[email protected]
composition
composition
Board for surf: 12.0% Polyvinyl Chloride, 1.0% Carbon, 12.0% Nylon, 30.0% Polystyrene, 20.0% Glass Fiber, 25.0% Epoxy Resin; Pad - Outer fabric: 100.0% Ethylene Vinyl Acetate
Tips for storage and maintenance
DRYING IN A TUMBLE DRYER POSSIBLE. NORMAL TEMPERATURE, MAXIMUM EXHAUST AIR TEMPERATURE OF THE DRUM 80°C.
MAXIMUM WASH TEMPERATURE OF 30°C. VERY MODERATE TREATMENT.
IRON AT A MAXIMUM SOLEPLATE TEMPERATURE OF 150°C.
MAXIMUM WASH TEMPERATURE 70°C. NORMAL TREATMENT.
IRONING AT A MAXIMUM IRON SOLEPLATE TEMPERATURE OF 200°C.
Storage tips
We recommend storing your board flat to limit the risk of it falling over.
Restrictions on use
Do not manipulate the decompression screw.
TESTS AND WARRANTY
Test product
The board has been validated in our labs:
- Box flexion
- Insert breakaway
- Paint durability
- Board flexion
- Deck and hull impact
Warranty
2 Years
Agree by
Board validated in use by our riders and our team of enthusiastic designers/testers.
