Product Description

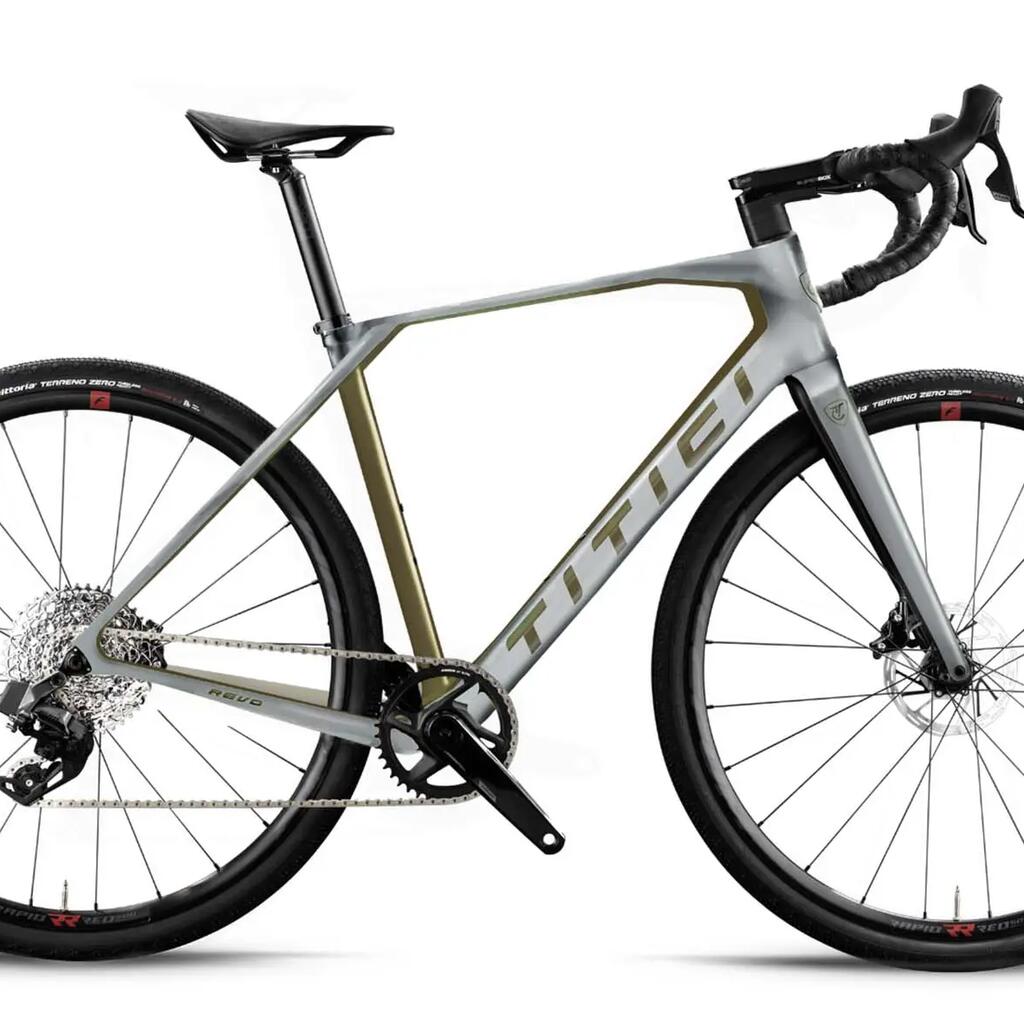

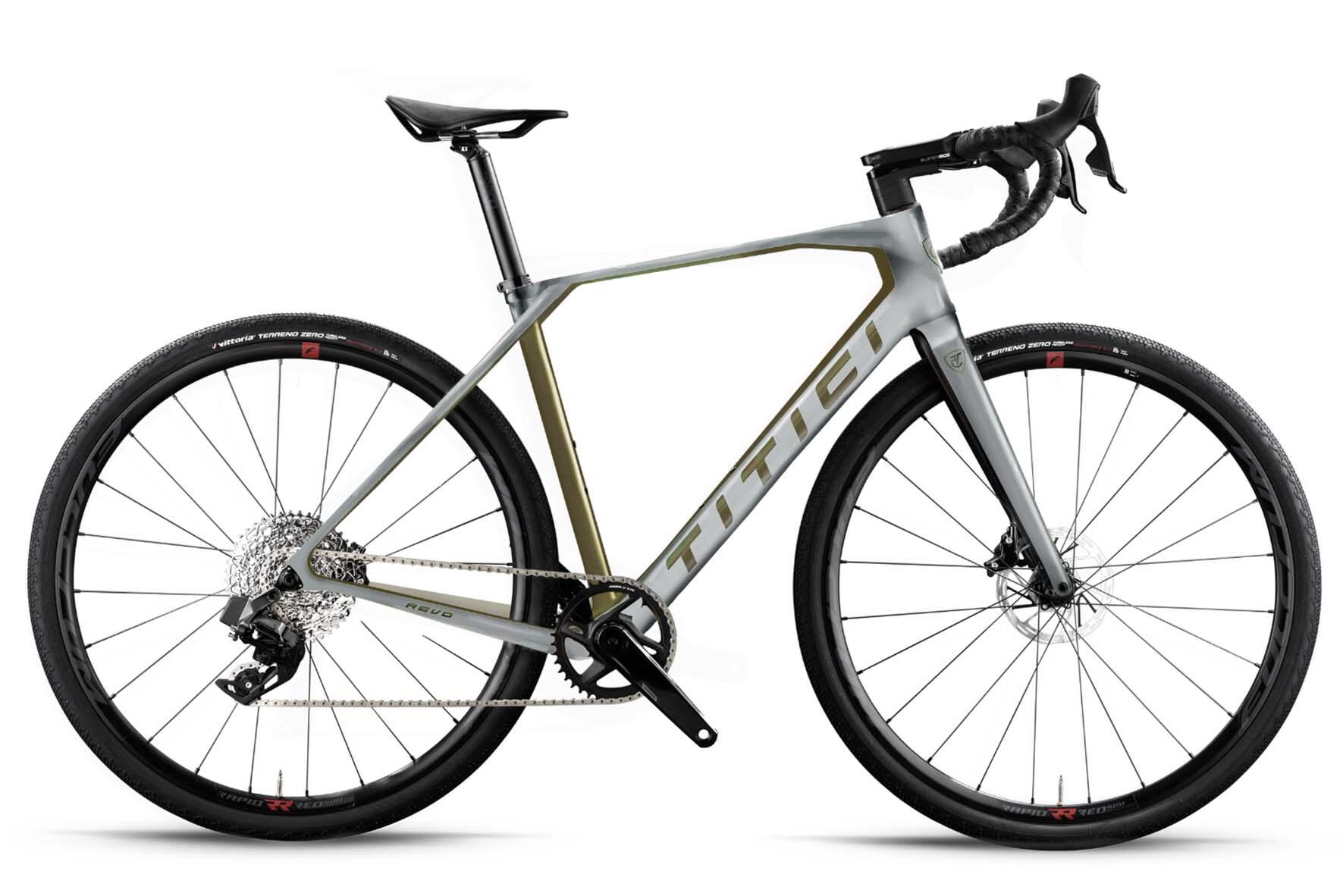

Introducing the REVO, the all-round gravel carbon bike that is built to tackle every challenge you throw at it. Whether you're training for your next competition, embarking on solo adventures, or enjoying leisurely rides with friends, the REVO offers unmatched versatility and performance. With its sleek design and cutting-edge engineering, this bike excels on and off the beaten path.
The REVO’s frame is constructed from monocoque carbon and is compatible with both single chainring and double crankset groupsets, whether electronic or mechanical. Designed to deliver top-tier performance, this frame combines durability, flexibility, and comfort, ensuring a smooth ride even in the most demanding conditions.
Feel the difference from the very first ride. The fully integrated internal cable routing not only enhances the aesthetic appeal but also reduces aerodynamic drag. The smooth, streamlined front end of the frame contributes to cleaner lines and more efficient airflow. Additionally, the 1.5” head tube improves steering precision and control, particularly during high-speed descents and technical corners.
The frame’s head tube, with its enlarged 1.5-inch diameter, integrates seamlessly with the fork, ensuring superior strength and stability. The asymmetrical fork design counters the forces generated by the braking system, while providing added stability and precision, especially on downhill sections.
The REVO's carbon monocoque frame is crafted using the EPS system (Expanded Polystyrene), ensuring the highest construction quality. The process eliminates air bubbles and imperfections, resulting in a stronger, more resilient frame. This system guarantees a smooth surface and optimal structural integrity.
The revolutionary PAT10 monocoque tube is the thinnest in the world, measuring just 10mm thick. This innovative design allows the REVO to absorb up to 18% more vibrations than standard frames, improving comfort without sacrificing stiffness or handling precision. The result? A smoother, more stable ride, with better power transfer and responsiveness on rough terrains.
For those who venture off the beaten path, the REVO is fully optimized for bikepacking. With multiple attachment points, including a water bottle holder under the down tube near the bottom bracket, the REVO is ready for long-distance expeditions with all the gear you need.
Frame: Monocoque Carbon
Fork: TITICI Gravel Fork
Cable Routing: Fully Integrated
Headset: 1.5” Integrated
Bottom Bracket: Press Fit 30
Brake Mount: Flat Mount
Front Axle: 12Ă—100 mm
Rear Axle: 12Ă—142 mm
Maximum Tire Size: 700c x 50 / 650B x 2.1
Drivetrain & Transmission
Rear Derailleur: 2x11v RD-RX810 34T Max
Front Derailleur: Double FD-RX810 Weldable
Cassette: 11v 11-34 CS-HG700
Chain: 116 Links CN-HG601 11-Speed
Crankset: 11v FC-RX600 46/30D
Brakes & Cockpit
Front Disc Brake Kit: ST-RX600 + BR-RX400 + Hose
Rear Disc Brake Kit: ST-RX600 + BR-RX400 + Hose
Rotor: 160mm Center Lock SM-RT70 Ice-Tech
Handlebar: TITICI Gravel Bar
Stem: TITICI Gravel Stem
Seatpost: TITICI Carbon Seatpost
Wheels & Tires
Wheels: Fulcrum Racing Gravel X20
Tires: Pirelli Cinturato Adventure 45Ă—699
Weight
Weight (without pedals): 9.5 kg
