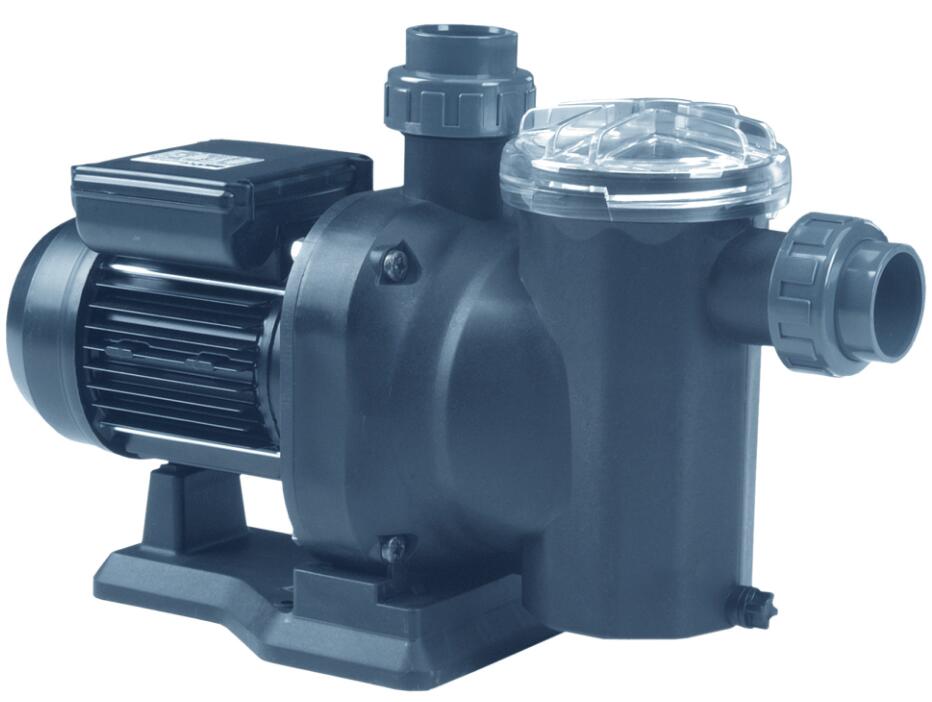

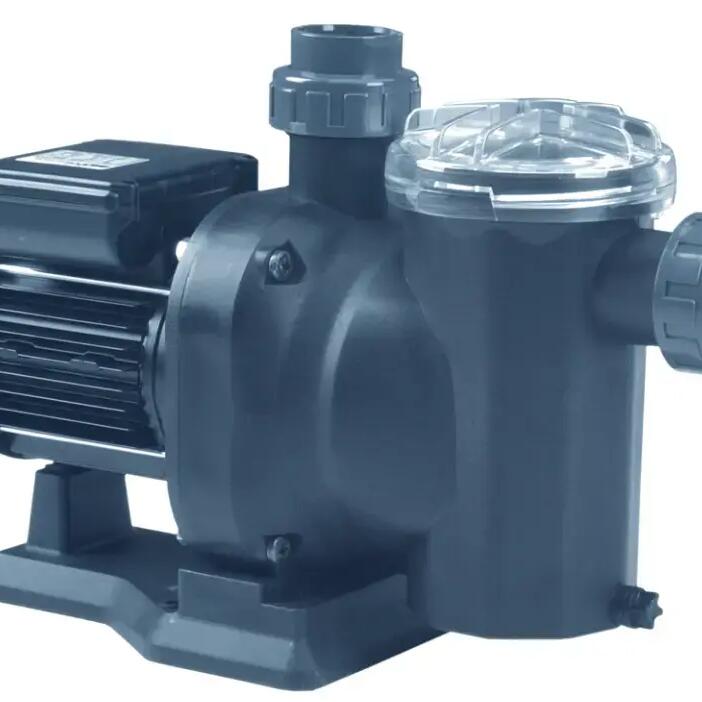

1 CV - 400V Pump filtration Sena

Product Description

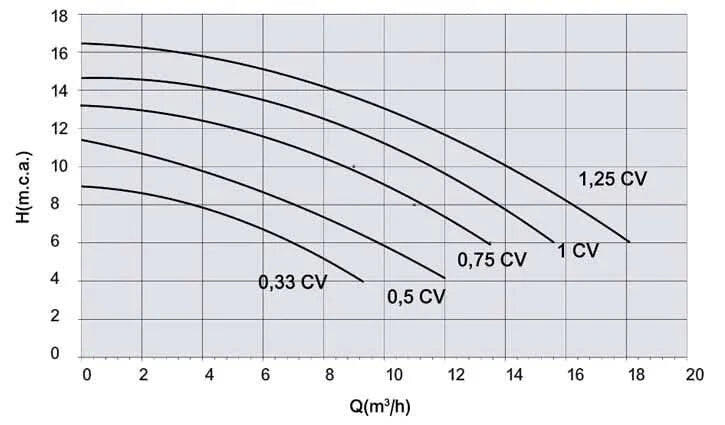

Gama of new generation bombs. With powers from 1/3 hp to 1.25 hp in single -phase engines and from 3/4 hp to 1.25 hp in three -phase engines. GS marking. IP-55 motor protection. Class F insulation, AISI-316 in all parts that are directly in contact with water. Tubing bonds through a 50 mm diameter necklace union. Caudal to 6.m.c.a. to 0.33 hp, at 8 m.c.a. to 0.5 hp and 10mca for the rest of the range. New generation of bombs. Motors from 1/3 to 1.25 HP in single phase and from 3/4 to 1.25 hp on three -phase engines. GS marking. IP-55 engine protection, class f. All parts in contact with water are manufactured with S.S. AISI-316. Welding connections with Ø 50 mm solvent for connection. 6 m head flow rates to 1/3 hp, 8 m head to 1/2 HP and 10 m head to the rest of the track. 3,000 rpm
