Product Description

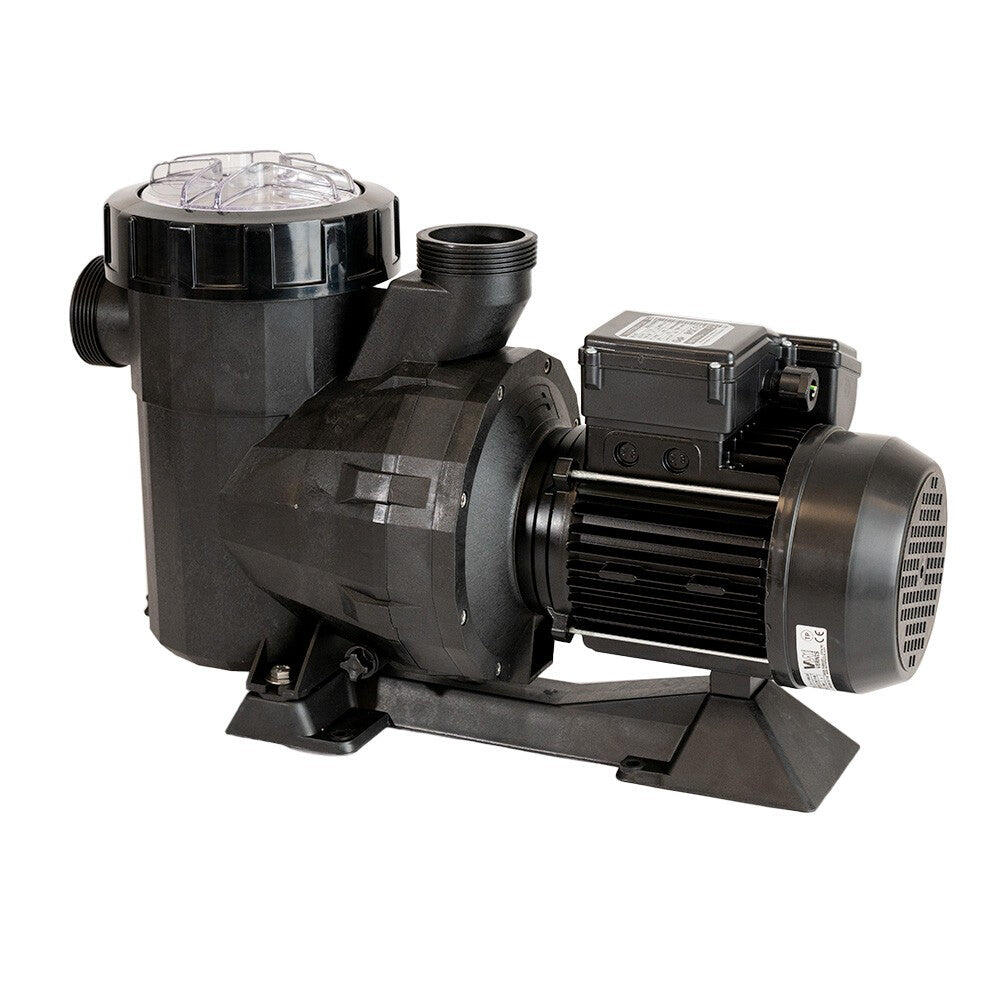

Pool pump with a sober and sturdy design, featuring a new generation prefilter lid nut for easy handling. It offers low noise operation thanks to the rubber supports on which it rests. It includes a motor with IP-55 protection and a large capacity prefilter basket. Flow rates in l/h at 8 m.w.c. for 1/2 HP and at 10 m.w.c. from 3/4 HP onwards. Rotation speed of 3,000 rpm.

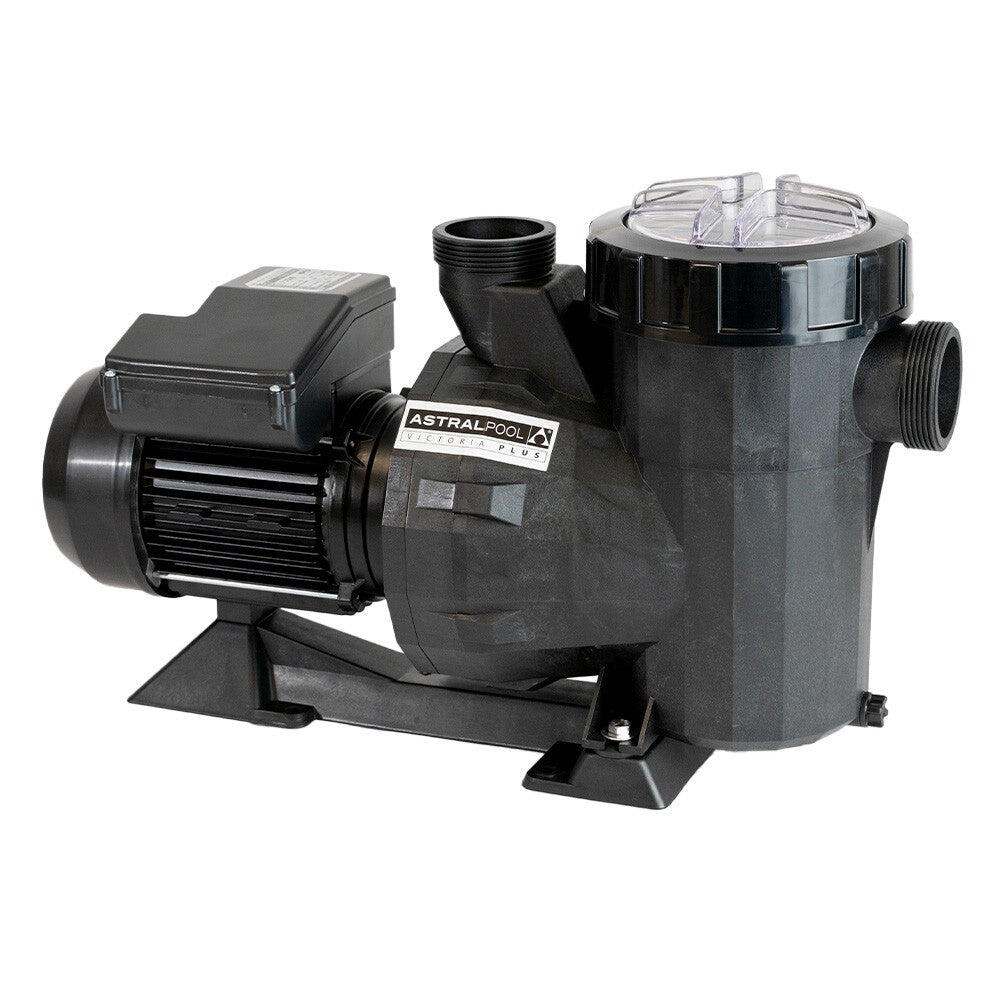

The Astral Victoria Plus pool pump arises from the fusion of the Astral Victoria and Sprint pumps. Its components combine the best features of both ranges, resulting in an efficient and reliable pump.
Pump with new prefilter lid: The Victoria Plus incorporates a new cross-type prefilter lid, compatible with the Sprint and Victoria pumps. This design unifies the image of the Columbia, Sena, and Victoria Plus ranges.
Pump base: The base design combines solutions from the Victoria and Sprint ranges. For sizes C.63 and C.71 (powers up to 1 HP), the Sprint range base is used, while for sizes C.80 and C.90 (powers up to 3 HP), the Victoria range base is employed.
This configuration improves the support of the pump-motor assembly, adapting the base size according to the motor power. It operates according to the IE2 energy efficiency standard.
High-performance range.
Sober and sturdy design.
Low noise operation.
New generation prefilter lid nut, easy to handle.
Motor with IP-55 protection.

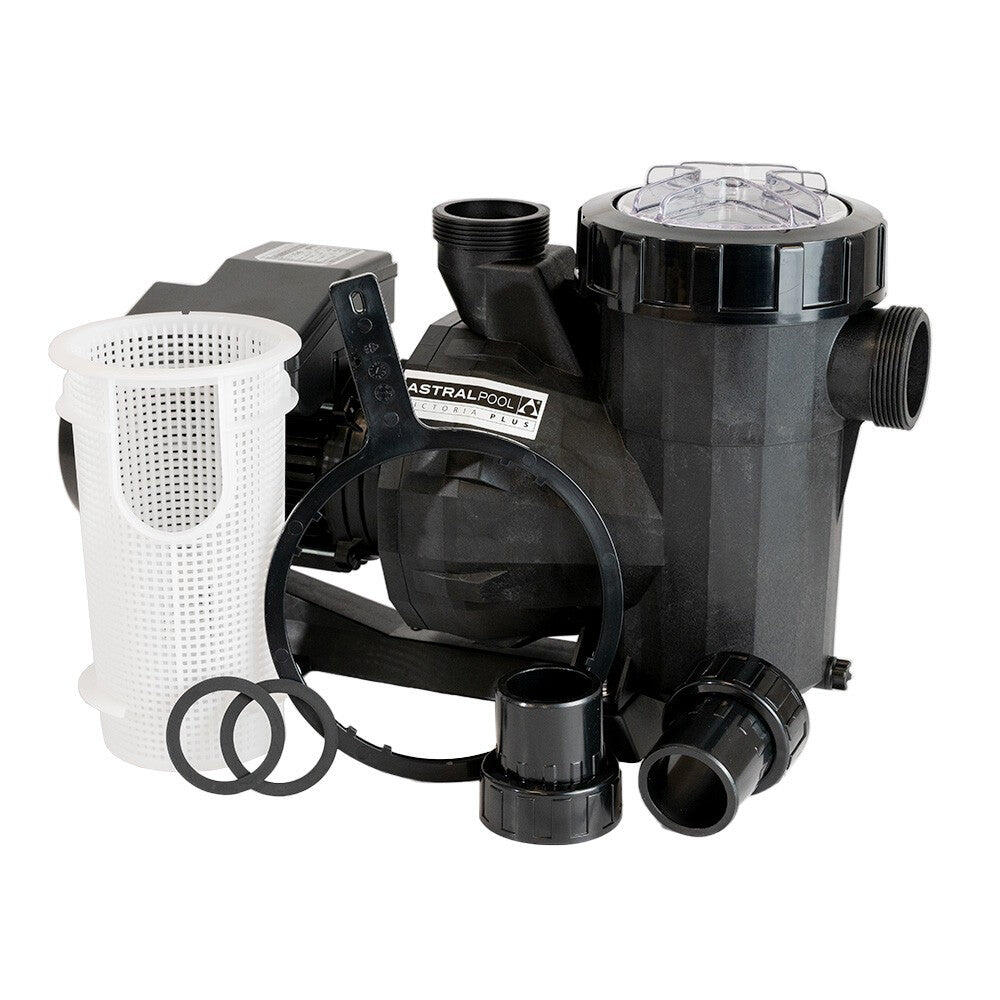

Large capacity prefilter basket.
Available in single-phase and three-phase versions.
Single-phase: 230 V / Three-phase: 230/400 V.
Technical plastics and high-quality stainless steel for optimal performance.
Single-cell centrifugal pump with self-priming capacity.
Diffuser body made of Luranyl® and impeller in Noryl® with fiberglass reinforcement.
Mechanical seal in AISI-316 stainless steel and silicon carbide.
Class F insulation and motor protection IP-55.
Bearings protected against moisture effects.
Self-priming capacity up to 2 meters.
Pump body screws in stainless steel.
