Product Description
## Product Features
- High-efficiency double pulley designed for hauling and rigging maneuvers
- Sealed ball bearing sheaves providing a high efficiency of 91%
- Compatible with the Jag Traxion double pulley for 4:1 hauling systems
- Lightweight construction in aluminium and polyamide for professional rope work
- Designed for ropes of 8 to 11 mm with a high breaking strength of 16 kN
## Performance and Efficiency

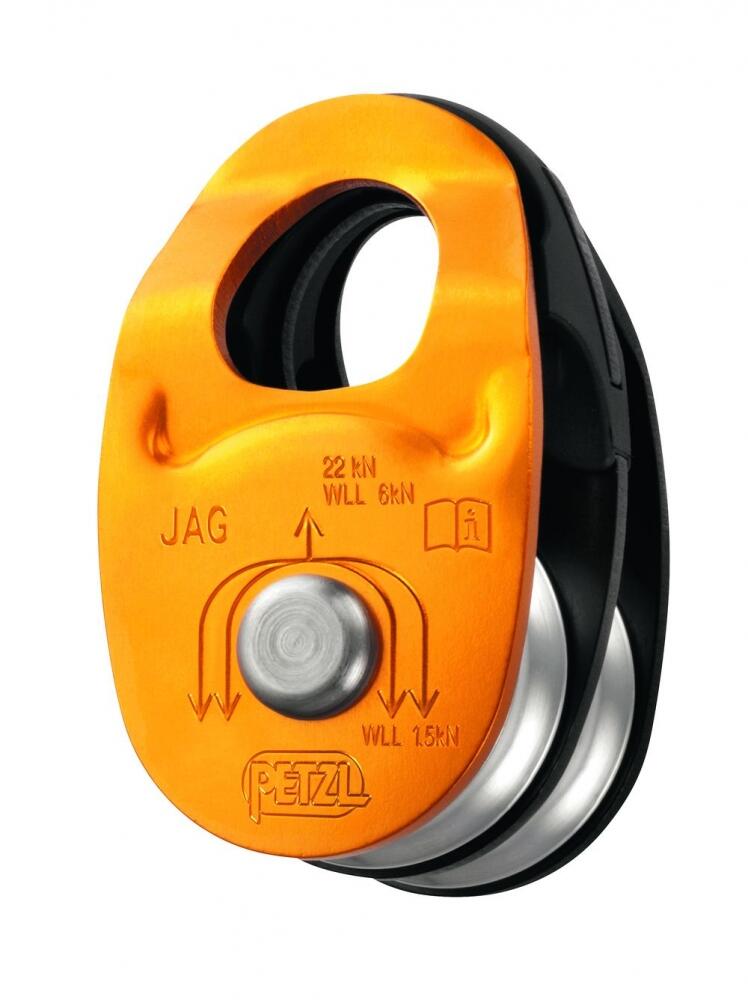

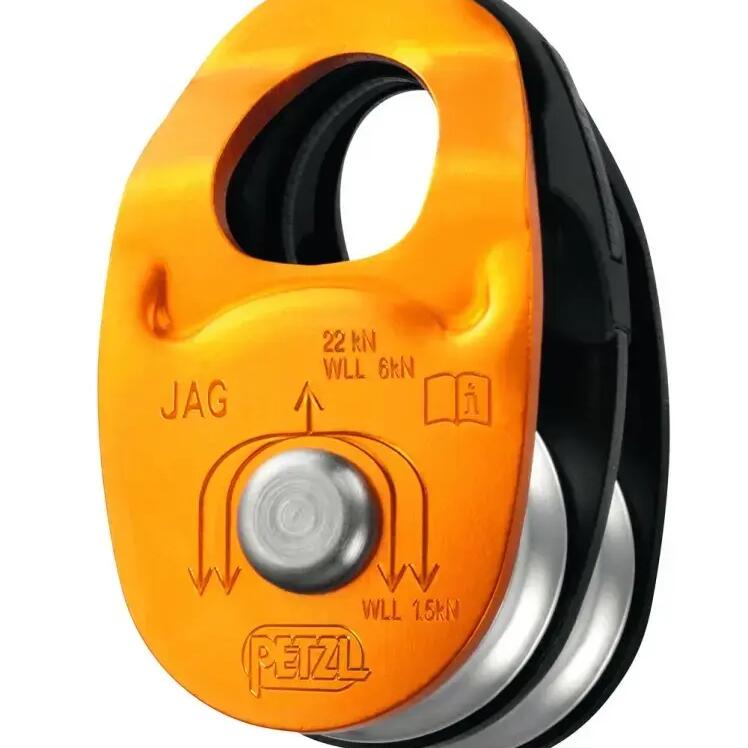

The Petzl JAG is a high-efficiency double pulley equipped with sealed ball bearing sheaves. This design minimizes energy loss and achieves an efficiency of 91%, ideal for professional hauling systems and lifting operations.
## Compatibility and Hauling Use
Designed to be used with the double locking pulley JAG TRAXION, the JAG allows for 4:1 hauling systems, significantly reducing user effort during evacuation, rescue, or load lifting operations.
## Construction and Materials
The pulley is made of aluminium with polyamide components, offering an excellent balance between lightweight (120 g) and strength. Its robust design is suitable for professional environments and demanding rope work applications.
## Key Technical Features
The JAG accommodates ropes of 8 to 11 mm, has a sheave diameter of 25 mm, a combined working load of 6 kN, and a breaking strength of 16 kN. It is CE EN 12278 certified, suitable for professional use in climbing, rescue, and working at height.
## Areas of Application
Specifically designed for height work professionals, rescuers, and evacuation teams, the JAG pulley is also suitable for setting up lifting systems, hoists, and rope maneuvers requiring reliable and high-performance equipment.
