In a nutshell
Weight: 26.6 kg (in size M without pedals)
Mid-drive motor: Brose T aluminium 70 Nm
Battery: 630 Wh
Connectivity: Decathlon Ride mobile application
Frame material: Aluminium
Type: Full suspension
Wheel size: 29"
Fork and shock travel: 140 mm / 140 mm
Drive train: 1x10
Brakes: Hydraulic
Seatpost: Telescoping
Frame, handlebar and stem warranty: lifetime
Motor
BROSE DRIVE T Aluminium motor
Mid-drive position
70 Nm torque
Torque sensor
Max assistance: 320%
The electrical assistance cuts out above 25 km/h in accordance with EU regulations
Battery
Battery fully integrated into the frame with side outlet for easy gripping.
Capacity: 630 Wh
Display
ERGO 900
TFT colour screen,
5 assistance modes: 1,2,3,4
Pedestrian mode assists with walking.
Connected via Bluetooth.
The control unit is installed on the left side and tilted downwards, for better ergonomics when changing modes and for maximum protection in the event of a fall or rollover.
Connectivity
Download the Decathlon Ride app and unleash your bike's full potential!
The Decathlon Ride app is compatible:
- For Apple devices: iOS 8 and later versions
- For Android telephones: Android 7 and later versions.

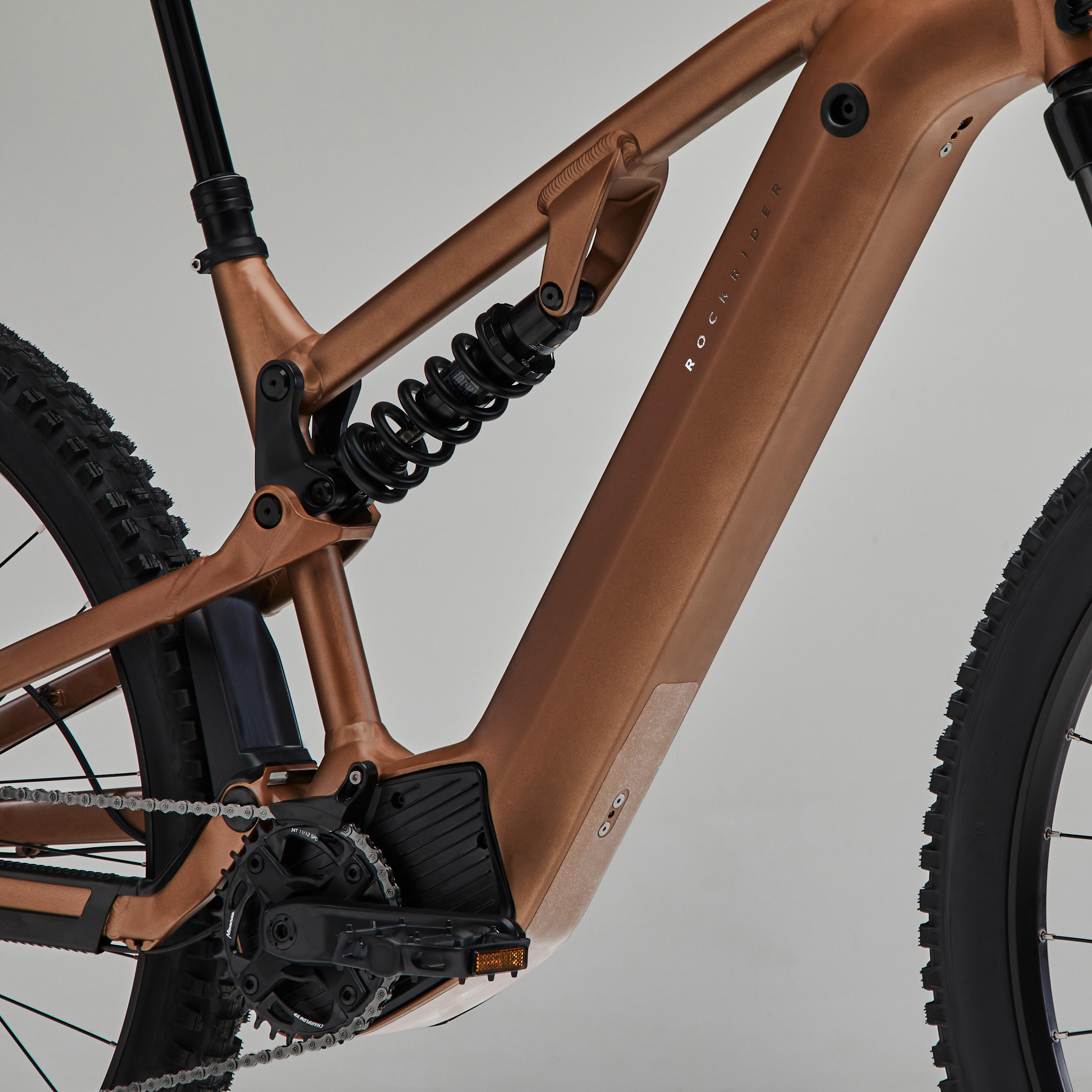

Frame
6061 aluminium suspended frame
Single pivot with tie rod
Max rear travel 140 mm
Fully built-in battery, removes from the side
Conical steering socket
31.6 mm diameter seat tube
Mount for 1 bottle cage

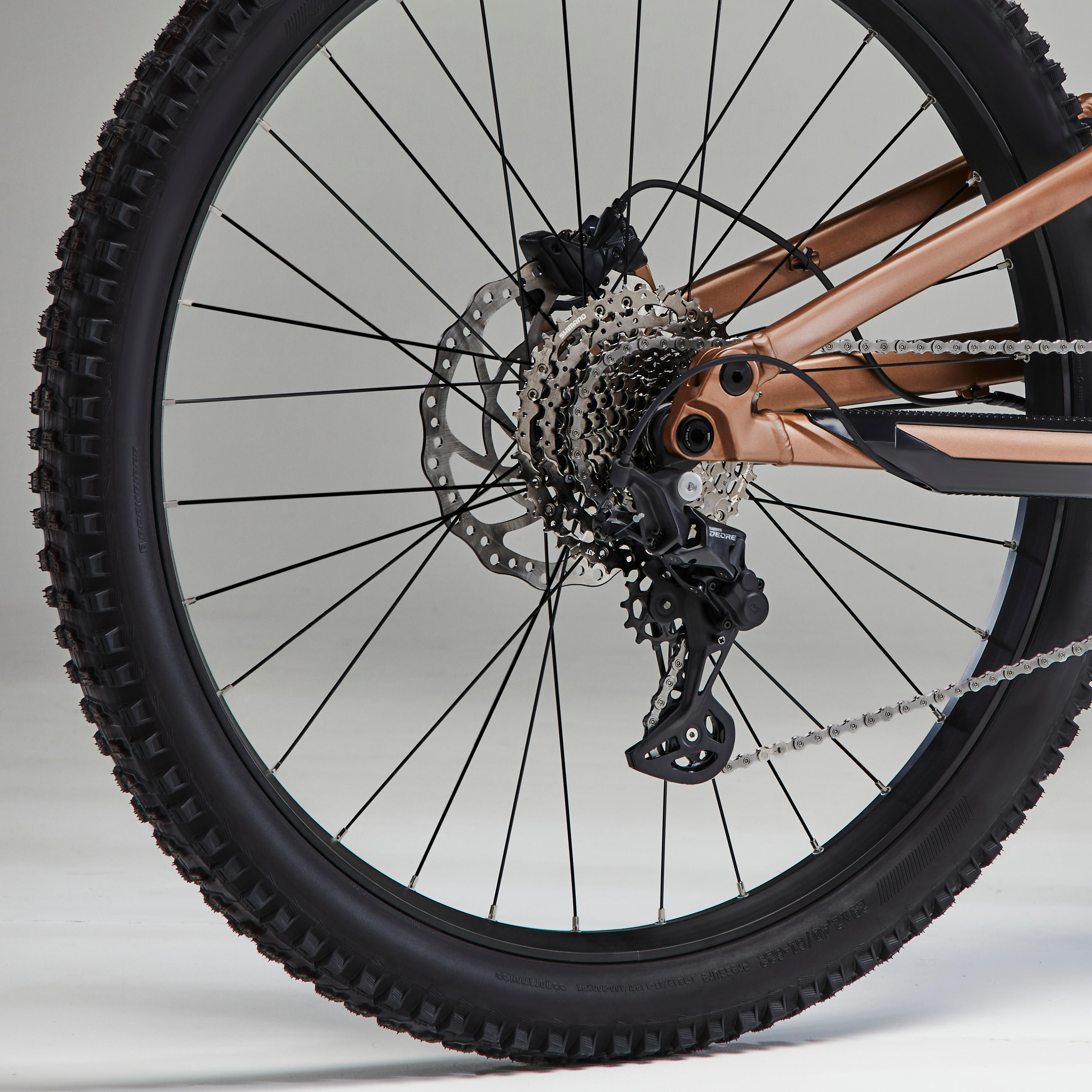

Transmission
Shimano Deore LinkGlide
Chainring: 34 teeth with chain guide
Rear derailleur: Shimano Deore 5130
Crank: 170 mm
Right shifter: Shimano Deore 5130
Cassette: Shimano Deore LG 11-43 10-speed
Chain: Shimano LG 500
Suspension
Rock Shox 35 Silver R fork
Travel: 140 mm
Dampers: 35 mm
Axle: Thru axle
Format: 110 x 15 mm
Offset: 51 mm
Technology: Coil spring depending on size: flexible (S), medium (Ms, L), hard (XL)
Adjustments: external rebound adjustment only
Rock Shox Deluxe Select Coil shock
Dimensions: 210x55 mm
Coil spring depending on size: flexible (S), medium (Ms, L), hard (XL)
Mount: Standard
wheelset
Rockrider 29” 30c wheels
29" size compatible with fat tyres: up to 2.6"
Internal width between hooks: 30 mm
32 spokes
Format: Boost
Discs: 6 holes
Freewheel hub: HG
Sealed bearings
Tubeless Ready, with a sealed rim strip (requires TUBELESS tyres, Presta valves, and tyre sealant)
Brakes
TEKTRO M530 hydraulic disc brakes
Number of front pistons: 4
Number of rear pistons: 2
Front disc: 203 mm - Thickness: 2.3 mm
Rear disc: 203 mm - Thickness: 2.3 mm
6-bolt mounting

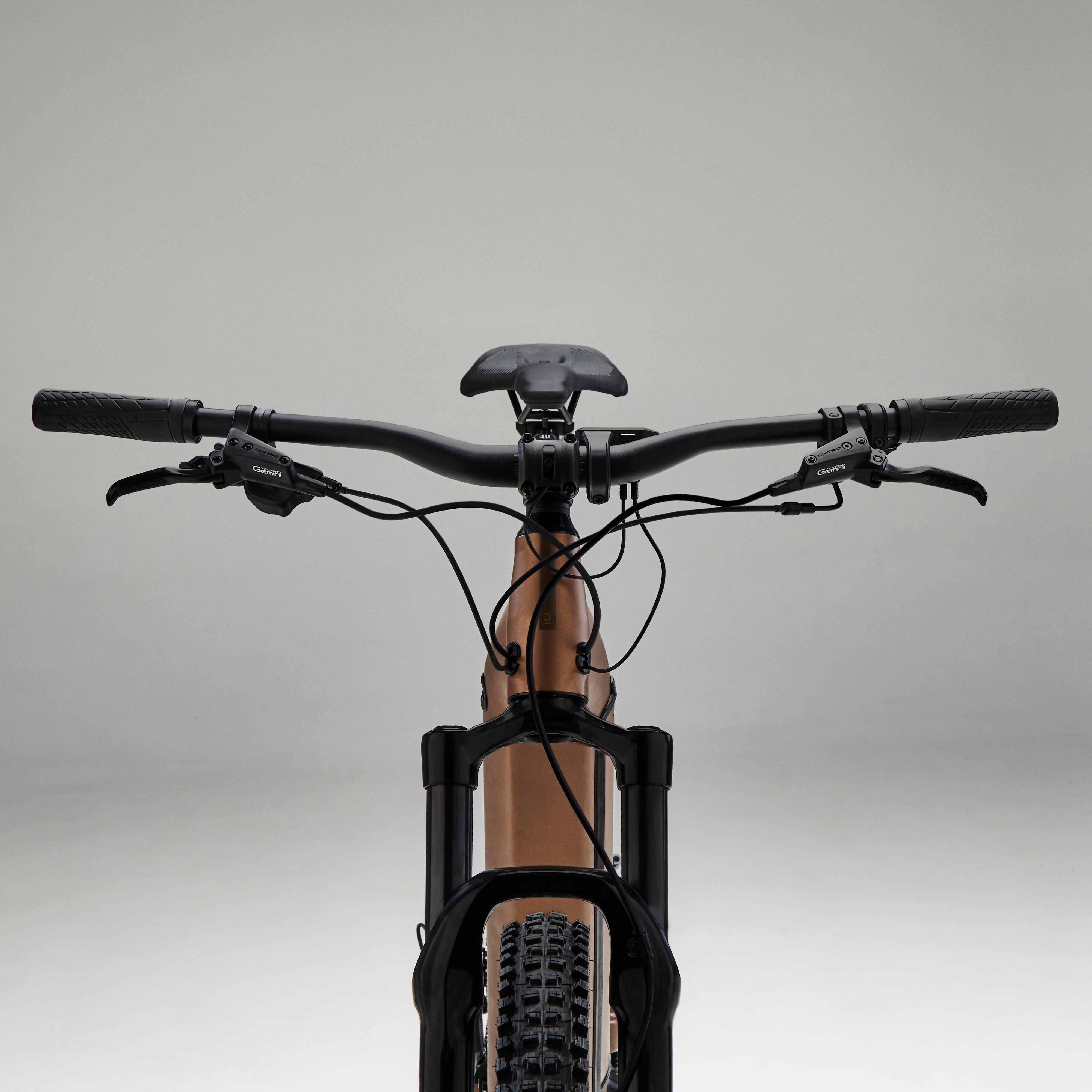

Riding position
Rockrider Sport handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 740 mm (S, Ms) 760 mm (L, XL)
Rise: 10 (S, M), 25 (L, XL)
Upsweep: 0° (S, M), 6° (L, XL)
Backsweep: 9°
Rockrider stem
Material: Aluminium
Angle: 7°
Sizes: 50 mm (S), 60 mm (Ms / L), 70 mm (XL)
Grips:
Rockrider Ergo Lock On
Headset
ZS 44/28.6 - 56/40
Saddle & seat post
Saddle: Decathlon long distance 60°
Telescoping seat post: Rockrider Dropper
Diameter: 31.6 mm
Travel: 120 mm (S) / 150 mm (Ms/L) / 170 mm (XL)
Weight: from 650 g
Seat clamp: aluminium, 34.9 mm diameter
Tyres
Rockrider Grip 500
29" x 2.4"
Tubeless ready
Bead: soft
Carcass: 60 TPI 1 ply
Sidewalls: Skinwall with puncture-resistant side strip
Tread: Dual lug
Pedals
Rockrider Flat Evo Resin
ACCESSORIES INCLUDED
Your MTB comes with:
4A charger
bell,
lights,
wheel reflectors
and pedals.
