General presentation
Compatible with Garmin Explore App on smartphone
Can be used independently of the smartphone and Explore App
Compatible with watches, Instinct® and Fenix®, and DriveTrack™ road GPS
More control - through an intuitive user interface
Downloadable OpenStreetMap and Digital Atlas of the Earth maps on the phone - available offline
General presentation (cont.)
Ability to track up to 20 dogs or hunters in real time with position updates every 2.5 s
Training functions - 18 levels of stimulation (continuous and momentary)
Up to 40 hours battery life
Features
New, more compact and robust design made of strong fibres.
4.6 cm monochrome screen.
Monochrome transflective screen with high contrast and sunlight readability - 5.8 x 12.0 x 2.9 cm.

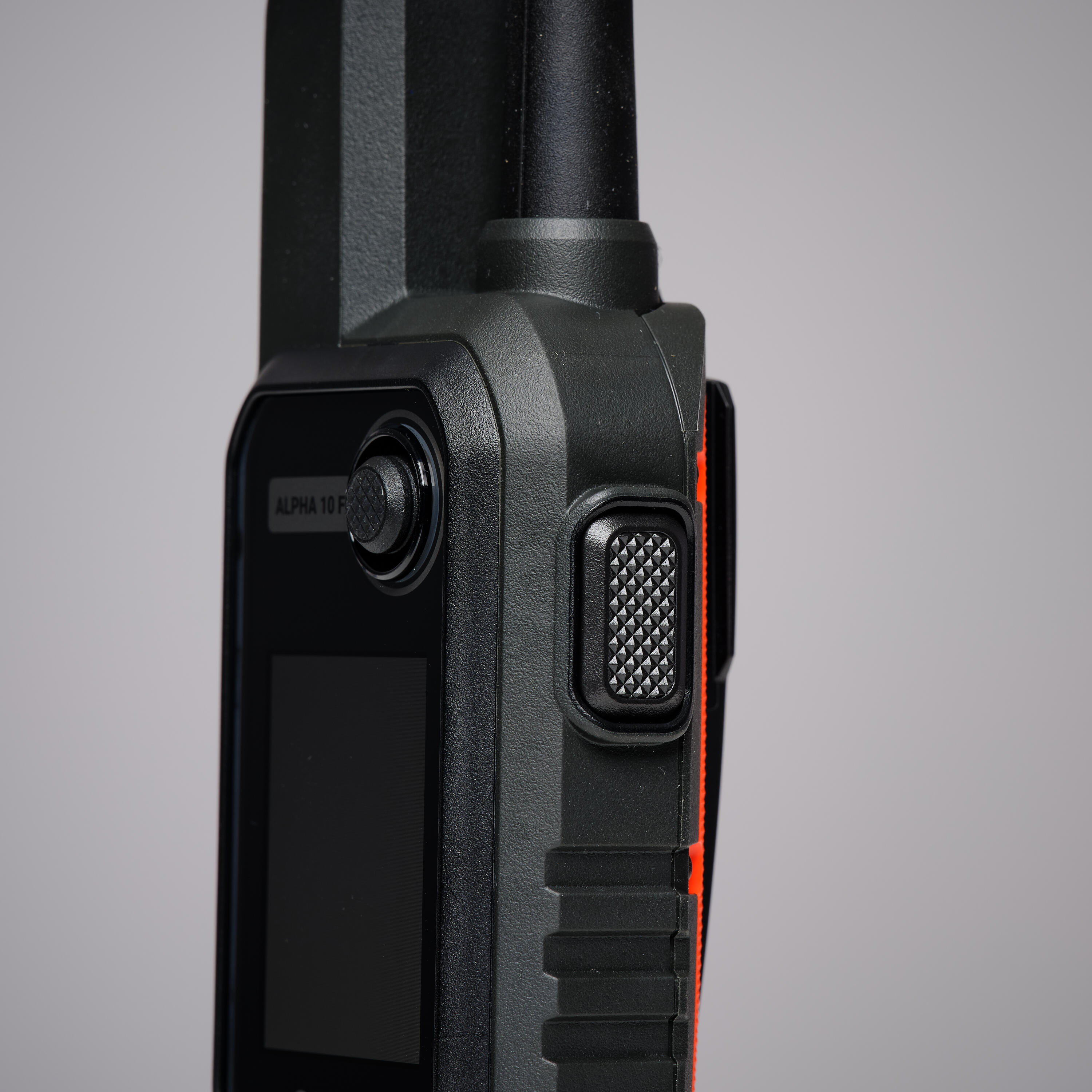

Better interaction and accuracy with a 360° joystick and integrated quick access buttons for faster and easier navigation while hunting.
Li-ion battery cannot be replaced by the user.
IPX7 waterproofness
Features (cont.)
An additional external VHF antenna can be connected for extended range.
Combined GPS and GALILEO receivers, combined with quad-helix antenna technology to ensure optimum performance. Allows quick and accurate position fixing, even in the most demanding environments.
The compass provides an accurate reading of the dogs' direction from the device.
Dog tracking functions
Supports up to 20 dogs or hunters.
Increased performance when tracking multiple dogs. 20 IDs per single frequency which limits interference when there are many dogs present.
Variable position update rate between 2.5 s and 5 s depending on your settings for more accurate dog position information.
Powerful VHF radio function (2 W for all 6 frequencies) that enables you to track dogs up to 14.5 km away.
Dog tracking functions (cont.)
Distances can vary depending on the environment and terrain.
Ability to change the position update rate and apply other parameters remotely. For example, extending the position update rate to extend battery life if a dog is lost, or activating the collar's LEDs to adapt to night-time conditions. The LED lights can be set in 3 ways: steady, slow flashing or fast flashing.
Connected features
The device is Bluetooth® enabled for connectivity with smartphones and data transfer with the Garmin Explore Mobile application. ANT+ and Bluetooth® Low Energy for connectivity with sensors and accessories, as well as software updates.
Control the Alpha® 10 and apply all settings from the Garmin Explore App.
Compatible with Android and IOS smartphones.
Compatible with Instinct and Fenix watches.
Size, weight, diet, collar length
Device dimensions (L × H × D):
8.1 x 4.5 x 3.5 cm (3.2″ x 1.8″ x 1.4″)
Weight:
168.5 g (5.9 oz) : transmitter and antenna (without collar)
239.5 g (8.4 oz): total weight (with collar)
Battery type:
Rechargeable lithium-ion battery; user-replaceable
Collar length:
With standard 1″ collar: minimum circumference of 9.5″ (24 cm)

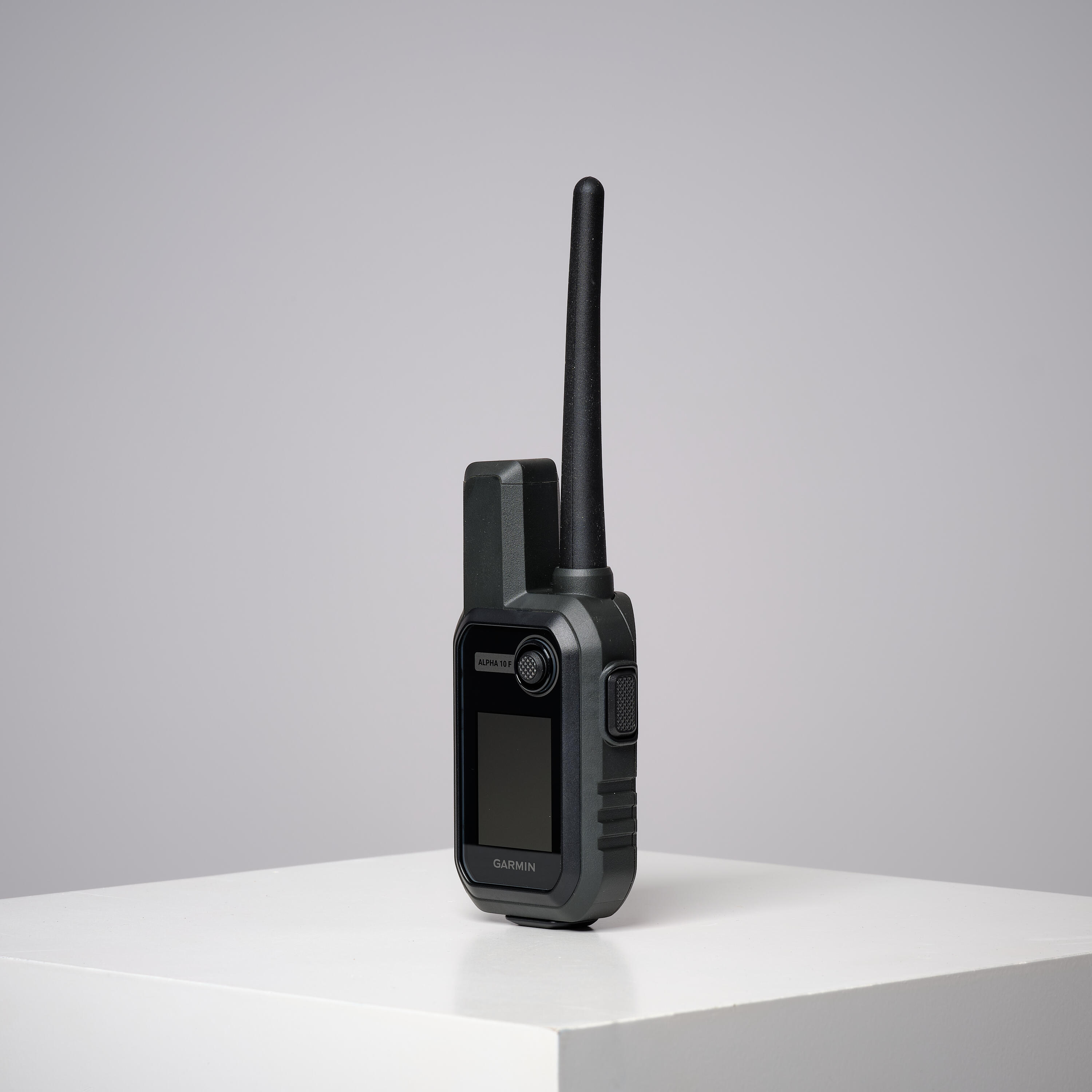

Features of the remote control
Unit dimensions (WxHxD): 5.8 x 12.0 x 2.9 cm
*dimensions do not include antenna
Weight: 160 g
Display size: 4.5 cm diagonal
Display resolution (WxH): 128 x 128 pixels
Display type: Anti-glare, transflective memory-in-pixel (MIP)
Battery type: rechargeable lithium-ion; non-replaceable
Battery life: Up to 40 hours in GPS mode
