Product Description

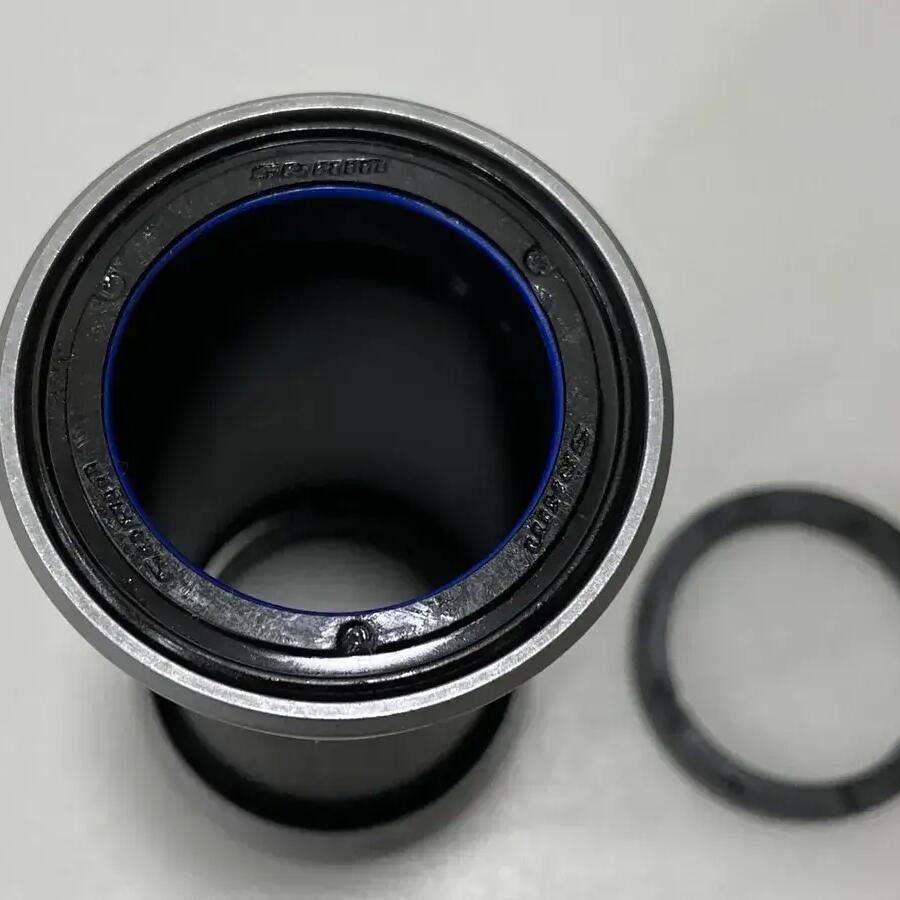

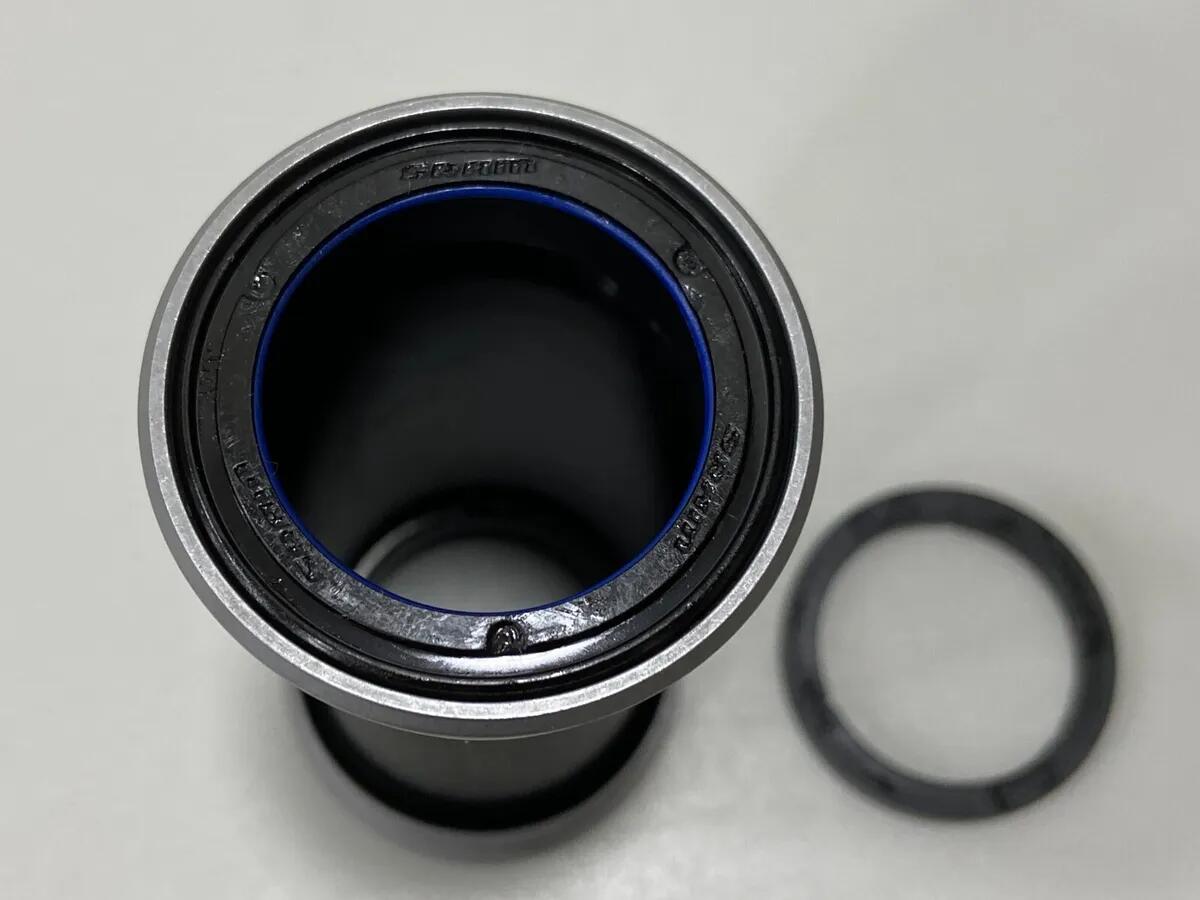

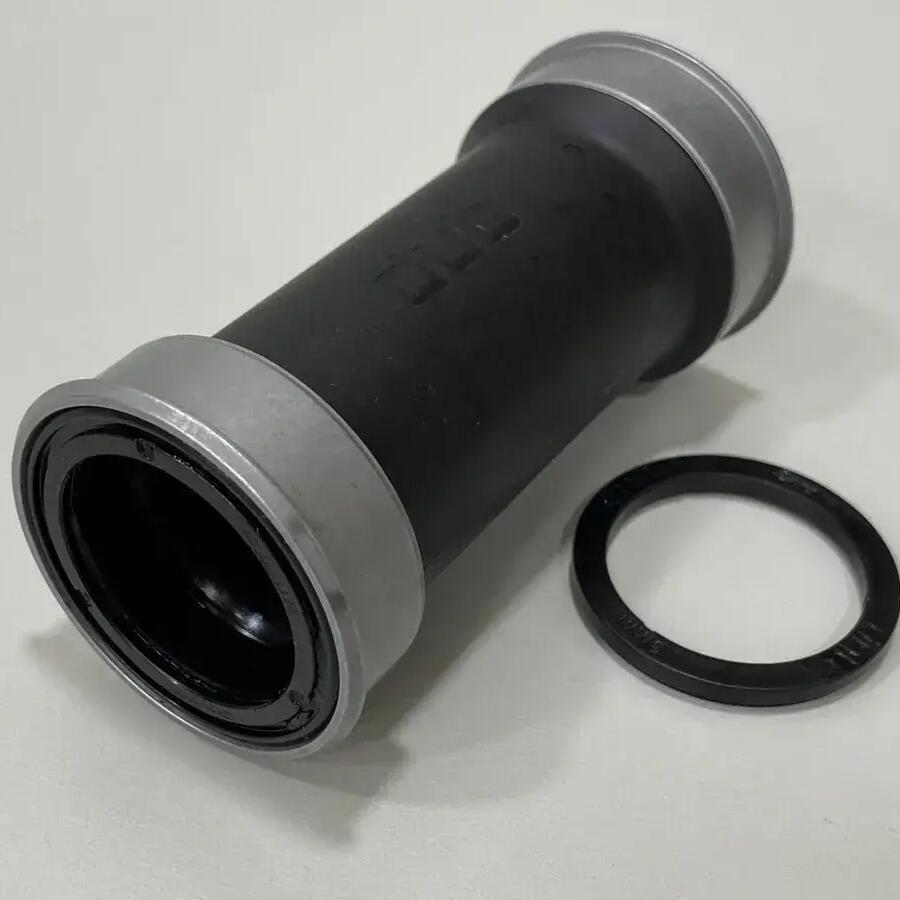

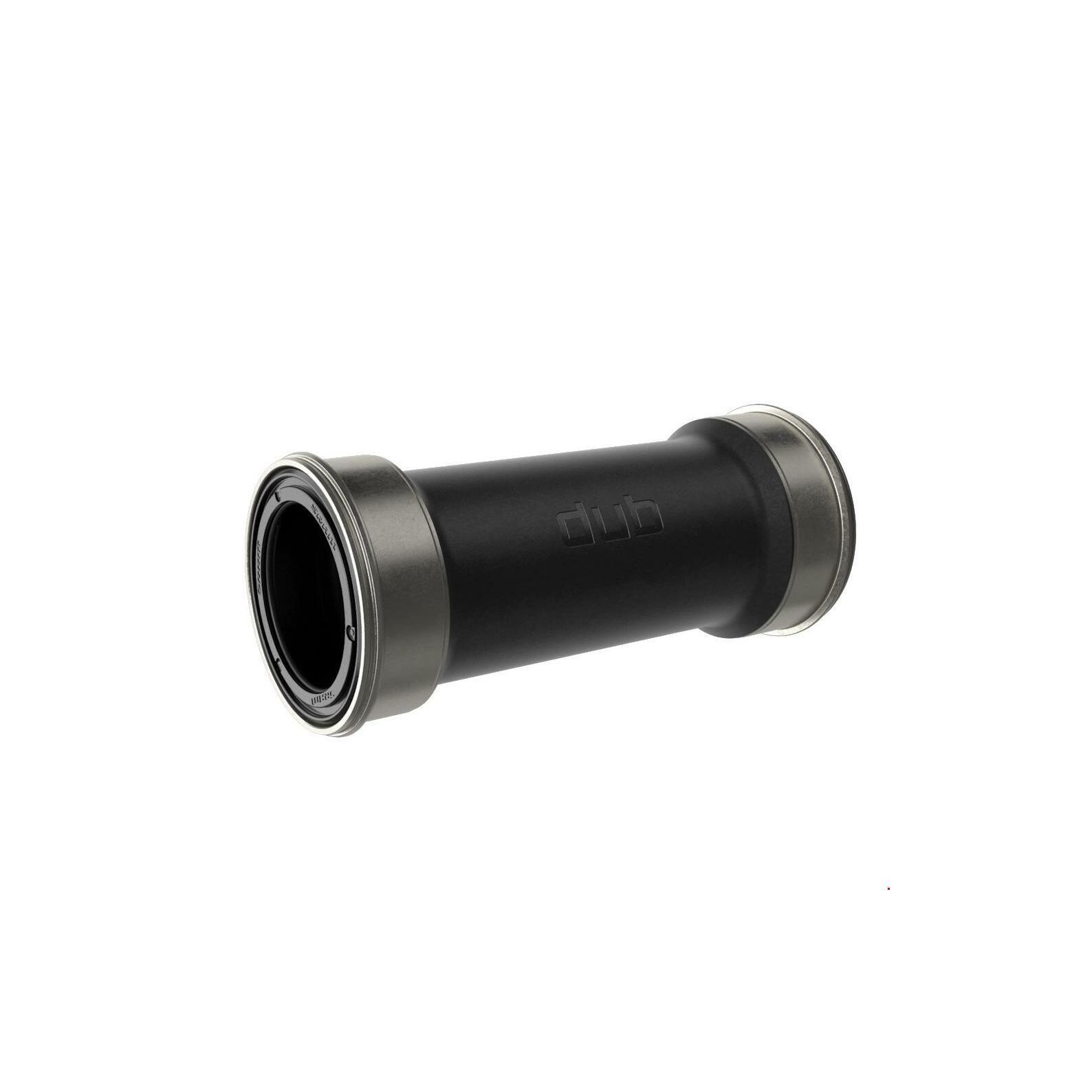

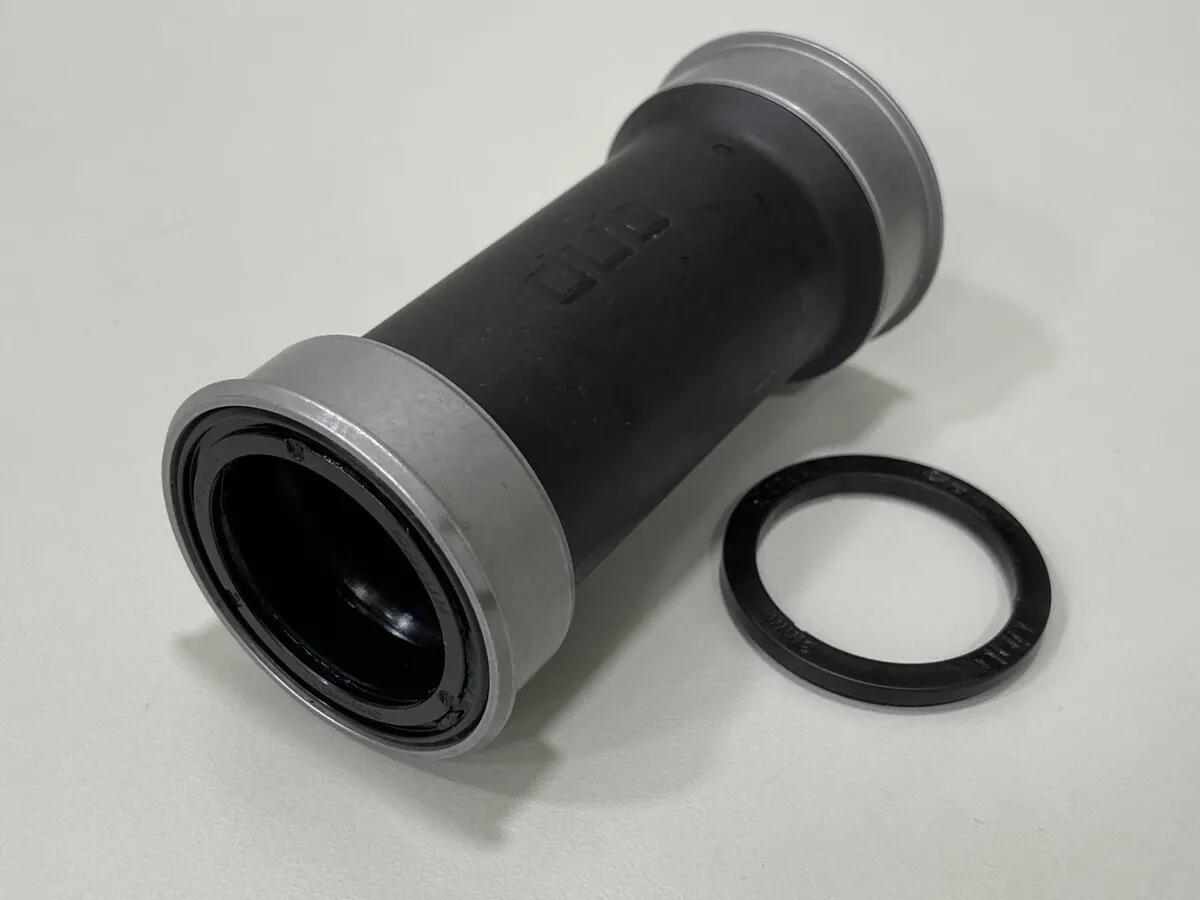

The Sram DUB bottom bracket has an internal diameter of 28.99 only compatible with DUB axles.
Details:
- Aluminum/Steel material.
- Internal frame diameter: 41mm
- Weight : 71g
Reference :
- 00.6418.025.000 / AM BB DUB PressFit (Road) 86.5mm
Your bike creaks when you press hard on the pedals, the movement of the crankset lost its fluidity or took some play? The symptoms are clear: it's time to change your bottom bracket. Like all the parts that make up your bike, the bottom bracket and especially its bearings are subject to wear.
Its replacement is a simple operation if it is well prepared, indeed the multiplication of the standards of bearings, bottom bracket and frame will discourage some. We will try to guide you through this jungle of standards. The bottom bracket is the interface between your crankset and your frame, so the first thing to do is to identify which crankset you want to fit in which frame?
Internal case diameter *Box width *Standard fitRecommended bottom bracket axle **34.8 mm68 mmTo screwBSA / BSC24 mm / GXP / Dub 29 mm36 mm70 mmTo screwItalian24 mm37 mm90.5 mmTo pressBB 90 (Trek)24 mm / GXP / Dub 29 mm41 mm86.5 mmTo pressPF 86 (Shimano)24 mm / GXP / Dub 29 mm41 mm89,5 mmÀ PresserPF 90 (Shimano)24 mm / GXP / Dub 29 mm42 mm68 mmÀ PresserBB 3030mm / Dub 29 mm42 mm79 mmÀ PresserBB Right30mm / Dub 29 mm46 mm61 mmÀ PresserSpecialized30mm / Dub 29 mm46 mm68 mmÀ PresserPF 3030mm / Dub 29 mm46 mm79 mmÀ PresserBB Right PF 36030mm / Dub 29 mm46 mm86,5 mmÀ Presser386 EVO30mm / Dub 29 mm
We advise you to dismantle your original box to measure with precision the dimensions of the bottom bracket of your frame.** This compatibility is given as an indication, there are also boxes 'adapters' which make it possible to mix the standards.
Specifications :
- Box width : 86.5
- Case standard : PressFit DUB
- Internal case diameter : 41
- Bearing quality : Steel
- Bottom bracket axle: 28.99 mm
- Crankset standard: Sram DUB
