Product Description

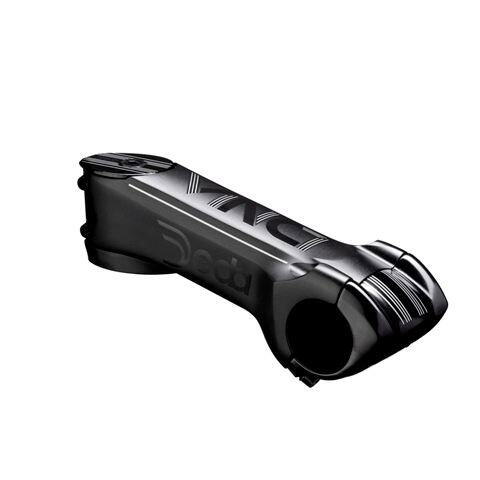

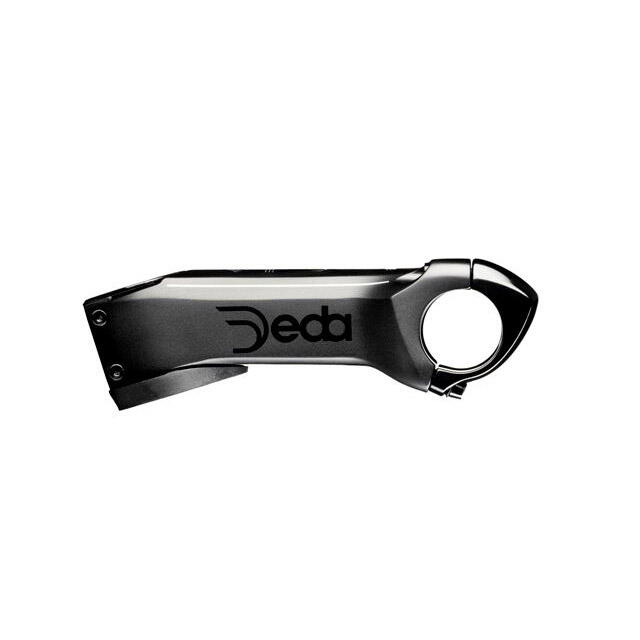

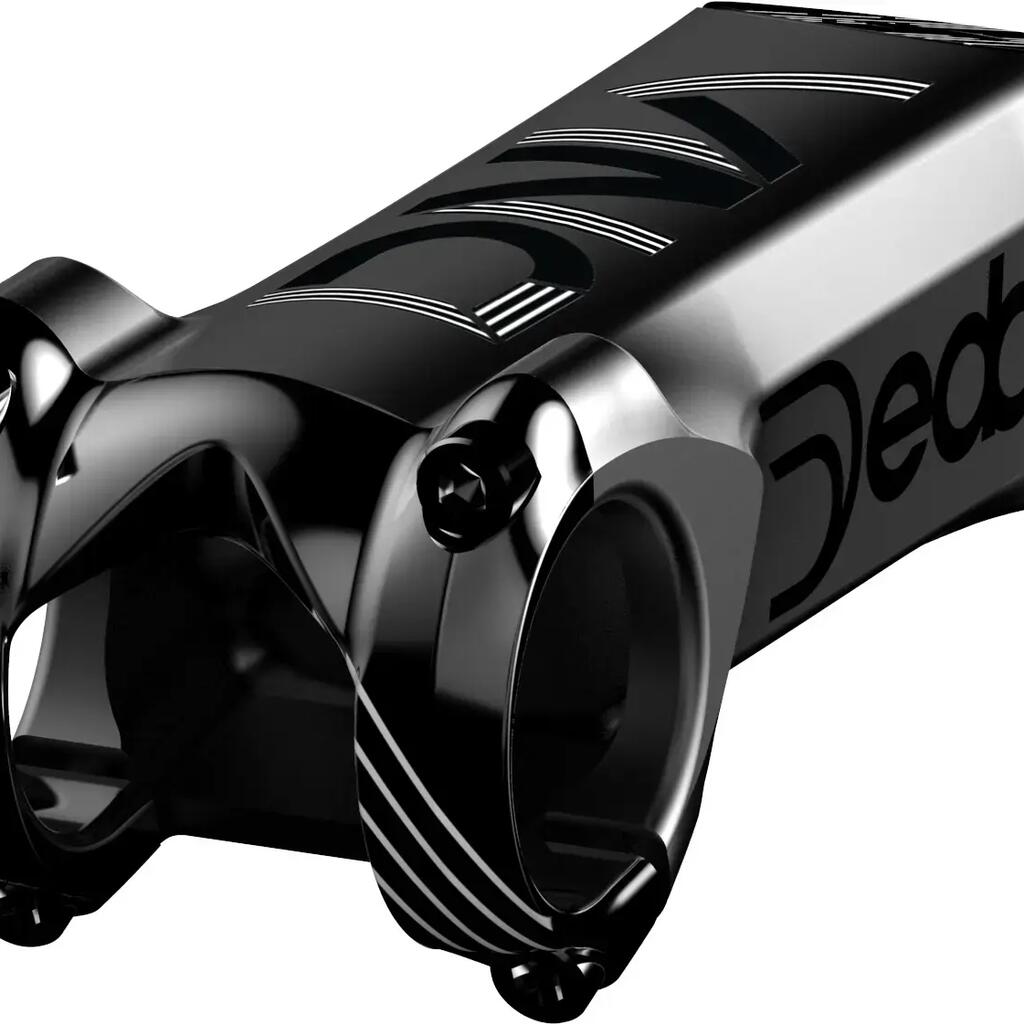

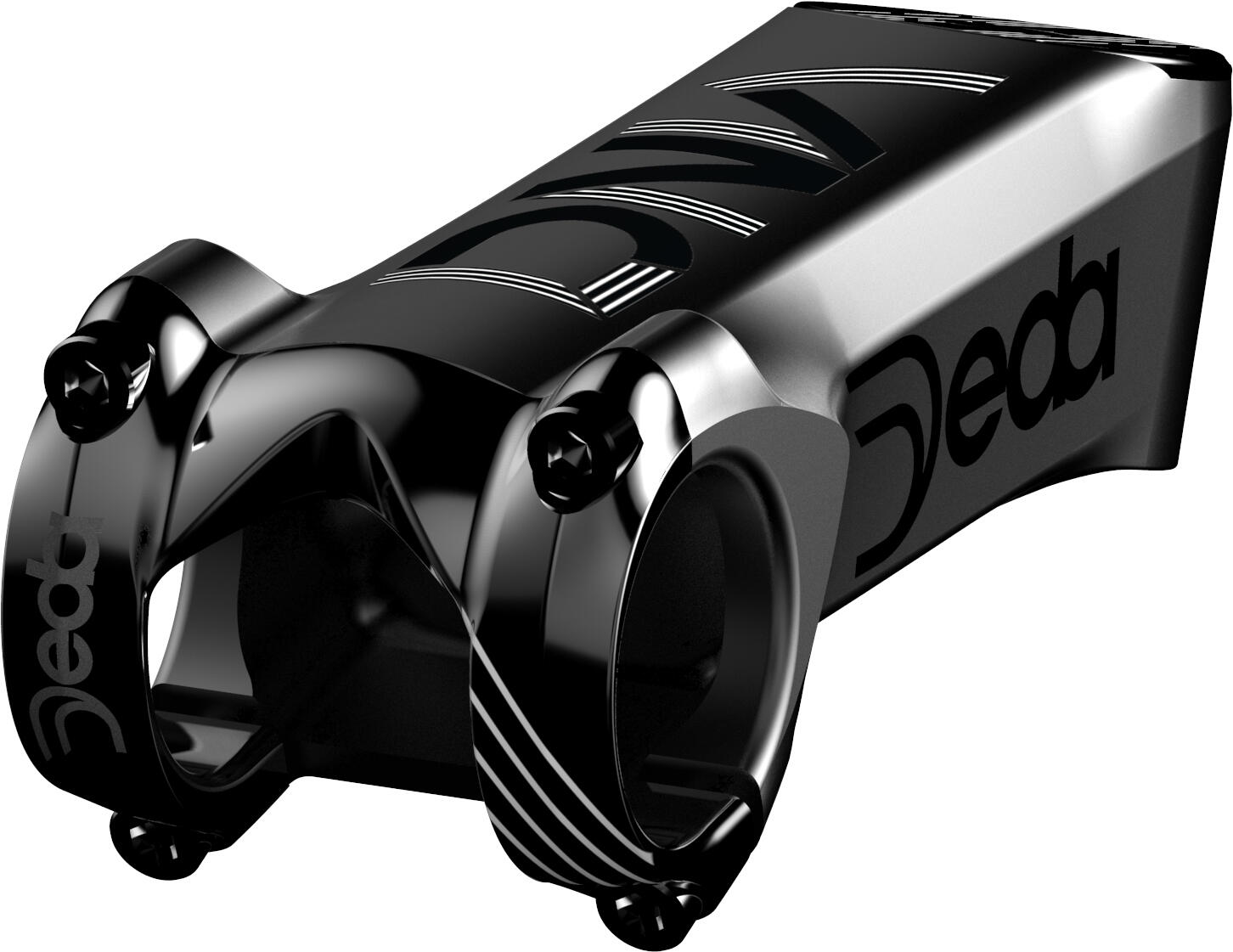

Deda Vinci DCR Stem — lightweight, aero stem with integrated internal cable routing for road cycling. Designed to work with Deda DCR handlebars, the Vinci lets you route cables cleanly through the stem using a system of slotted spacers that open for easy fitment without full cable removal. The flat, 3D-forged profile improves aerodynamics while retaining strength and stiffness.
Compatibility and fit
- Works with 1 1/8" and 1 1/4" fork steerers; adaptor included to suit the other sizes.
- DCR system requires a 52mm (1.5") upper headset bearing to provide room for cables between the headset bearing and fork.
Convenience and accessories
- Slotted spacers create dedicated channels for housing and can be added or removed to fine-tune the fit.
- Includes aero integrated top cap, headset spacers and alloy sleeve adaptor for 1 1/8" steerers.
- Supplied with 56mm and 46mm top covers; 52mm top cover available separately.
Technical specifications
- Material: Alloy 2014
- Screws: Steel, black
- Angle: 73°
- Handlebar diameter: 31.7mm
- Drop (including upper headset spacer): 40mm
- Lengths available: 90, 100, 110, 120, 130, 140 mm
- Weight: 190g
- Colour: Polish On Black
- Assembly / Manufacturing: Taiwan (TW)
