Product Description

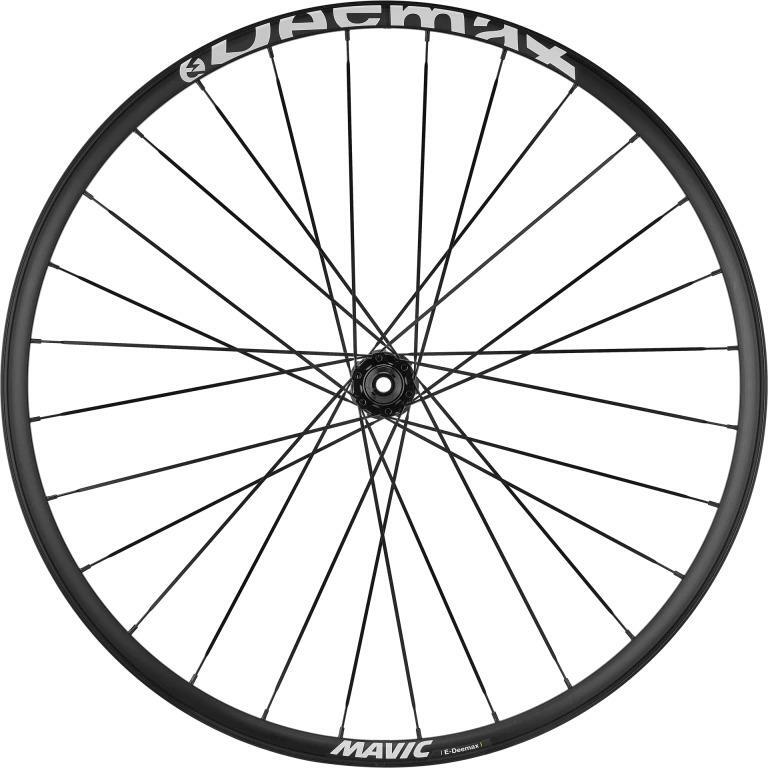

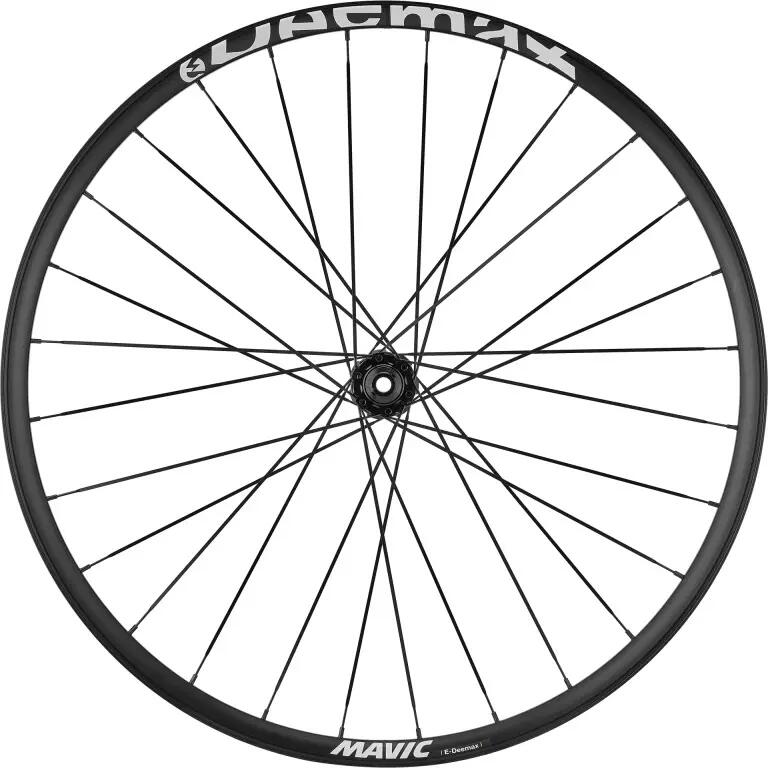

The name E-Deemax has become a reference for electric bike users. This new E-Deemax wheel lives up to its name with many features and technologies similar to those of the higher-end model, but at a much more accessible price.
A brand new rim profile has been designed for this new version. With a wider rim bed, installing the strongest and most rigid tyres has never been easier.
Our exclusive Pinch Flat Protection (PFP) technology provides a wider contact surface at the top of the sidewall and significantly reduces the risk of cuts and punctures. Thanks to PFP technology, the tyre can withstand an impact 20% stronger before being cut.
The rim is welded for added reliability and has an internal width of 30 mm with Tubeless Ready compatibility, allowing you to use lower tyre pressure for better traction and control.
Like all our E-Deemax wheels, this new option is lab and field tested for a maximum total weight of 180 kg.
This new generation of E-Deemax comes fitted with our brand new 28-hole Infinity hub. Infinity means that only one length of spoke is needed for front and rear, left and right wheels, and replacing a spoke can be done without removing the disc or cassette.
The reinforced spokes should protect against damage, but in any case, each wheel comes with 2 spare spokes.
Our Instant Drive 360 freehub system mounted on the rear wheel guarantees quick engagement and exceptional reliability with its dual ratchet mechanism.
The rear hub is compatible with Shimano HG9, Micro Spline, and SRAM XD freehub bodies. The E-Deemax 30 is available with either 6-bolt or Center Lock brake discs and is compatible with a 15x110 front axle and a 12x148 rear axle. The wheel comes with valves, spare spokes, and accessories.
Available in 29'' and 27.5'', sold in pairs or individually for Mullet builds.
Main features
Durable and robust
Welded rim with pinch flat protection (PFP) to reduce the risk of punctures
Very strong rim profile
New Infinity hub specifically designed for the demands of E-MTB
Designed to handle the extra power and torque of electric bike motors
28 reinforced spokes
Proven reliability of the dual ratchet freehub system ID360
Maximum load supported by the wheel: 180 kg
Steel freehub body for enhanced strength
Improved tubeless compatibility
Wider rim bed for easier installation of reinforced tyres
The tubeless rim profile makes it easier to use tubeless tyres for better traction and less risk of punctures.
Specifications
Weight
Pair Weight: 2260 g
Front Weight: 1066 g
Rear Weight: 1194 g
Rim
Material: Maxtal
Height: 22 mm
Joint: SUP welding technique
Internal Width: 30 mm
Drilling: traditional (front/rear 28 holes)
Braking: disc
Profile: asymmetric
ETRTO size: 622x30TC
Tyre: UST Tubeless Ready - Use with tubeless rim tape Mavic
Spokes
Material: steel
Shape: straight, flat, anti-rotation (front and rear)
Nuts: steel, ABS, black
Spoking: crossed 3 (rear)
Hubs
Body material: aluminium
Body design: INFINITY
Disc standard: 6 holes or Center Lock®
Axle material: aluminium
Axle size: front 15x110 / rear 12x148
Freehub technology: Instant Drive 360
Freehub: Shimano MS / Sram XD MTB
Bearing technology: QRM automatic adjustment - sealed cartridge
Compatibility
Freehub body: convertible SHIMANO HG MTB aluminium (kit V3780101 sold separately)
Freehub body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
