Product Description

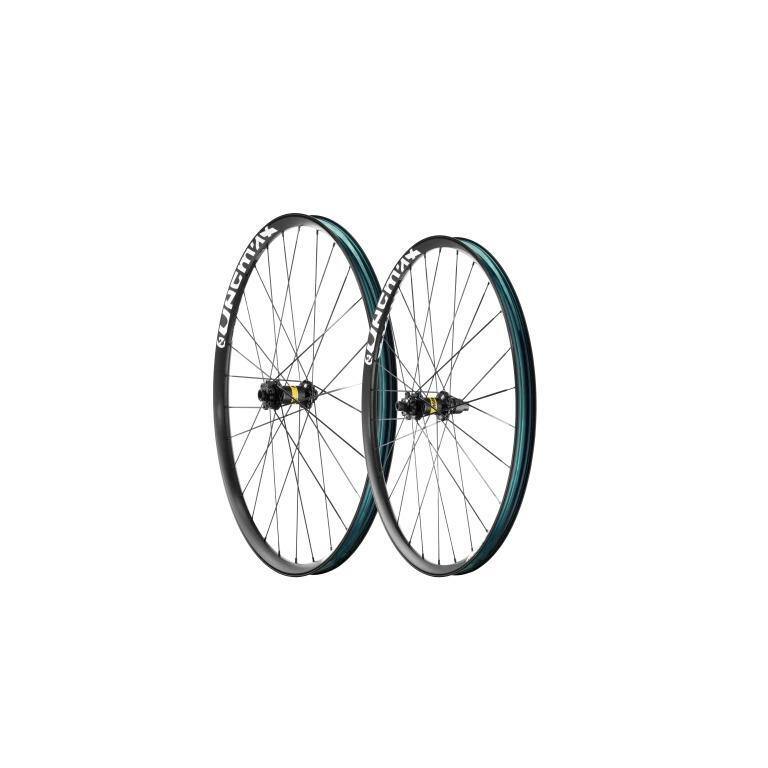

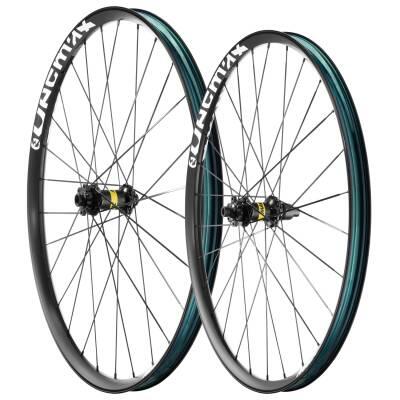

The expertise Mavic brought together in this specific E-Bike MTB wheel: solid, reliable, and durable, with a new 30mm rim profile that makes tire installation easier and protects against pinch flats. Available in 29, 27.5, and Mullet.
Main features
Resistant and durable
Welded rim with pinch protection (PFP) to reduce the risk of punctures
Very strong rim profile
New Infinity hub specially designed for the rigours of E-MTB.
Designed to withstand the additional power and torque of electric bike motors
28 reinforced spokes
Proven reliability of the ID360 dual ratchet freewheel system
Maximum load supported by the wheel: 180 kg
Steel freehub body for better durability.
Enhanced tubeless compatibility
Wider rim base for easier installation of reinforced tires
The tubeless rim profile facilitates the use of tubeless tires for better traction and less risk of puncture.
Specifications
Weight
Pair Weight: 2210 g
Front Weight: 1066 g
Rear Weight: 1144 g
Rim
Material: Maxtal
Height: 22 mm
Joint: SUP welding technique
Internal Width: 30 mm
Drilling: traditional (front/rear 28 holes)
Braking: disc
Profile: asymmetrical
ETRTO Size: 622/584x30TC
Tire: UST Tubeless Ready - Use with the tubeless rim tape Mavic
Spokes
Material: steel
Shape: straight, flat, anti-rotation (front and rear)
Nuts: steel, ABS, black
Spoking: crossed 3 (rear)
Hubs
Body material: aluminium
Body design: INFINITY
Disc standard: 6 bolts or Center Lock®
Axle material: aluminium
Axle size: front 15x110 / rear 12x148
Freewheel technology: Instant Drive 360
Freewheel: Shimano MS / Sram XD MTB
Bearing technology: QRM auto-adjust - sealed cartridge
Compatibility
Freehub: convertible SHIMANO HG MTB aluminium (kit V3780101 sold separately)
Freehub: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
Included with
User guide
UST rim tape mounted on the wheel
UST valve not mounted on the wheel
2 spare spokes per wheel
Multifunction adjustment key with the rear wheel
Intended use
Minimum tire size: width 52mm - max pressure 2.95Bar/43PSI
Maximum tire size: width 76mm - max pressure 2.45Bar/36PSI
ASTM category 5: gravity riding focused on downhill
Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
