Product Description
With its new wide rim (23mm) and lightweight design, the Cosmic SL 65 offers excellent aerodynamic performance on flat terrain. It has enough front and lateral stiffness to be somewhat versatile.
Main Features

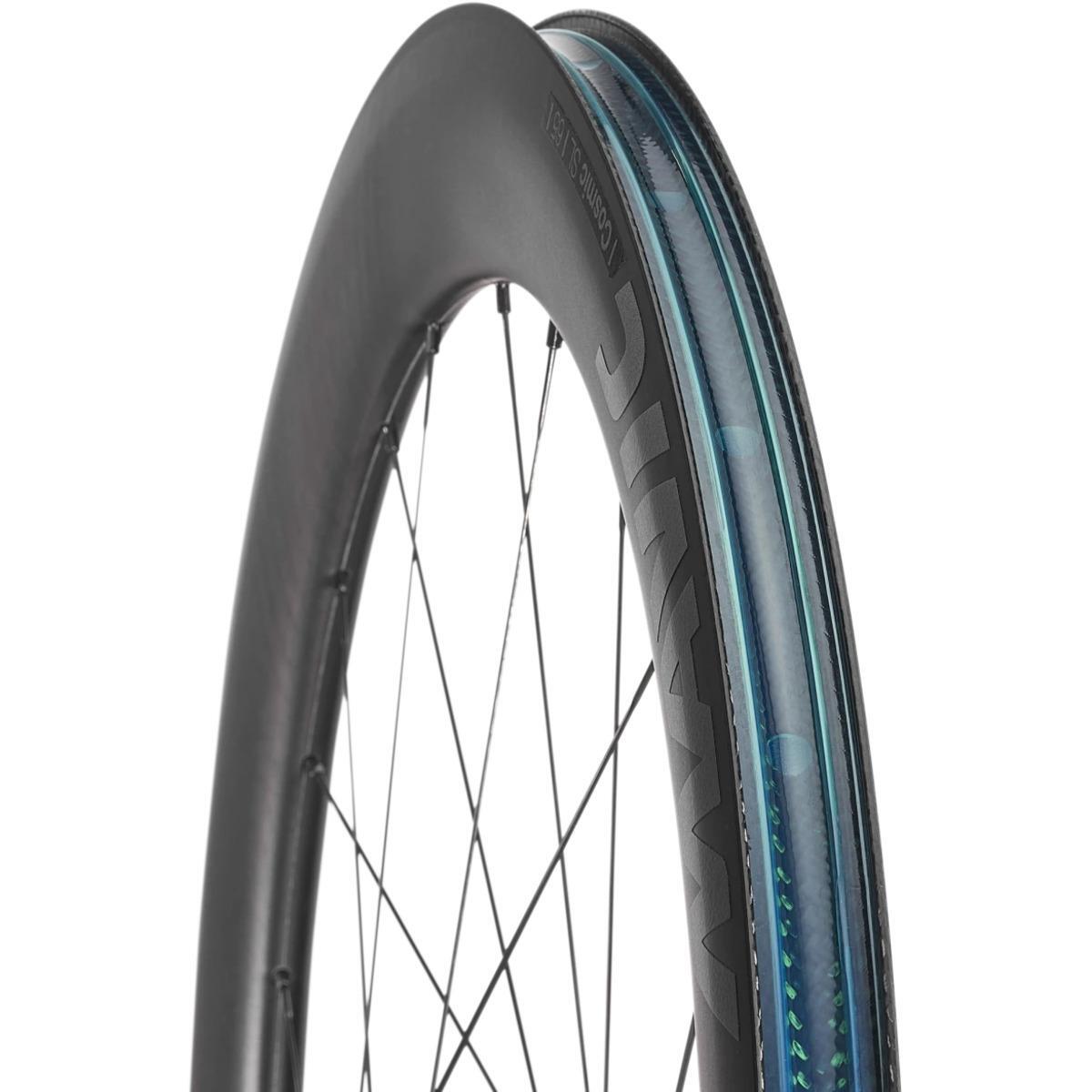

Aero Wide Rim: Unmatched combination of speed, control, and comfort.
Our wider rims ensure a perfect transition between the rim and the tyre, reducing micro-turbulences. Rolling resistance is significantly reduced, providing better handling in crosswinds and a smoother, faster ride, even on rough terrains, thanks to a wider and shorter footprint and lower riding pressure.
Improved Reactivity
The reduced inertia of the rim combined with INFINITY hub technology allows for instant acceleration.
Adaptive Layup: Strong in certain areas, light everywhere else
Carbon is lighter than aluminium, but the grams still add up. By using the right amount of fibres in the less stressed areas of the rim to reduce weight without compromising reliability, this results in livelier and more enjoyable wheels on climbs. Up to -70g per rim.
Specifications
Weight
Pair Weight: 1680 g
Front Weight: 775 g
Rear Weight: 905 g
Rim
Material: 100% unidirectional carbon fibre
Internal Width: 23 mm
Drilling: traditional (front/rear 24 holes)
Braking: disc
ETRTO Size: 622x23TC
Height: 65 mm
Tire: UST Tubeless Ready
Spokes
Material: steel
Material: stainless steel
Shape: straight, flat, anti-rotation (front and rear)
Nipples: steel, ABS, black
Spoke lacing: crossed by 2 (front and rear)

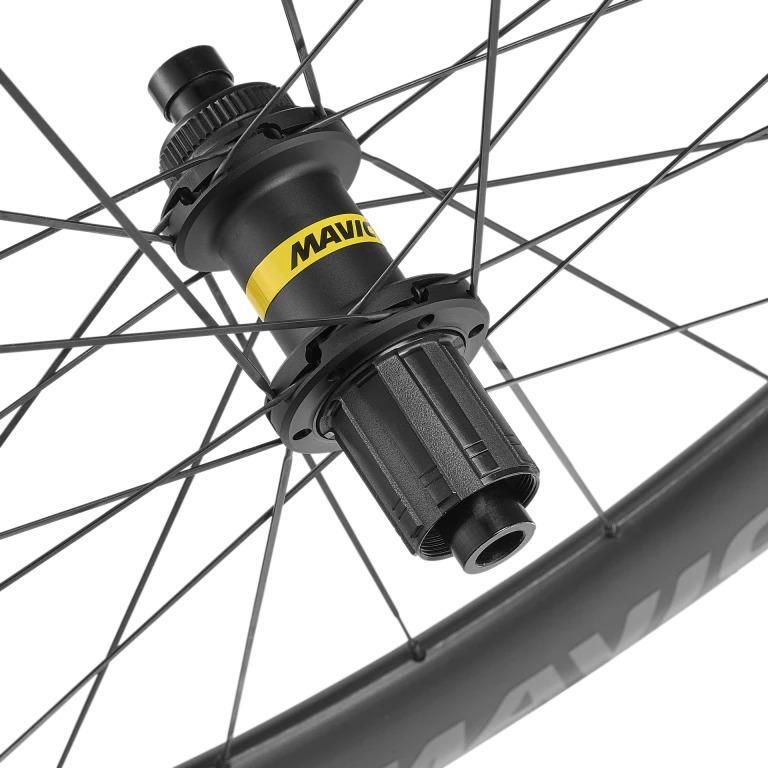

Hubs
Body Material: aluminium
Body Design: INFINITY
Disc Standard: Center Lock® only
Axle Material: aluminium
Axle size: front 12x100 / rear 12x142
Freewheel: Shimano HG road / Sram XD road
Bearing Technology: QRM automatic adjustment - sealed cartridge
Compatibility
Freehub Body: convertible SRAM XD road (kit V2580101 sold separately)
Freehub Body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freehub Body: convertible SHIMANO MS (kit V3990101 sold separately)
Freehub Body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freehub Body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
Included with
User guide
UST rim tape mounted on the wheel
UST valve not mounted on the wheel
Front axle adapters: 12x100 convertible to 9x100
Rear axle adapters: 12x142 convertible to 9x135
Multi-function adjustment key with the rear wheel
Intended use
Minimum tyre size: width 28mm - max pressure 5.5Bar/80PSI
Maximum tyre size: width 64mm - max pressure 3.25Bar/47PSI
ASTM category 2: road and paths with jumps under 15 cm
Maximum weight supported by the wheels: must not exceed 120 Kg (including bike weight)
