Product Description
The right wheel-tire combination can help you perfect your technique and enhance the performance of your electric mountain bike on tough off-road trails. The new E-Deemax S is specifically designed for electric mountain bikes and features unique technologies for smoother handling and guaranteed enjoyment.
Our patented PFP (Pinch Flat Protection) technology works with rims that have an increased contact area between the tire and rim, significantly reducing the risks of cuts and punctures. The 30 mm rim width allows you to lower your tire pressure for better traction and reduced rolling resistance. Our patented Fore technology includes a fully sealed rim upper bridge that eliminates the need for a rim tape, making it the simplest system for tubeless tire installation.
ISM machining removes material from strategic points on the rims to reduce weight without sacrificing strength, and our new Black Shield treatment protects them against scratches and abrasion. We use 28 straight spokes (the same length of spokes throughout) to ensure a strong connection between the rim and hub. This hub is equipped with our reliable dual ratchet ID360 system for quick engagement and effective acceleration. Designed for 6-bolt or Center Lock disc brakes, these 29'' wheels are compatible with Shimano HG9, XD, and Micro Spline freehub bodies and come with UST Tubeless valves, spare spokes, and accessories.
Main features
Significant reduction in the risk of tire cuts and punctures.
With its PFP rim sides, this wheel is reinforced to withstand the toughest obstacles.
Market's simplest tubeless system.
Fore technology: stronger rim profile due to the reduction in spoke holes.
Completely sealed rim and no rim tape for the best system on the market offered by tubeless pioneers.
Reinforced hub
Specifically designed for the additional torque of electric bike motors, validated for a total supported weight of 180 Kg.
Specifications
Weight
Pair weight: 2010 g
Front weight: 915 g
Rear weight: 1095 g
Rim
Material: Maxtal
Height: 22 mm
Joint: SUP welding technique
Internal width: 30 mm
Drilling: Fore tubeless technology without rim tape (front/rear 28 holes)
Braking: disc
Profile: asymmetrical
ETRTO size: 622x30TC
Tire: UST Tubeless Ready
Spokes
Material: steel
Shape: straight, extra-flat, narrow, anti-rotation (front)
Shape: straight, flat, anti-rotation (rear)
Nuts: brass, black
Screws: M7
Spoking: crossed by 3 (rear)

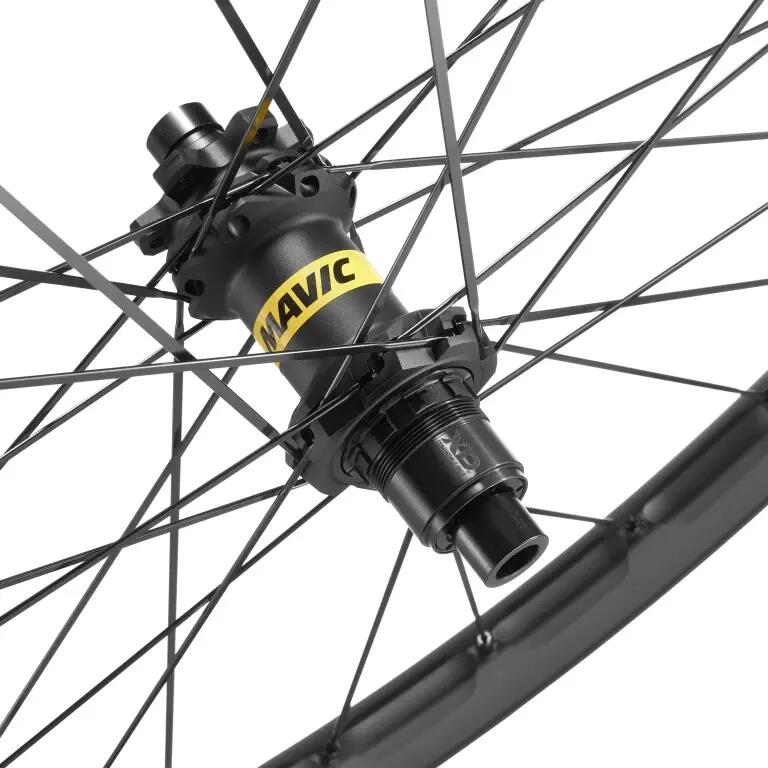

Hubs
Body material: aluminium
Body design: INFINITY
Disc standard: 6 holes or Center Lock®
Axle material: aluminium
Axle size: front 15x110 / rear 12x148
Freehub technology: Instant Drive 360
Freehub: Shimano MS / Sram XD MTB
Bearing technology: QRM automatic adjustment - sealed cartridge
Compatibility
Freehub body: convertible SHIMANO HG MTB aluminium (kit V3780101 sold separately)
Freehub body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
Included with
User guide
UST valve not mounted on the wheel
2 spare spokes per wheel
2 multifunction adjustment keys with the rear wheel
Intended use
Minimum tire size: width 52mm - max pressure 2.95Bar/43PSI
Maximum tire size: width 76mm - max pressure 2.45Bar/36PSI
ASTM category 5: gravity riding focused on downhill
Maximum load supported by the wheels: must not exceed 180 Kg (bike weight include
