Product Description
With an optimized aero profile and a 25 mm wide carbon rim, the performance Mavic becomes more accessible and allows you to ride faster on all your gravel outings.
Main features
Adaptive Layup: Strong in certain areas, light everywhere else
Carbon is lighter than aluminium, but the grams always add up. By using the right amount of fibres in less stressed areas of the rim to reduce weight without compromising reliability, this results in livelier and more enjoyable wheels on climbs. Up to -70g per rim.
Improved responsiveness
The reduced inertia of the rim combined with INFINITY hub technology enables instant acceleration.
Easy maintenance
The ID360 freehub offers reliability, easy maintenance, and excellent durability.
Specifications
Weight
Weight Pair: 1695 g
Front Weight: 785 g
Rear Weight: 910 g
Rim
Material: 100% unidirectional carbon fibre
Height: 42 mm
Internal width: 25 mm
Drilling: traditional (front/rear 24 holes)
Braking: disc
Profile: hookless
ETRTO size: 622x25TSS
Tire: UST Tubeless Ready
Spokes
Material: stainless steel
Shape: bent, round (front and rear)
Nuts: steel, ABS, black
Spoke pattern: crossed by 2 (front and rear)

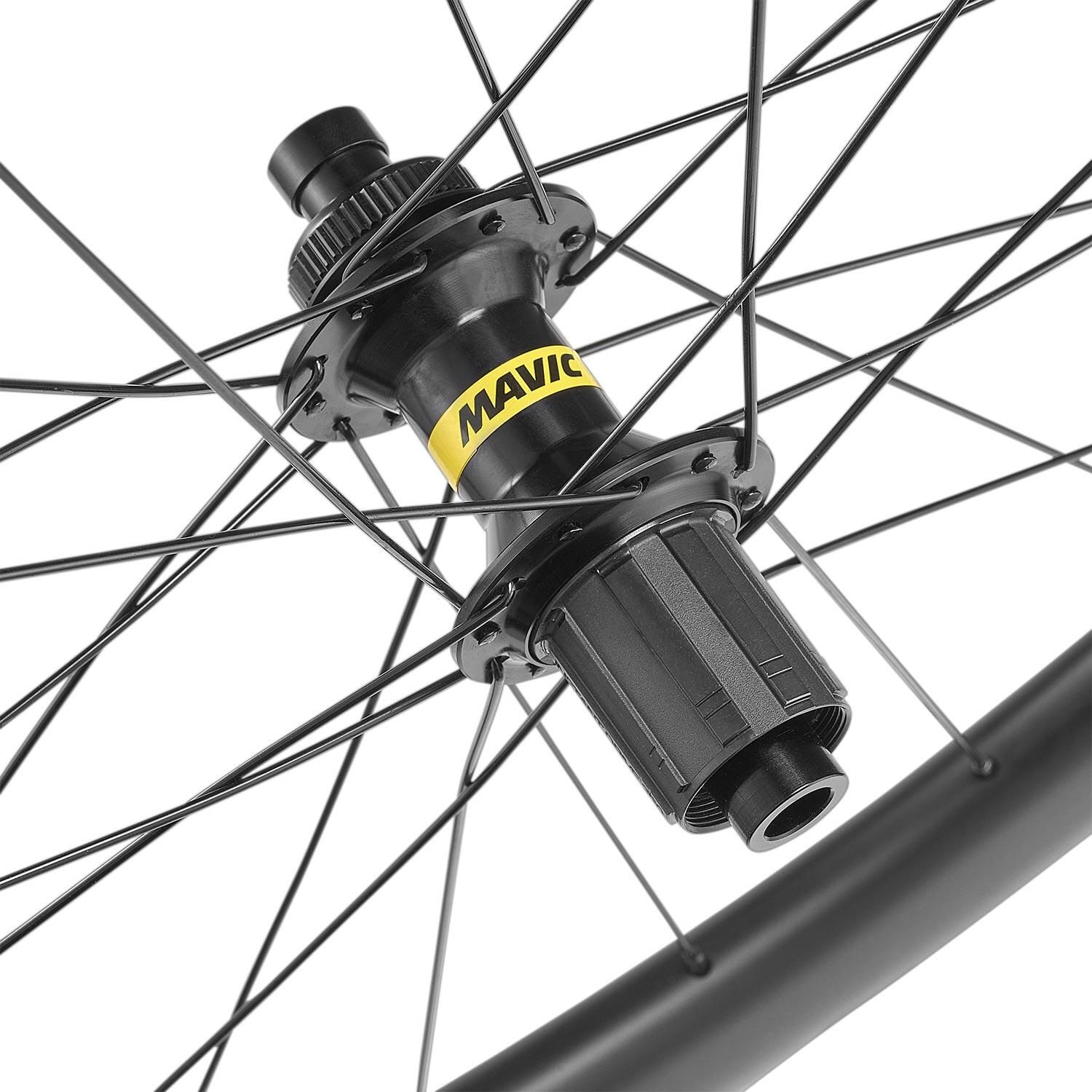

Hubs
Body material: aluminium
Body design: CLASSIC
Disc standard: Center Lock® only
Axle material: aluminium
Axle size: front 12x100 / rear 12x142
Freehub: Shimano HG road / Sram XD road
Bearing technology: QRM automatic adjustment - sealed cartridge
Compatibility
Freehub body: convertible SRAM XD road (V2580101 kit sold separately)
Freehub body: convertible SHIMANO HG light road (V3850101 kit sold separately)
Freehub body: convertible SHIMANO MS (V3990101 kit sold separately)
Freehub body: convertible CAMPAGNOLO ED (V3440101 kit sold separately)
Freehub body: convertible CAMPAGNOLO N3W (V4270101 kit sold separately)
Front axle adapters: 12x100 convertible to 9x100 (V2680301 kit sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (V2510801 kit sold separately)
Delivered with
User guide
UST rim tape mounted on the wheel
UST valve not mounted on the wheel
Intended use
Minimum tire size: width 30mm - max pressure 4.05Bar/59PSI
Maximum tire size: width 64mm - max pressure 2.45Bar/36PSI
ASTM category 2: road and paths with jumps less than 15 cm high
Maximum weight supported by the wheels: must not exceed 135 Kg (including bike weight)
