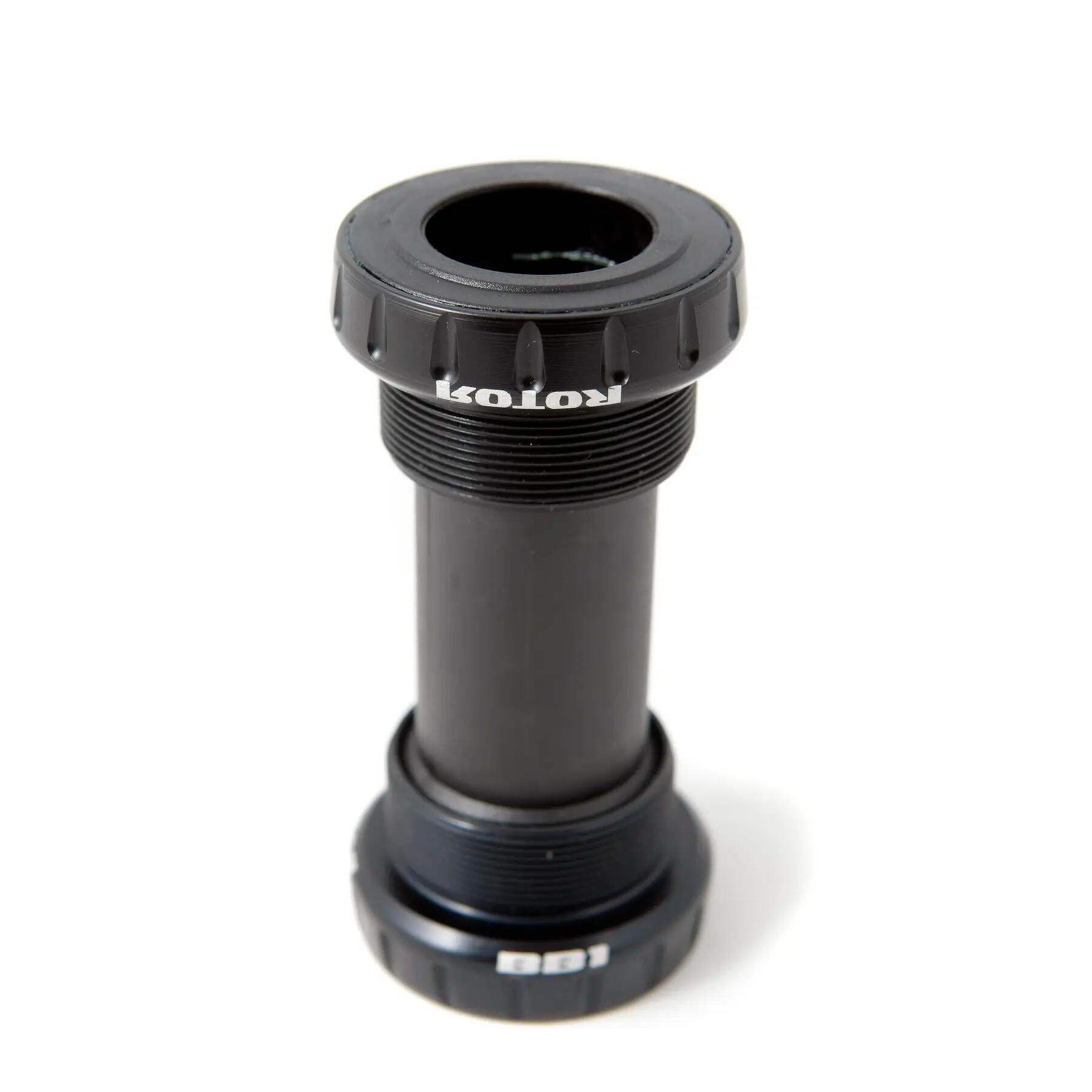

Bottom bracket Rotor bb1 bb ita steel

Product Description

Bottom bracket Rotor bb1 bb ita steel

• Use of new non-contact labyrinth seals that give exceptional fluidity and unmatched protection against dust, water and mud.
• Developed in partnership with the CERVELO TEST TEAM during the 2009 season.
• The new shape of the plastic covers has significantly improved lateral compression and resistance to deformation.
• The new elegant design of the cups offers a modern look, combining soft curves and sharp edges.
• Compatible with all ROTOR (standard BB24), Shimano and SHIMANO compatible cranksets. Does your bike creak when you press hard on the pedals, has the crankset movement lost its fluidity or become sloppy? The symptoms are clear: it's time to change your bottom bracket. Like all the parts that make up your bike, the bottom bracket and especially its bearings are subject to wear. Its replacement is a simple operation if it is well prepared, indeed the multiplication of the standards of bearings, bottom bracket and frame will discourage some. We will try to guide you through this jungle of standards. The bottom bracket is the interface between your bottom bracket and your frame, so the first thing to do is to identify which bottom bracket you want to fit in which frame ? Bottom bracket internal diameterBottom bracket widthMountingStandardRecommended bottom bracket axle34.8 mm68 mmScrew onBSA / BSC24 mm / GXP / Dub 29 mm36 mm70 mmScrew onItalian24 mm37 mm90.5 mmPress onBB 90 (Trek)24 mm / GXP / Dub 29 mm41 mm86.5 mmPress onPF 86 (Shimano)24 mm / GXP / Dub 29 mm41 mm89,5 mmÀ PresserPF 90 (Shimano)24 mm / GXP / Dub 29 mm42 mm68 mmÀ PresserBB 3030mm / Dub 29 mm42 mm79 mmÀ PresserBB Right30mm / Dub 29 mm46 mm61 mmÀ PresserSpecialized30mm / Dub 29 mm46 mm68 mmÀ PresserPF 3030mm / Dub 29 mm46 mm79 mmÀ PresserBB Right PF 36030mm / Dub 29 mm46 mm86,5 mmÀ Presser386 EVO30mm / Dub 29 mm We advise you to disassemble your original box to measure precisely the dimensions of the bottom bracket of your frame. This compatibility is given as an indication, there are also boxes 'adapters' that allow to mix the standards. Characteristics:
• Caster width old_68-73mm Italian Caster Standard Internal diameter 36 Caster bearing quality Steel Bottom bracket axle 24 mm Crankset standard FSA MegaExo
• Rotor 24mm
• Shimano Hollowtech II
• Race Face X-type
