Product Description

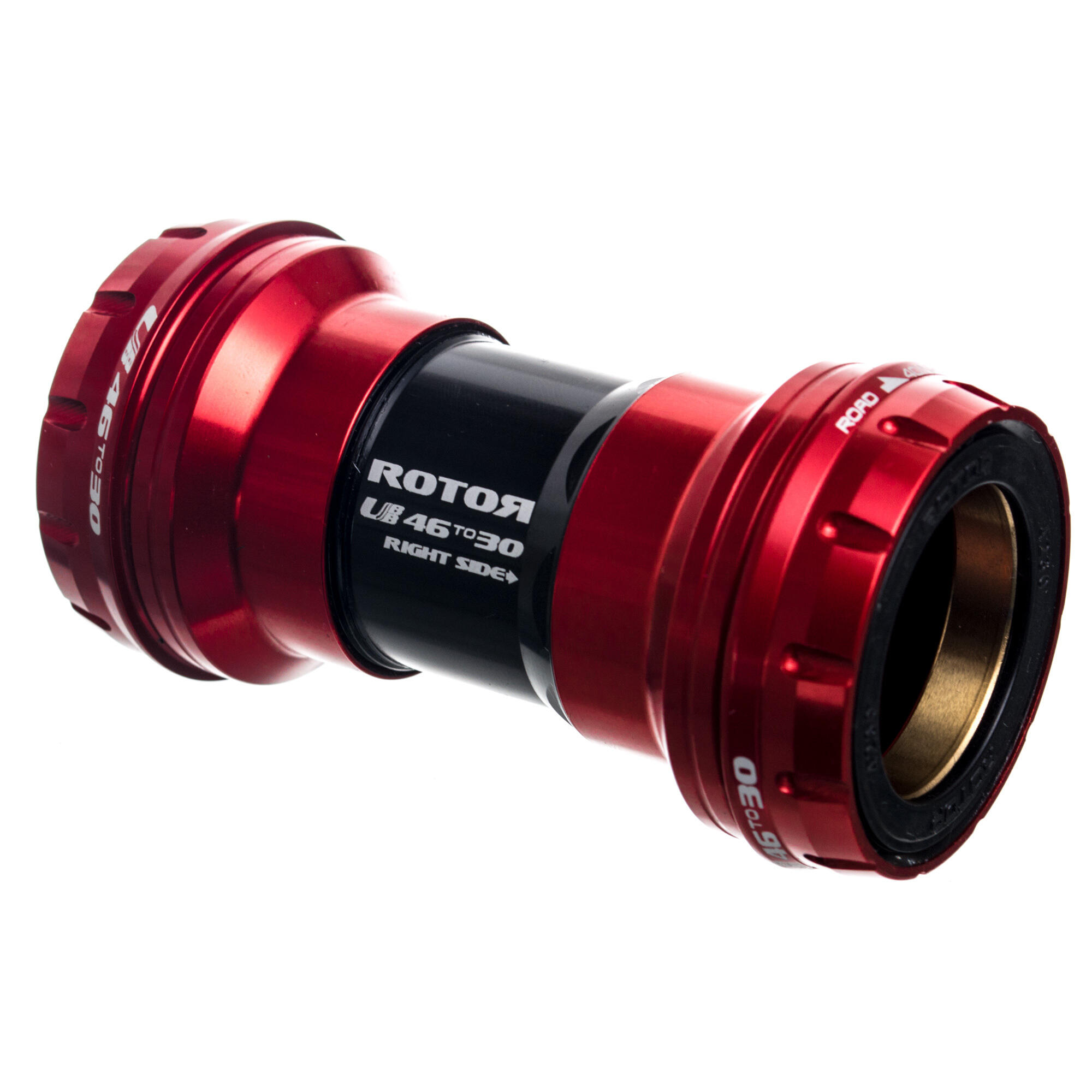

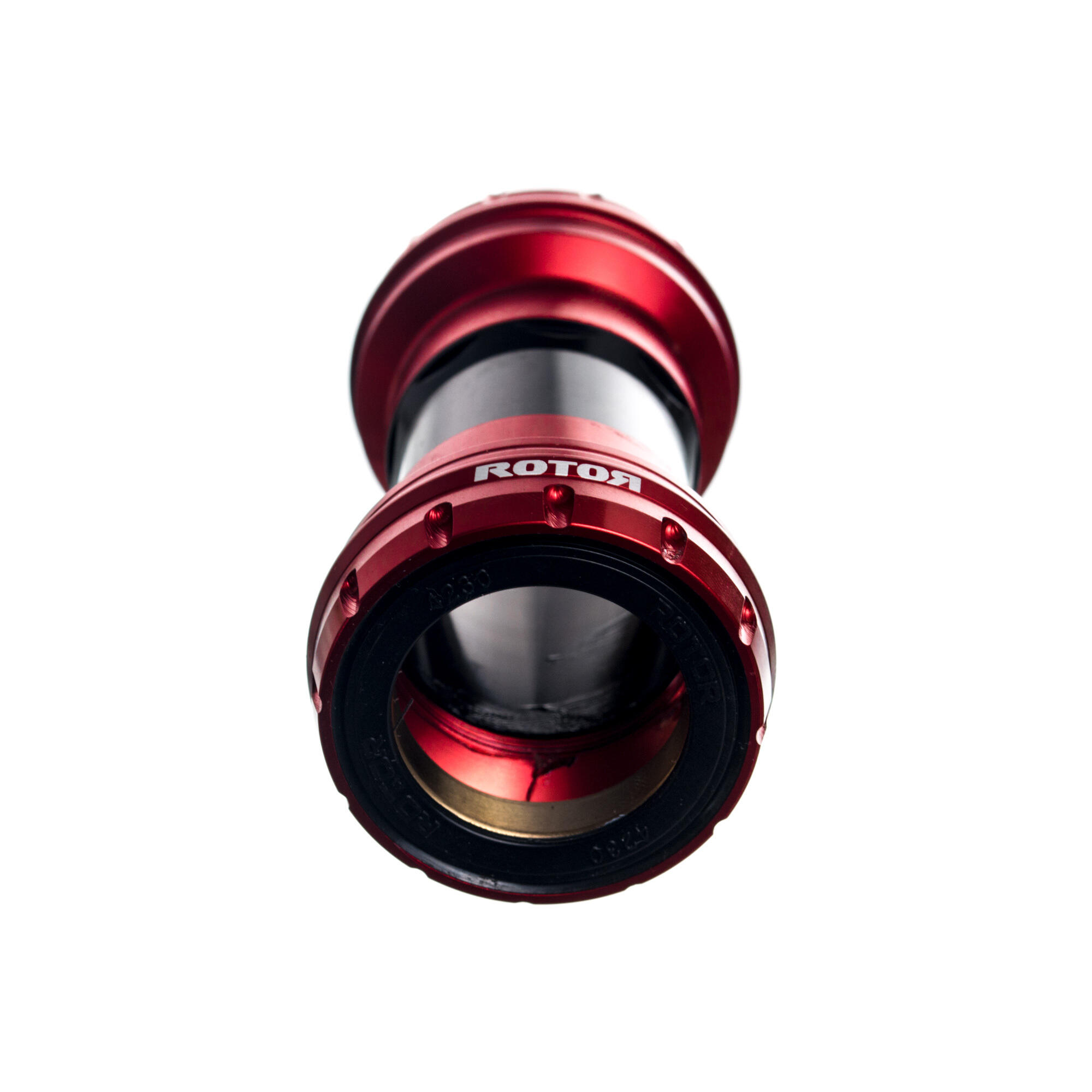

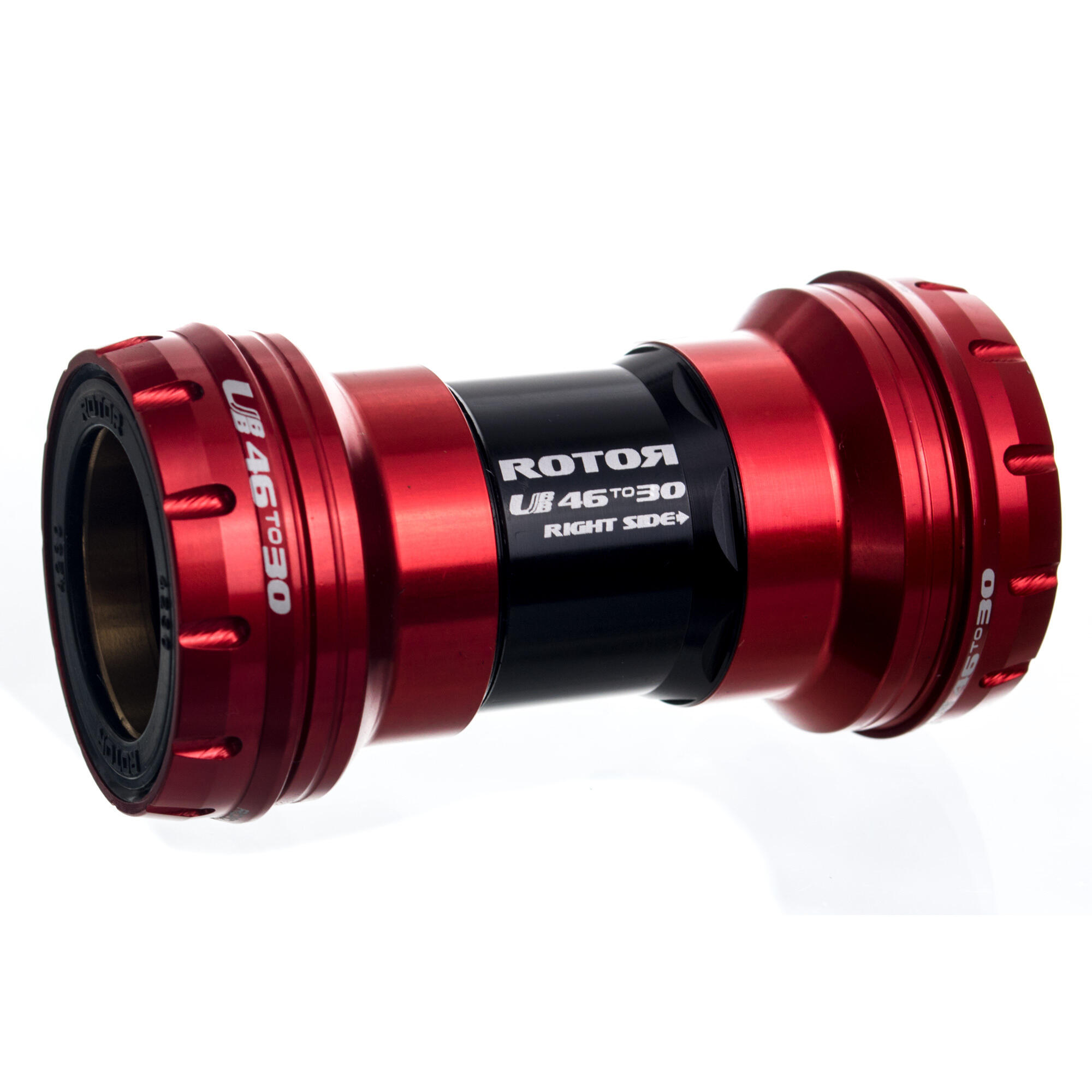

High quality bottom bracket with bearings specially designed for 46mm press fit frames and 30mm cranksets. Its two-part screw-together assembly makes it easy to assemble with a bottom bracket wrench.
Details:
- Bearing type: Ceramic
- 100% CNC machined 7075-T6 aluminum construction
- 46 mm external dimension
- 30 mm internal dimension
- Allows to mount a 3D+ crankset and any other BB30 crankset
- Frame width 68mm (road and mountain bike) and 73mm (mountain bike).
- Compatible with PF30, Cervelo BBRight
- Weight : 100g
Your bike cracks when you press hard on the pedals, the movement of the crankset has lost its fluidity or has become loose? The symptoms are clear: it's time to change your bottom bracket. Like all the parts that make up your bike, the bottom bracket and especially its bearings are subject to wear.
Its replacement is a simple operation if it is well prepared, indeed the multiplication of the standards of bearings, bottom bracket and frame will discourage some. We will try to guide you through this jungle of standards. The bottom bracket is the interface between your crankset and your frame, so the first thing to do is to identify which crankset you want to fit in which frame ?
Internal case diameter*Box width*MountingStandardRecommended bottom bracket axle**34.8 mm68 mmScrew onBSA / BSC24 mm / GXP / Dub 29 mm36 mm70 mmScrew onItalian24 mm37 mm90.5 mmPress onBB 90 (Trek)24 mm / GXP / Dub 29 mm41 mm86.5 mmPress onPF 86 (Shimano)24 mm / GXP / Dub 29 mm41 mm89,5 mmÀ PresserPF 90 (Shimano)24 mm / GXP / Dub 29 mm42 mm68 mmÀ PresserBB 3030mm / Dub 29 mm42 mm79 mmÀ PresserBB Right30mm / Dub 29 mm46 mm61 mmÀ PresserSpecialized30mm / Dub 29 mm46 mm68 mmÀ PresserPF 3030mm / Dub 29 mm46 mm79 mmÀ PresserBB Right PF 36030mm / Dub 29 mm46 mm86,5 mmÀ Presser386 EVO30mm / Dub 29 mm
We advise you to disassemble your original box to measure precisely the dimensions of the bottom bracket of your frame.** This compatibility is given as an indication, there are also boxes 'adapters' which allow to mix the standards.
Characteristics:
- Casing width 73
- 68 Standard PressFit 30 (PF30)
- Internal case diameter 46
- Bearing quality Ceramic Bottom bracket axle 30 mm
- Crankset standard Rotor UBB30 (BB30 long axle)
