Product Description
[Product Overview]

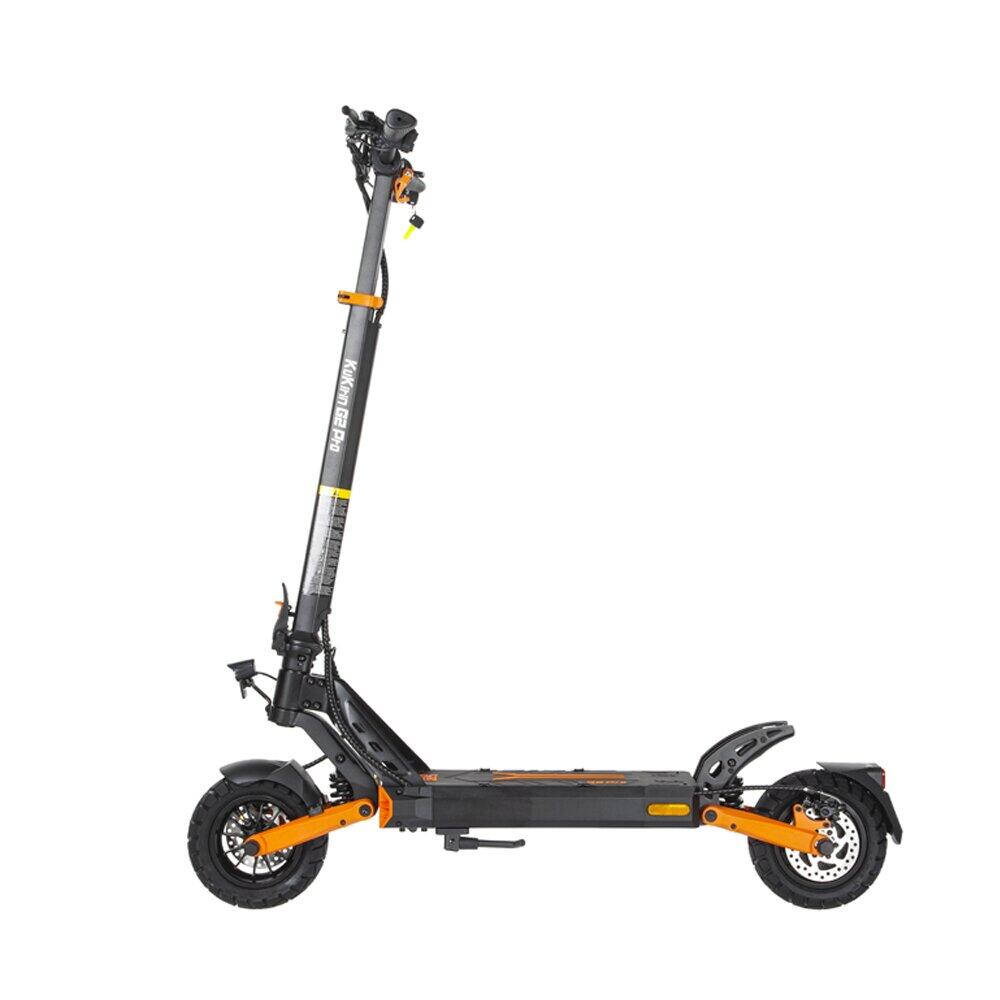

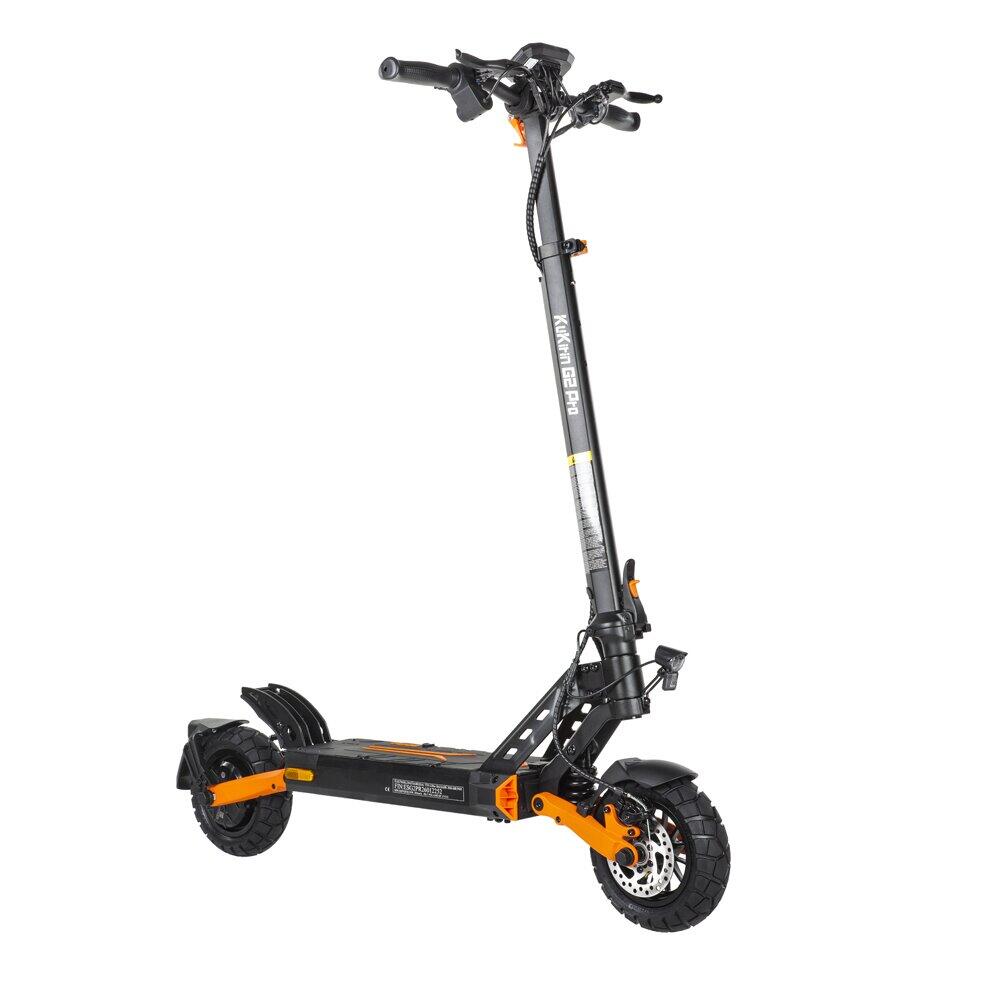

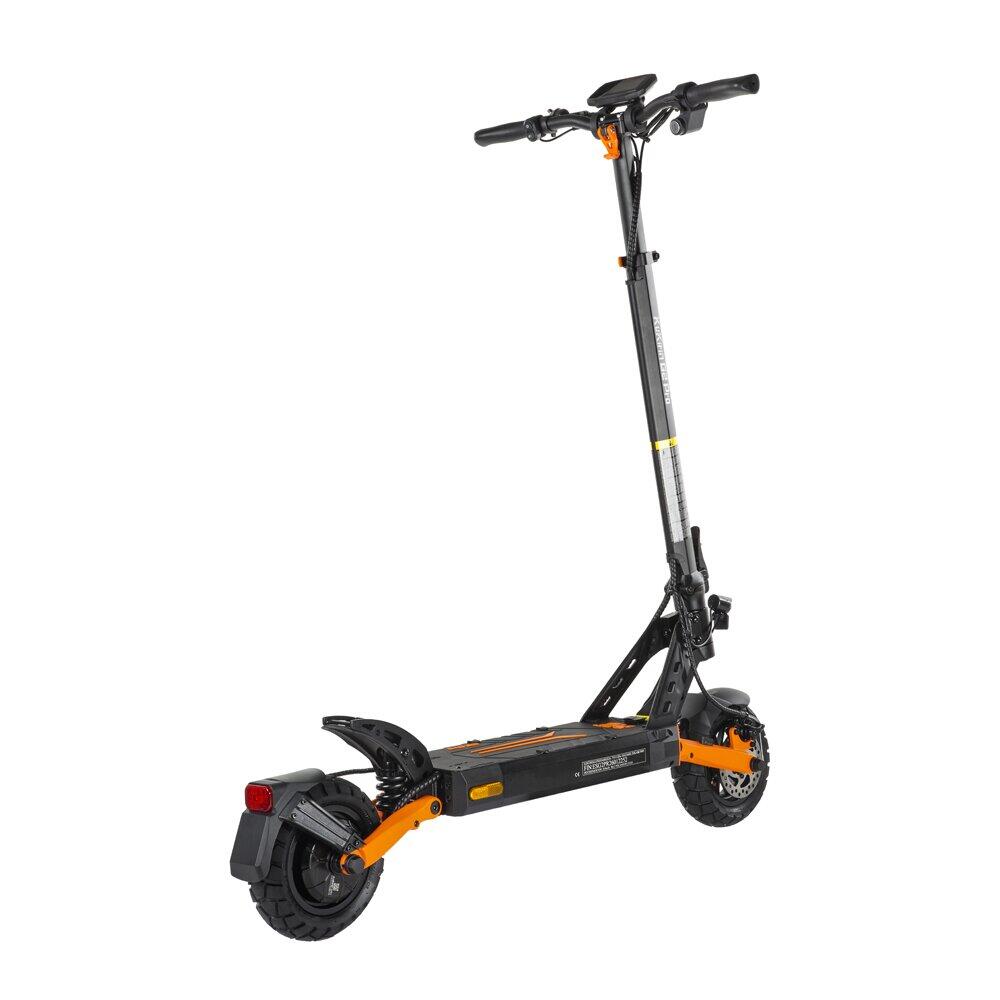

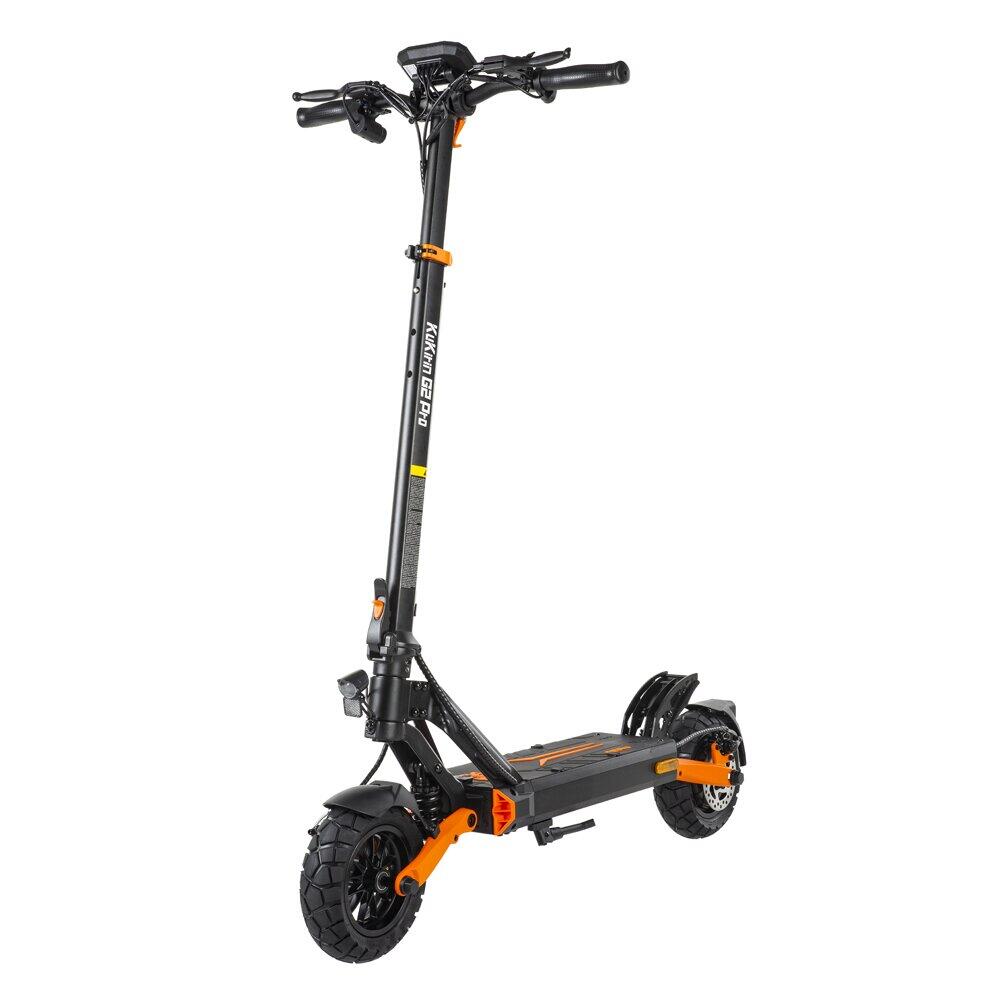

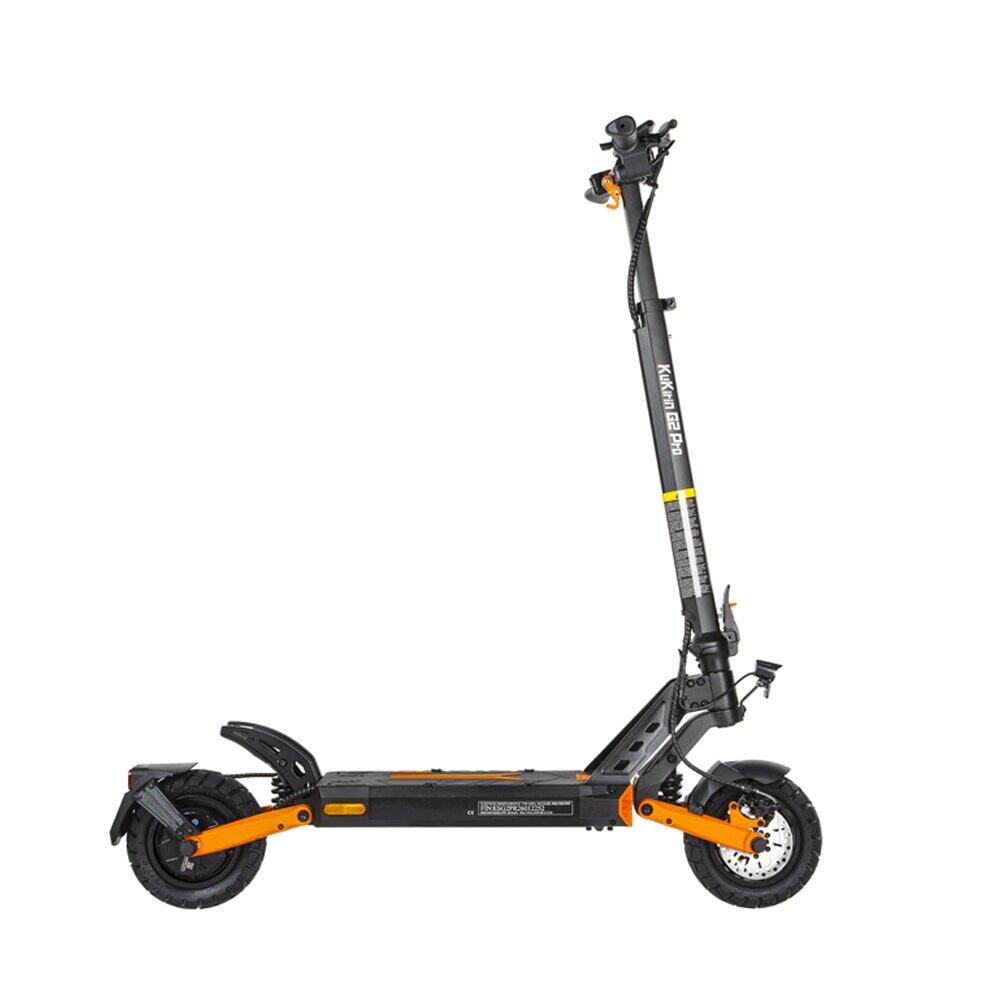

KuKirin G2 Pro (ABE) is an intelligent folding electric vehicle designed specifically to meet daily commuting and short distance travel needs. This model is equipped with a 48V 15.6Ah high-performance battery, coupled with a precise power system, which can achieve a maximum speed of 20km/h and a long range performance of 65km, making it easy to cope with urban roads and conventional commuting scenarios. The car body adopts aluminum alloy combined with steel frame, balancing stability and lightweight design, with a net weight of only 22.3kg and a load-bearing capacity of 120kg, suitable for the needs of most users. Its folding structure design is exquisite, with a unfolded size of 1170 590 1300mm, which can be reduced to 1170 590 512mm after folding, making it easy to store and carry.
[Core Power]
The vehicle is equipped with a 48V 15.6Ah lithium battery, which can achieve a range of approximately 65km under standard testing conditions, meeting the needs of multi day commuting or short to medium distance travel. The motor system has been optimized to ensure a maximum speed of 20km/h while also considering energy control efficiency and avoiding unnecessary power consumption. The battery pack supports convenient disassembly and charging, and has stable voltage management function, extending the battery's service life. In addition, the 19 ° climbing ability enables vehicles to adapt to common slope sections such as underground garages and gentle bridge decks, further expanding their traffic capacity.
[Security Protection]

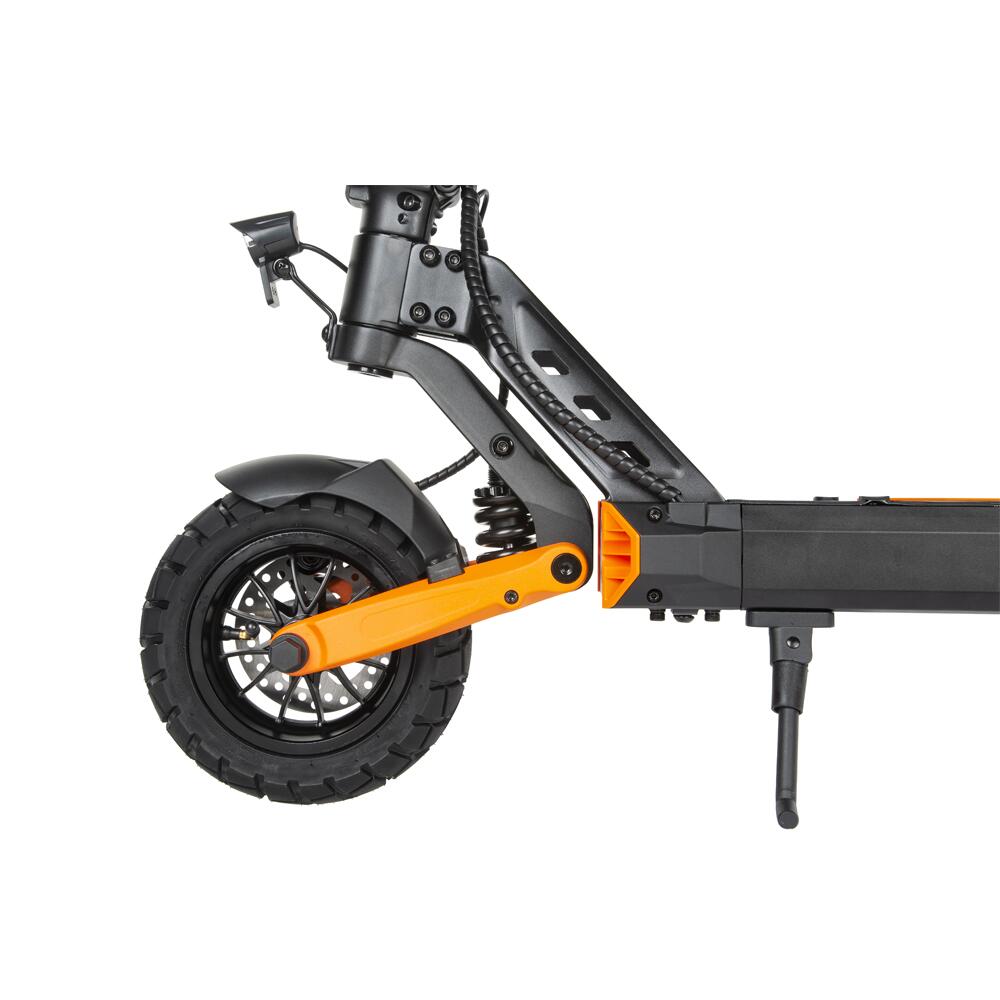

The KuKirin G2 Pro is well-equipped in terms of safety, featuring a front and rear dual hydraulic disc brake system and equipped with power-off braking function. When the user holds the brake lever, the motor will automatically cut off the power output, achieving fast and smooth braking and improving controllability during driving. The tire is made of 9-inch vacuum tires, which have good puncture resistance and cushioning performance, and can adapt to various road conditions. The body structure is reinforced and combined with IP54 level waterproof and dustproof capabilities, which can cope with rainy riding or daily splashing environments, ensuring stable operation of internal components.

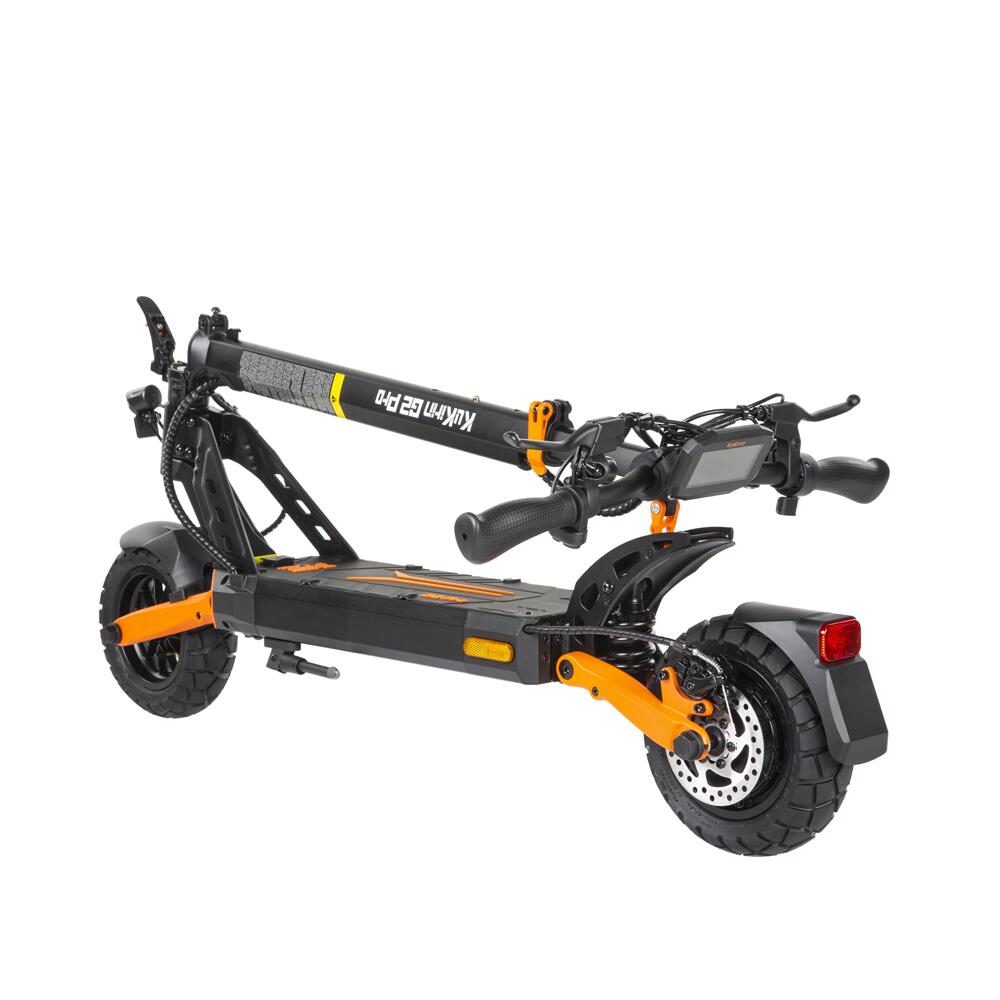

Flexible Folding
The vehicle emphasizes convenience in use, and its folding mechanism has been simplified in design, allowing users to quickly fold or unfold through a few steps. The compact form after folding is easy to fit into car trunks, elevators, or home corners, solving the problem of limited storage space. The handlebar height and pedal position conform to ergonomics, coupled with a clear layout of functional buttons, making riding operation intuitive and simple. The packaging size is 1195 235 545mm, and it has been partially assembled at the factory. Users can quickly complete the installation according to the instructions, saving time and effort.
[Product Summary]
From material to craftsmanship, KuKirin G2 Pro embodies a focus on quality. The frame is made of a combination of aluminum alloy and steel, and reinforced in key stress areas to ensure overall structural stability. The braking system uses wear-resistant brake pads and high-temperature resistant oil pipes to ensure the braking effect under long-term use. The external coating has scratch resistance, balancing aesthetics and protective functions. The entire vehicle has undergone multiple performance tests, including load durability, vibration simulation, and temperature and humidity cycling, to ensure its reliability in daily use and provide users with long-lasting travel companionship.
[Product Parameters]
Model: KuKirin G2 Pro (ABE)
Battery: 48V 15.6Ah
Maximum speed: 20km/h
Maximum range: 65km
Climbing ability: 19 °
Waterproof rating: IP54
Frame material: aluminum alloy+steel
Braking system: front and rear oil brakes+power-off brake
Size: 9-inch vacuum tire
Maximum load: 120kg
Net weight: 22.3kg
Gross weight: 27.2kg
Expand size: 1170 590 1300mm
Folding size: 1170 590 512mm
Packaging size: 1195 235 545mm
