Product Description

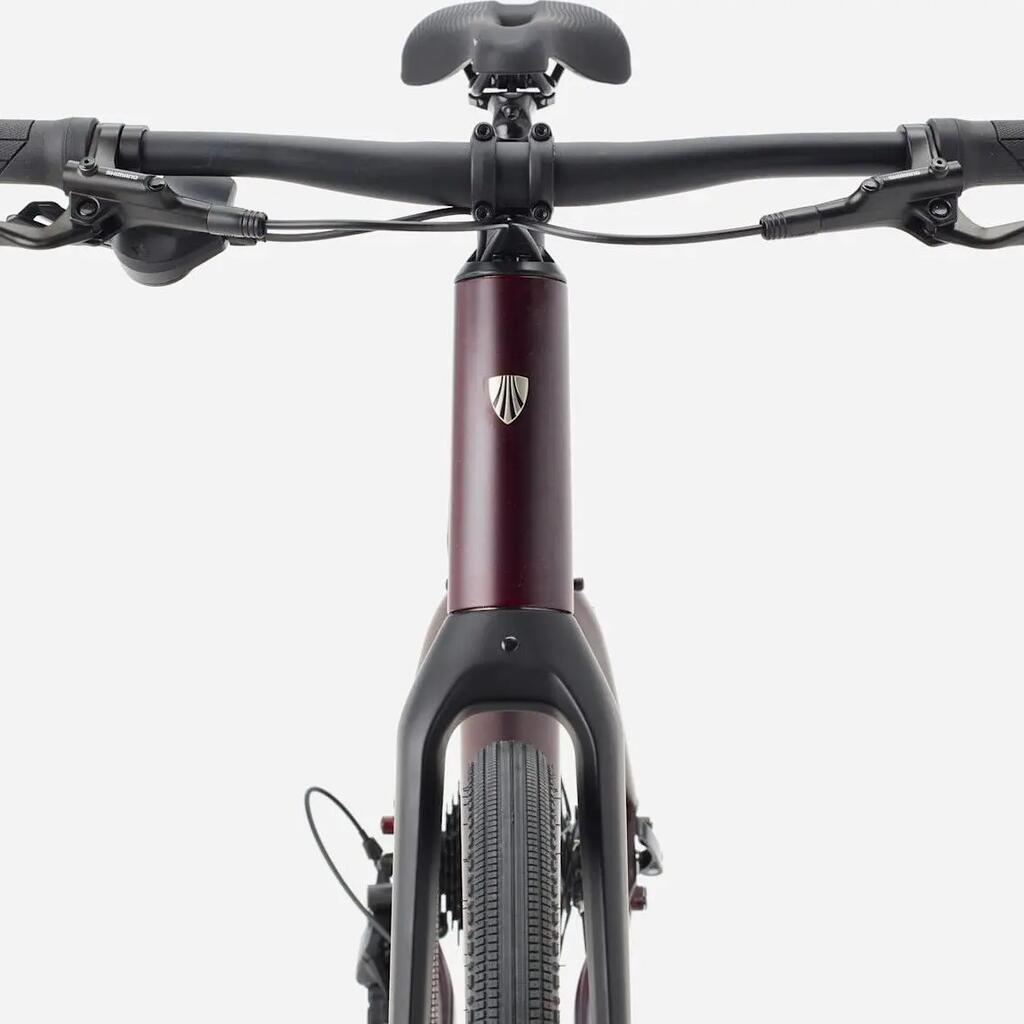

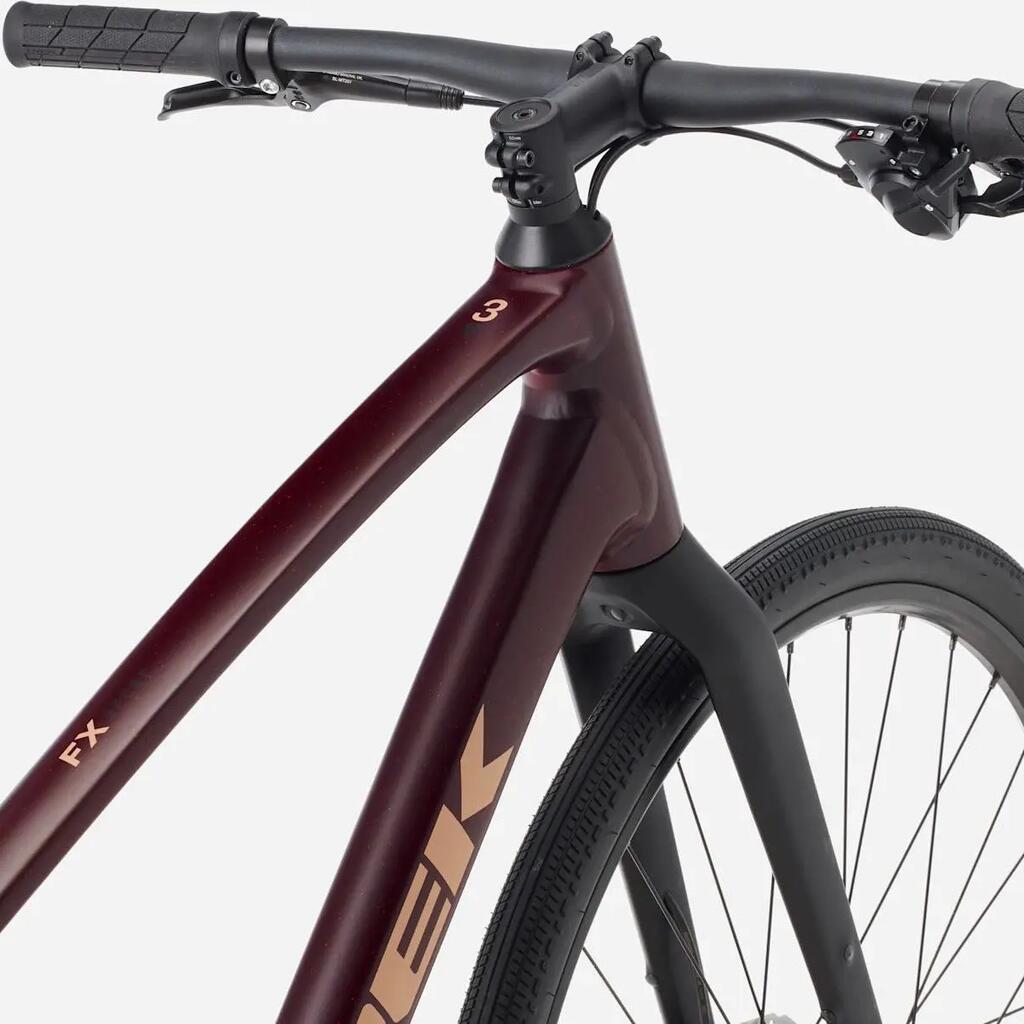

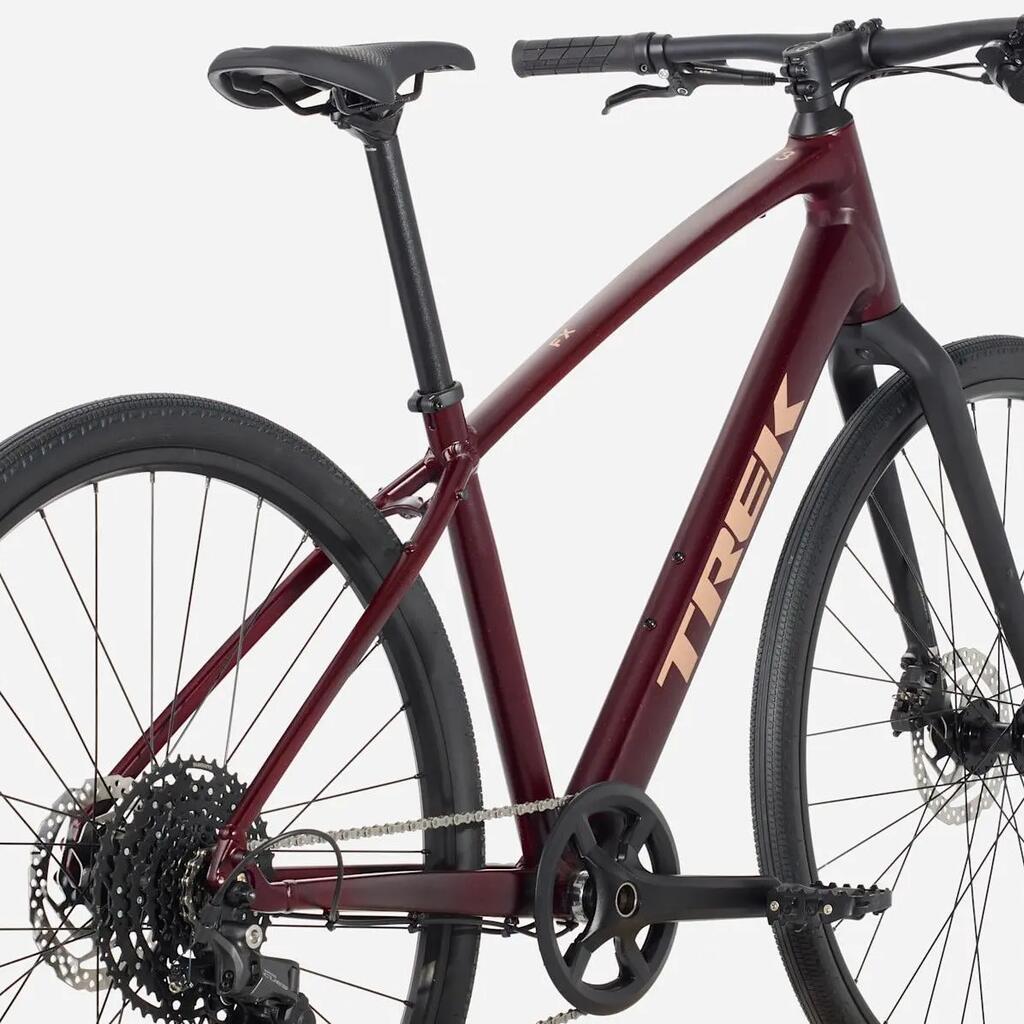

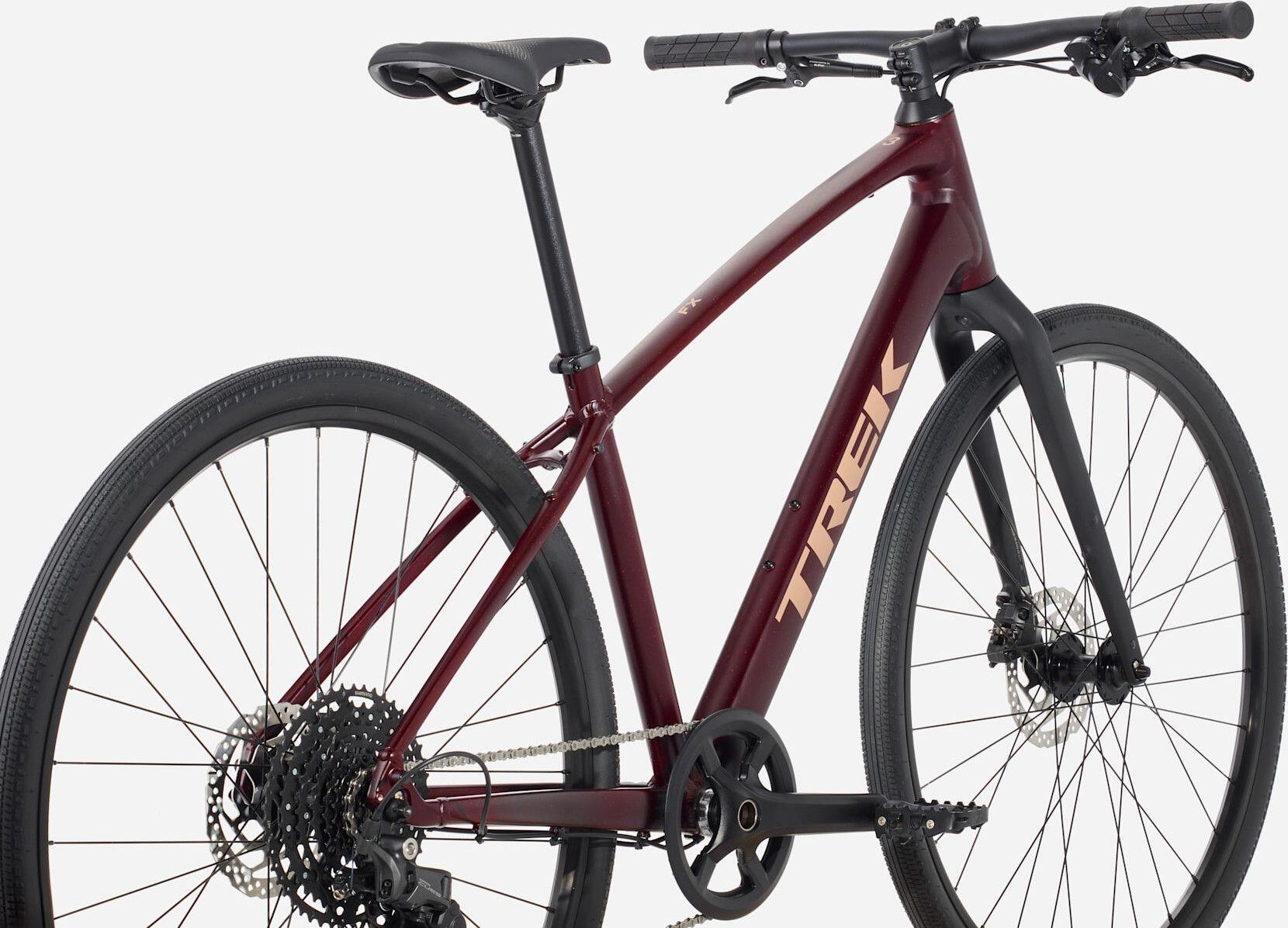

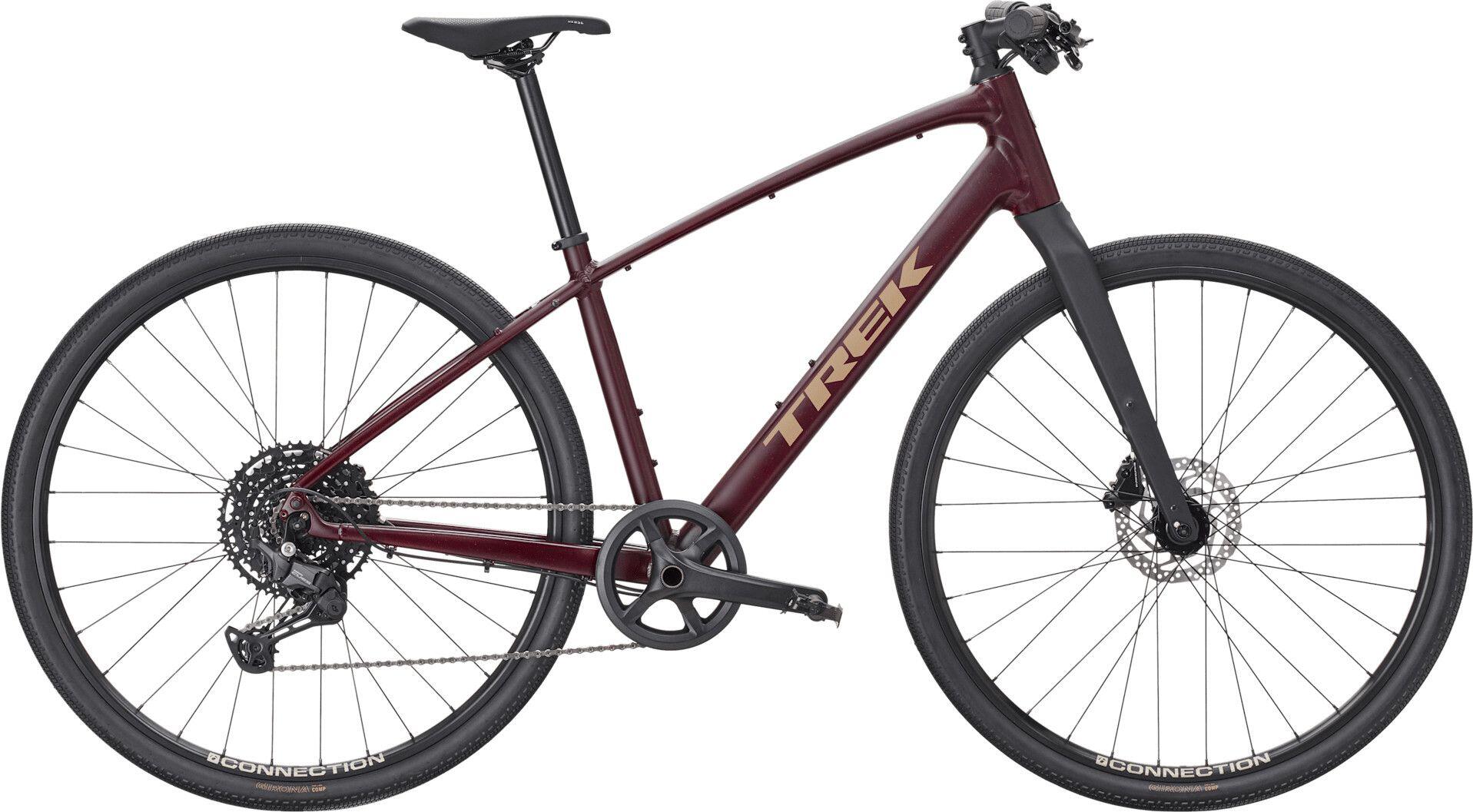

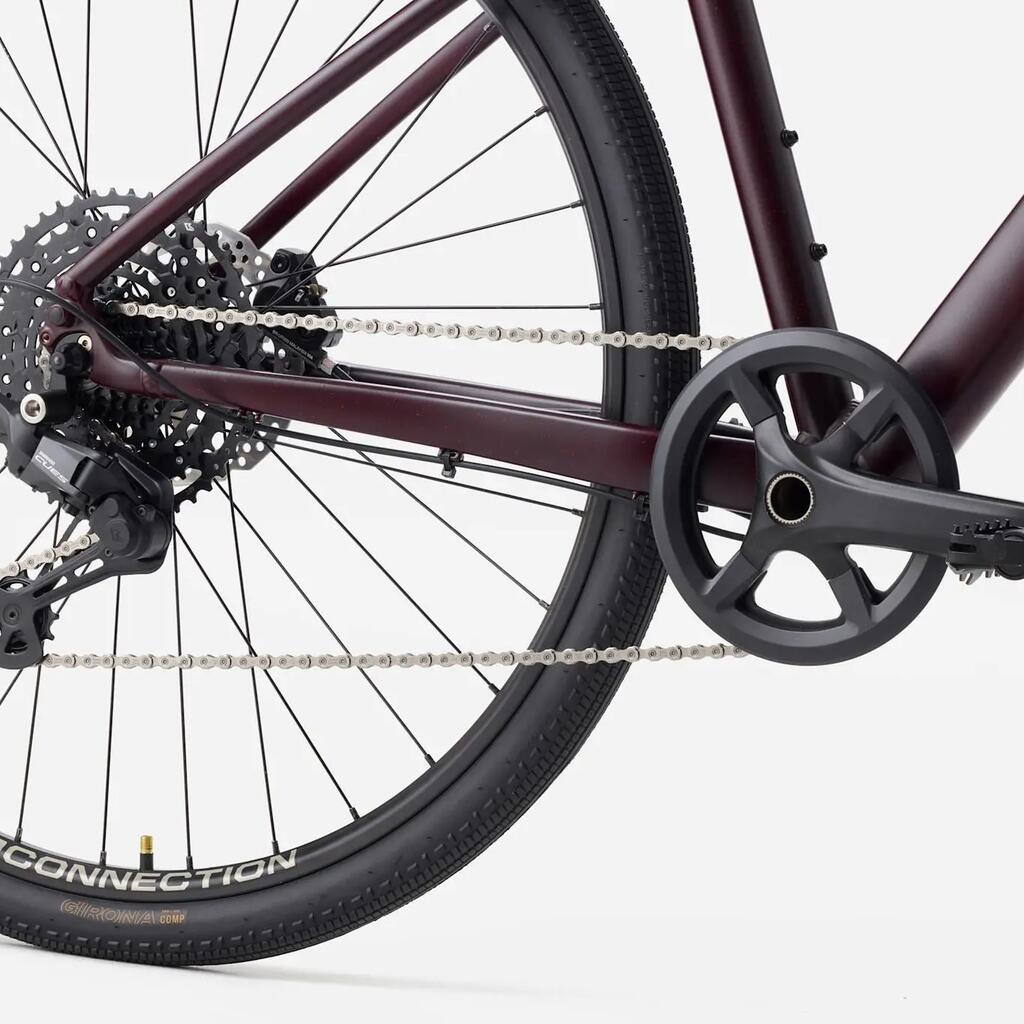

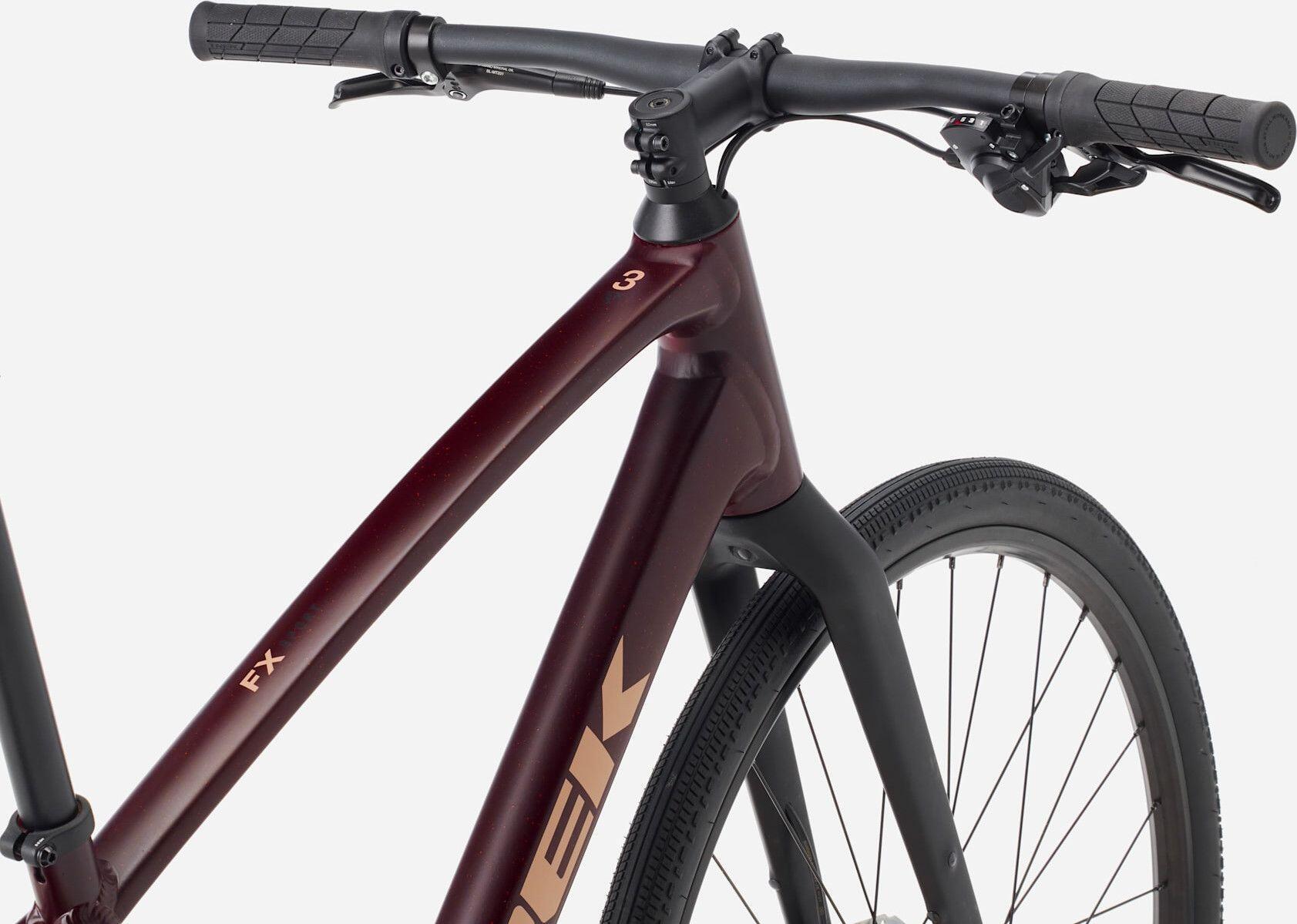

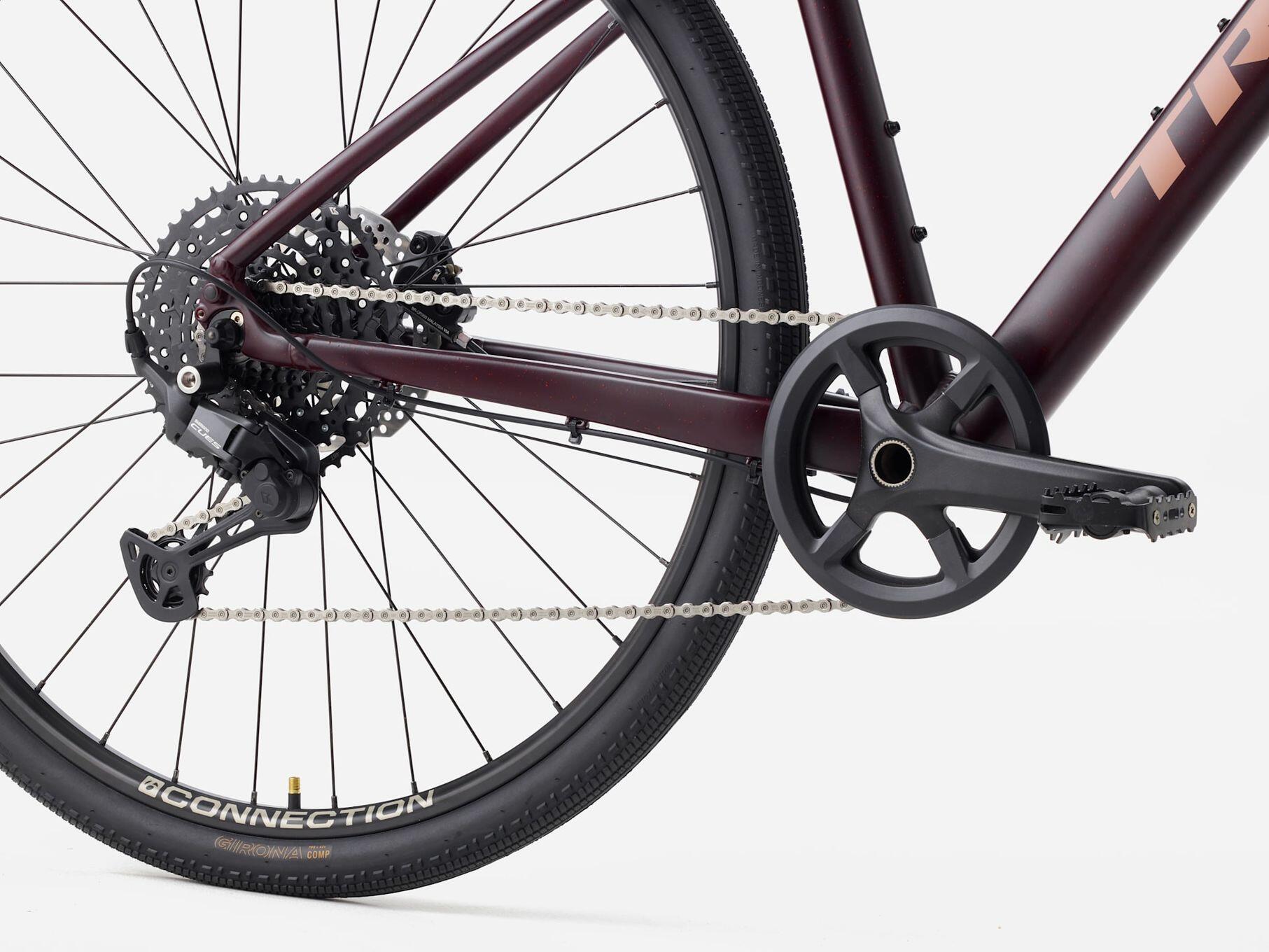

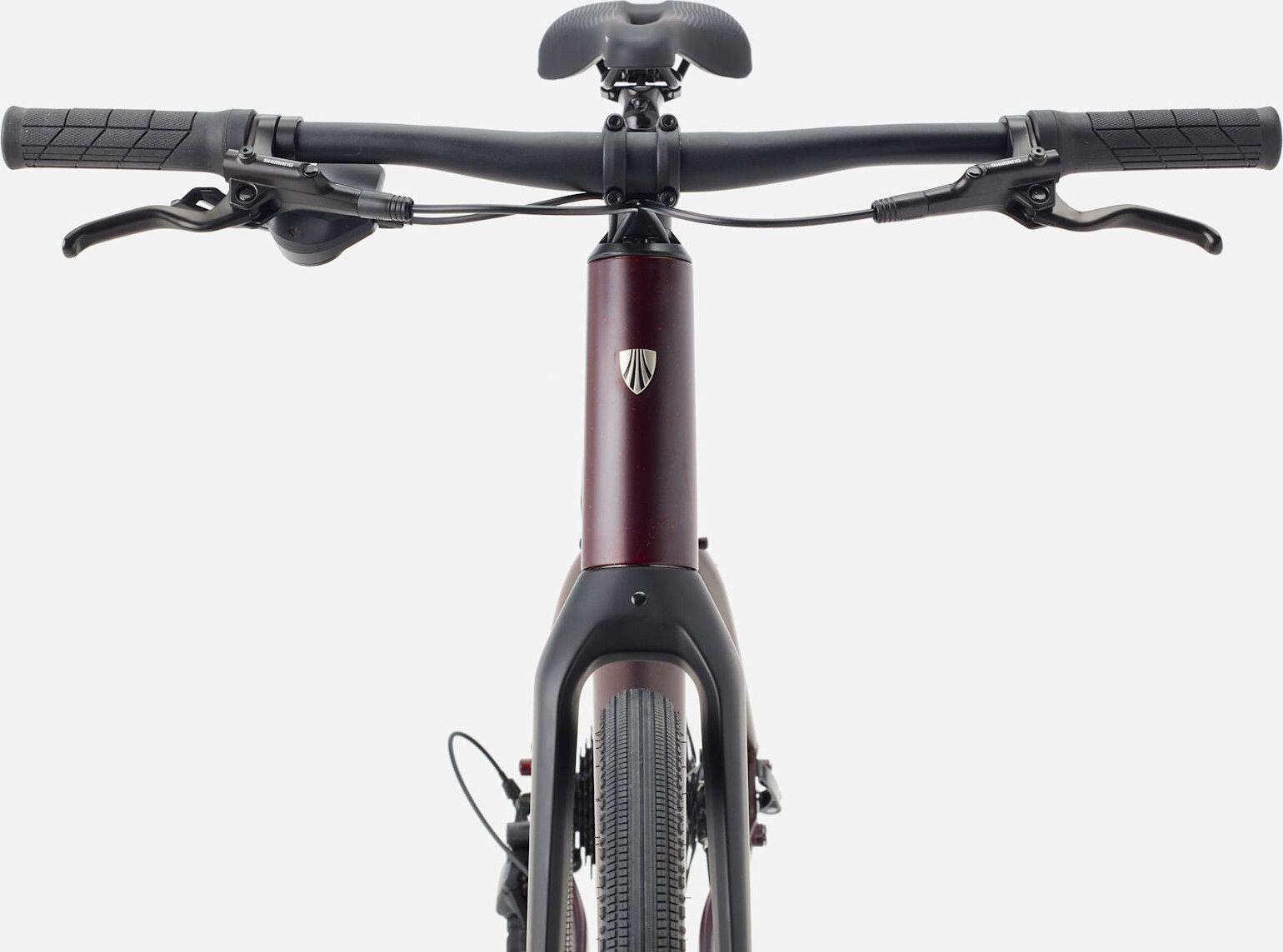

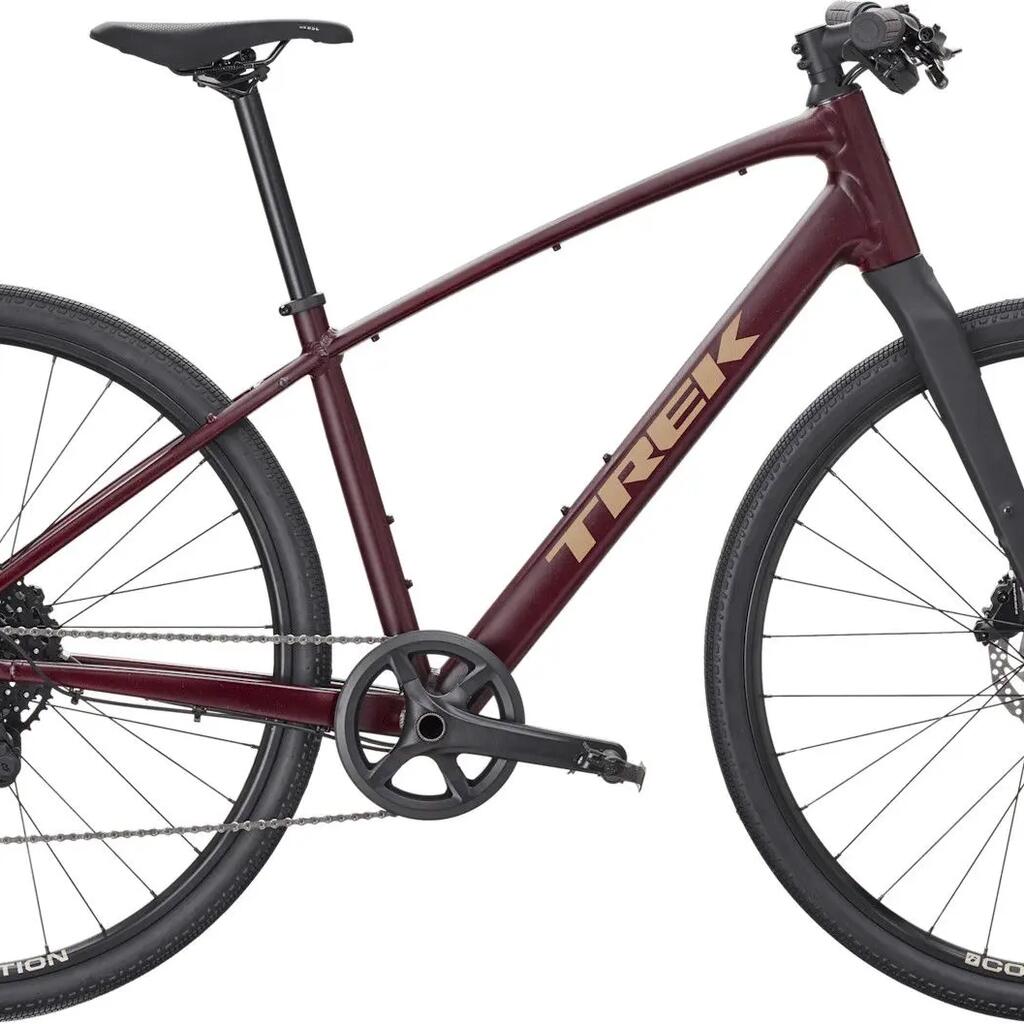

The Trek FX Sport AL 3 is a lightweight, versatile aluminum bike ideal for your adventures beyond the asphalt. It's ready for all your outings, with a sturdy, lightweight Alpha Gold aluminum frame, Shimano CUES 10-speed drivetrain, Bontrager Girona all-purpose gravel tires and hydraulic disc brakes.Product benefits: The single-platform drivetrain offers a wide range of gear ratios and the simplicity of single-speed shifting. This fitness bike is more than capable of taking part in fast group rides. What's more, you can easily customize it with mudguards, lights and many other accessories. Shimano Cues transmission, 1x10 speeds. Shimano MT201/UR300 hydraulic disc brakes, 160/160 mm. Carbon fork.Details : Frame Aluminum: Alpha Gold aluminum, internal cable routing, rack and fender mounts, Post-Mount disc brakes, kickstand mount. QR 135x5 mm Fork Carbon: Carbon, concealed mudguard mounts, Flat-Mount disc brakes, ThruSkew QR 5 mm Derailleur lever Shimano Cues U6000 with optical gear display, 1x10 speeds Rear derailleur Shimano Cues U6000 GS Cassette Shimano Cues LG300, LinkGlide, 11-48 teeth Chain Shimano LG500 Crankset Prowheel alloy, narrow-wide 40-tooth chainring Brakes Shimano, hydraulic discs, MT201 lever, UR300 caliper, Shimano RT26 disc, 6 holes, 160/160 mm Wheels Bontrager Connection, double-walled, 32 holes, 20 mm wide, schrader valve, Formula DC-20/Dc-22 hubs, 9x100/9x135 mm, HG freewheel Tires Bontrager Girona Comp, rigid bead, 60 tpi, 700x42 mm Handlebars Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise Handlebars Trek Line Comp, nylon lock-on Stem Bontrager Elite, 31.8 mm, Blendr-compatible, 7° Saddle Verse Short, chromoly rails, 145 mm wide Seatpost Bontrager aluminum, 27.2 mm, 12 mm offset Geometries : Frame size XS S M L XL Seat tube (mm) 330 375 420 465 520 Top tube (mm) 528 543 563 583 613 Steering bushing (mm) 115 140 165 190 215 Base length (mm) 447 447 447 447 447 Steering angle (°) 70 70.5 71 71.5 72.5 Seat tube angle (°) 75 74.5 74 73.5 72.5 Wheelbase (mm) 1052 1059 1070 1080 1087 Stack (mm) 543 568 594 620 648 Reach (mm) 383 385 393 399 409
