Product Description
Family‑Friendly and Flexible

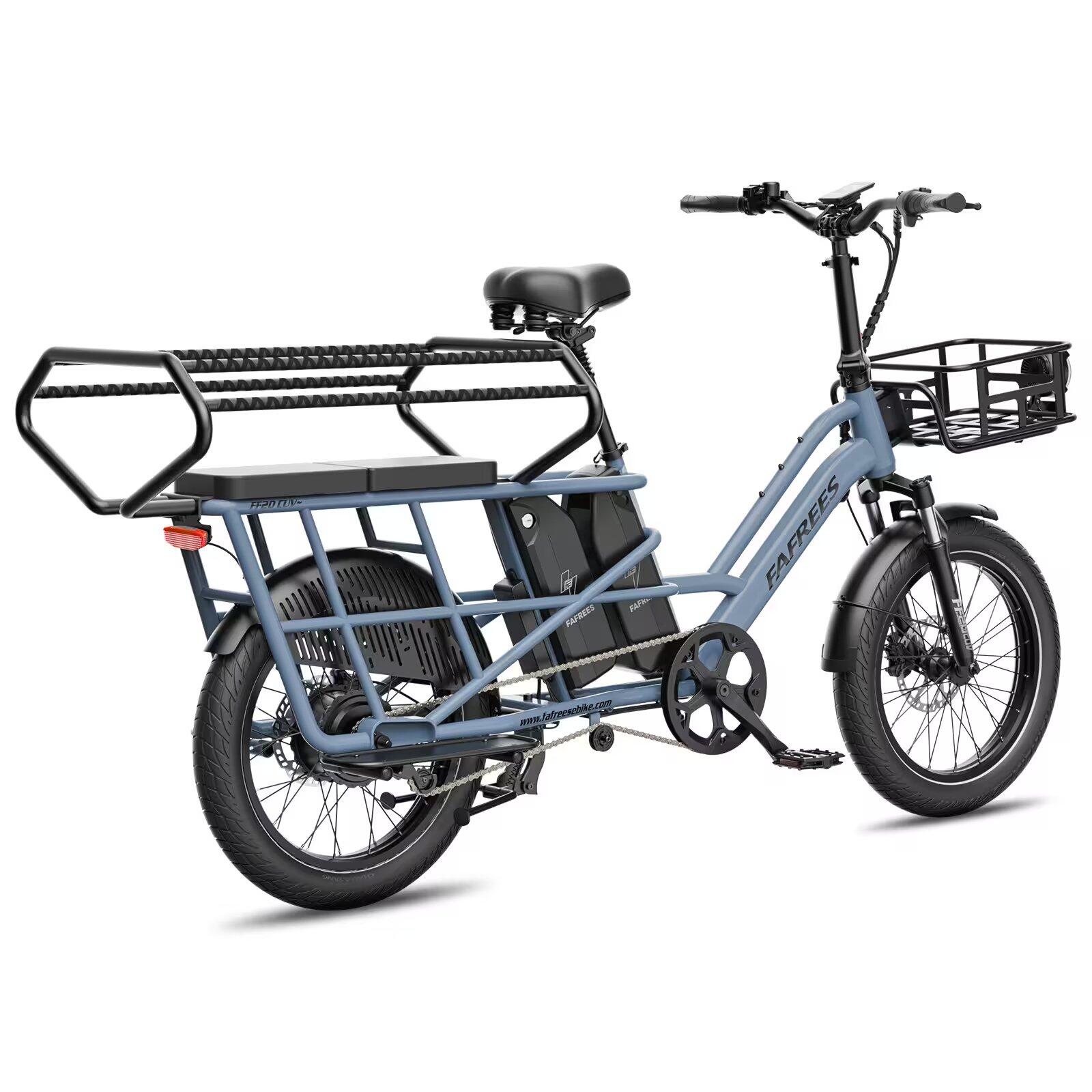

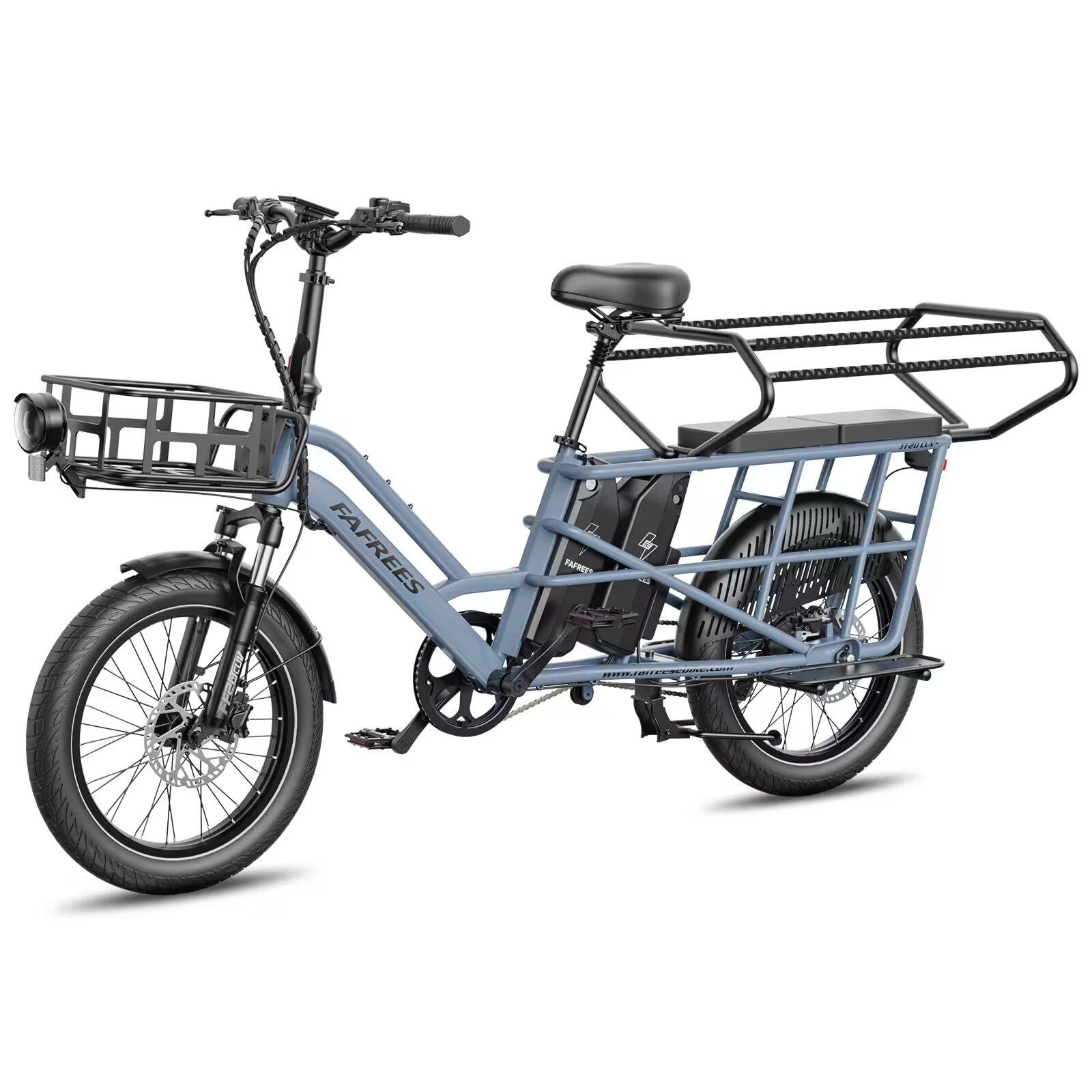

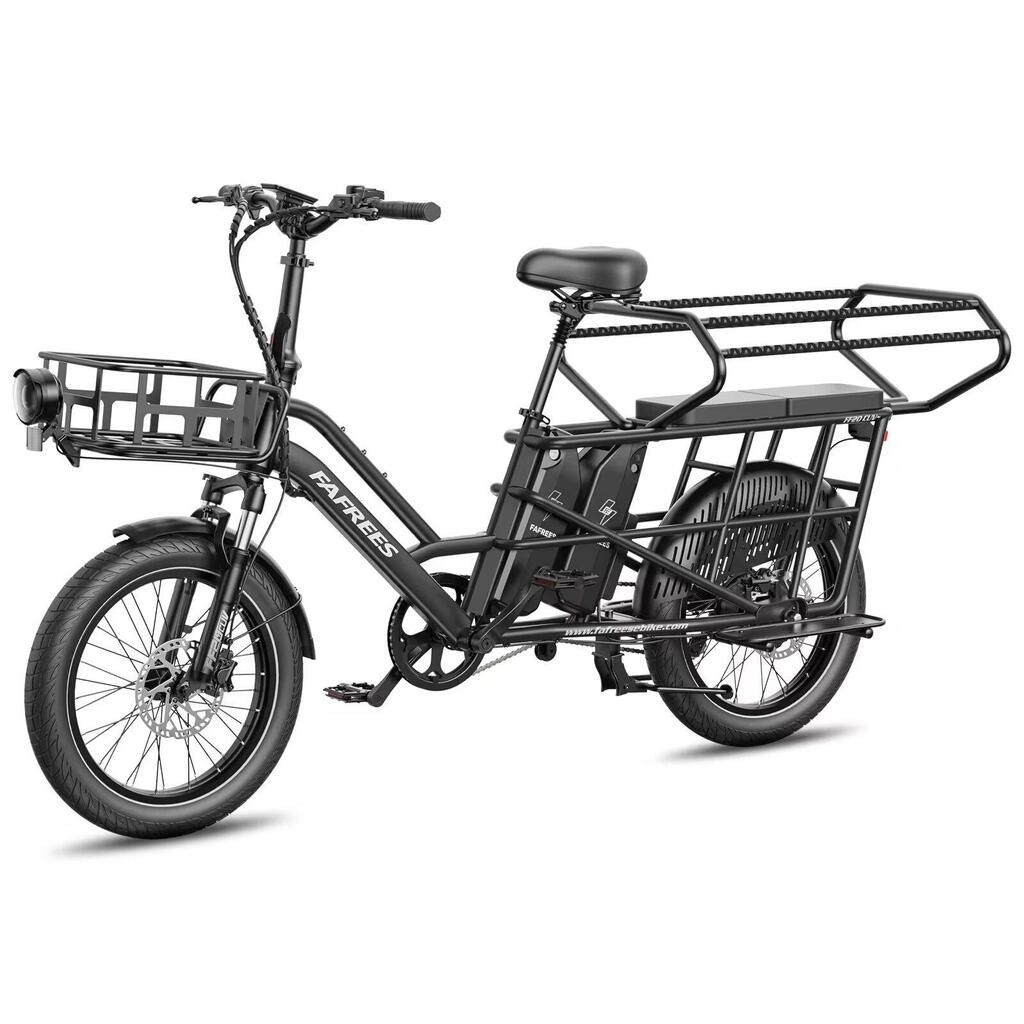

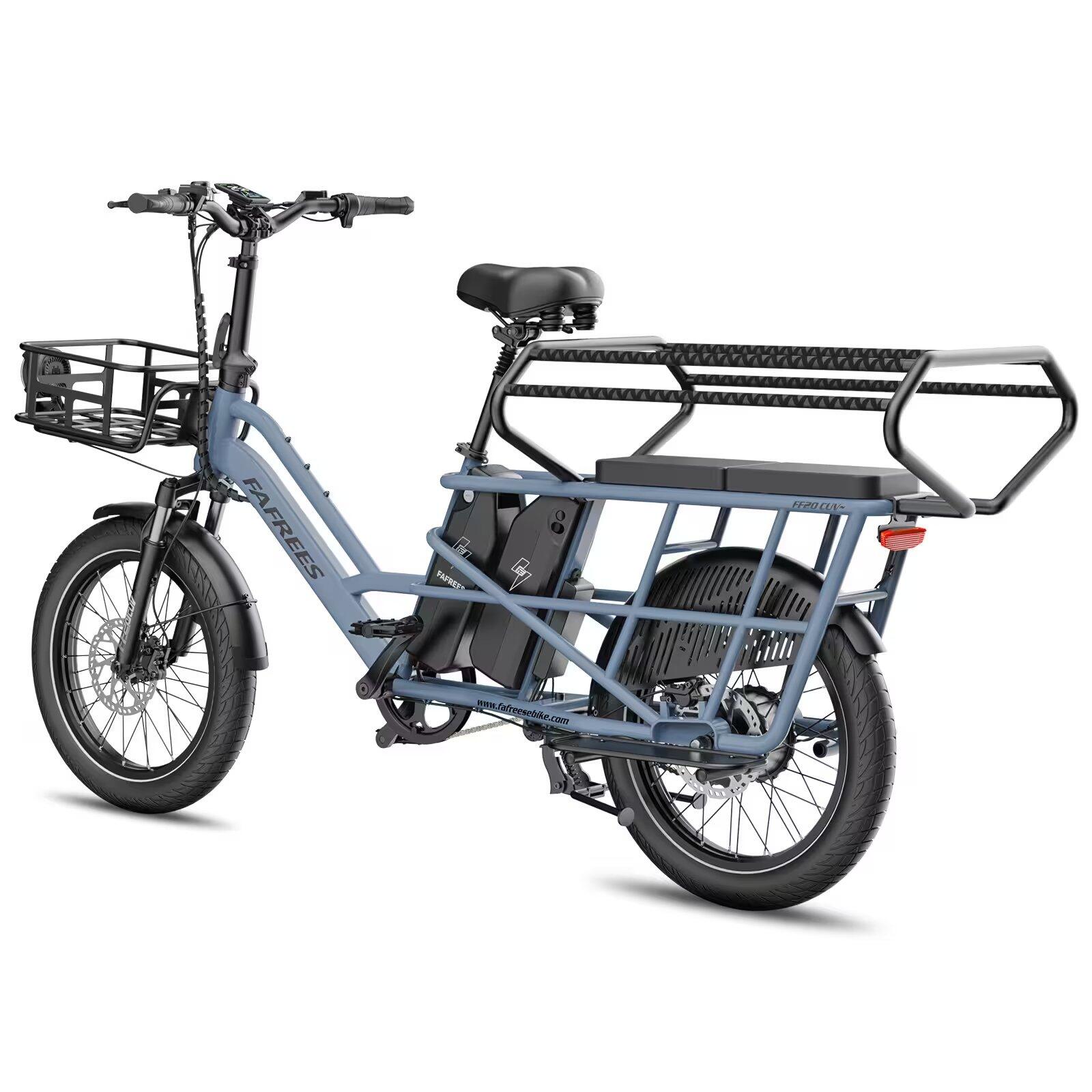

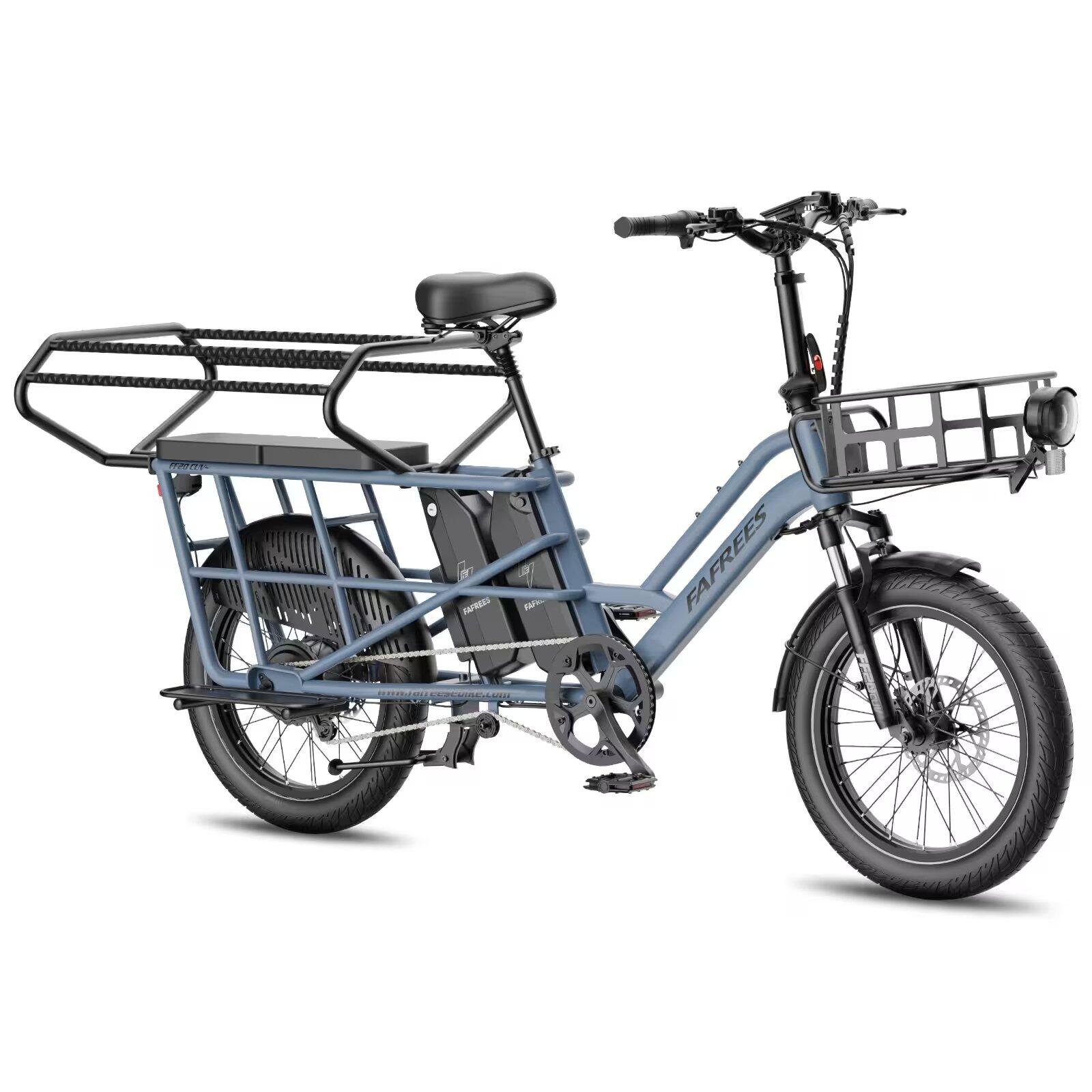

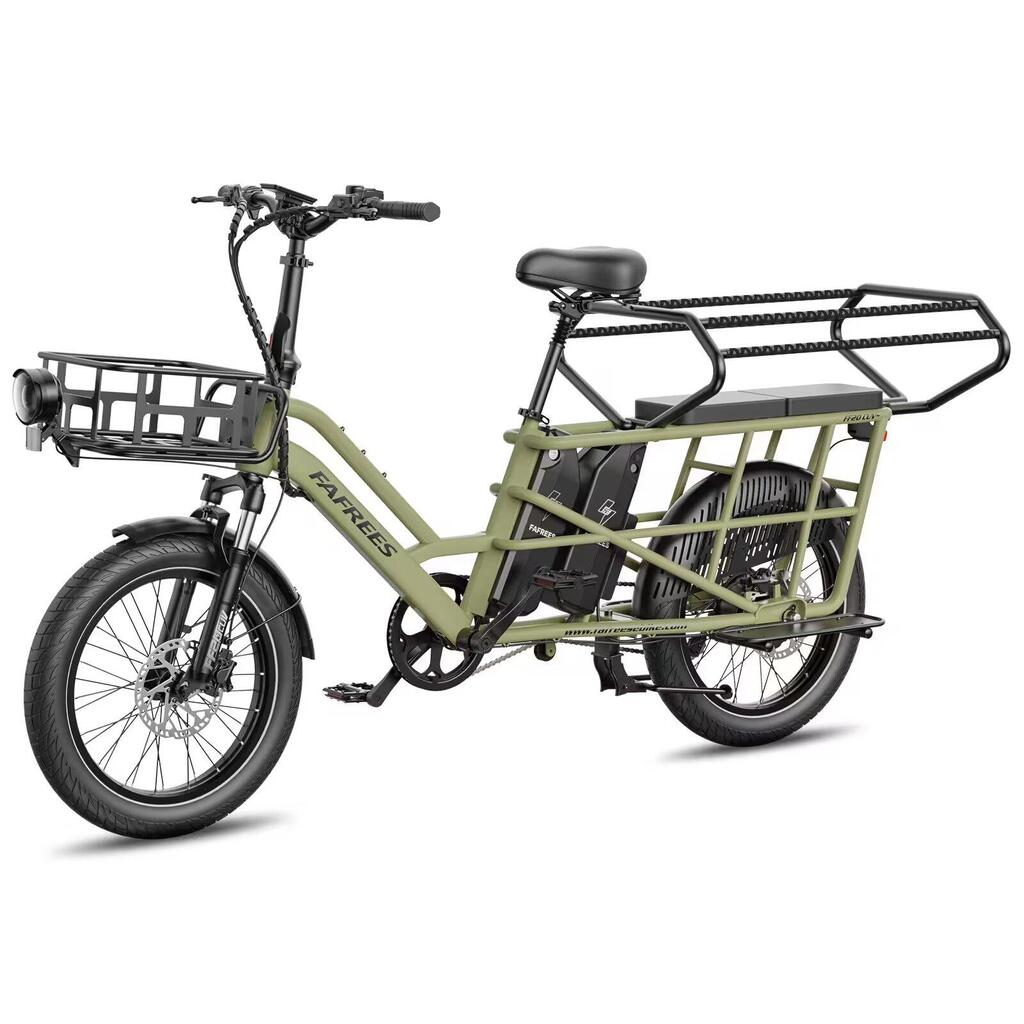

Transform this e‑bike in no time – perfect for carrying children or hauling loads. Designed to transport two children safely, the stable frame keeps your loved ones secure and relaxed on every ride. High load capacity meets everyday practicality: up to 200 kg total load, divided into 150 kg for the rider, 20 kg for the front basket, and 100 kg for the rear rack. The rugged build delivers reliable performance trip after trip.
Dual Battery – Up to 170 km Range

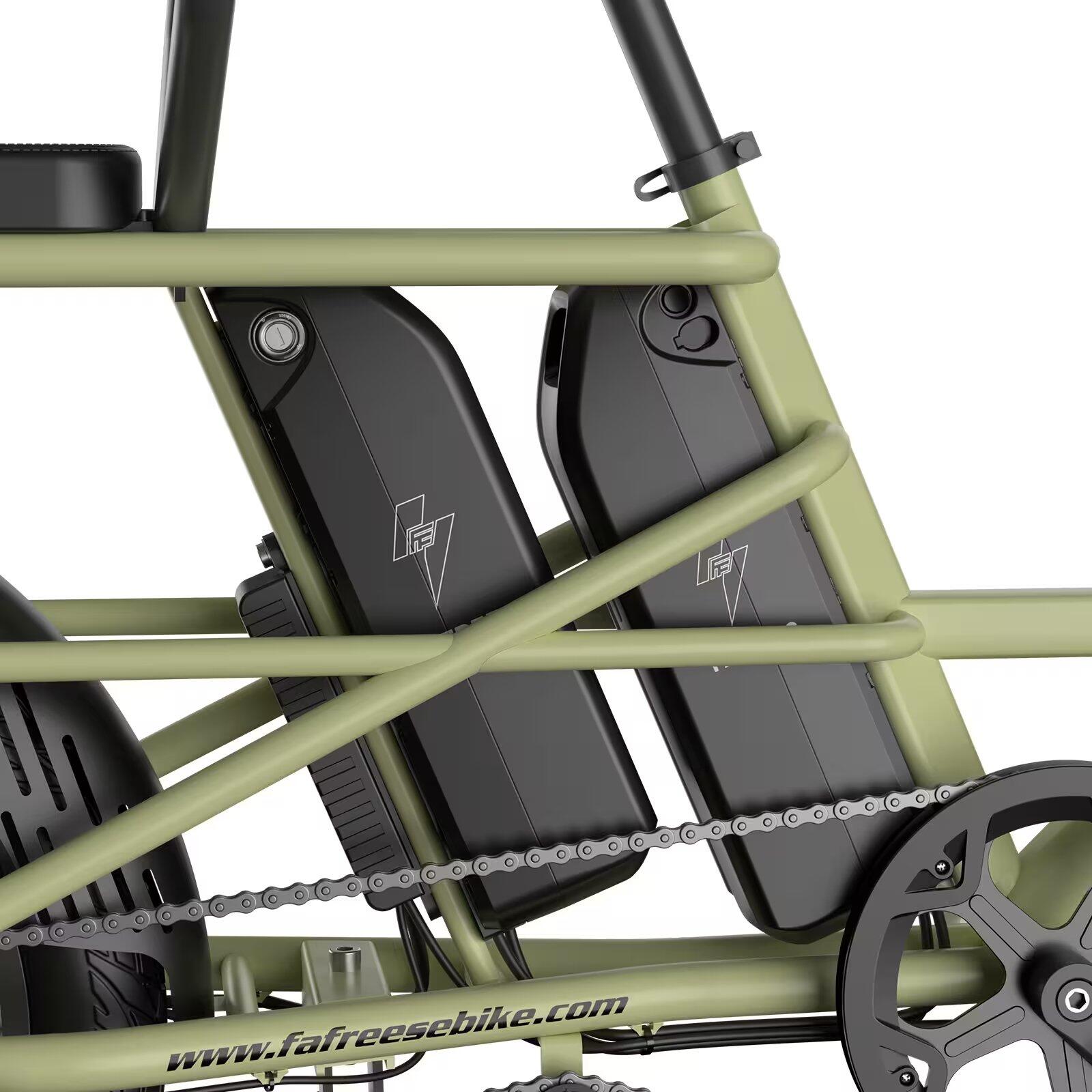

Two 48 V 15 Ah batteries work with an intelligent balancing system for even discharge and maximum efficiency. Enjoy up to 170 km of range, ideal for longer trips or multi‑day use without plugging in. Each battery charges fully in just 4.5 hours and is removable for flexible charging at home or at work.
Smart Support & 75 Nm Drive
A 250 W rear hub motor paired with a torque sensor provides a smooth pedal‑assist experience, especially on inclines and when pulling away. With up to 75 Nm of torque, you get powerful yet legally safe assistance. Three assist levels are easy to select via the thumb switch on the clear LCD display.
Pleasant Ride & All‑Terrain Stability
Double suspension – a front suspension fork and a rear suspension seat post – smooths out bumps and reduces back strain on long rides. 20 x 3.0‑inch fat tires grip confidently on cobblestones, gravel, sand, and even snow. Hydraulic disc brakes front and rear deliver strong stopping power in rain, mud, or on slopes.
Space‑Saving and Fully Equipped

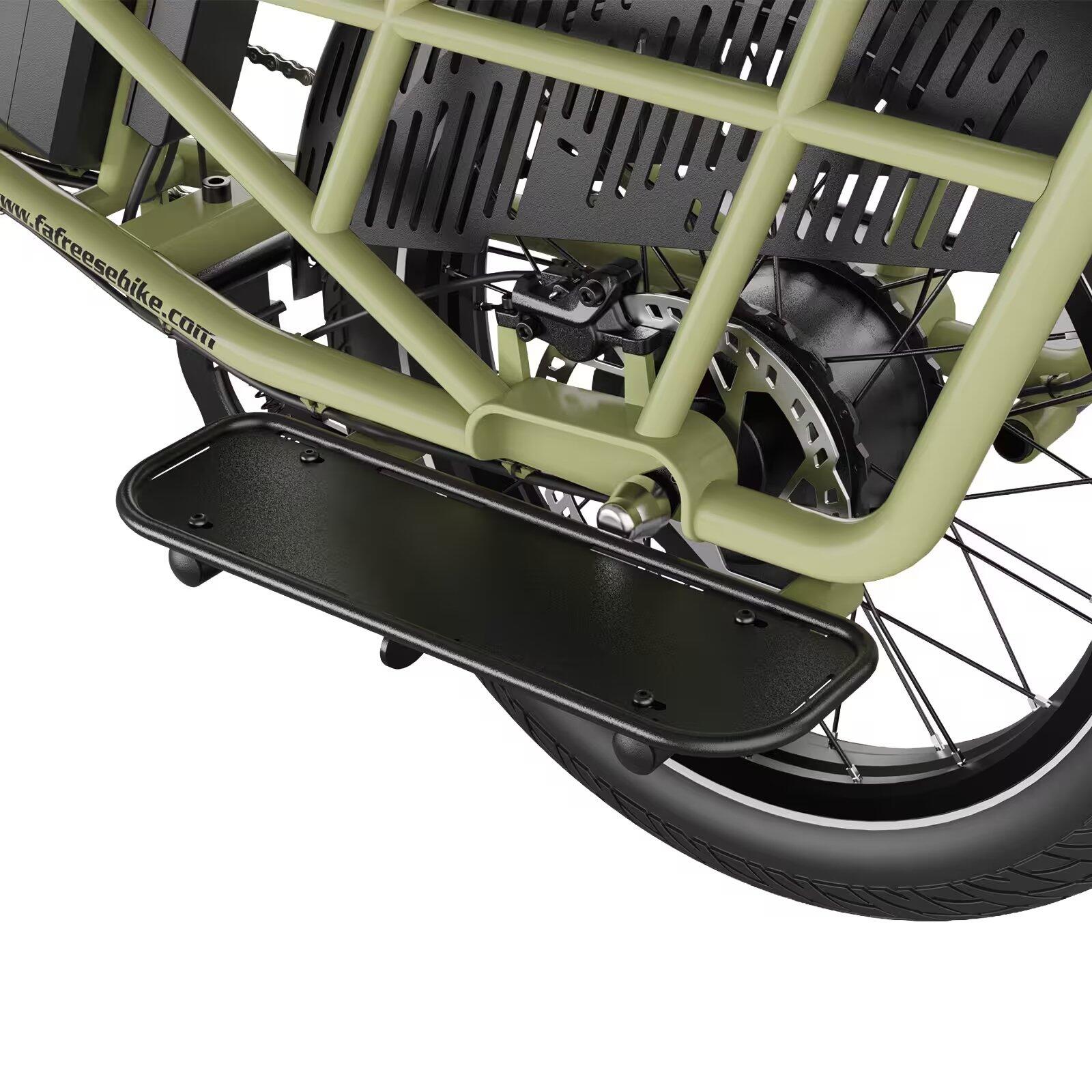

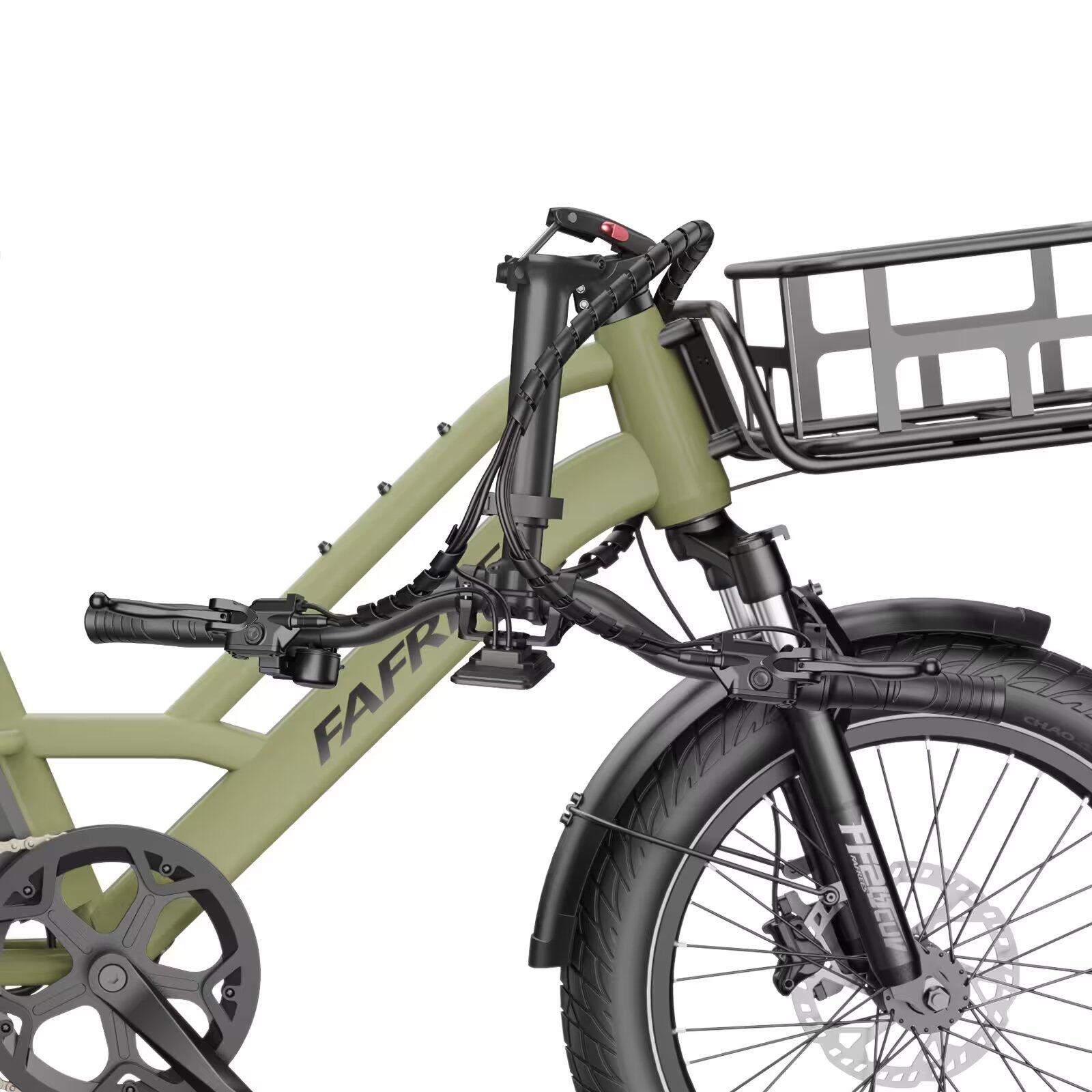

The lightweight, rust‑proof aluminium frame features a folding handlebar for easy storage. Standard accessories include front and rear lights, mudguards, footrests, and a sturdy centre stand. A gift box with replacement brake pads, inner tube, valve caps, tool kit, and key chain is also included.
Specification
Brand: FAFREES
Model: FF20 CUV
Type: Family Longtail E‑Cargo Bike
Frame material: Aluminum alloy
Tire size: 20" x 3.0
Tire Type: Air tire
Default maximum speed: 25 km/h
Max range for assisted mode: 120‑170 km
Max climbing Gradability: 20°
Battery type: 18650 Lithium‑ion battery
Rated voltage: 48 V
Input voltage: 54.6 V
Battery capacity: 15 Ah 720 Wh x 2
Motor: 250 W Rear drive
Maximum torque: 75 N·m
Charger Input voltage: 110‑240 V
Output voltage: 54.6 V
Rated current: 3 A
Charging time: 4.5 h x 2
Fork Type: Shock fork
Type of rear shock: Seat shock tube
Display type: LCD
PAS level: 0‑3
Speed Sensor: Torque Sensor
Brake type: Hydraulic disc brakes
Headlight: Yes
Taillight: Yes
Operating temperature: -20 °C to 40 °C
Waterproof grade: IPX5
Net Weight: 40 kg
Package weight: 47.8 kg
Battery weight: 3.6 + 3.6 kg
Load capacity: 200 kg
Front basket size: 36 x 32 x 16 cm
Rear child passenger seat size: 72.5 x 42.5 x 21 cm
Recommend rider heights: 160‑200 cm
Product size: 190 x 67 x 120 cm
Package size: 164 x 29 x 76 cm
Package Contents
1 x FF20 CUV E‑Bike
2 x Charger
1 x User Manual
1 x Front Basket
1 x Child Seat
1 x Gift Box (Includes replacement brake pads, inner tube, valve caps, tool kit and key chain)
