Product Description

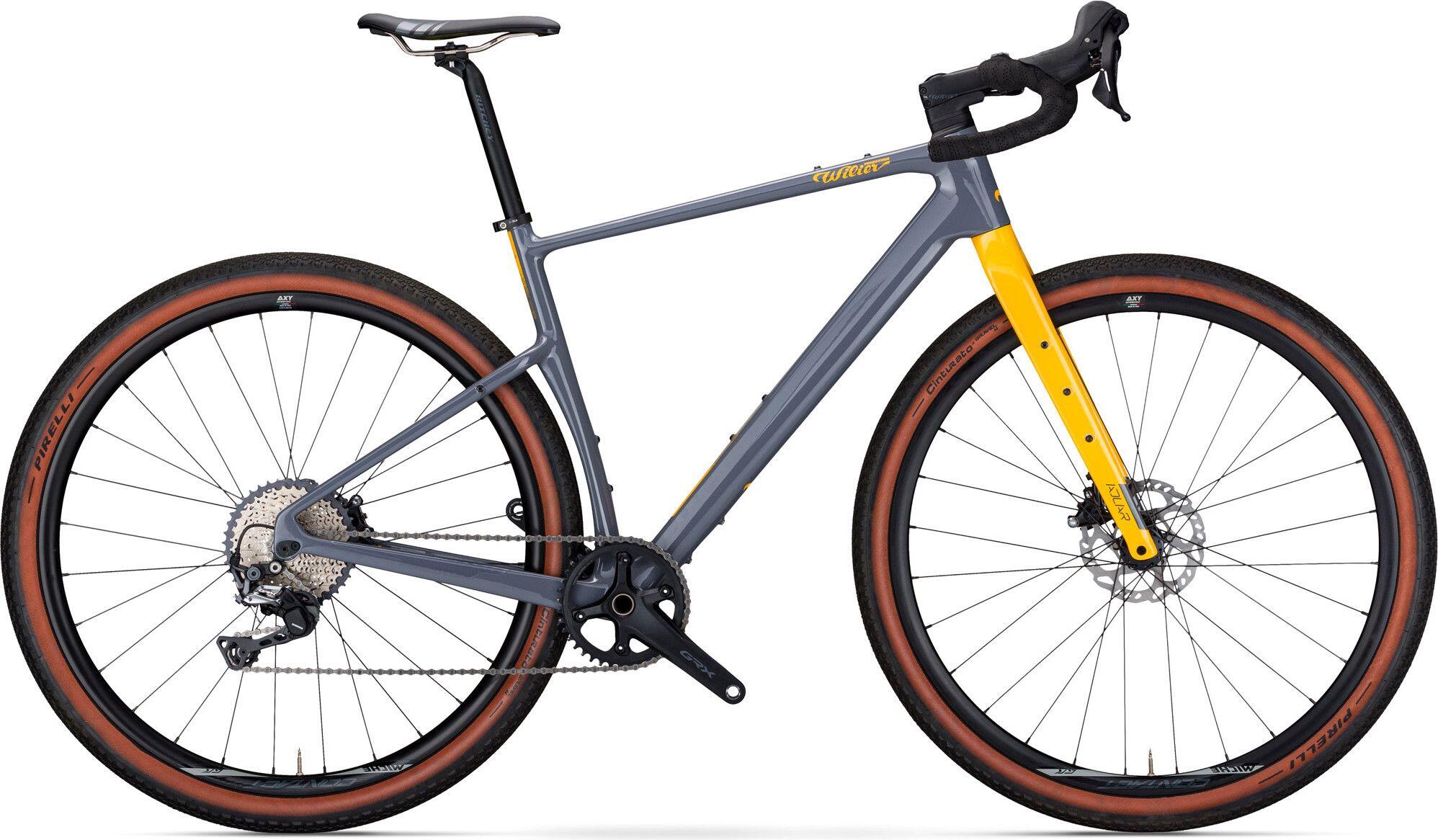

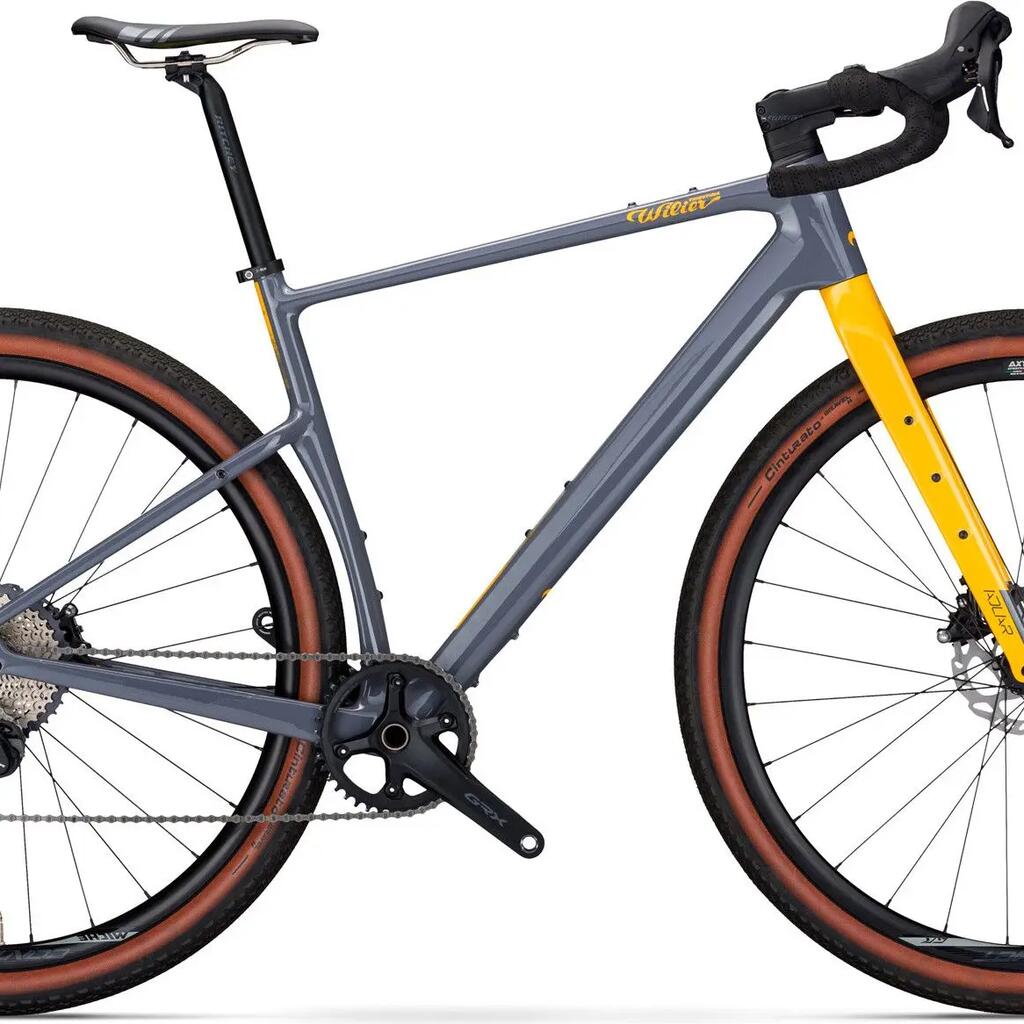

The Wilier Triestina Adlar is designed for bikepacking, exploring and touring. The carbon-fiber frame structure has been reinforced to such an extent that it allows a maximum additional load of 35 kg. Wilier engineers have added to this quality with new shapes, a careful study of geometries and a completely internal cable routing.The Adlar frame weighs 1100 g and comes in five sizes (XS, S, M, L, XL). Its geometries are derived from mountain biking, which is why the horizontal development of the front triangle (reach) is rather pronounced. This solution makes it possible to adopt a shorter stem, which works in synergy with a relatively open steering angle (70°). This evolution gives greater maneuverability and control on the most demanding trails with the bike loaded.Generous wheel arches accommodate any 52 mm wide gravel Tyre (52-622) as well as 29x2.00" MTB Tyres. The Frame has been designed to accommodate a Fork with particularly long forks. This configuration facilitates the installation of a suspension fork (maximum travel of 40 mm compatible with a 1" 1/4 - 1" 1/2 tapered headset) without changing the overall geometry of the frame. There's also a hole in the fork steerer tube for a dynamo hub /axle cable. The 27.2 mm seatpost can also be replaced by a telescopic seatpost.Product highlights : NHU-MOD monocoque carbon Frame and Fork. Shimano GRX 1x11-speed transmission. Shimano GRX hydraulic disc brakes, 160/160 mm.Details : Frame Carbon: Adlar - Carbon Monocoque NHU-MOD, Thru Axle 12x142 mm, Width tire maximum: 52 mm Fork Carbon: Adlar - Carbon Monocoque NHU-MOD, Thru Axle 12x100 mm Derailleur lever Shimano GRX ST-RX600, 1x11-speed Rear derailleur Shimano GRX RD-RX812, 11-speed Cassette Shimano Deore XT CS-M8000-11, 11-42 Teeth Chain Shimano CN-HG601 Crankset Shimano GRX FC-RX600-1, 40 Teeth Bottom bracket Miche BB Pressfit 86.5x41 Brakes Shimano GRX BR-RX400, Hydr. Disc Brake, Shimano SM-RT70 Center Lock Rotors (160/160) Wheels Miche Contact GR, 622-24C, 12x100/12x142 mm Tyres Vittoria Terreno Dry, Tubeless Ready, 700x47C Handlebars Ritchey Comp Corralitos Stem Wilier Stemma S Headset Wilier Custom Bearings Superslim + Ritchey Cartridge Saddle Wilier Saddle Road, Titan Rail M 245x144 mm Seatpost Ritchey Comp 2-Bolt Alu Weight --- kg (Frame: 1190 g / Fork: 470 g) Colors C6 - Grey / Yellow (Glossy) Reference E437YDW Geometries : Frame size XS S M L XL Seat tube (mm) 380 410 440 470 510 Top tube (mm) 542 562 583 599 621 Base length (mm) 423 423 423 423 423 Steering bushing (mm) 79 104 130 155 181 Steering angle (°) 70 70 70 70 70 Seat tube angle (°) 75 74.5 74 74 73.5 Wheelbase (mm) 1030 1048 1065 1083 1101 Stack (mm) 538 562 586 610 634 Reach (mm) 395 404 413 422 431
