Product Description

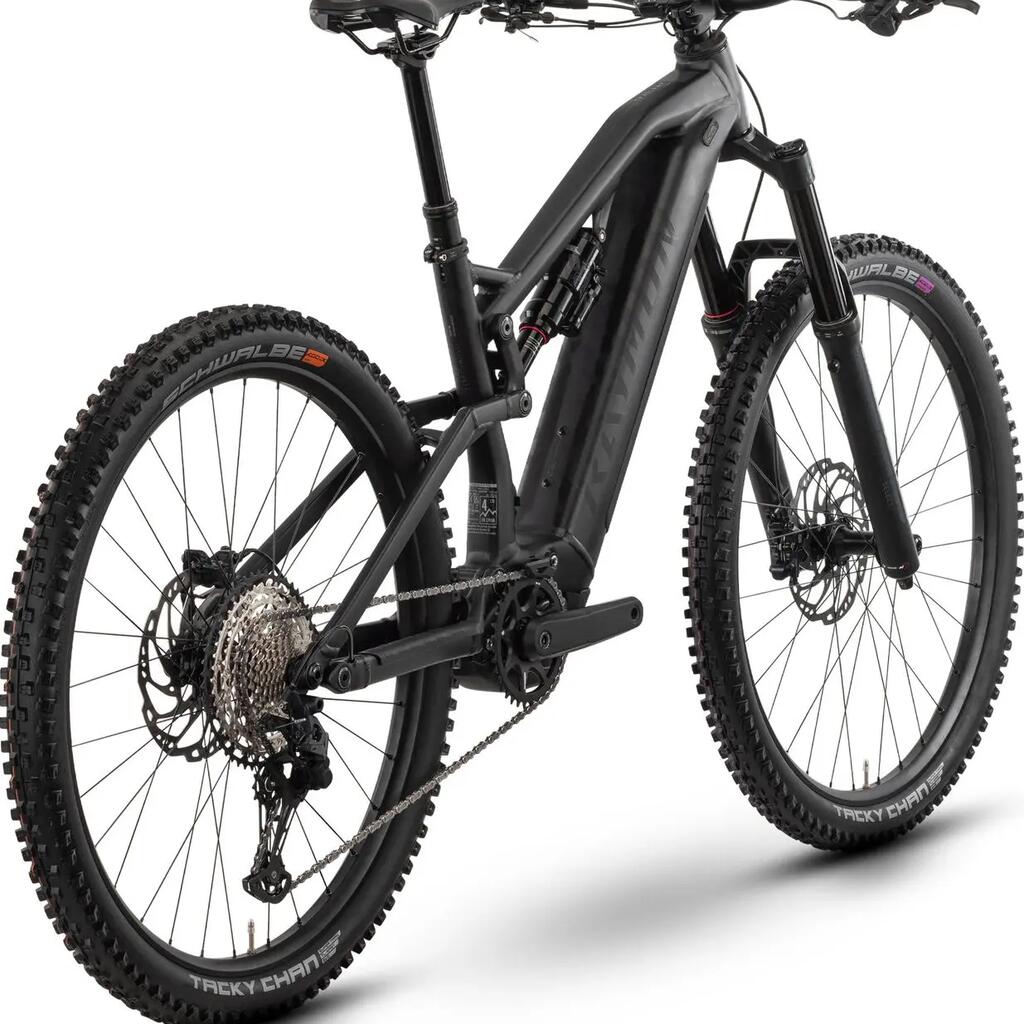

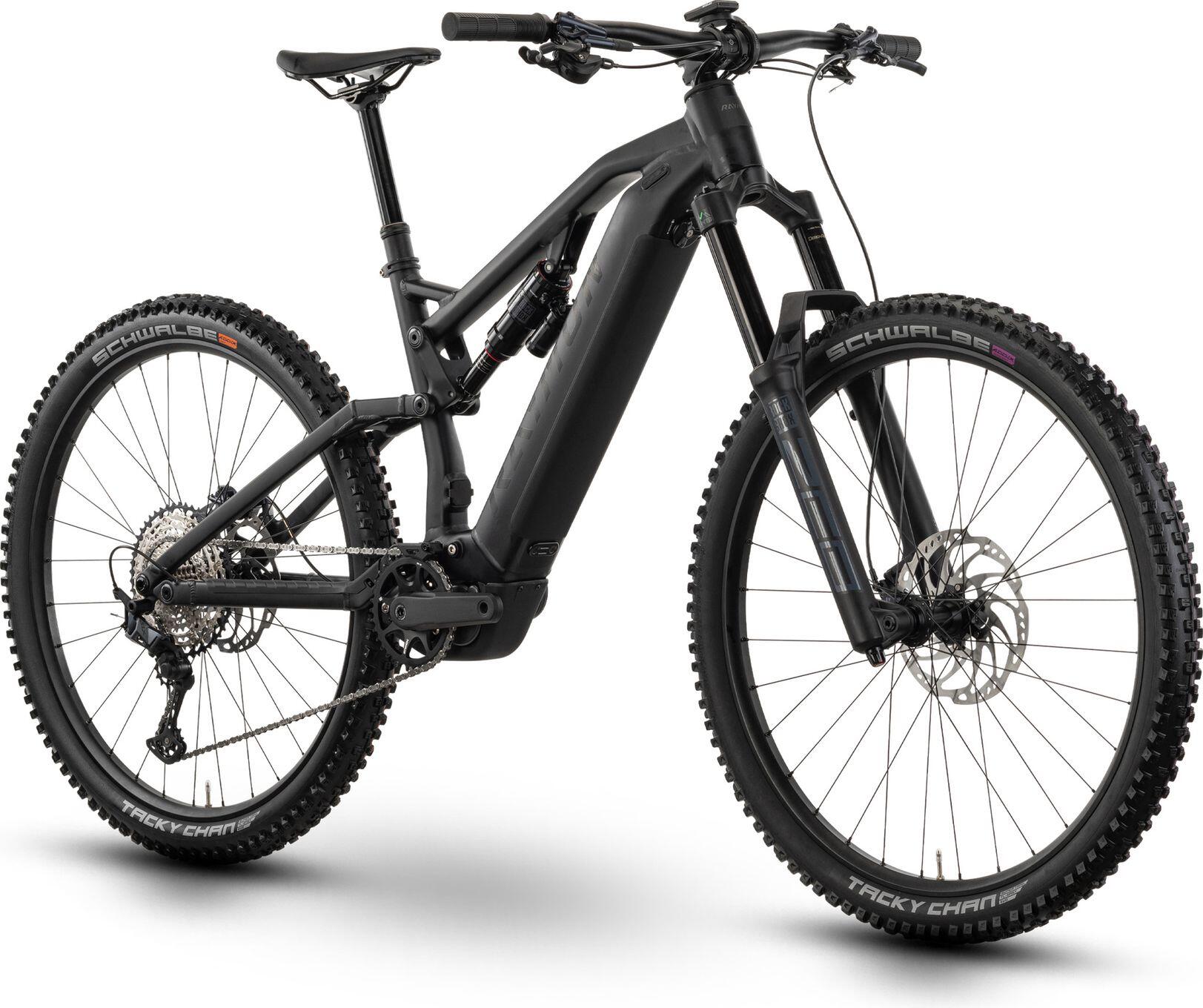

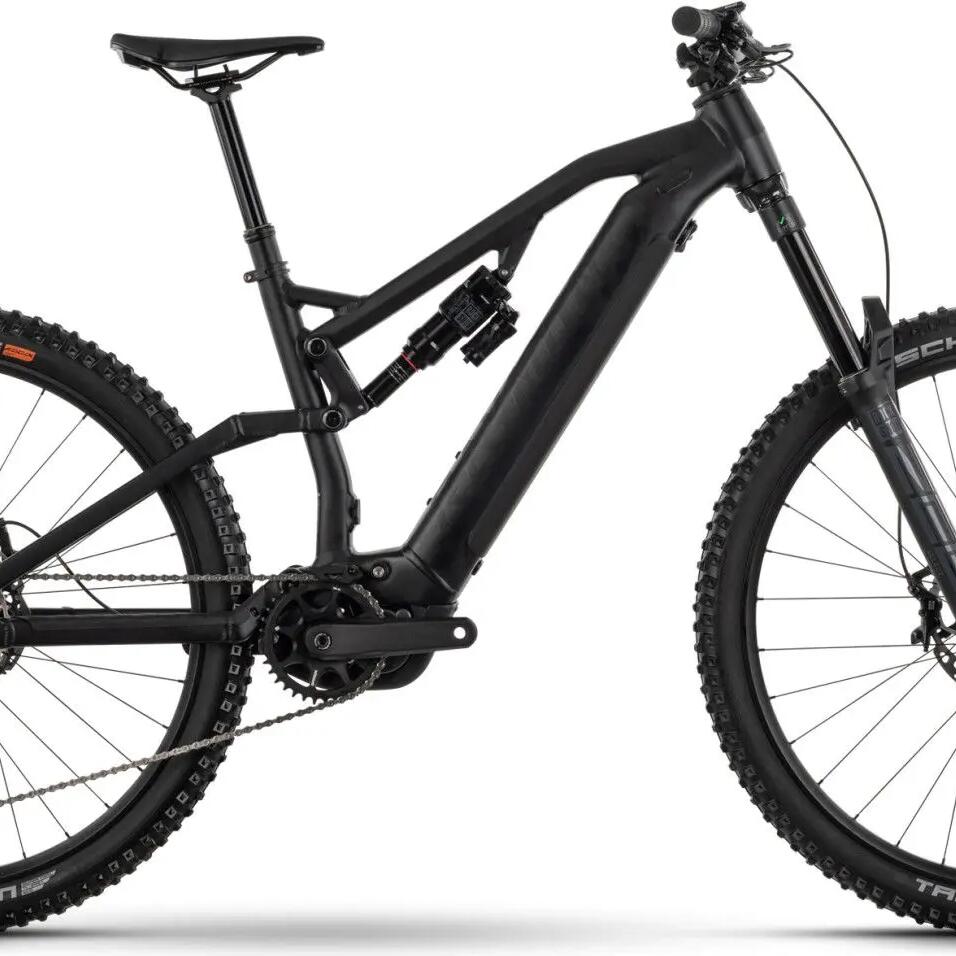

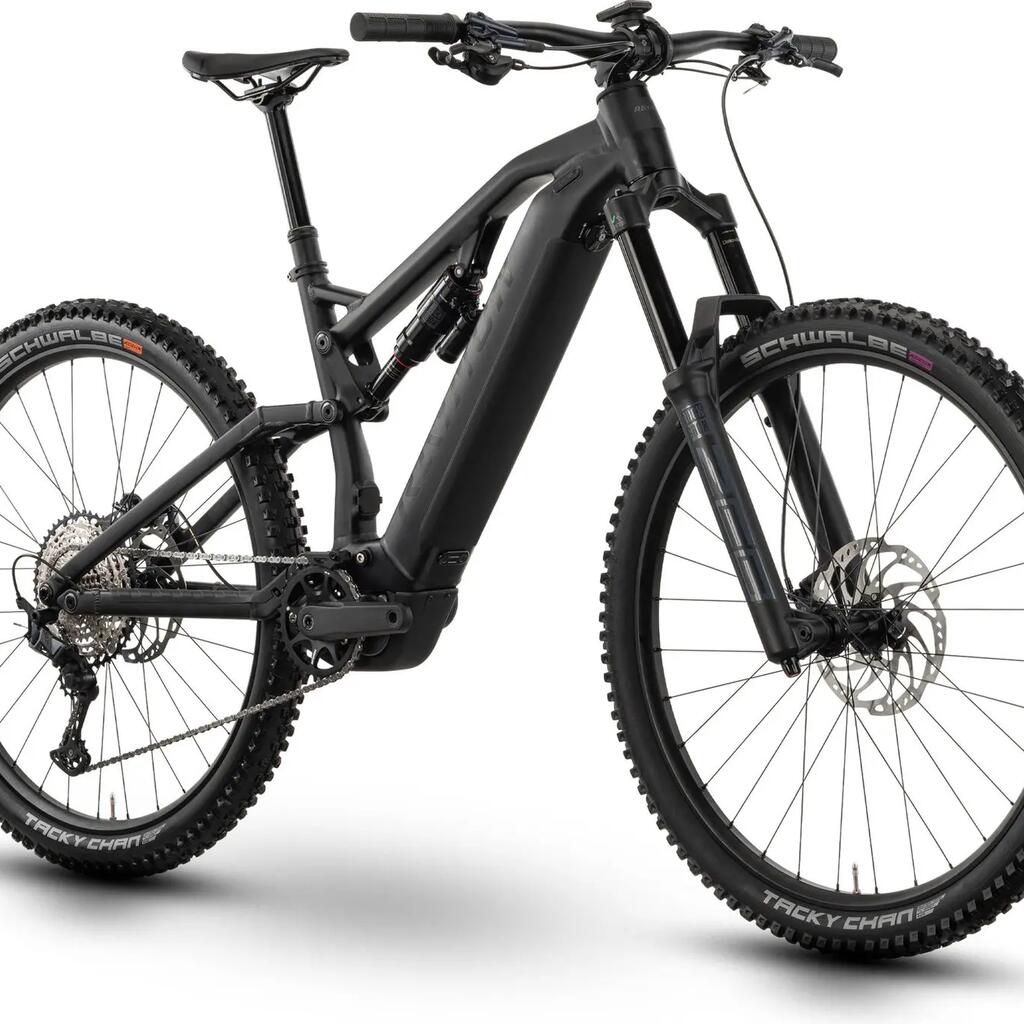

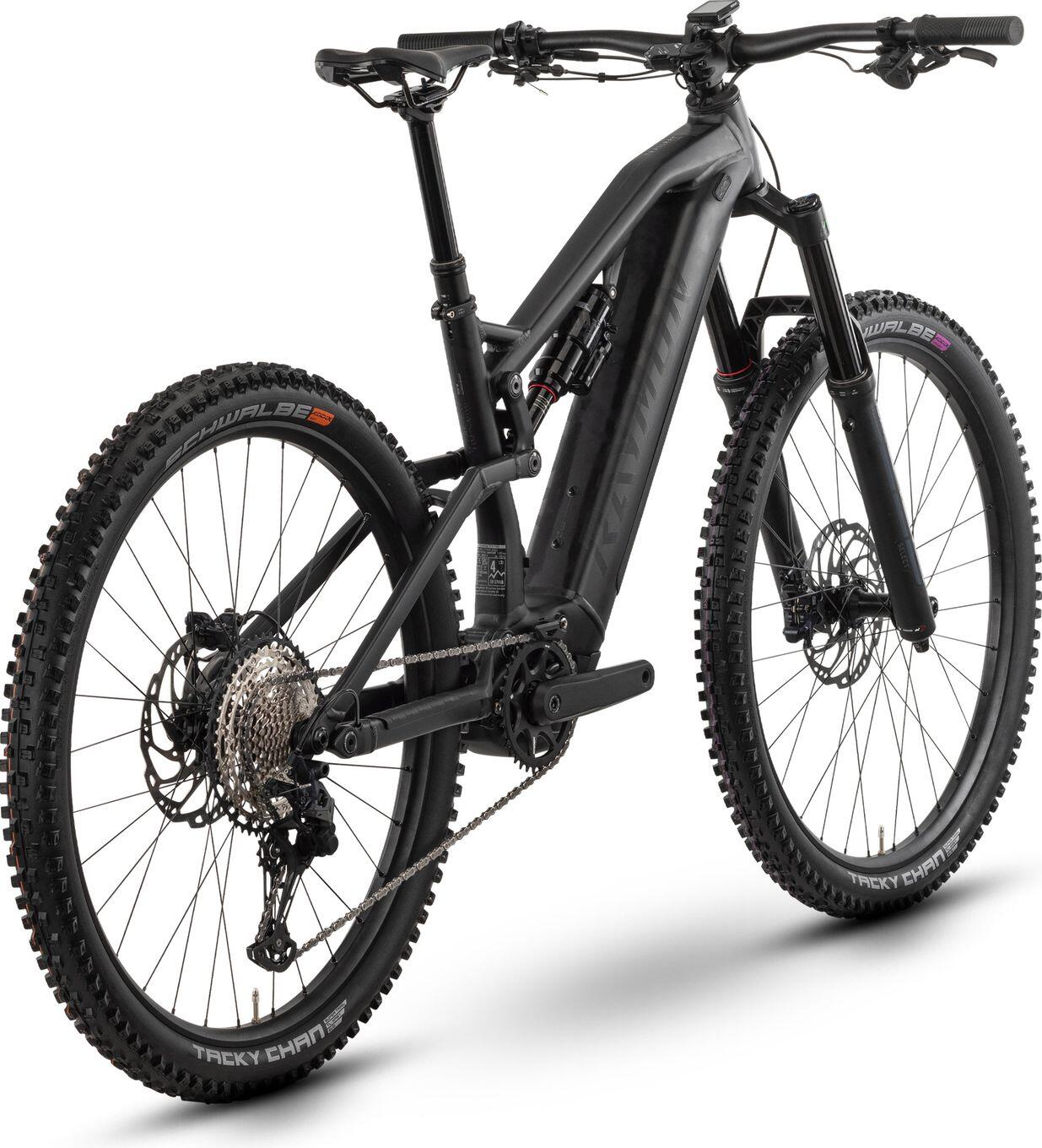

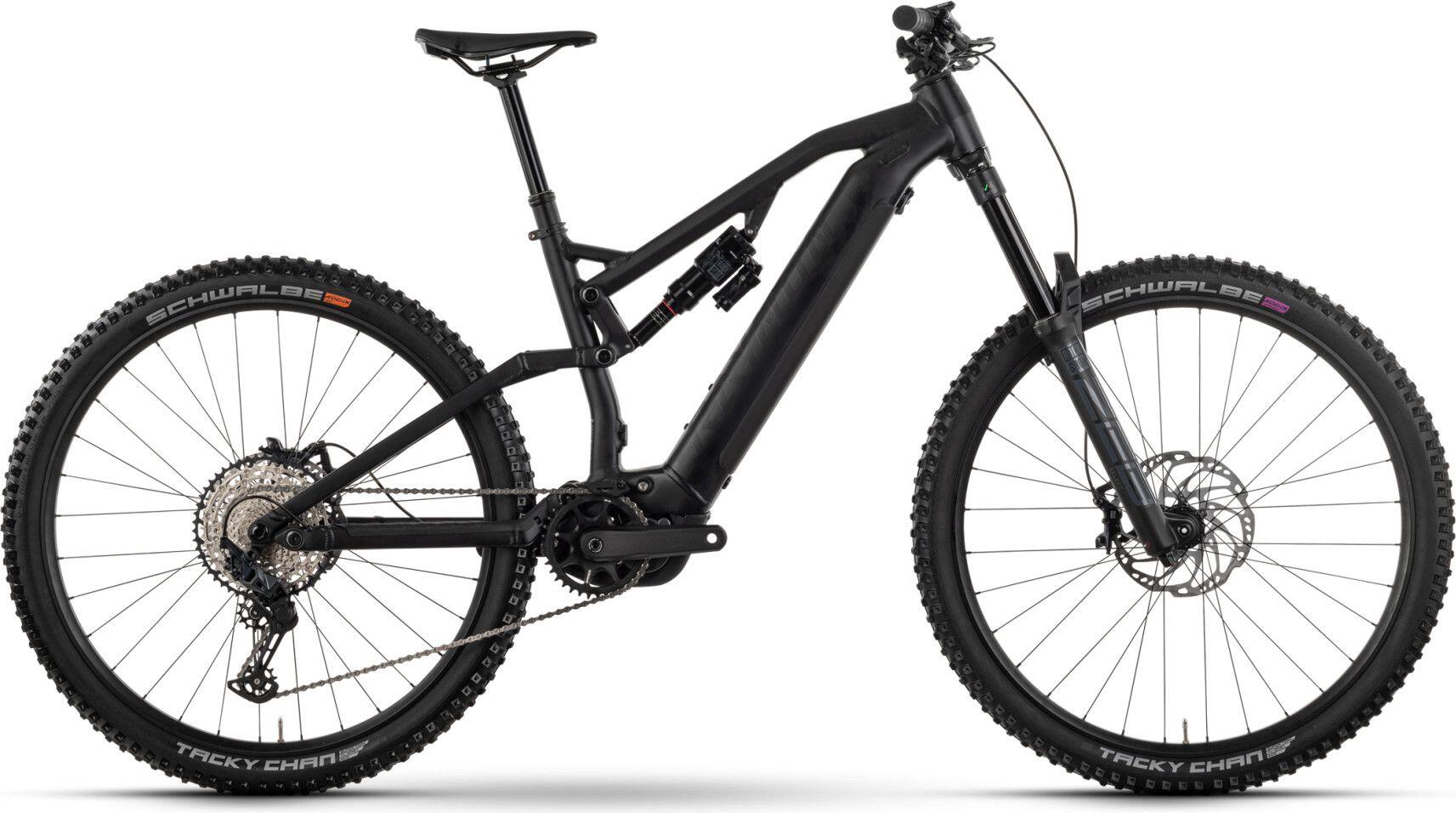

The Raymon TrailRay 170 Pro is an eFully that's a lot of fun! The 29' wheels and RockShox front and rear suspension, with 160mm of travel, provide extra comfort for a smooth ride on the trails. And when you're feeling a bit under the weather, the Yamaha PW-X3 motor and 800 Wh battery will ensure you don't run out of energy. Shimano's rear derailleur and hydraulic disc brakes ensure optimum transmission combined with perfect control and safety on descents.Main features: Aluminum frame, 160 mm travel. Shimano SLX 1x12-speed drivetrain. Shimano SLX 4-piston hydraulic disc brakes, 203/203 mm.Features: Frame Aluminium: 29'', 6061 aluminium, integrated battery, Boost, 160 mm Fork RockShox Zeb Select, air, 170 mm, tapered Rear Shock RockShox Super Deluxe Select, air, 230x65 mm, 160 mm Motor Yamaha PW-X3, 250 W, 85 Nm Battery InTube 800 Wh Display Sigma EOX View 700 / Yamaha Interface X, ANT, Bluetooth Shifter Shimano SLX, SL-M7100, Rapidfire Plus, 1x12-speed Rear Derailleur Shimano SLX, RD-M7100, Shadow Plus, 12-speed Cassette Shimano CS-M7100, 10-51T Chain Shimano CN-M6100 Crankset Raymon FC53 PRO, forged alloy, ISIS, Raymon Pro, Narrow Wide, 36T Brakes Shimano SLX, BR-M7120, 4-piston, Hydr. Disc Brake, (203/203 mm) Wheelset Raymon VR23/DT210, centerlock, 15x110/12x148mm, MS freehub Tires Schwalbe Tacky Chan Evo, Super Gravity, ADDIX Soft, 62-622, 29x2.4'' Handlebar Raymon Riser, 35 x 780 mm, Reach 20 mm, 9° Stem Raymon 35, 0 °, Ahead Headset FSA Orbit Saddle Raymon 143 VM Fit Seatpost Raymon, 34,9 mm, Dropper Post Weight 25.3 kg Weight Limit 130 kg: the maximum system weight consists of the bike, rider and equipments Color Black Geometries: Frame size S M L XL Wheel size ('') 29 29 29 29 Seat tube (mm) 410 440 460 490 Top tube (mm) 576 592 619 645 Chainstay (mm) 460 460 460 460 Head tube (mm) 100 105 110 115 Head tube angle (°) 64 64 64 64 Seat tube angle (°) 72 72 72 72 Wheelbase (mm) 1241 1258 1285 1313 Stack (mm) 620 625 629 634 Reach (mm) 445 460 485 510
