Product Description
1️⃣ 350W Sine-Wave Motor – Smooth and Stable Urban Riding
Equipped with a 350W brushless hub motor (500W peak power, 19 N·m torque) and utilizing sine-wave control technology, it delivers smooth acceleration, quiet operation, and a jerk-free ride. It reaches speeds of up to 25 km/h on flat ground and offers powerful climbing capability (conquering 15° inclines)—handling bridges, parking garage ramps, and cobblestone roads with ease.
2️⃣ 36V 10.4Ah Battery – 39 km Range, Covering a Week’s Commute
Powered by 18650 lithium cells with an integrated Battery Management System (BMS), it boasts high energy efficiency (consuming only 0.3744 kWh). In medium-speed mode (based on a 65 kg rider), the range reaches 39 km—sufficient for 3–4 days of round-trip office commuting or a full week of short trips. A full charge takes 7–8 hours (includes a 42V/1.5A charger; supports 100–240V input). 3️⃣ 16 kg Weight & Compact Folding Design – True Multi-Modal Commuting Freedom

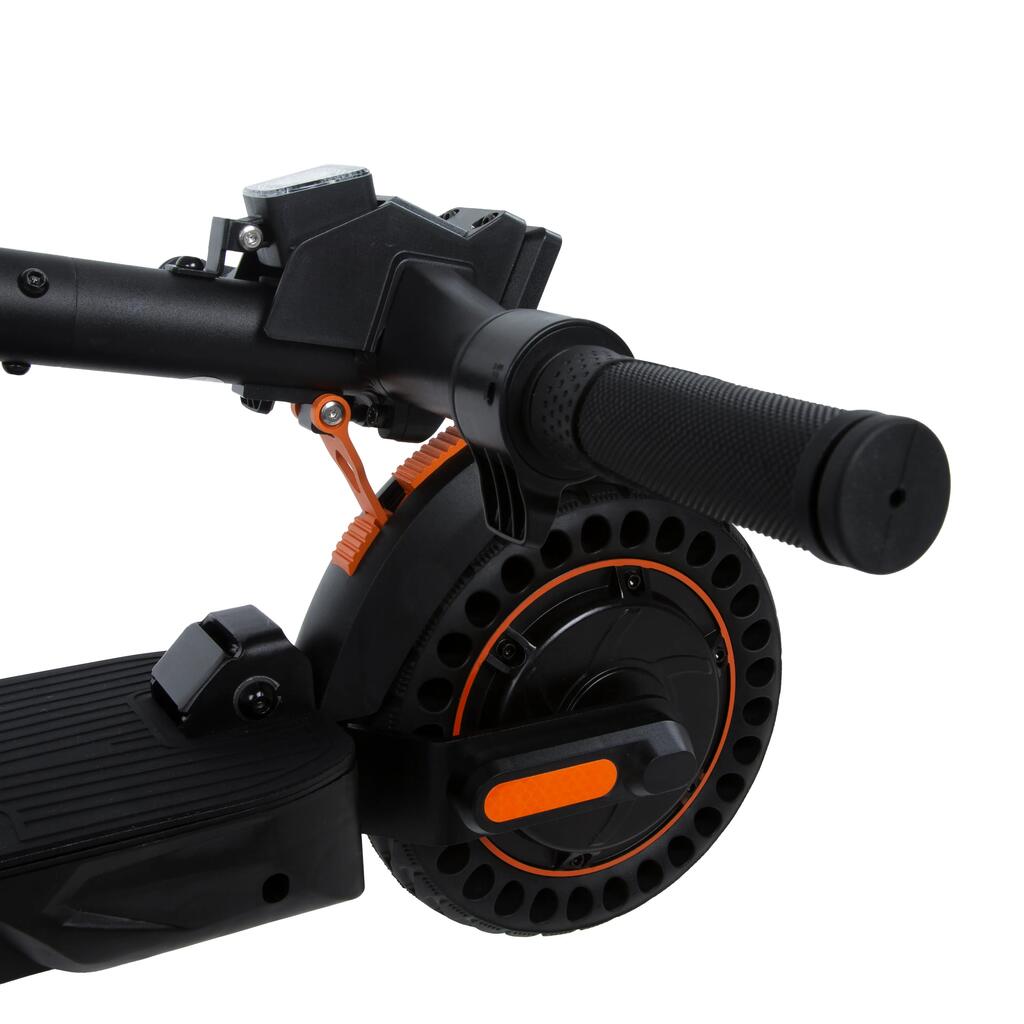

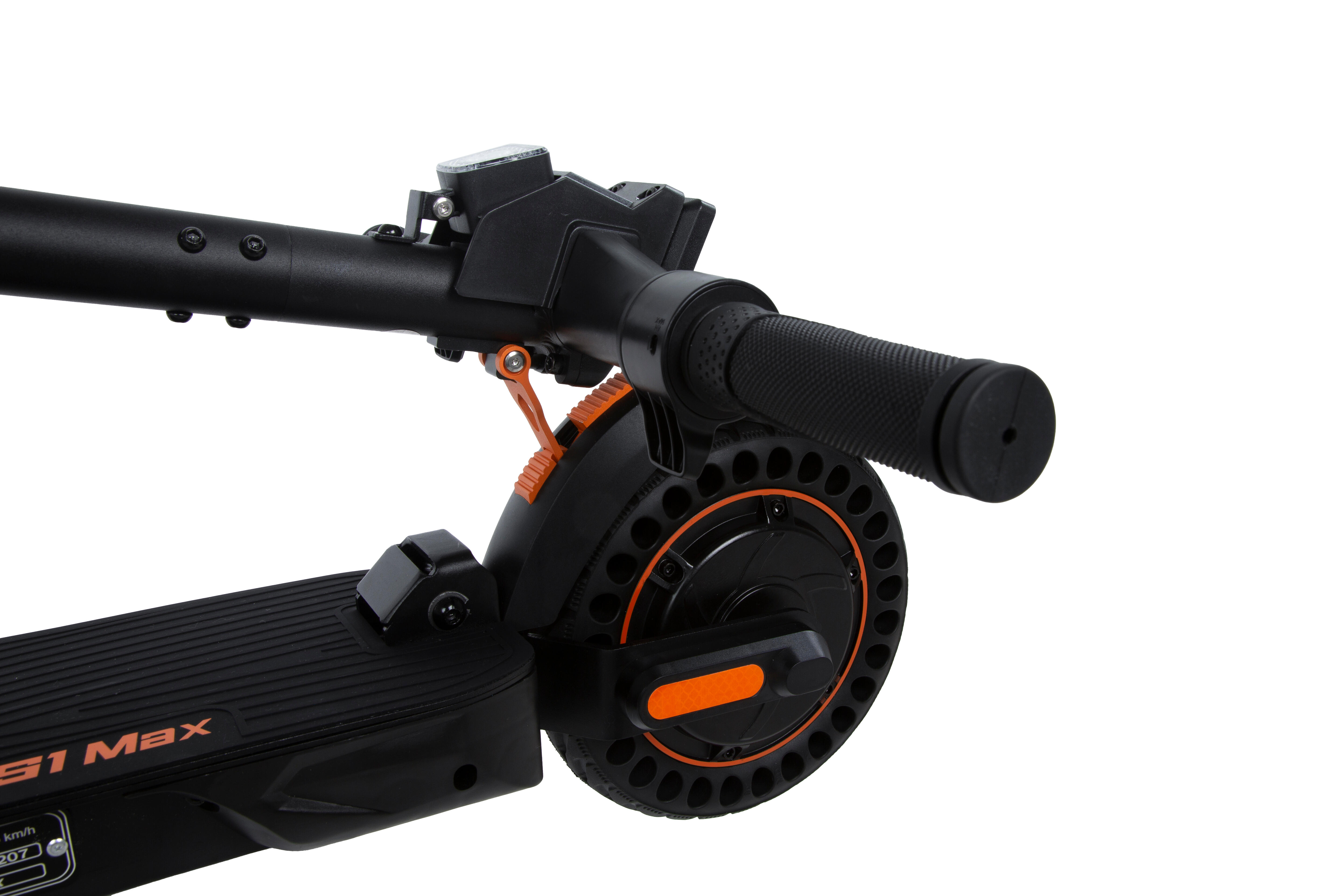

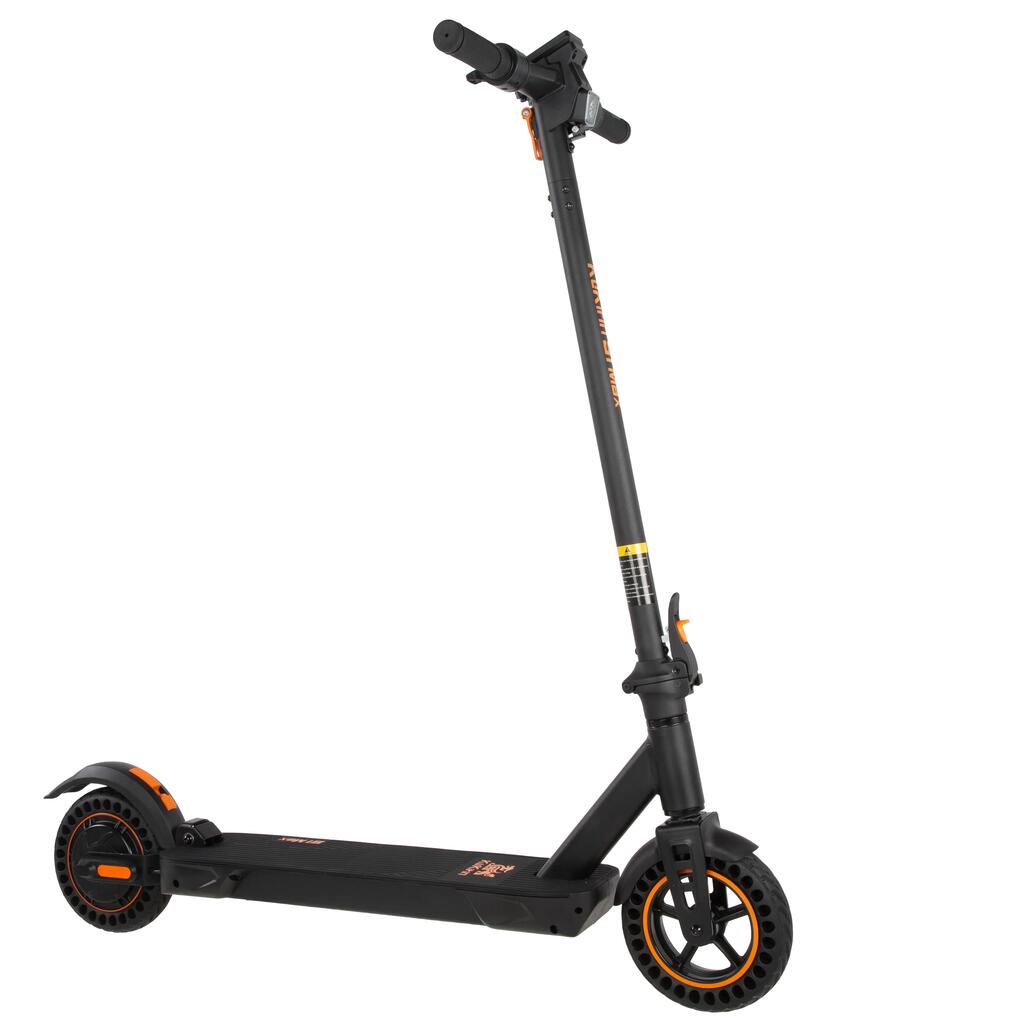

Folded dimensions: 1082 × 500 × 460 mm. With a net weight of 16 kg (18.3 kg with packaging), it can be carried up stairs with one hand, taken onto commuter trains, stowed under a desk, or placed in a car trunk. Features include 500 mm wide handlebars, a 615 × 147 mm deck, and a 945 mm handlebar height, ensuring a l riding posture for adults weighing up to 100 kg.
4️⃣ Real Cost Savings – Purchase and Operating Costs Far Lower Than Traditional Transport
Affordable purchase price and an energy cost of just 0.37 kWh per charge—operating costs are negligible compared to monthly public transit passes or fuel expenses. Low-maintenance design: Features 8-inch solid honeycomb tires (puncture-proof and airless), a sturdy steel frame, and IP54-rated protection.
5️⃣ Active Safety: Braking, Lighting, and Handling

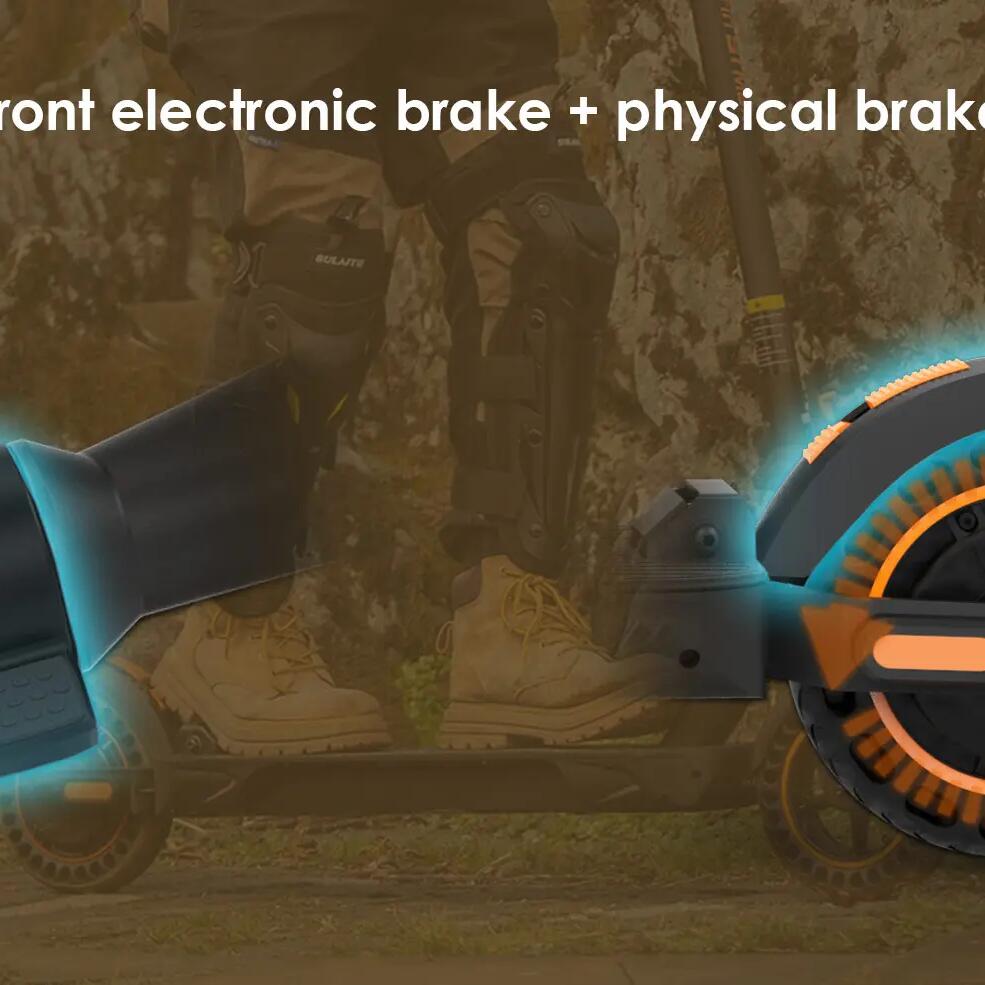

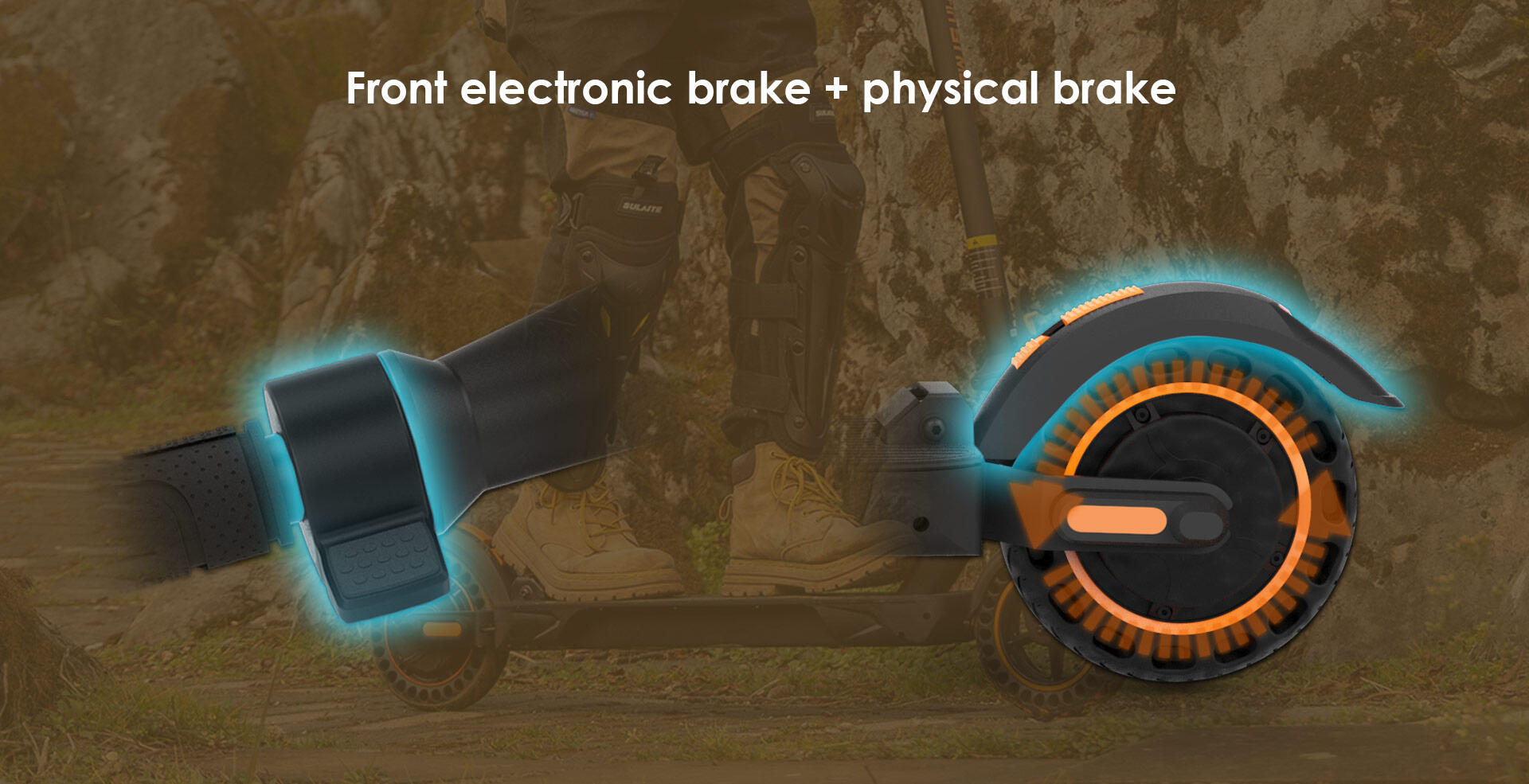

• Electronic brake + auxiliary brake → Braking distance of just 2–4 meters at 25 km/h

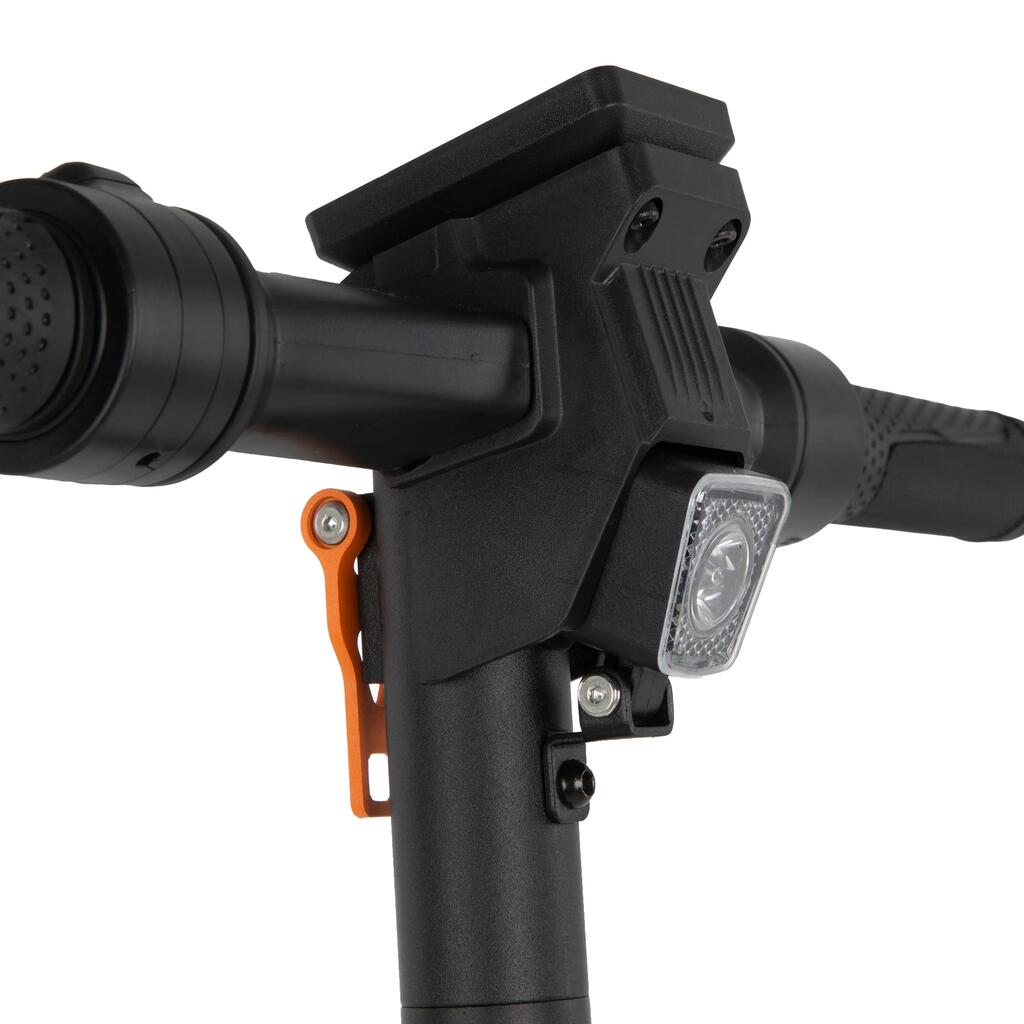

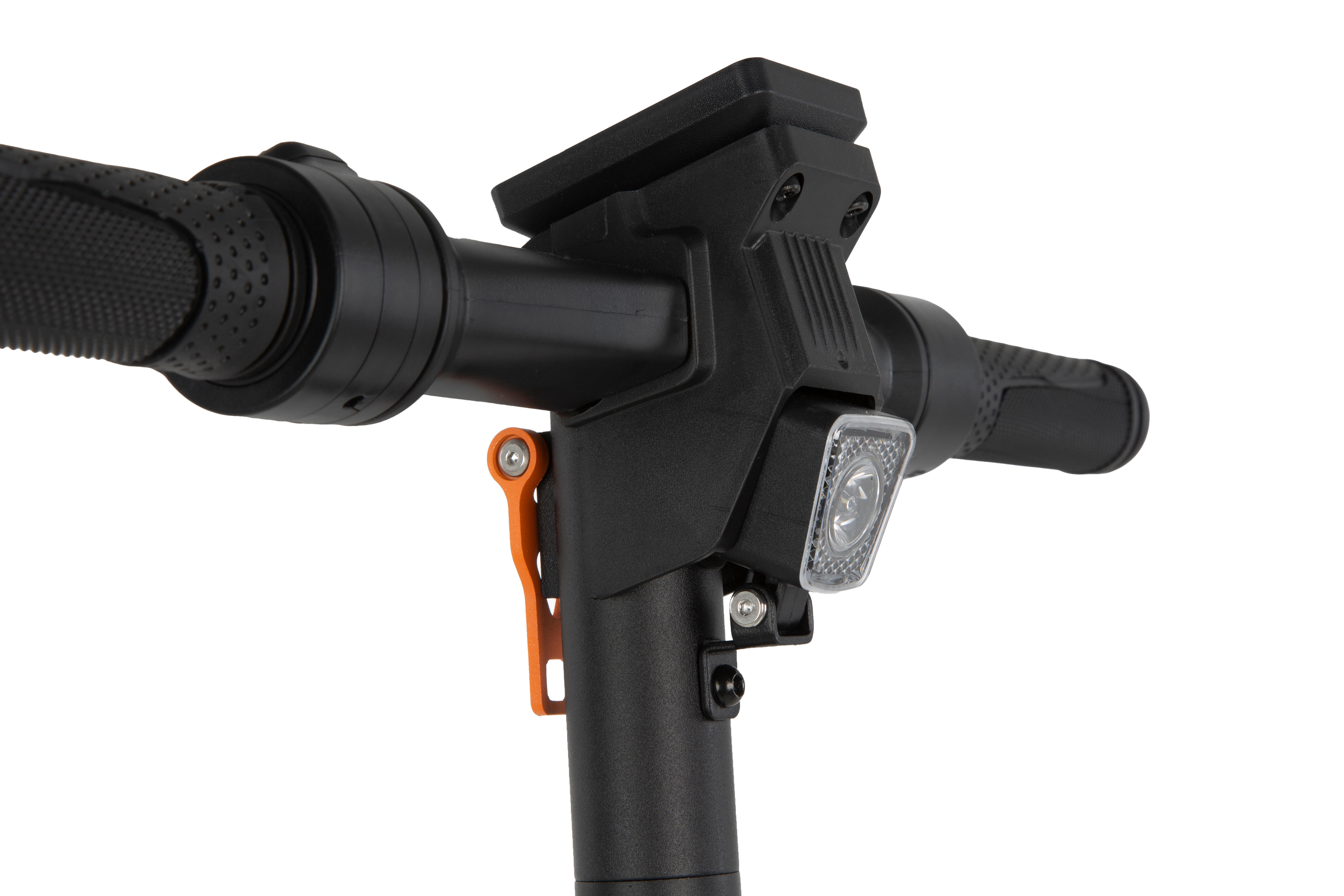

• 12V LED headlight (35–45° beam angle, approx. 2 m² illumination area) + tail light with integrated brake light function
• Rear spring suspension + 8-inch honeycomb tires = Comfortable ride even on cobblestones and speed bumps
• IP54 protection: Easily handles light rain and wet road surfaces
6️⃣ Smart LED Dashboard—Information at a Glance

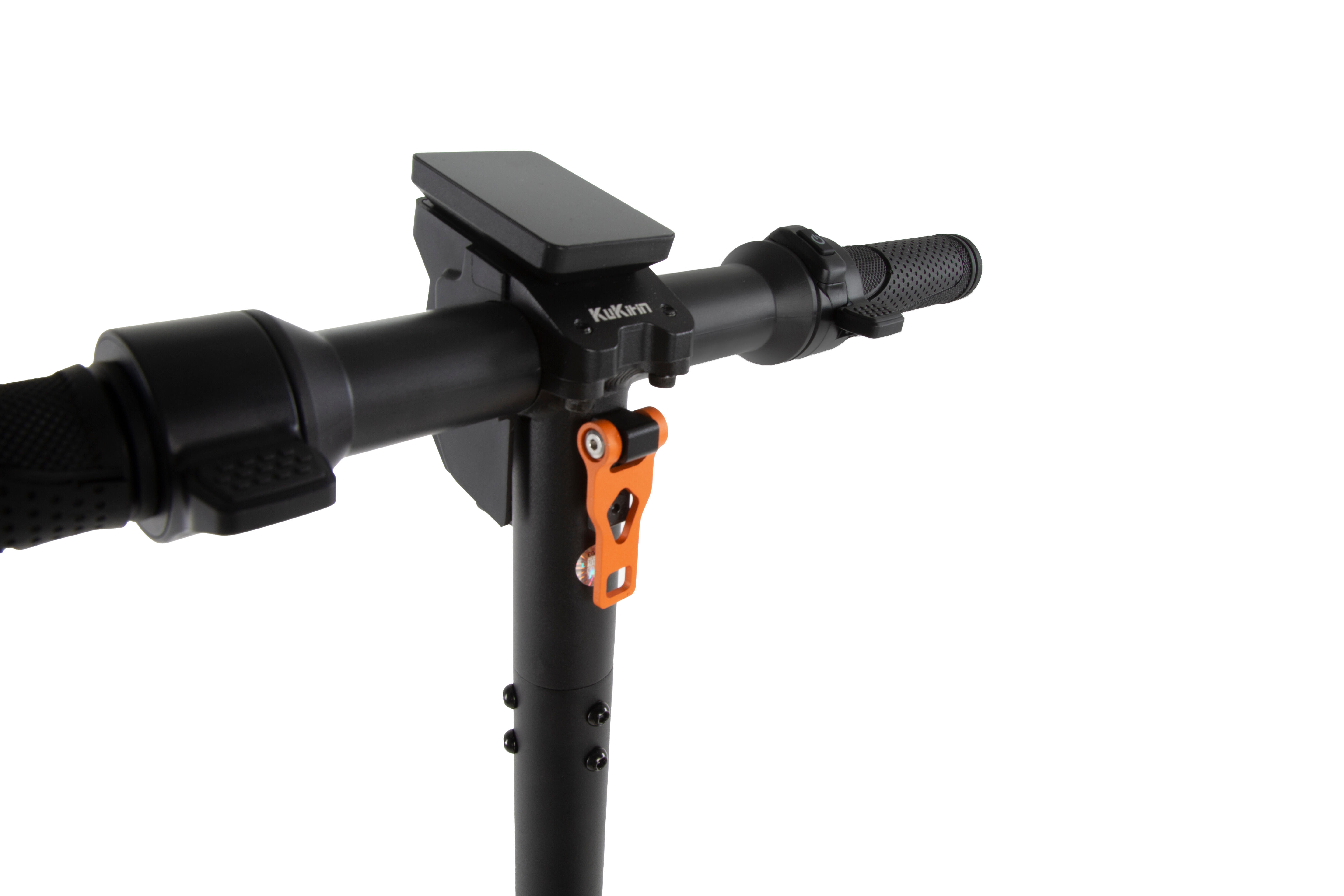

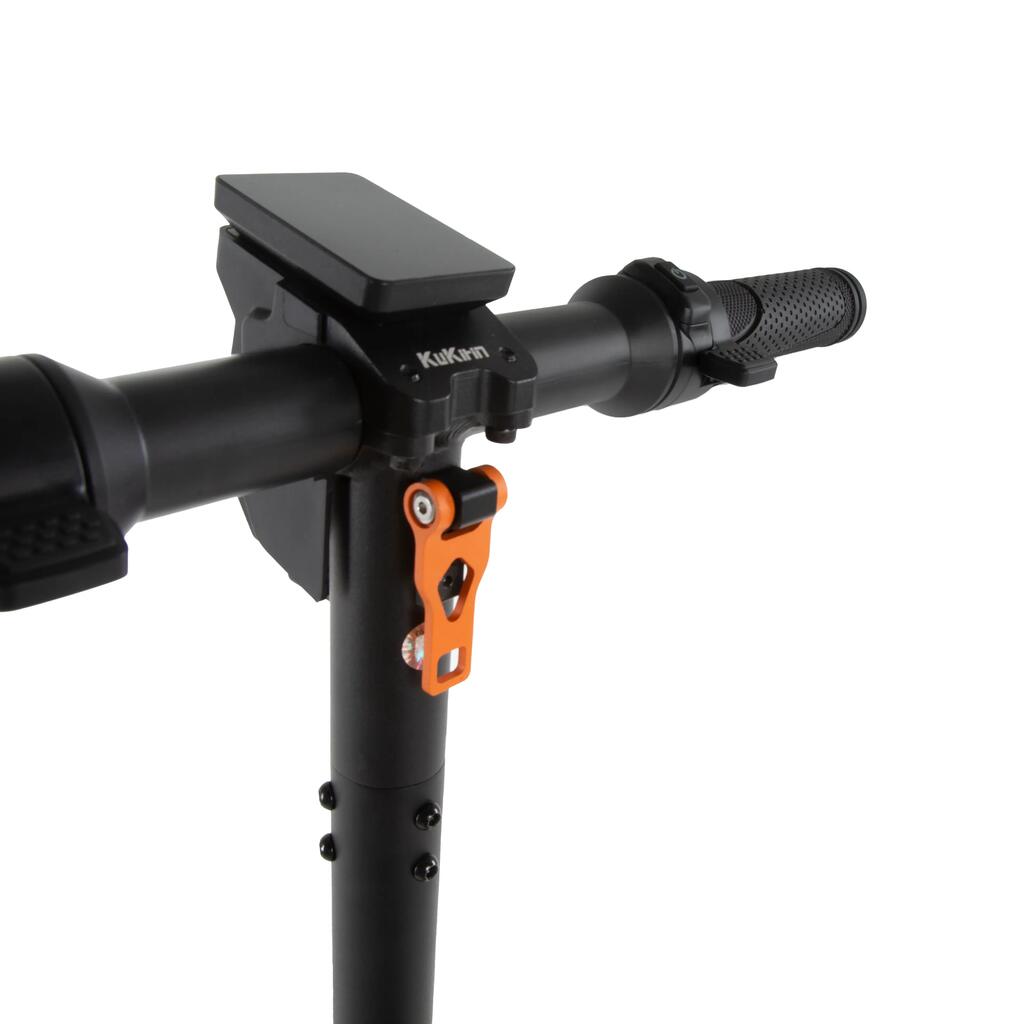

LED display (ABS+PC housing, dimensions 71×50×21.5 mm): Displays speed, battery level, gear (3 speed modes), total mileage, voltage, error codes, cruise control status, and zero-start/kick-to-start settings. Multifunction button operations:
• Single-click → Switch speed modes (settings saved automatically)
• Double-click → Turn headlight on/off
• Triple-click → Enable cruise control (indicator light changes from flashing to solid when active)
• Quadruple-click → Switch units (km/h ↔ mph)
• 5 clicks → Switch start mode (Zero Start / Non-zero Start)
• 6 clicks → Switch speed limit levels (15/20/25 km/h; indicator flashes when speed-limited) — facilitates compliance with EU regulations
• 9 clicks → Reset total mileage
📋 Technical Specifications (Product Parameters)
Category | Item | Parameter
General | Model | KuKirin S1 Max
Net/Gross Weight | 16 ±0.5 kg / 18.3 ±0.5 kg
Max Load | 100 kg

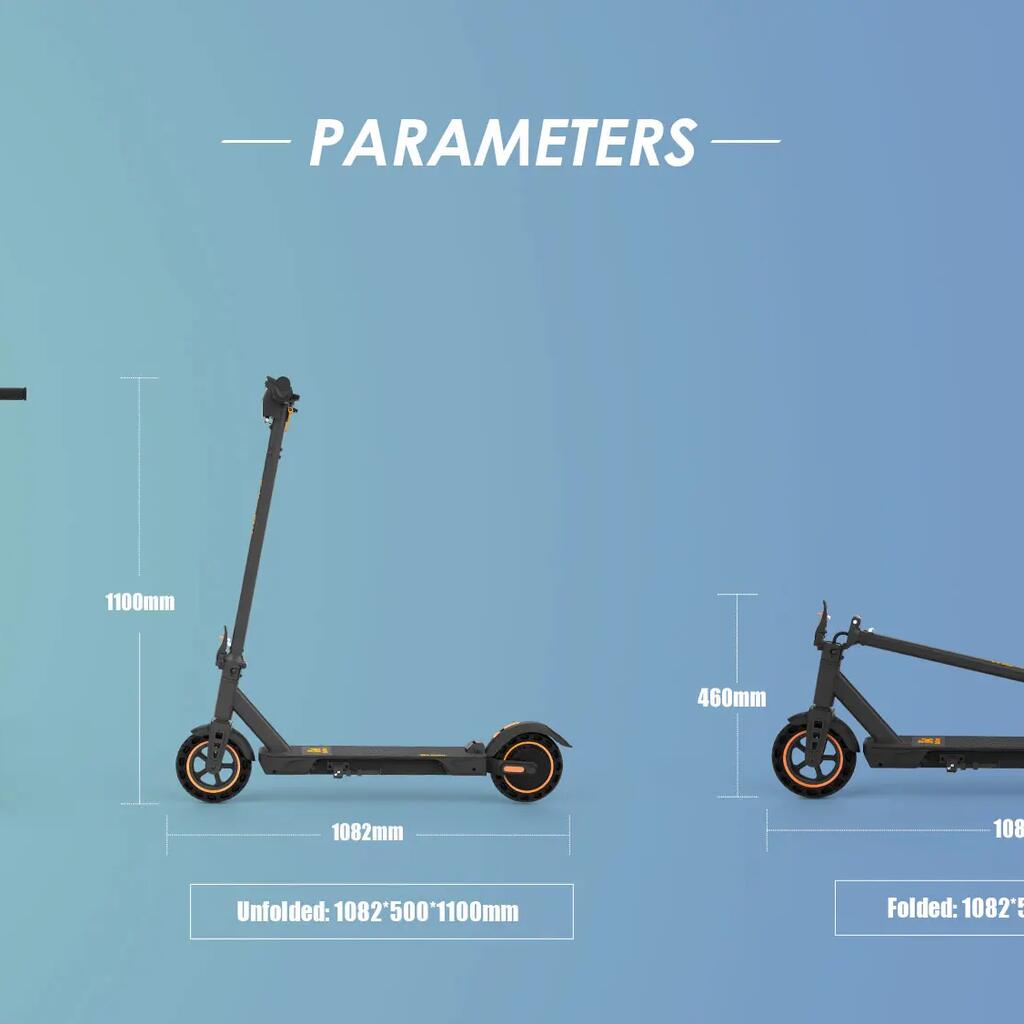

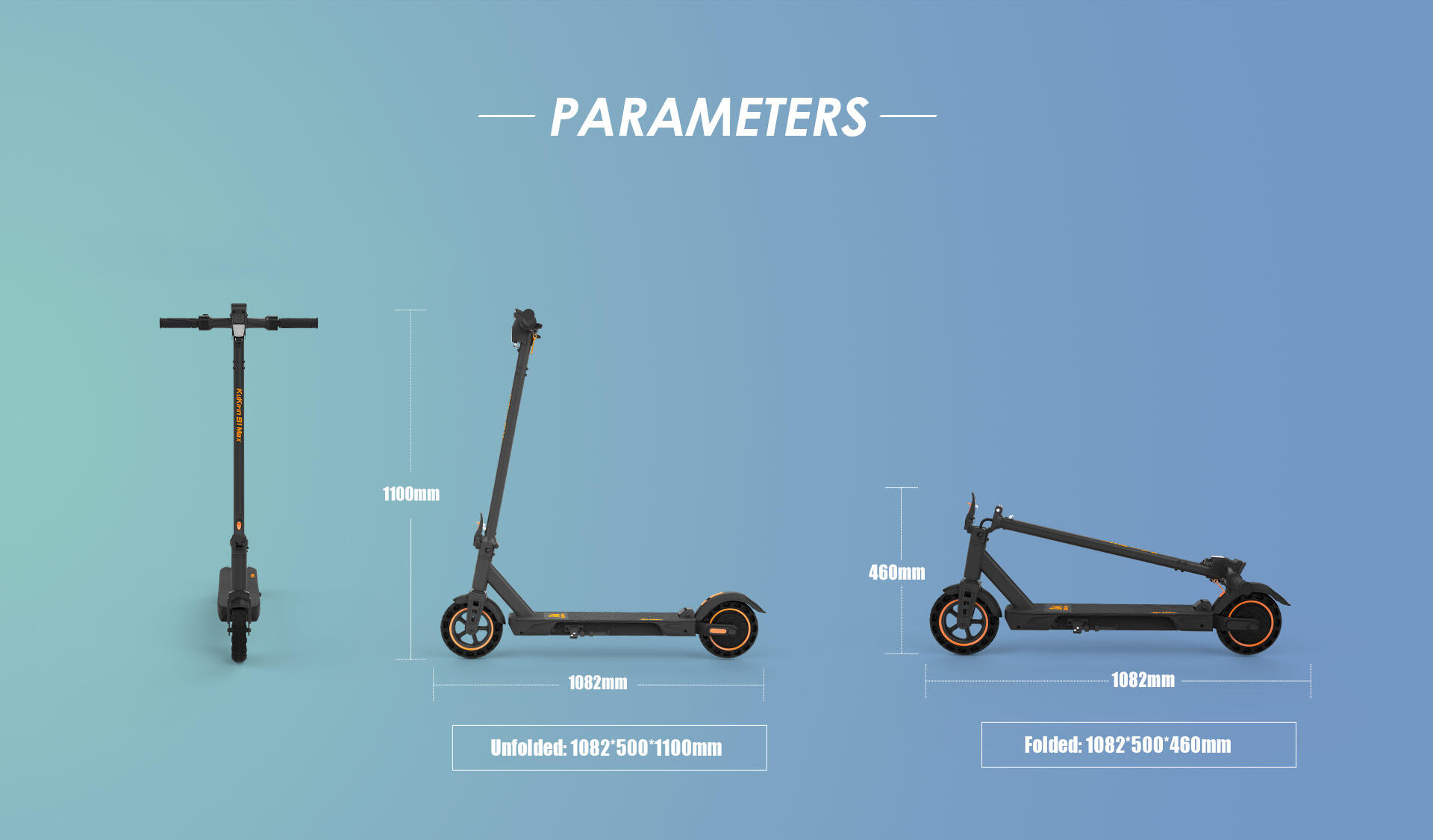

Unfolded Dimensions | 1082 × 500 × 1100 mm
Folded Dimensions | 1082 × 500 × 460 mm
Ground Clearance | 87 mm
Motor | Type | DC brushless hub motor
Rated/Peak Power | 350 W / 500 W
Torque | 19 N·m
Rotational Speed | 660 ±20 rpm
Controller | Sine wave
Battery | Type | 18650 Lithium battery, 36V 10.4Ah
Standard Energy Consumption | 0.3744 kWh
BMS (Battery Management System) | Yes
Charger | Input 100-240V 50/60Hz 2A / Output 42V 1.5A
Charging Time | 7-8 hours
Performance | Max Speed (65kg load) | 25 km/h (speed-limited) / 30 km/h (unrestricted/no load)
Range (65kg load, average) | ≤ 39 km
Max Climbing Angle | ≤ 15°
Wheels | Size | 8 inches (203 mm)
Type | Solid honeycomb tire (airless)
Front Suspension | None
Rear Suspension | Spring shock absorption
Braking | Type | Electronic brake + auxiliary brake
Braking distance (max) | 2–4 m
Lighting | LED headlight (12V, 35–45° beam angle, illuminates approx. 2 m² of ground)
Turn Signals | None
Tail Light | Yes (brightens during braking)
Display | LED screen, ABS+PC housing
Display Info | Speed, gear, headlight status, brake status, range, voltage, odometer, cruise control, default settings
Protection Rating | IP54
Packaging Dimensions | 1093 × 158 × 465 mm
Package Contents | Scooter, charger, hex key, 6 screws, user manual
📦 Package Contents
• KuKirin S1 Max Electric Scooter ×1
• Charger (42V/1.5A) ×1
• Hex key ×1 + Spare screws ×6
• User manual ×1
