Set of 10 olive + BH90 insert kits for Shimano hydraulic brake hose

Product Description

Achieve a clean and reliable assembly of your hydraulic brake hoses with this set of 10 olive + BH90 insert kits. Precision-engineered, these fittings ensure excellent sealing when replacing or shortening a Shimano hydraulic brake hose.

Technical Specifications

• Product: Olive + BH90 insert kit

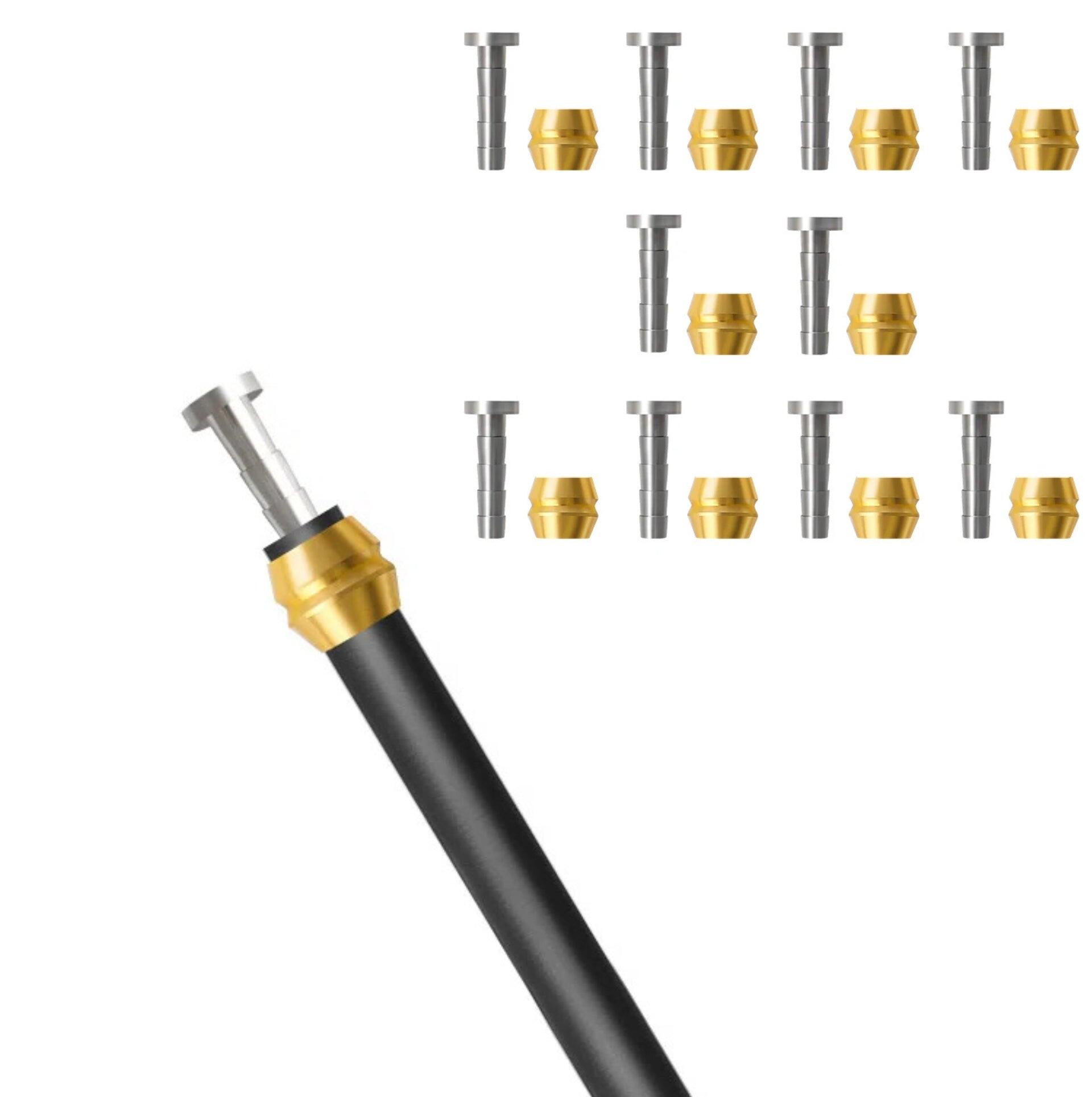

• Quantity: 10 sets (10 olives + 10 inserts)
• Compatibility: Shimano BH90 brake hoses
• Use: Hose assembly and repair
• Insert material: Precision-machined metal
• Colour: Silver insert / Gold olive

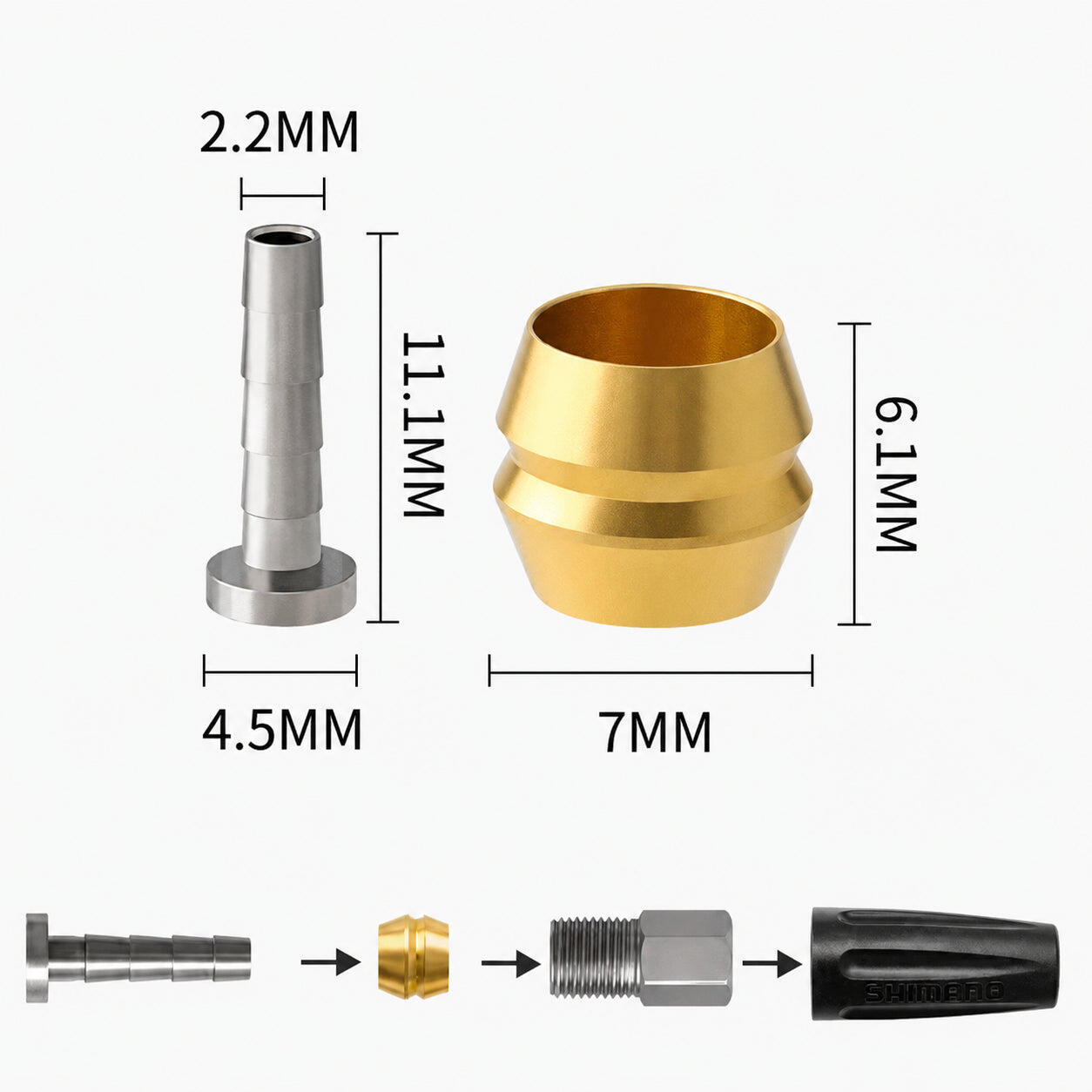

• Insert: Ø 2.2 mm • Length 11.1 mm • Head Ø 4.5 mm
• Olive: Height 6.1 mm • Ø 7 mm

Key Features

• BH90 Compatibility: specifically designed for Shimano BH90 hydraulic brake hoses.
• Precision machining: perfectly matched dimensions to guarantee excellent sealing.
• Reliable assembly: ensures a secure connection between the hose and the lever or calliper.
• Ideal for maintenance: perfect when replacing, shortening or repairing a hydraulic brake hose.
• Cost-effective set: 10 complete sets to equip several bikes or to build up a workshop stock.
• Simple installation: compatible with standard Shimano hydraulic brake mounting tools.
• Workshop or home use: suitable for both professional mechanics and cyclists carrying out their own maintenance.

Shimano BH90 Compatibility

Compatible in particular with Shimano brake systems fitted with BH90 hoses:

• MTB: BR-M506, M596, M615, M666, M675, M7000, M7100, M7120, M785, M8000, M8020, M8100, M8120, M820, M8200, M9000, M9020, M9100, M9120, M985.
• Road: BR-R7020, R7025, R7070, R7120, R8020, R8070, R8120, R9120, R9170, R9176, R9180.
• Gravel / Cyclocross: GRX BR-RX400, BR-RX810, BR-RX820.
• Trekking: BR-T750.

Assembly Sequence

• 1. Insert the insert into the hose.
• 2. Slide the olive onto the hose.
• 3. Position the connector nut.
• 4. Insert the hose into the Shimano lever or calliper and tighten to the recommended torque.

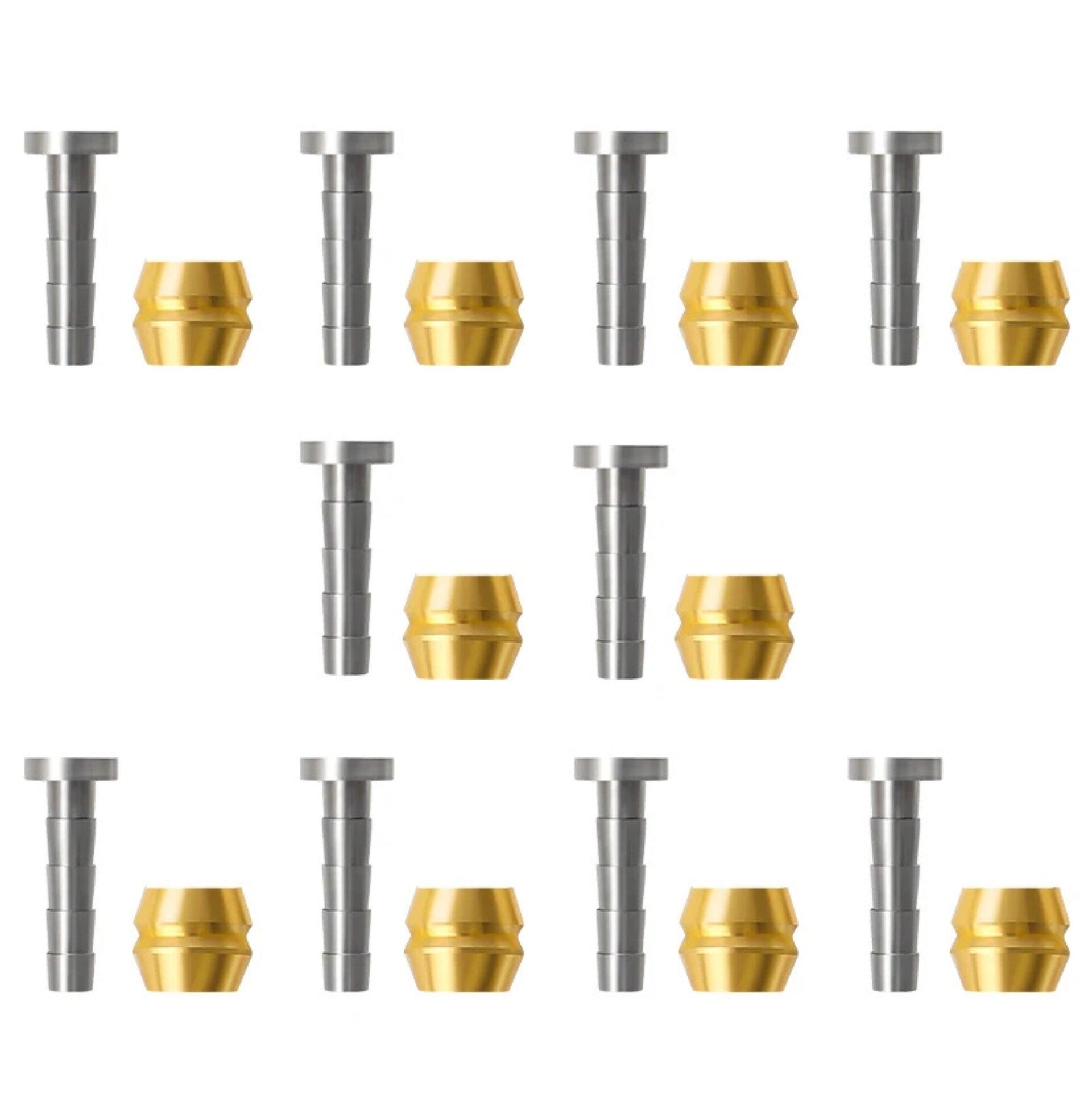

Pack Contents

• 10 × BH90 Inserts
• 10 × BH90 Olives

An essential kit for the maintenance and assembly of Shimano BH90 hydraulic brakes, delivering reliable sealing and professional-quality assembly.
