Product Description

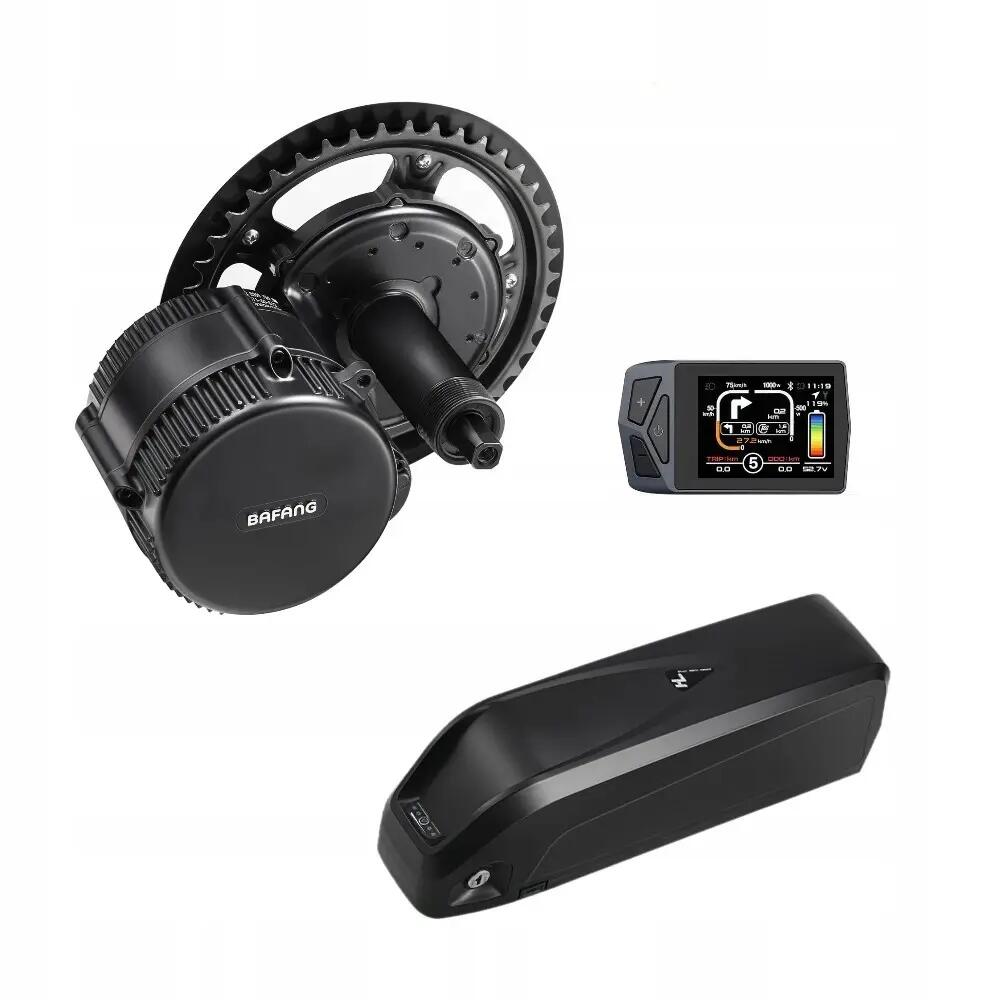

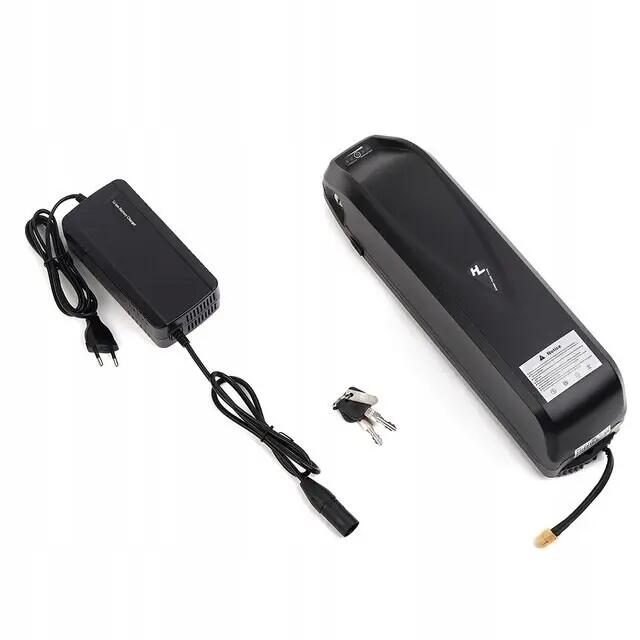

ELECTRIC KIT WITH CENTRAL MOTOR A complete 500W kit with a 13 Ah battery and charger that will allow you to quickly and easily convert your current bike into an e-bike. Technical data: Kit power: 500W Max speed: approx. 40 km/h Battery: 13 Ah Distance: 40-65 km Motor model: MM G340.500 Motor weight: 4 kg Mounting location: Centrally - bottom bracket axle Controller model: Integrated (in the motor) Sprocket: 32T, 36T, 44T, 48T and others (to choose from) Voltage: 48V Protocol: CANG 1-YEAR WARRANTY FOR THE KIT FROM THE MANUFACTURER Don't miss the promotion! Additional one-year warranty on the kit for only PLN 1! A total of 2 years of full warranty support! BIKE SERVICE AND CONVERSION THROUGHOUT POLAND. KIT: A central motor is the best solution for electric bikes because it allows you to maintain the bike's center of gravity. Using the motor in the bottom bracket increases pedaling cadence and allows for an efficient and direct transfer of power to the drivetrain. BATTERY: Dimensions: 36.6 x 9.1 x 11 cm. The included lithium-ion battery with a capacity of 13 Ah allows you to travel from 40 to even 65 km on a single charge. The battery is housed in a special container that not only protects it from external factors or accidental damage, but also allows for quick installation on the bike. Simply slide the battery into the rail previously mounted in the frame. The battery also features a USB port, allowing you to charge your smartphone or other devices. LCD (optional) - Using the easy-to-use LCD display, you can make necessary settings, configure the power assist and top speed, and, above all, constantly monitor the battery status. The intelligent system monitors your riding style and indicates the battery level proportionally to the power used. TYPE 1 (EKD01)Side display with some increased functionality and Bluetooth functionNumber of PAS: 3/5/9Screen size: 2.4″USB port: Yes TYPE 2 (VD03)Minimalist side display with Bluetooth functionNumber of PAS: 3/5/9Screen size: 1.5″USB port: No THROTTLE You can use the assistance in two ways - the first is the automatic start of the engine while pedaling thanks to the motion sensor placed at the crank, and the second is the throttle grip, which also allows you to use the drive to the full extent. CERTIFIED PRODUCT CAN BE FITTED TO ANY BIKE. CHOICE OF: FRONT SPROCKET TYPE - 32T, 36T, 38T (Will increase pedaling cadence and ride comfort in mountainous terrain) - 44T, 48T (They have an additional chain guard and are suitable for riding in the city, forest, and other flat, mountainous areas). We typically use 44T. CHOICE OF: BRAKE LeverS They have contactors that activate the engine switch when pressed, which increases riding comfort and safety. BRAKE SENSOR The sensor is usually used when the original brake levers are integrated with the bike's gear shifters or in the case of hydraulic brakes. The electronic brake sensor is mounted on the brake lever. When braking, the lever handle moves, which is detected by the Hall sensor and disengages the motor in a fraction of a second. PLEASE INDICATE IN YOUR ORDER COMMENTS: 1. FRONT SPROCKET TYPE: 32T, 36T, 44T, 48T, etc.; 2. BRAKE TYPE: BRAKE LEVER OR BRAKE SENSOR; 3 LCD TYPE: 1, 2. INCLUDED: Bafang 48V 500W motor; 48V 13Ah battery; Wiring with LCD display and throttle; Brake levers with cut-off current or brake sensors; Sprocket; Cranks; Light; User's manual and warranty card. Warranty and Service: The comprehensive warranty and service for Ultimate Action batteries is 1 year. We operate throughout Poland. Bicycle Conversion: We offer additional electric bike conversion and service services throughout Poland. USER'S MANUAL AND WARRANTY CARD: The set includes an instruction manual, which contains the main information on the proper use, operation, and installation of the Bafang electric kit, display, and additional parts.
