Product Description

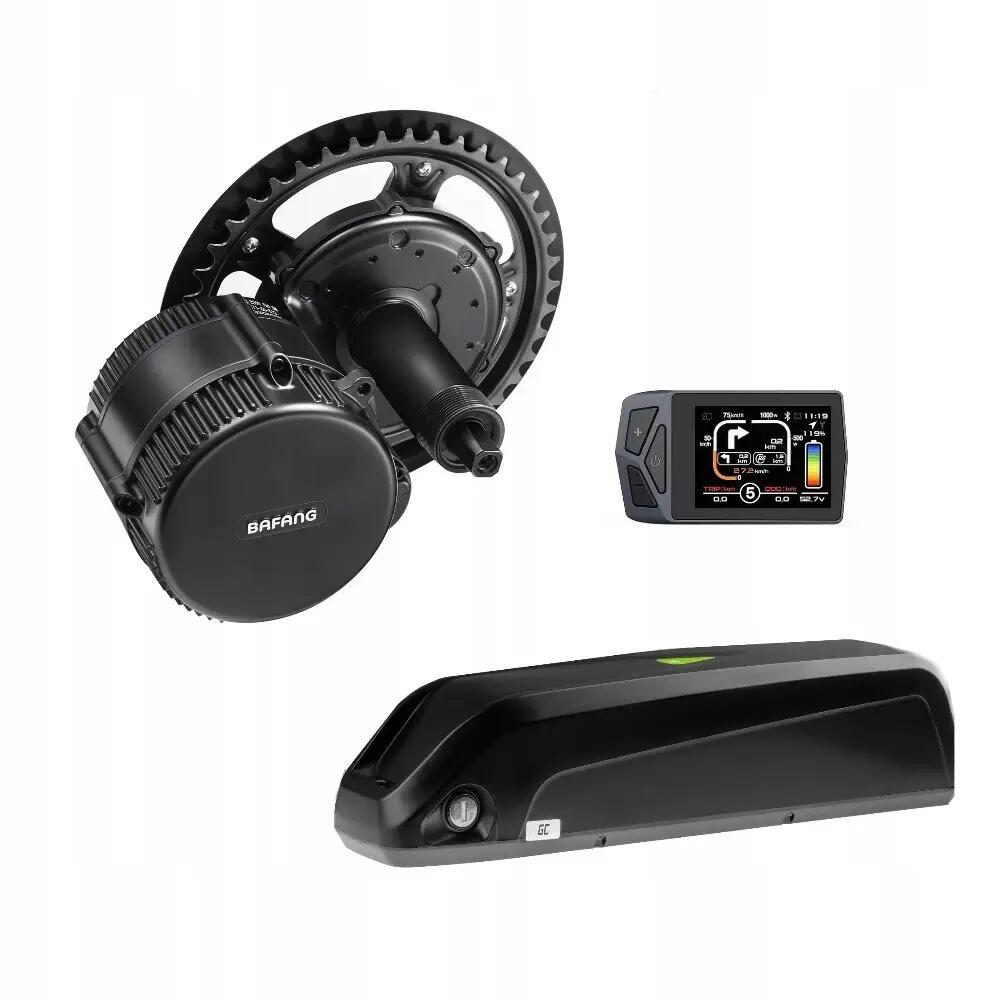

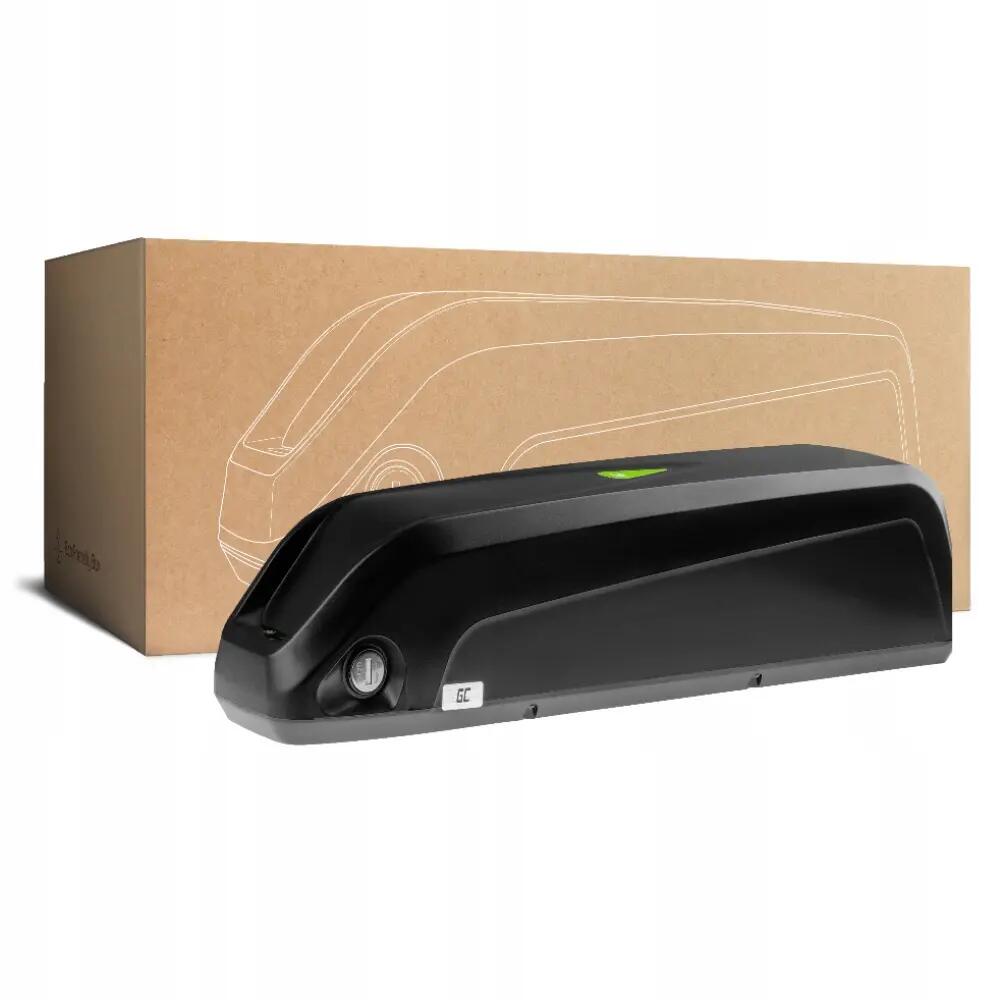

ELECTRIC KIT WITH CENTRAL MOTOR A complete 250W kit with a 14.5 Ah battery and charger that will allow you to quickly and easily convert your current bike into an e-bike. Technical data: Kit power: 250W Max speed: approx. 25 km/h Battery: 14.5 Ah Distance: 60-130 km Motor model: G340.250 Motor weight: 4 kg Mounting location: Centrally - bottom bracket axle Controller model: Integrated (in the motor) Sprocket: 38T, 46T, 44T, 48T and others (to choose from) Voltage: 36V Protocol: CANG 1-YEAR WARRANTY FOR THE KIT FROM THE MANUFACTURER Don't miss the promotion! Additional one-year warranty on the kit for only PLN 1! A total of 2 years of full warranty support! BIKE SERVICE AND CONVERSION THROUGHOUT POLAND. KIT: A central motor is the best solution for electric bikes because it allows you to maintain the bike's center of gravity. Using the motor in the bottom bracket increases pedaling cadence and allows for an efficient and direct transfer of power to the drivetrain. BATTERY: Dimensions: 36.7 x 9 x 9 cm. The included lithium-ion battery, assembled in Poland, has a capacity of 14.5 Ah, allowing you to travel from 60 to even 130 km on a single charge. Top-class Green Cell cells ensure exceptional performance, range, and durability. The sealed housing houses not only high-quality, long-lasting cells, but also an intelligent battery management system that constantly monitors the battery's operating parameters. It provides all the necessary safeguards for safe operation, including protection against deep discharge, overcharging, and overheating, and balances the voltage between cells, extending battery life. The built-in 30A BMS is a powerful source of energy for your bike's electric motor, ensuring maximum performance on even the steepest climbs. Unleash your e-bike's full potential! LCD (optional) Using the easy-to-use LCD display, you can make necessary settings, configure the assist and maximum speed, and, above all, constantly monitor the battery status. The intelligent system monitors your riding style and indicates the battery level proportional to the power used. TYPE 1 (EKD01) Side display with some enhanced functionality and Bluetooth functionality Number of PAS: 3/5/9 Screen size: 2.4″ USB port: Yes TYPE 2 (VD03) Minimalist side display with Bluetooth functionality Number of PAS: 3/5/9 Screen size: 1.5″ USB port: No THROTTLE You can use the power assistance in two ways – the first is to automatically start the motor while pedaling thanks to a motion sensor placed near the crank, and the second is the throttle, which also allows you to use the drive to its full extent. POSSIBILITY OF FITTING TO ANY BIKE TO CHOOSE FROM: FRONT SPROCKET TYPE - 32T, 36T, 38T (Will increase pedaling cadence and riding comfort in mountainous terrain) - 44T, 46T, 48T (They have an additional chain guard and are suitable for riding in the city, forest and other flat, mountainous areas) We normally use 44T. OPTIONS TO CHOOSE FROM: BRAKE LeverS They have contactors that activate the engine switch when pressed, which increases riding comfort and safety. BRAKE SENSOR The sensor is usually used when the original brake levers are integrated with the bike's gear shifters or in the case of hydraulic brakes. The electronic brake sensor is mounted on the brake lever. When braking, the lever handle moves, which is detected by the Hall sensor and disengages the motor in a fraction of a second. PLEASE INDICATE IN YOUR ORDER COMMENTS: 1. FRONT SPROCKET TYPE: 38T, 46T, 44T, 48T, etc.; 2. BRAKE TYPE: BRAKE LEVER OR BRAKE SENSOR; 3 LCD TYPE: 1, 2. INCLUDED: Bafang 36V 250W motor; 36V 14.5Ah battery with charger and keys; Wiring with LCD display and throttle; Brake levers with cut-off current or brake sensors; Sprocket; Cranks; Light; User's manual and warranty card. Warranty and Service: The comprehensive warranty and service for Ultimate Action batteries is 1 year. We operate throughout Poland. Bicycle Conversion: We offer additional electric bike conversion and service services throughout Poland. USER'S MANUAL AND WARRANTY CARD: The set includes an instruction manual, which contains the main information on the proper use, operation, and installation of the Bafang electric kit, display, and additional parts.
