Product Description

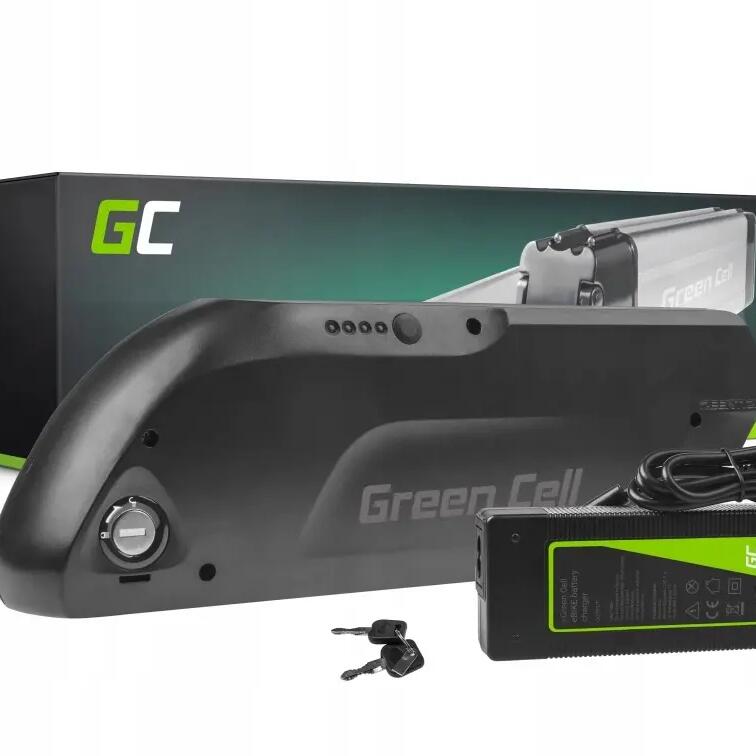

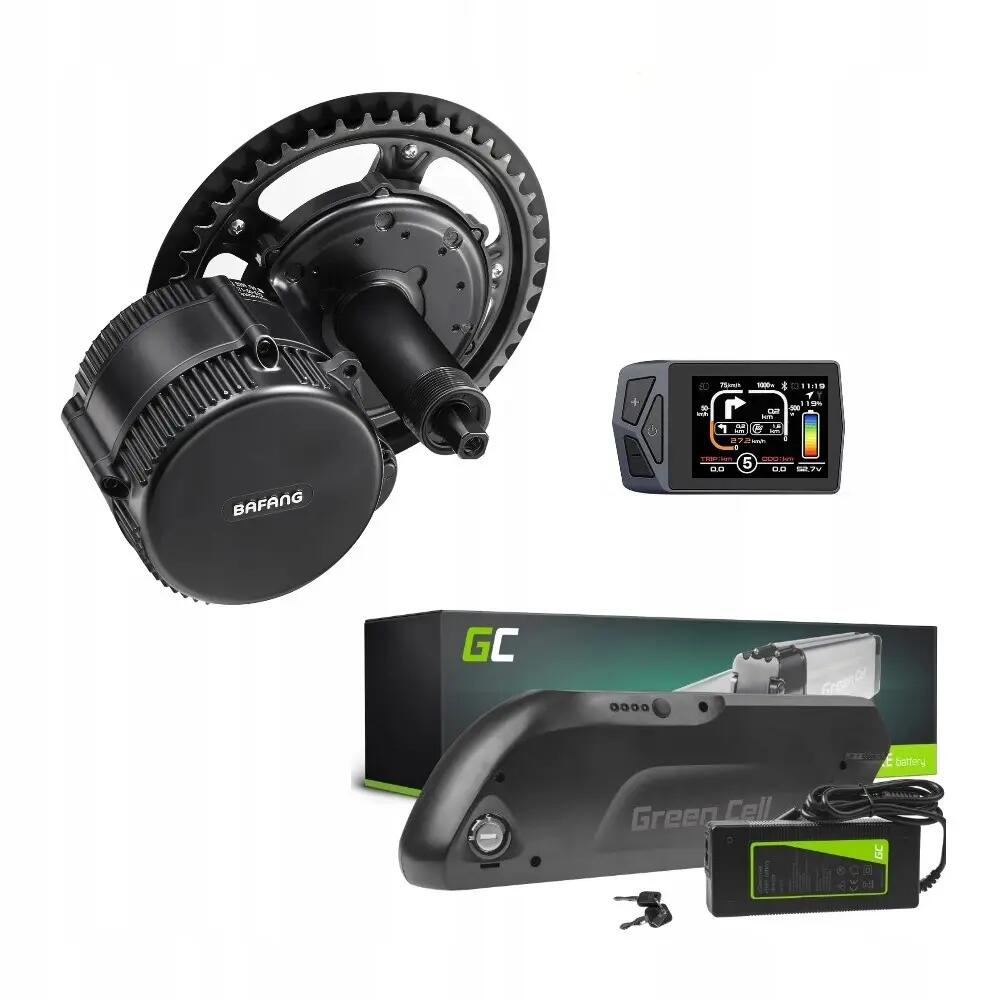

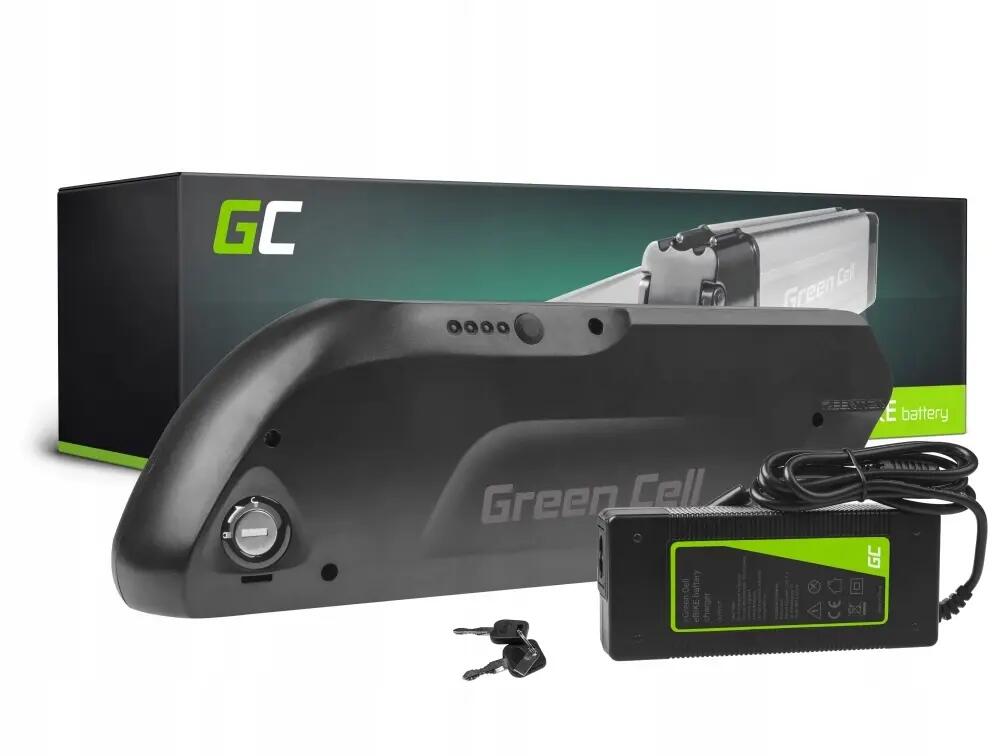

ELECTRIC KIT WITH CENTRAL MOTOR A complete 500W kit with a 15.6 Ah battery and charger that will allow you to quickly and easily convert your current bike into an e-bike. Technical data: Kit power: 500W Max speed: approx. 35 km/h Battery: 15.6 Ah Distance: 55-120 km Motor model: G340.500 Motor weight: 4 kg Mounting location: Centrally - bottom bracket axle Controller model: Integrated (in the motor) Sprocket: 38T, 46T, 44T, 48T and others (on request) selection) Voltage: 36V Protocol: CANG 1-YEAR MANUFACTURER'S WARRANTY FOR THE KIT Don't miss the promotion! Additional one-year warranty on the kit for only PLN 1! A total of 2 years of full warranty support! BICYCLE SERVICE AND CONVERSION THROUGHOUT POLAND KIT A central motor is the best solution in electric bikes because it allows you to maintain the bike's center of gravity. Using the motor in the bottom bracket increases pedaling cadence and allows for an effective and direct transfer of force to the drive. BATTERY Dimensions 37.7 x 7.8 x 13.2 cm The lithium-ion battery included in the kit with a capacity of 15.6 Ah allows you to cover from 55 to even 120 km on a single charge. Top-quality Green Cell cells ensure exceptional performance, range, and durability. The battery is equipped with a USB port, allowing you to charge your smartphone or other devices. LCD (optional) - Using the easy-to-use LCD display, you can make necessary settings, configure the assist and top speed, and, above all, constantly monitor the battery status. The intelligent system monitors your riding style and indicates the battery level proportionally to the power used. TYPE 1 (EKD01)Side display with some increased functionality and Bluetooth functionNumber of PAS: 3/5/9Screen size: 2.4″USB port: Yes TYPE 2 (VD03)Minimalist side display with Bluetooth functionNumber of PAS: 3/5/9Screen size: 1.5″USB port: No THROTTLE You can use the assistance in two ways - the first is the automatic start of the engine while pedaling thanks to the motion sensor placed at the crank, and the second is the throttle grip, which also allows you to use the drive to the full extent. POSSIBILITY OF FITTING TO ANY BIKE TO CHOOSE FROM: FRONT SPROCKET TYPE - 32T, 36T, 38T (Will increase pedaling cadence and riding comfort in mountainous terrain) - 44T, 46T, 48T (They have an additional chain guard and are suitable for riding in the city, forest and other flat, mountainous areas) We normally use 44T. OPTIONS TO CHOOSE FROM: BRAKE LeverS They have contactors that activate the engine switch when pressed, which increases riding comfort and safety. BRAKE SENSOR The sensor is usually used when the original brake levers are integrated with the bike's gear shifters or in the case of hydraulic brakes. The electronic brake sensor is mounted on the brake lever. When braking, the lever handle moves, which is detected by the Hall sensor and disengages the motor in a fraction of a second. PLEASE SHOW IN YOUR ORDER COMMENTS: 1. FRONT SPROCKET TYPE: 38T, 46T, 44T, 48T, etc.; 2. BRAKE TYPE: BRAKE LEVER OR BRAKE SENSOR; 3 LCD TYPE: 1, 2. INCLUDED: Bafang 36V 500W motor; 36V 15.6Ah battery with charger and keys; Wiring with LCD display and throttle; Brake levers with cut-off current or braking sensors; Sprocket; Cranks; Light; User's manual and warranty card. Warranty and Service: The comprehensive warranty and service for Ultimate Action batteries is 1 year. We operate throughout Poland. Bicycle Conversion: We offer additional electric bike conversion and service services throughout Poland. USER'S MANUAL AND WARRANTY CARD: The set includes an instruction manual, which contains the main information on the proper use, operation, and installation of the Bafang electric kit, display, and additional parts.
