Product Description

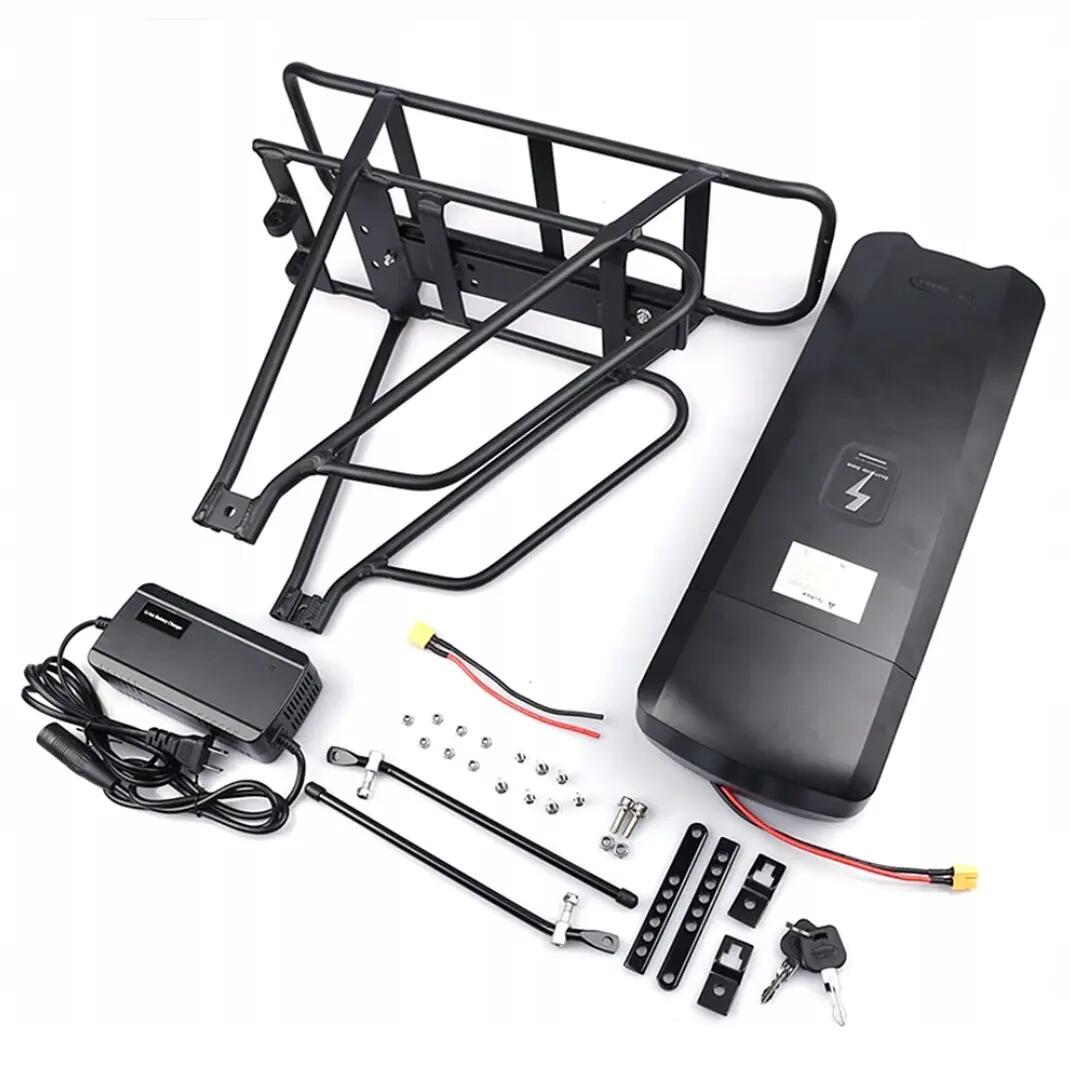

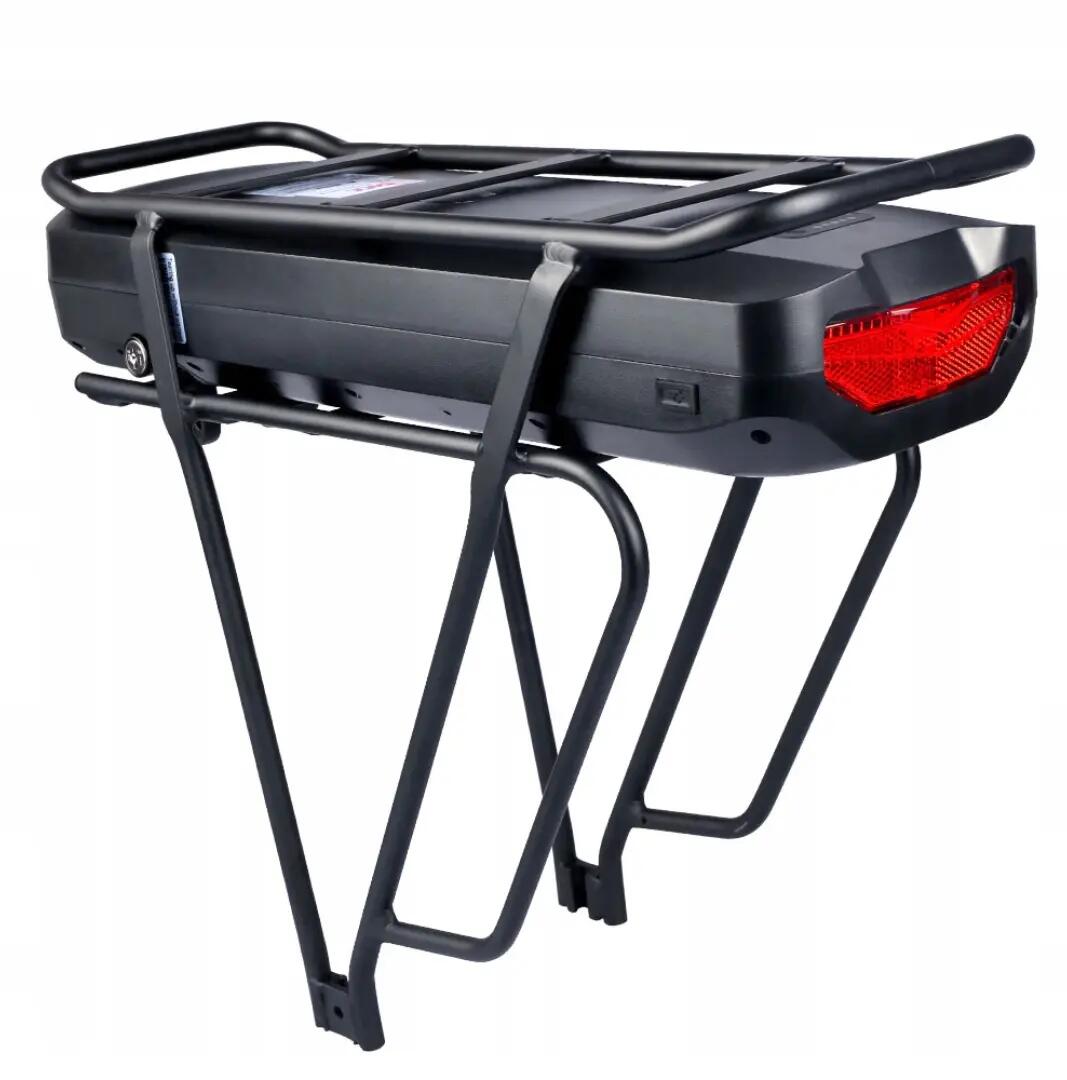

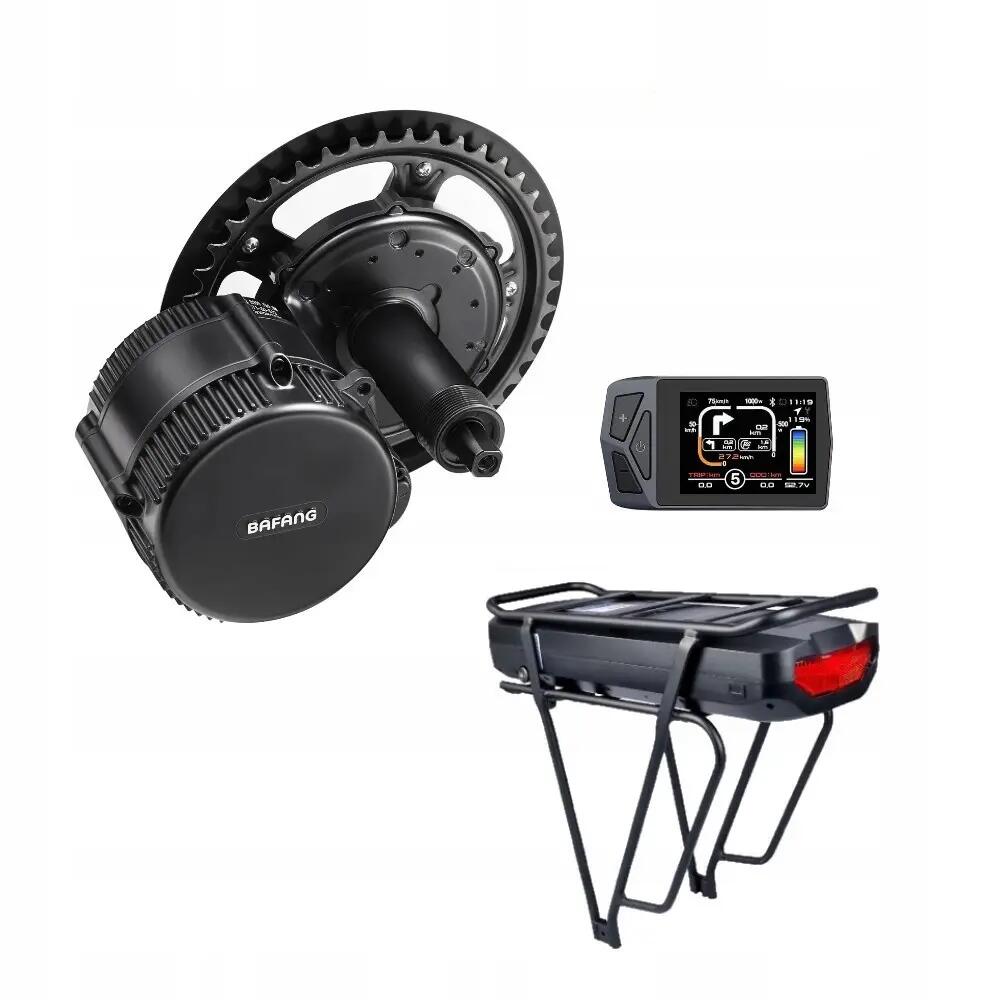

ELECTRIC KIT WITH CENTRAL MOTOR A complete 500W kit with a 17.5 Ah battery and charger that will allow you to quickly and easily convert your current bike into an e-bike. Technical data: Kit power: 500W Max. speed: approx. 40 km/h Battery: 17.5 Ah Distance: 65-105 km Motor model: MM G340.500 Motor weight: 4 kg Mounting location: Centrally - bottom bracket axle Controller model: Integrated (in the motor) Sprocket: 32T, 36T, 44T, 48T and others (to choose from) Voltage: 48V Protocol: CAN 1-YEAR MANUFACTURER'S WARRANTY FOR THE KIT Don't miss the promotion! An additional one-year warranty on the kit for only PLN 1! A total of 2 years of full warranty support! BIKE SERVICE AND CONVERSION ACROSS POLAND. A central motor is the best solution for electric bikes because it allows you to maintain the bike's center of gravity. Using the motor in the bottom bracket increases pedaling cadence and allows for an efficient and direct transfer of power to the drivetrain. BATTERY: Dimensions: 47.6 x 16.2 x 8.9 cm. The included lithium-ion battery with a capacity of 17.5 Ah allows you to travel from 65 to 105 km on a single charge. The battery is housed in a special container that not only protects it from external factors or accidental damage, but also allows for quick installation on the bike. The battery also features a USB port, which you can use to charge your smartphone or other devices. LCD (optional) Using the easy-to-use LCD display, you can make necessary settings, configure assistance and maximum speed, and, above all, constantly monitor your battery status. The intelligent system monitors your riding style and indicates the battery level proportional to the power used. TYPE 1 (EKD01) Side display with enhanced functionality and Bluetooth functionality Number of PAS: 3/5/9 Screen size: 2.4″ USB port: Yes TYPE 2 (VD03) Minimalist side display with Bluetooth functionality Number of PAS: 3/5/9 Screen size: 1.5″ USB port: No THROTTLE GRIP You can use the assist in two ways – the first is to automatically start the motor while pedaling thanks to a motion sensor placed near the crank, and the second is to use the throttle grip, which also allows you to use the drive to its full extent. CERTIFIED PRODUCT CAN BE FITTED TO ANY BIKE. CHOICE OF: FRONT SPROCKET TYPE - 32T, 36T, 38T (Will increase pedaling cadence and ride comfort in mountainous terrain) - 44T, 48T (They have an additional chain guard and are suitable for riding in the city, forest, and other flat, mountainous areas). We typically use 44T. CHOICE OF: BRAKE LeverS They have contactors that activate the engine switch when pressed, which increases riding comfort and safety. BRAKE SENSOR The sensor is usually used when the original brake levers are integrated with the bike's gear shifters or in the case of hydraulic brakes. The electronic brake sensor is mounted on the brake lever. When braking, the lever handle moves, which is detected by the Hall sensor and disengages the motor in a fraction of a second. PLEASE INDICATE IN YOUR ORDER COMMENTS: 1. FRONT SPROCKET TYPE: 32T, 36T, 44T, 48T, etc.; 2. BRAKE TYPE: BRAKE LEVER OR BRAKE SENSOR; 3 LCD TYPE: 1, 2. INCLUDED: Bafang 48V 500W motor; 48V 17.5Ah battery; Wiring with LCD display and throttle; Brake levers with cut-off current or brake sensors; Sprocket; Cranks; Light; User's manual and warranty card. Warranty and Service: The comprehensive warranty and service for Ultimate Action batteries is 1 year. We operate throughout Poland. Bicycle Conversion: We offer additional services for electric bike conversion and service throughout Poland. USER'S MANUAL AND WARRANTY CARD: The set includes an instruction manual, which contains the main information on the proper use, operation, and installation of the Bafang electric kit, display, and additional parts.
