Frame
6061 T6 aluminium frame—lightweight, dynamic and sturdy.

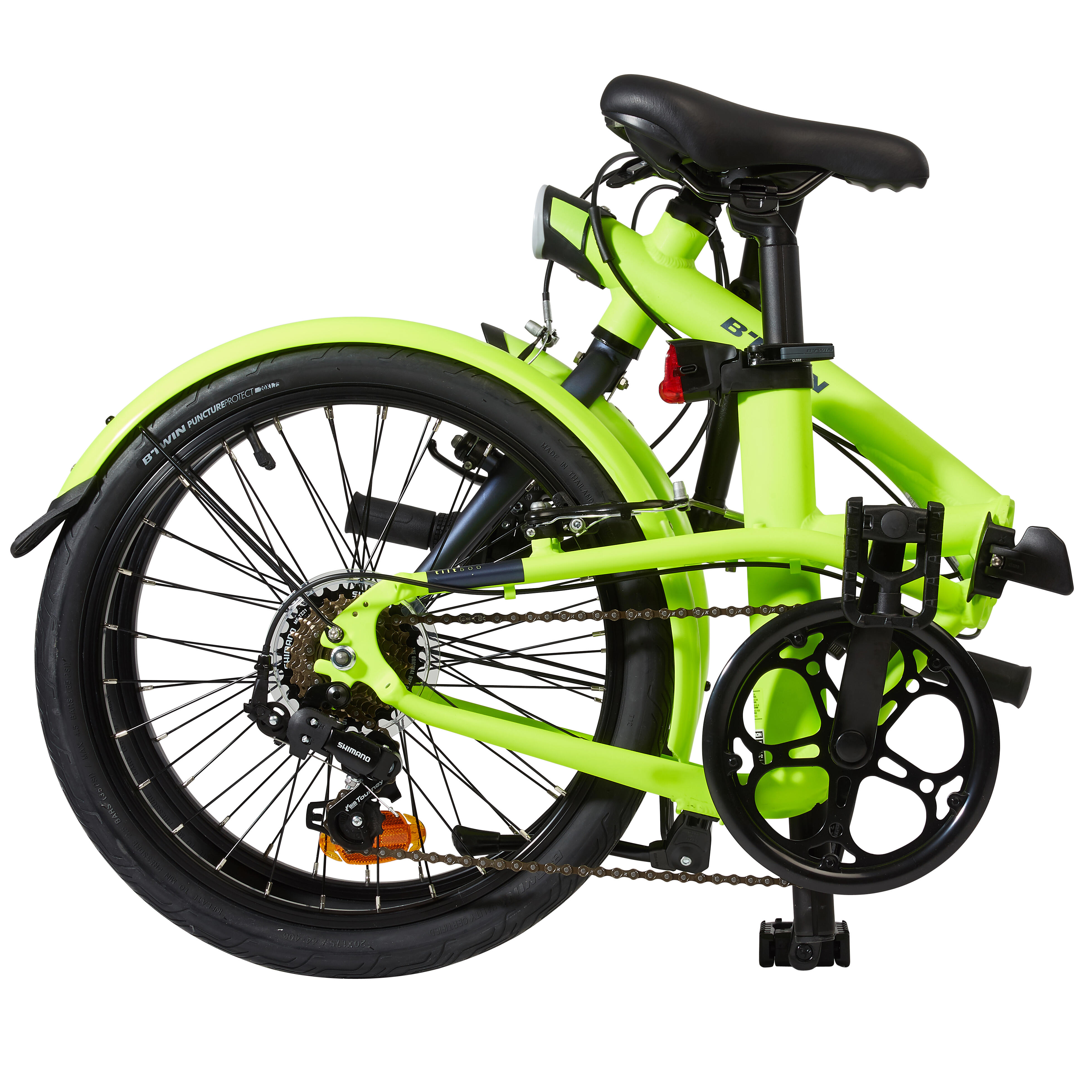

The very easy side-fold system with a lever helps to save up space: at home, at the office, in the boot of a car or in a camper... you'll forget your bike is even there. There is a mechanism to quickly lock the frame and stem so that you can keep the bike folded and transport it easily.
In order to improve your bike's stability once folded, the frame is equipped with a bike stand under its base.
Fork
Hi-ten steel fork for greater durability.
Drivetrain
Thanks to the Shimano 7-speed derailleur, the Tilt 500 can easily cope with any gradient and lets you adapt your effort throughout your ride (pushing off at traffic lights or accelerating in a straight line, for example)
The Shimano Revo-Shift shifter is ergonomic and precise. Distance travelled per turn of the crank: - smallest development: 2.96m per turn of the pedals, 28 teeth
- largest development: 5.90 m for every pedal turn, 14 teeth
Brakes
Steel V-brake and callipers guarantee effective and progressive braking.
Handlebar / stem / steering
Semi-raised aluminium handlebars with a 60 mm rise for adjusting the steering position to suit your body shape and improve handling.
Handlebar width: 560mm.
Fixed aluminium stem with quick-release lock for greater stiffness compared to a height-adjustable stem.
Distance from saddle to handlebar: 540 mm. Bottom bracket to saddle distance: 480 mm to 780 mm
Saddle/Seat post
Comfortable, seamless foam saddle to stop water getting in.
Anti-theft, anti-rotation aluminium seat post 31.6mm in diameter.
Wheels
20-inch, single-walled aluminium rims.
Tires
Tyres with anti-puncture reinforcement.
Size 20 x 1.75.
We've developed these tyres using Skinwall technology for lower weight and higher performance.
To minimise the risk of punctures and increase your bike's performance, inflate your tyres to between 3.5 and 4.5 bar.
Crankset
The fold-up pedals reduce bulk when the bike is folded.
Once pedals are folded up and the stem folded down, the bike can be stored against a wall and takes up very little space (26 cm wide).
Steel cranks: 170mm.
Accessories / equipment
Equipped with a stand, a mudguard with stays, and a double chainguard to prevent chain slipping and protect from dirt.
Front and rear battery-powered lights.Rear lighting screwed on to avoid risk of theft.
Compatibility
Bike compatible with:
- TILT transportation cover
- B'TWIN folding bike pannier rack
- Hamax and Bike Original brand kids bike trailers
The TILT 500 is incompatible with a baby carrier.
