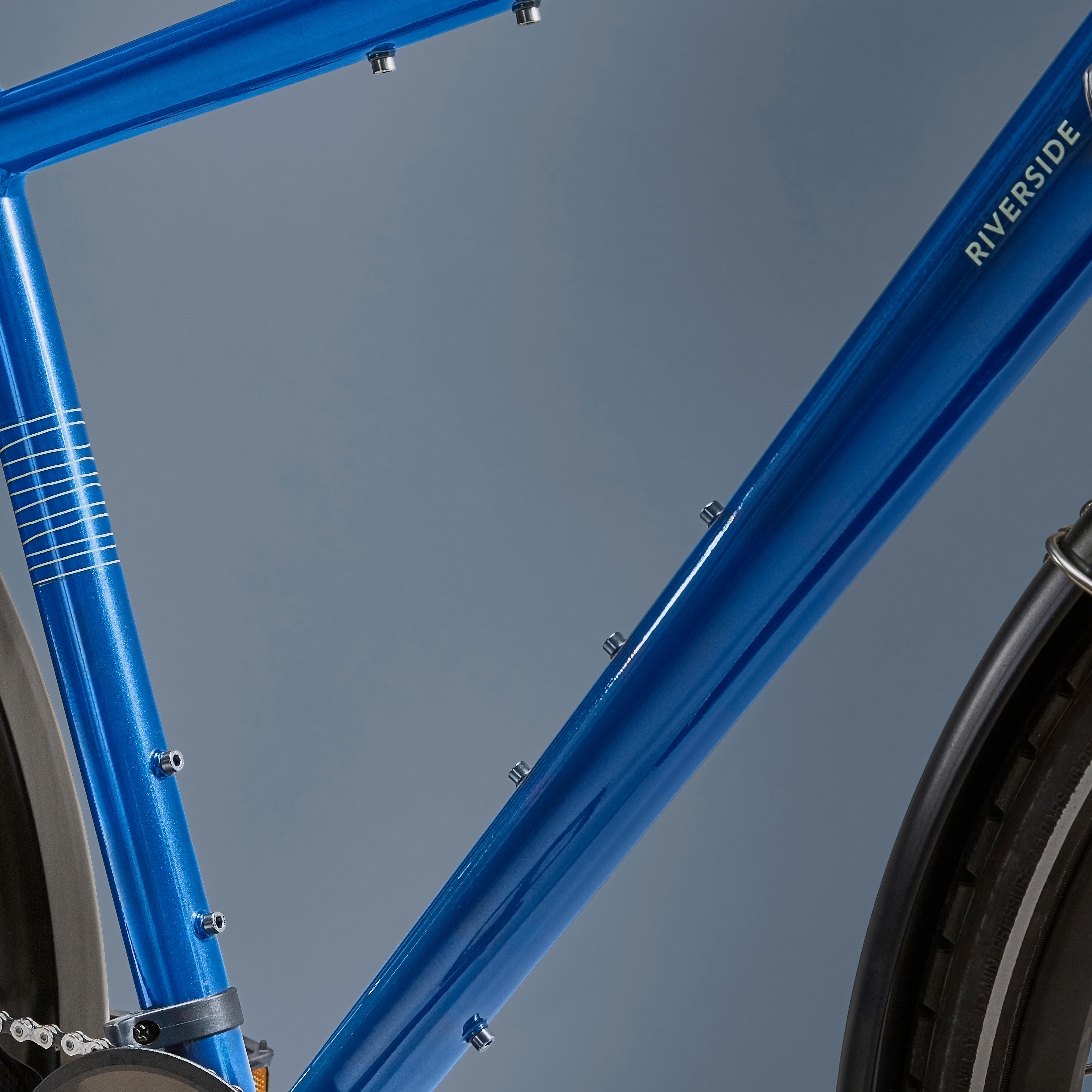

A sturdy, comfortable frame

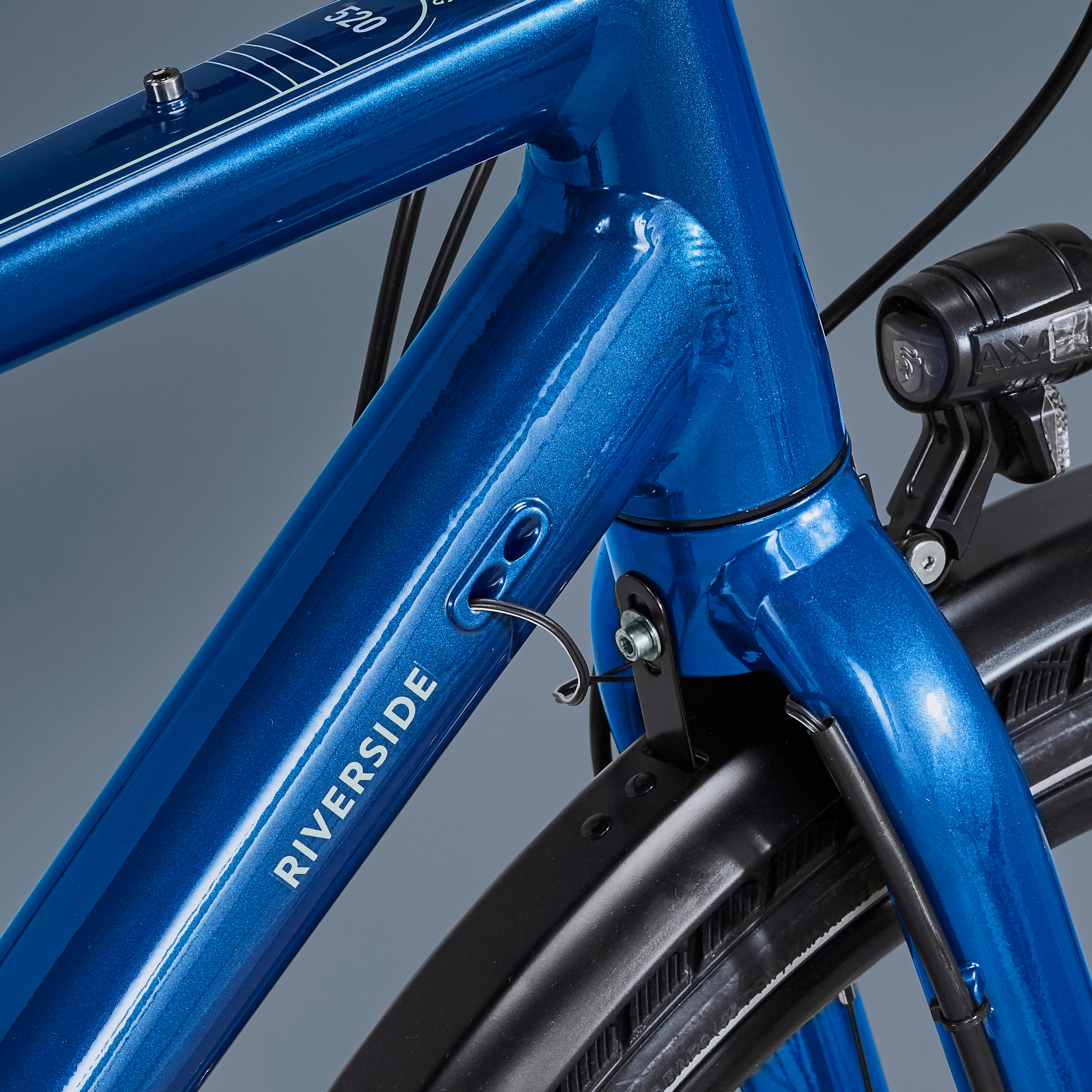

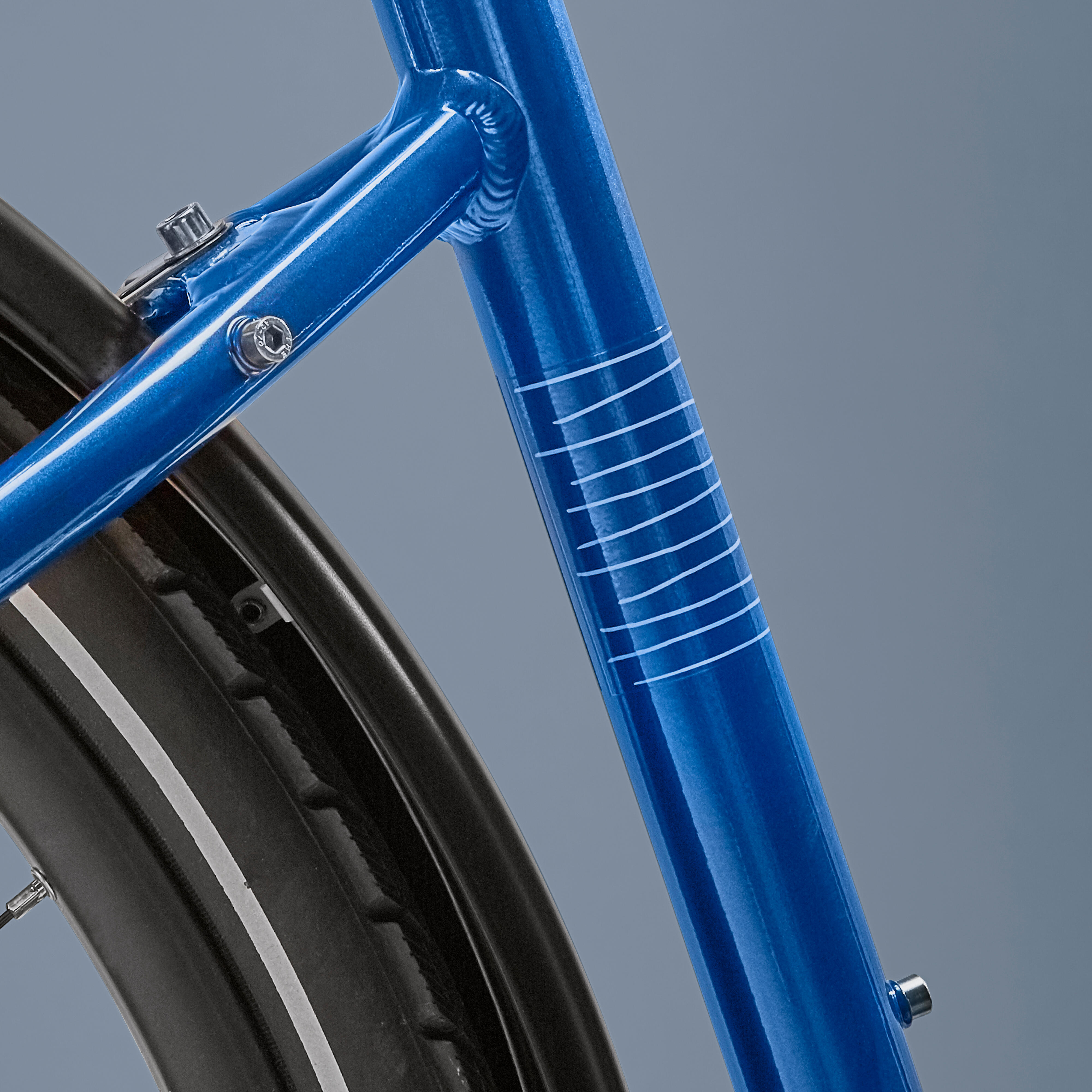

We have designed this triple-butted aluminium frame for maximum durability, sturdiness and comfort. More than 500,000 km of testing under its belt on all continents and in all weather conditions. Internal cable routing. 33 mounts on the frame and fork to attach all your accessories and pannier racks. Compatible with all pannier racks. Removable rear derailleur hanger.
Trailer compatible using a specific and suitable thru axle (ref. 8618363)
Pannier rack
We have developed a uniquely robust rear pannier rack to carry your belongings. Six bolts attach it to the rear stays, allowing you to carry up to 40 kg of baggage or a child seat. This unique design choice also avoids the problem commonly encountered by bikepackers of the screws shearing.

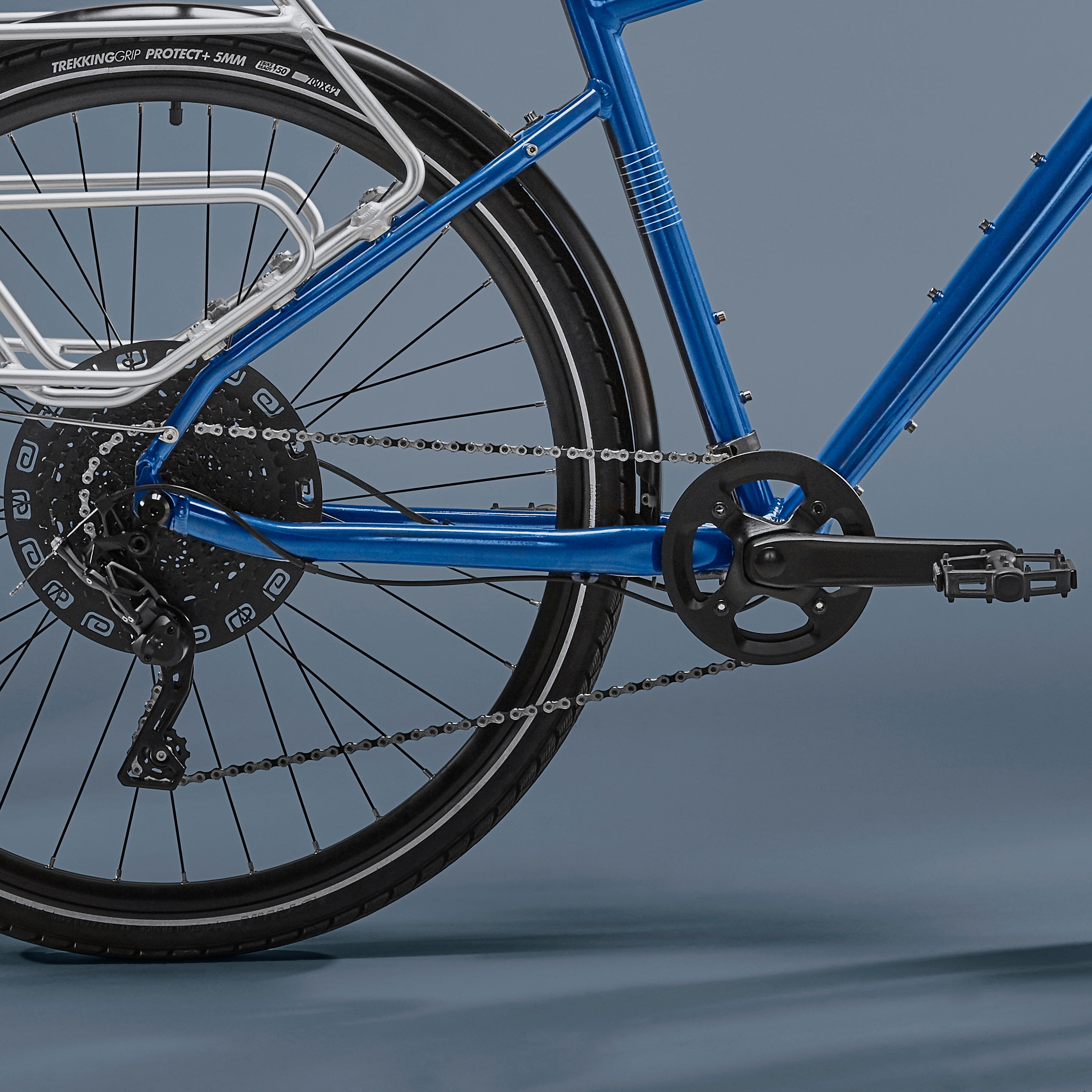

Drivetrain
Riverside 36T single chainring
Microshift 11-speed (11-46) cassette
Crank length: 170 mm
Microshift RD-M665M derailleur
Chain: 11S KMC X11-1
Riverside toe clip compatible pedals

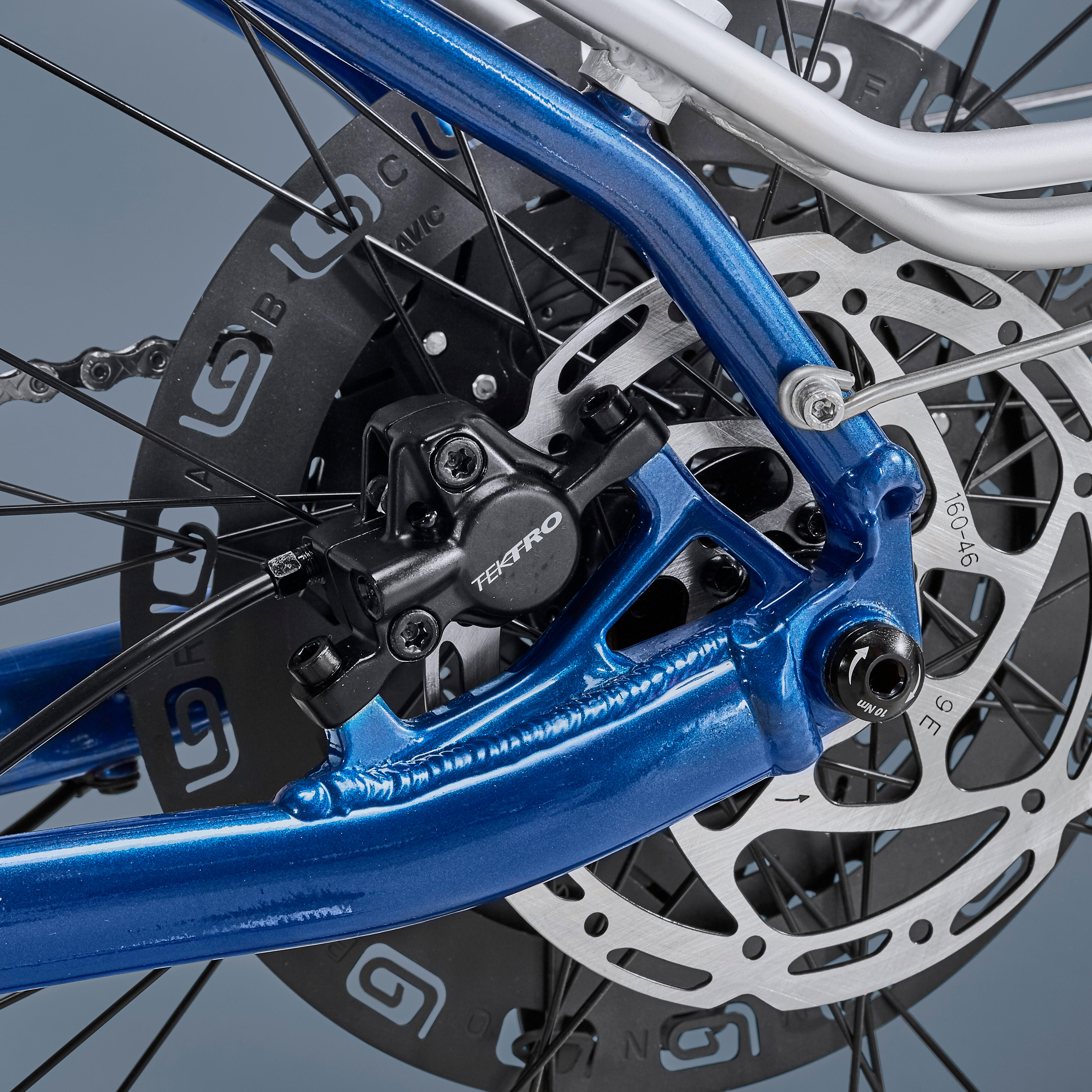

Hydraulic disc brakes
Safely ride over any terrain (dry/wet) thanks to the powerful, comfortable B'Twin by Tektro T275 hydraulic disc brakes
Aluminium brake levers
Handlebars, steering, stem: maintain control
We have opted for a 620-mm-wide flat handlebar for sizes S and M, and 660 mm for sizes L and XL.
Ergonomic grips with integrated bar ends. Stem: Size S: 60 mm / Size M: 80 mm / Size L: 100 mm / Size XL: 110 mm

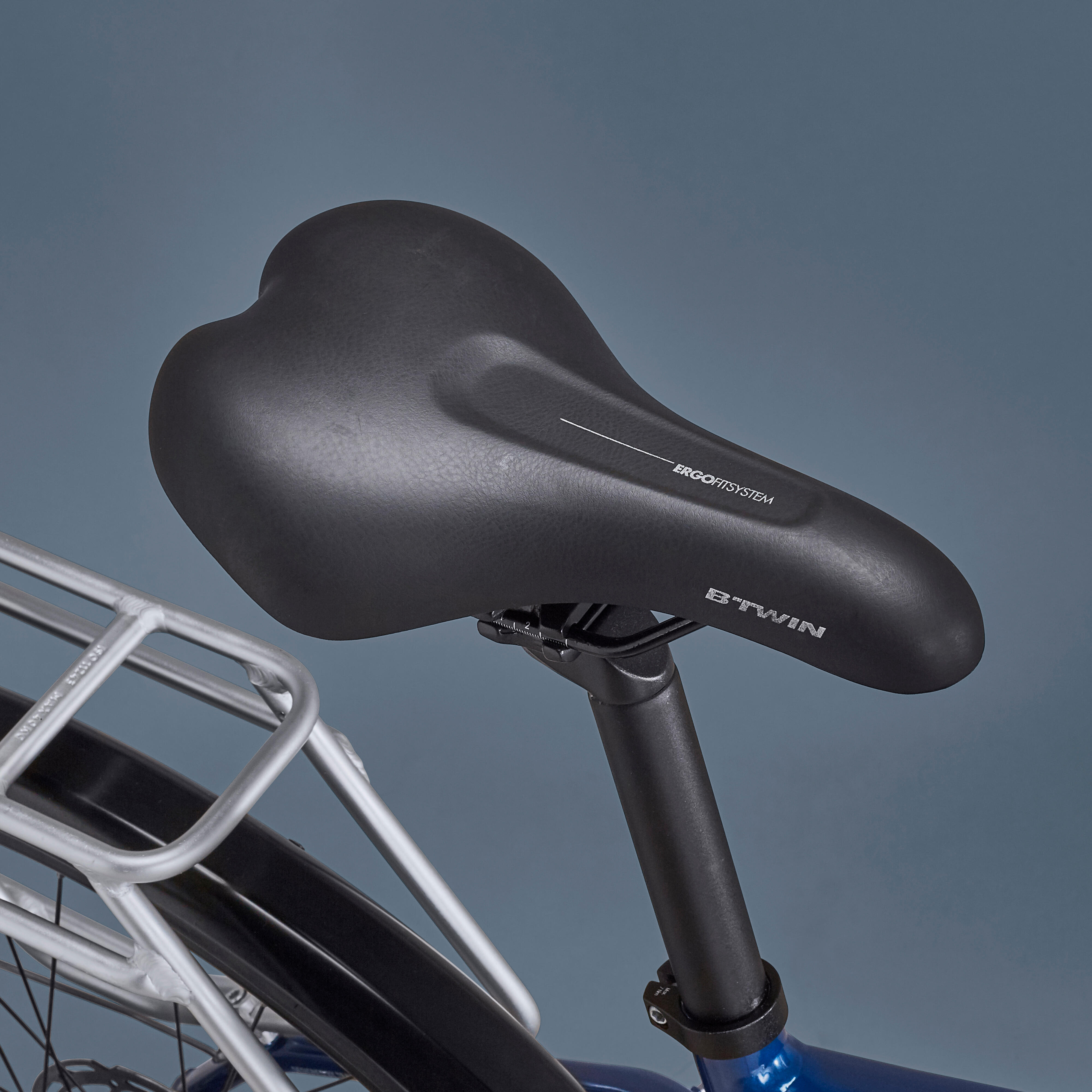

Saddle: be comfortable
Because it's important that your seat position is suitable for touring, we have chosen an ergonomic saddle.
Aluminium seat post with markings for easy adjustment.
Seat post diameter: 31.6 mm
Seat post dimensions: S, M, L: 350mm; XL: 400 mm.

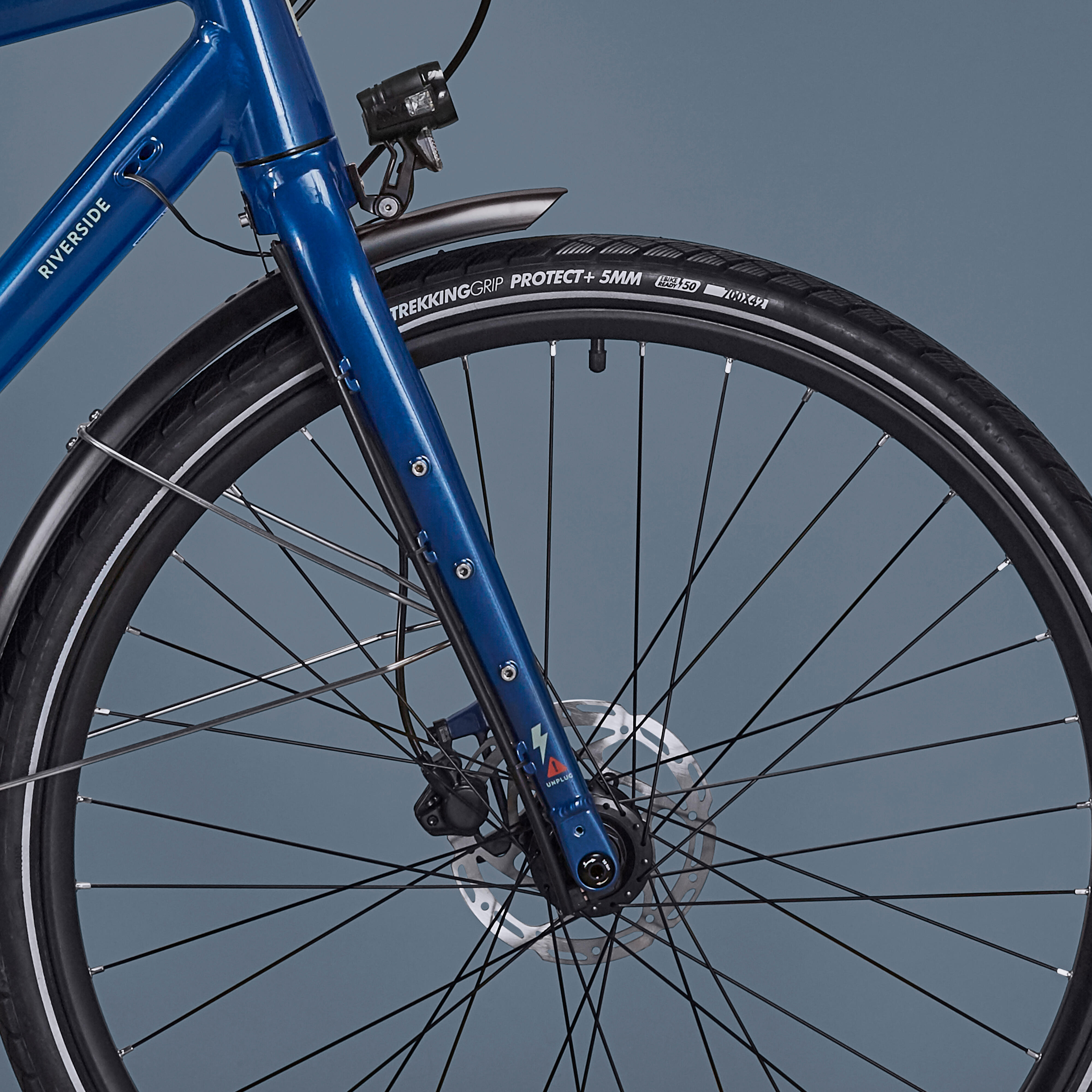

Wheels and tyres
We have chosen B'Twin Trekking 9 Grip Protect+ tyres.
Dimensions: 28 x 1.75 (42-622). They offer excellent puncture resistance thanks to their 5 mm liners.
Riverside Touring double-walled, 36 spoke, 19c rims.
100/142 x 12 mm thru axle. Fastens with an Allen key.
Deore XT dynamo hubs to power the lighting
To use a trailer, you will need to purchase an adapter (ref. 8618363)
Travel components
Riverside Touring mudguard with aluminium stays.
Shimano Deore XT dynamo hub: 6V - 0.5A, 3W
Front light: Axa 30 Lux.
Rear light: Axa Blueline with a steady light function for 4 minutes of light when stationary

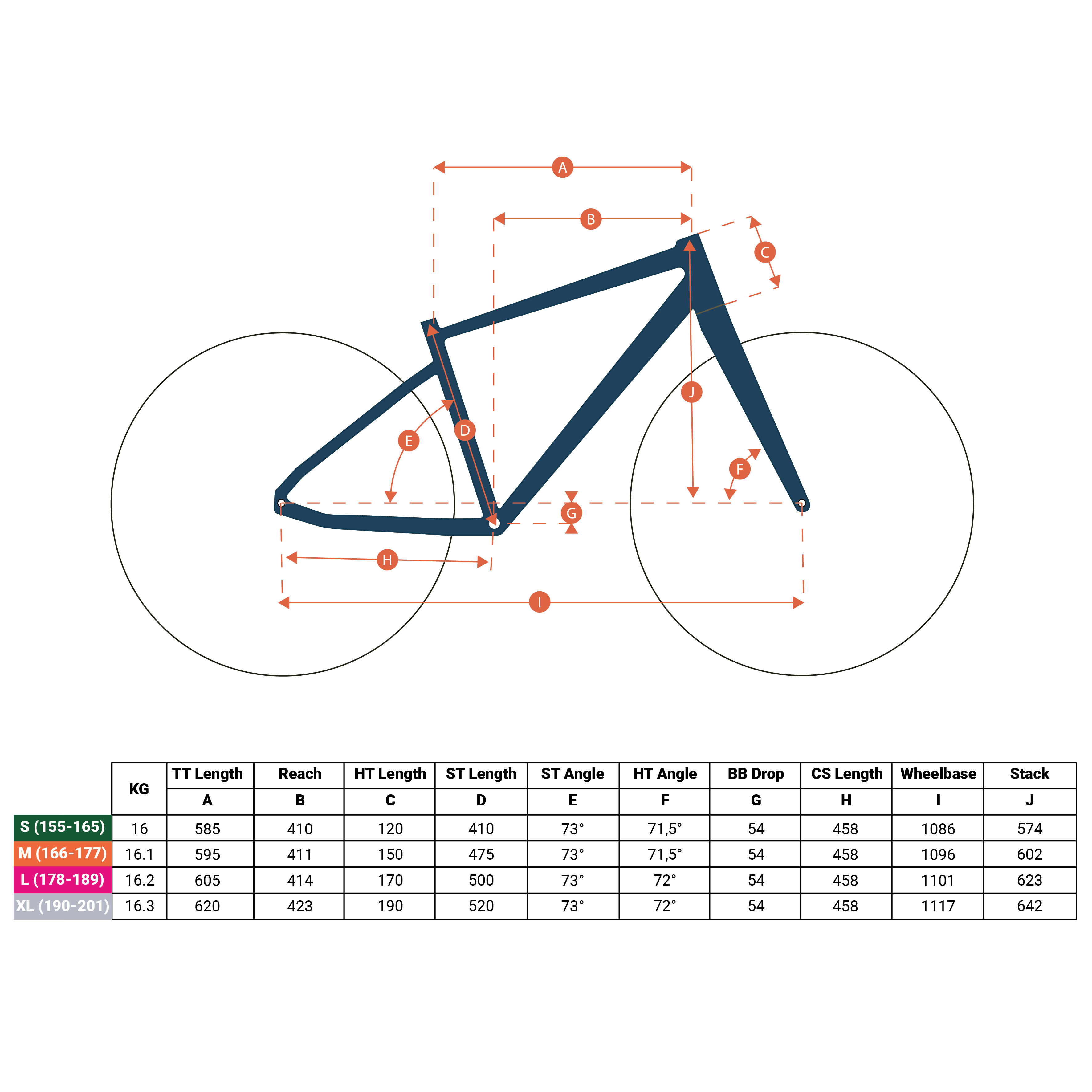

Choosing the right touring bike size
4 sizes available: Size S from 1.55 m to 1.65 m
Size M from 1.66 m to 1.77 m
Size L from 1.78 m to 1.89 m
Size XL from 1.90 m to 2.01 m.
Bike weight (assembled)
16 kg
Trailer compatibility
If you wish to attach a trailer to your bike, you will need to purchase a trailer attachment adapter for 12x172 thru axle
The adapter reference number is 8618363
