DETACHABLE E BLOCK SYSTEM
The genuine innovation of this rod!!!
-A fastening system directly built into the rod to attach the elastic rig more easily.
-The aluminium material is strong and robust.
-The fastener can be used to attach 2 5 mm elastic loops.

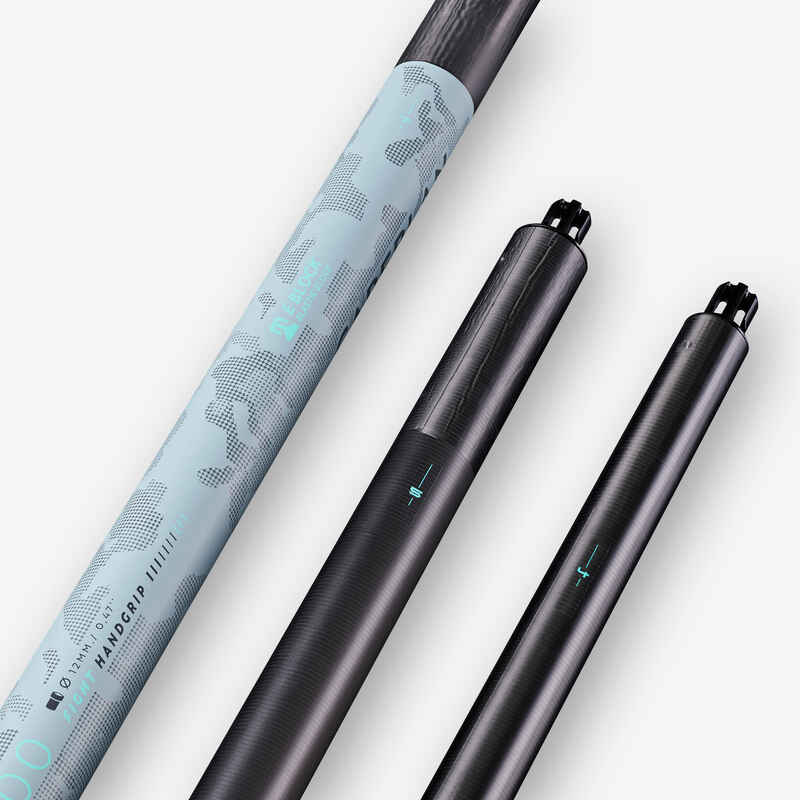

-To offer a wider scope of use for this rod, we chose to position 2 detachable E BLOCKS on sections N°4 and N°5. The idea consists of using the length of elastic that meets the needs
TECHNICAL FEATURES
Actual length: 10 m (ready to fish)
Weight: 1,530 g (of which, 499 g for the butt and 278 g for section 6)

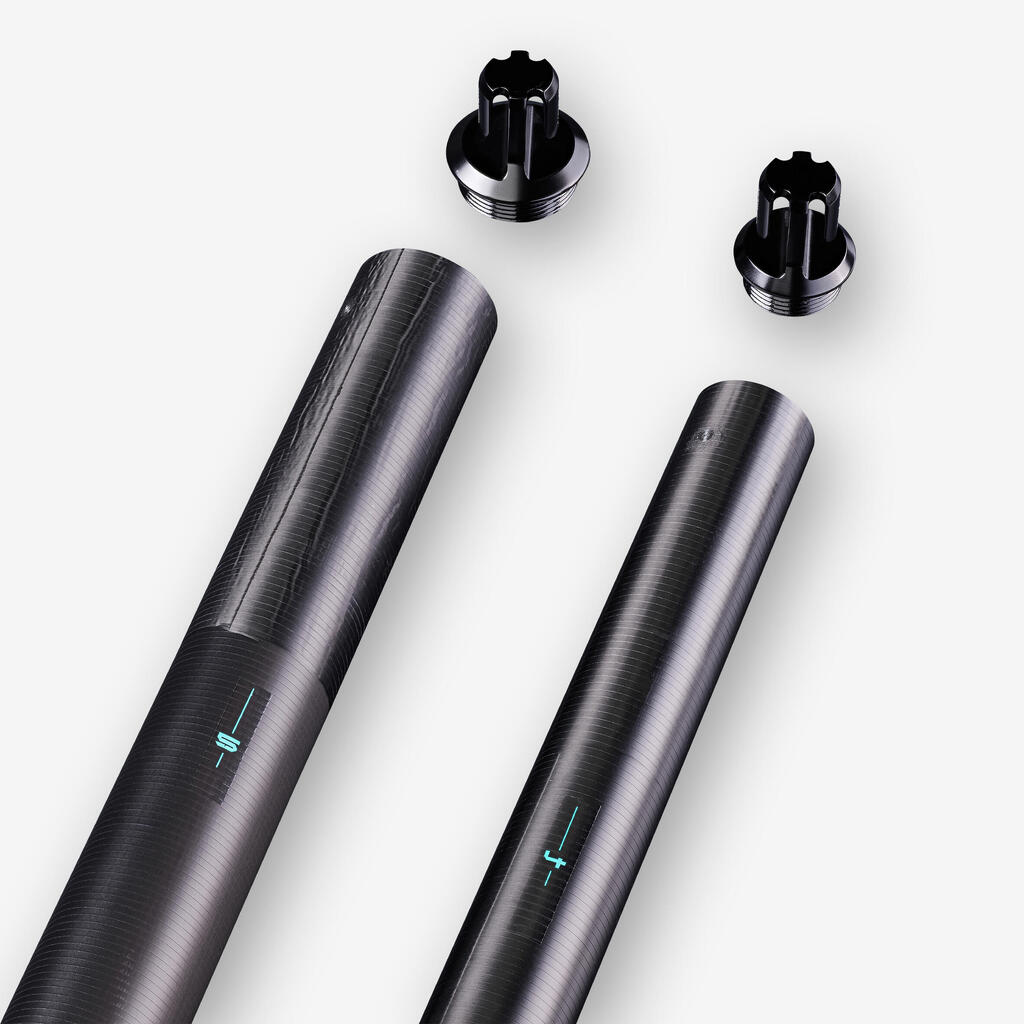

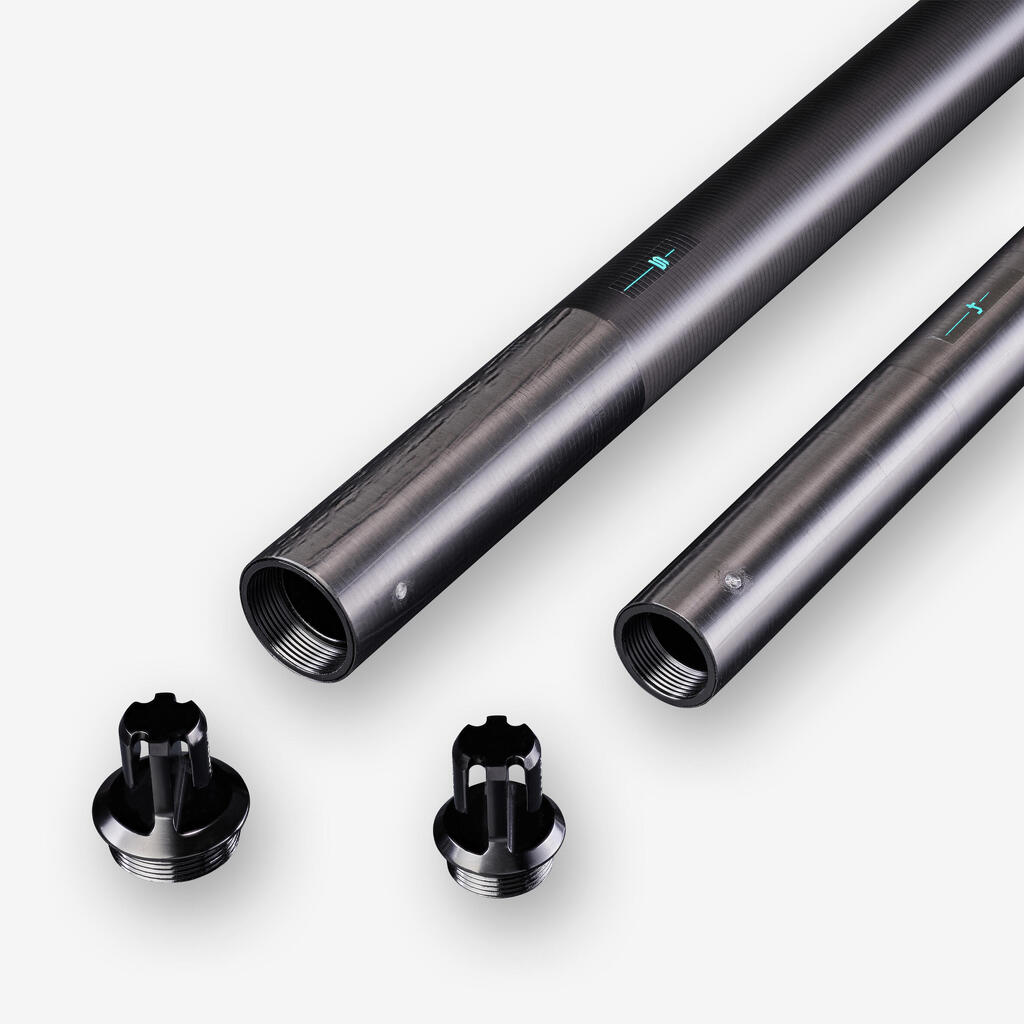

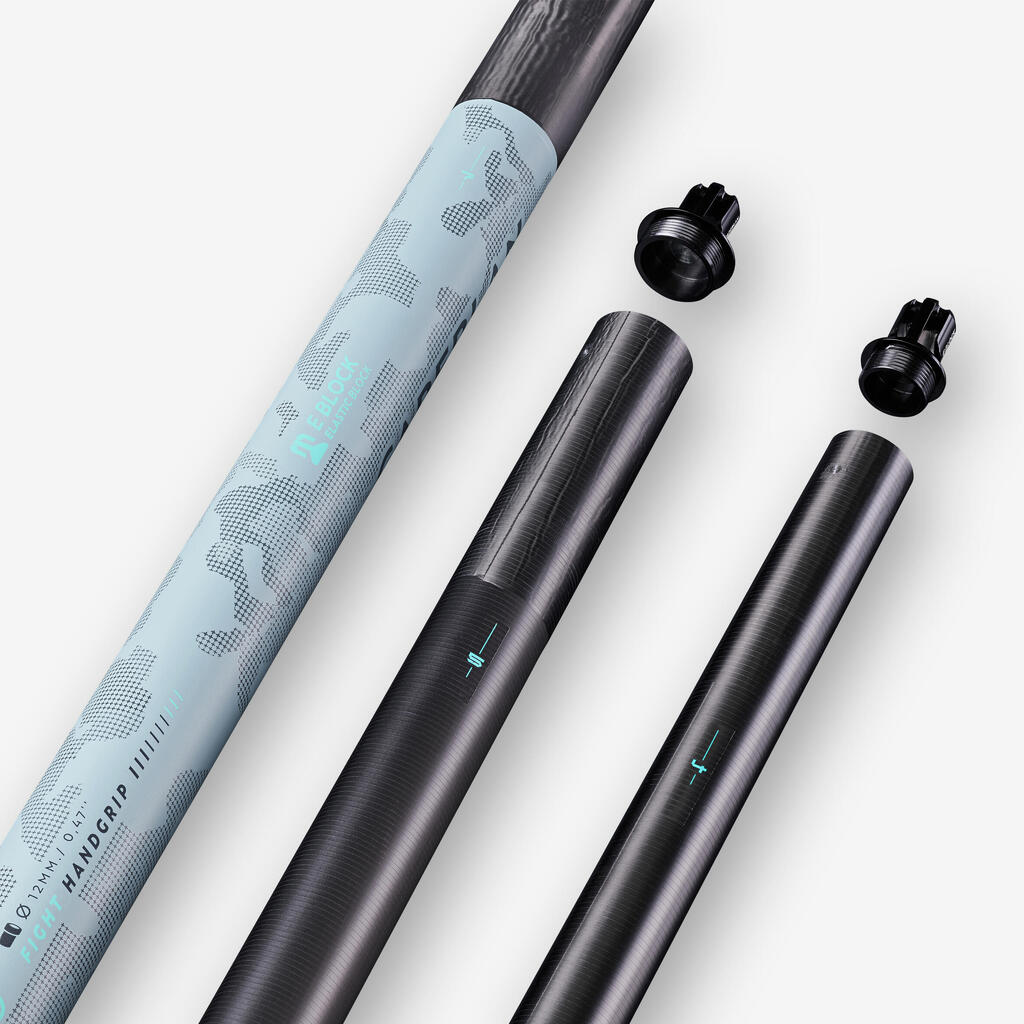

Detachable aluminium E BLOCK system on sections N°4 and 5 to adjust the length of the elastic.
External butt diameter: 47 mm
Internal tip diameter: 14.25 mm
External tip diameter: 15 mm

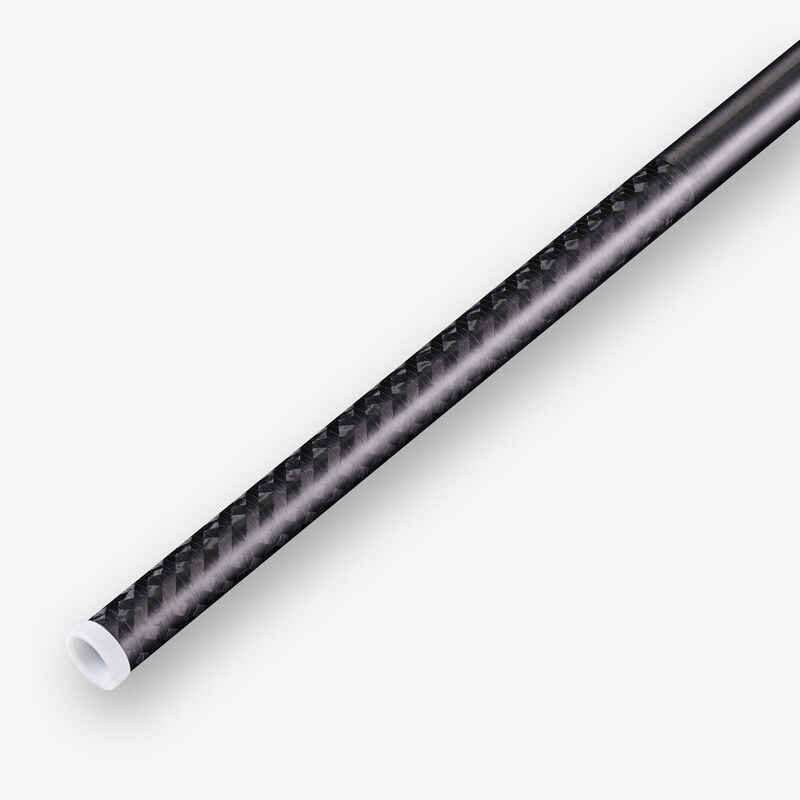

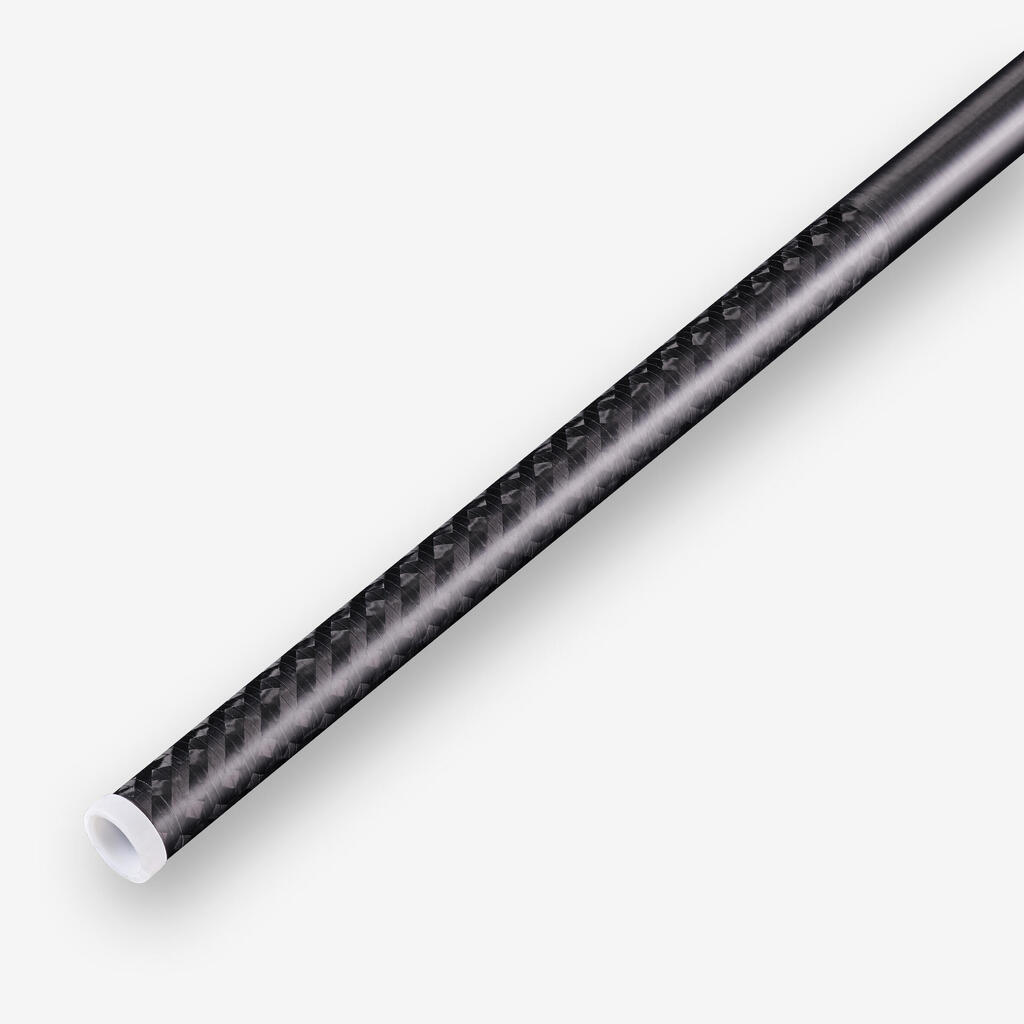

Internal diameter of PTFE bush: 12 mm
Tip length: 1.30 m
Transport length: 1.72 m

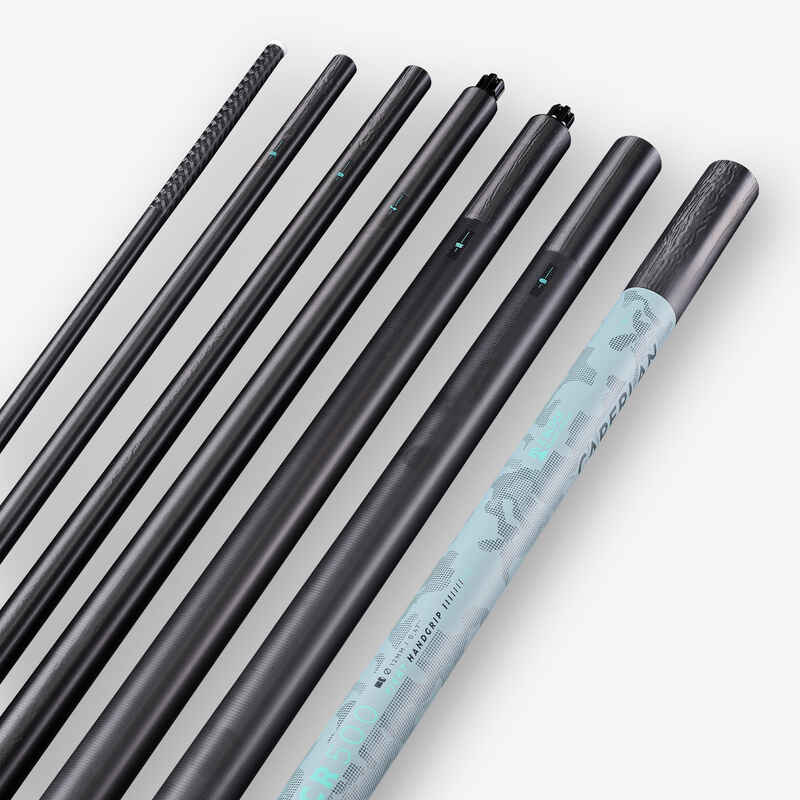

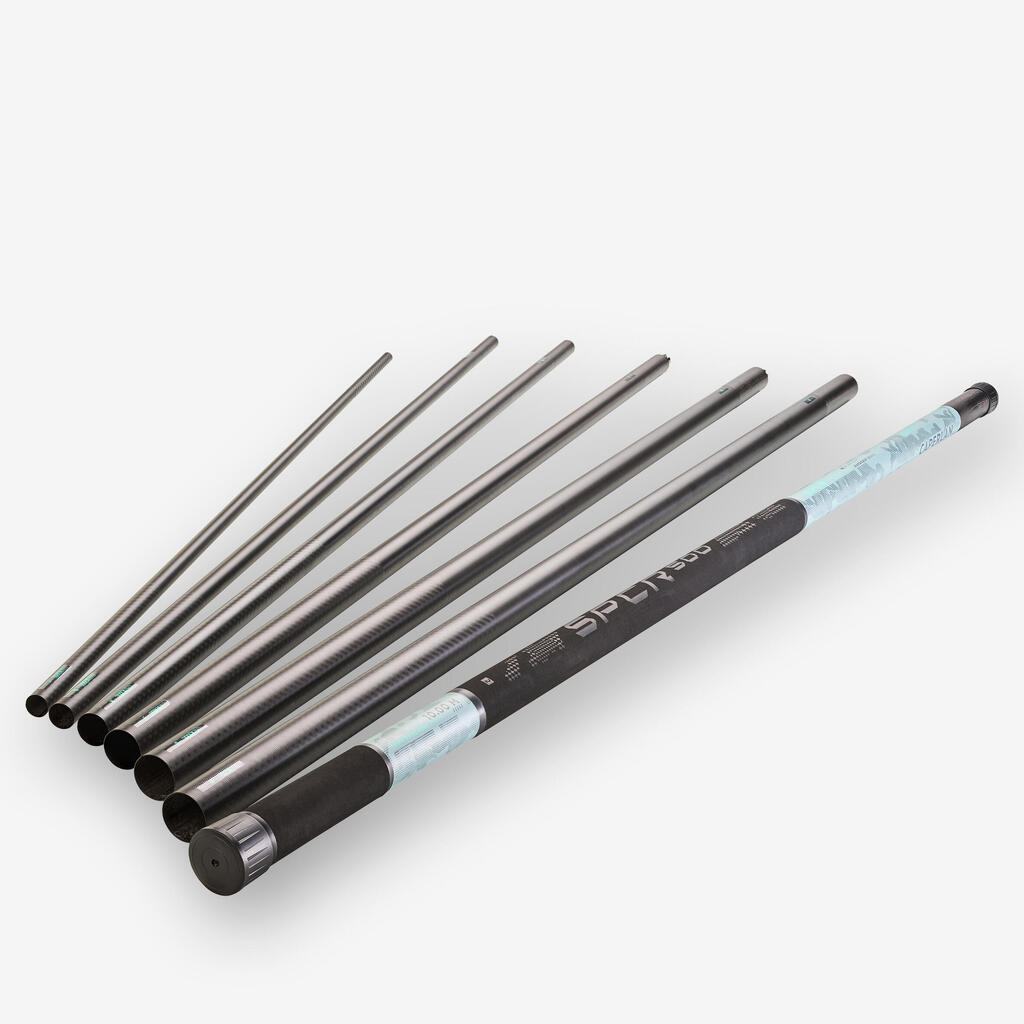

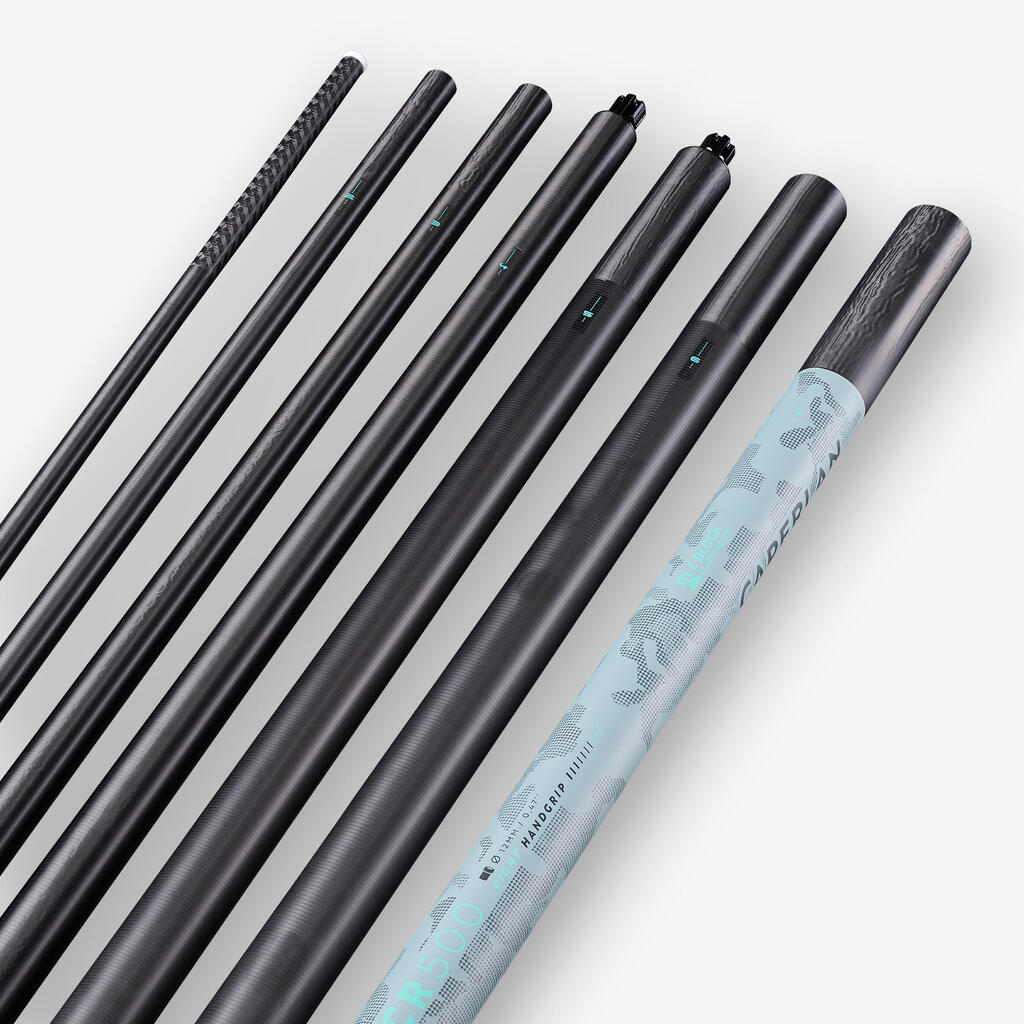

Number of sections: 7
Composition : 24T/30T/40T carbon and fibreglass
PVC transport tube dimensions:
A TECHNICAL BONUS
The butt is designed specially for sturgeon weighing more than 50 kg and catfish that measure more than 1.6 m in length!

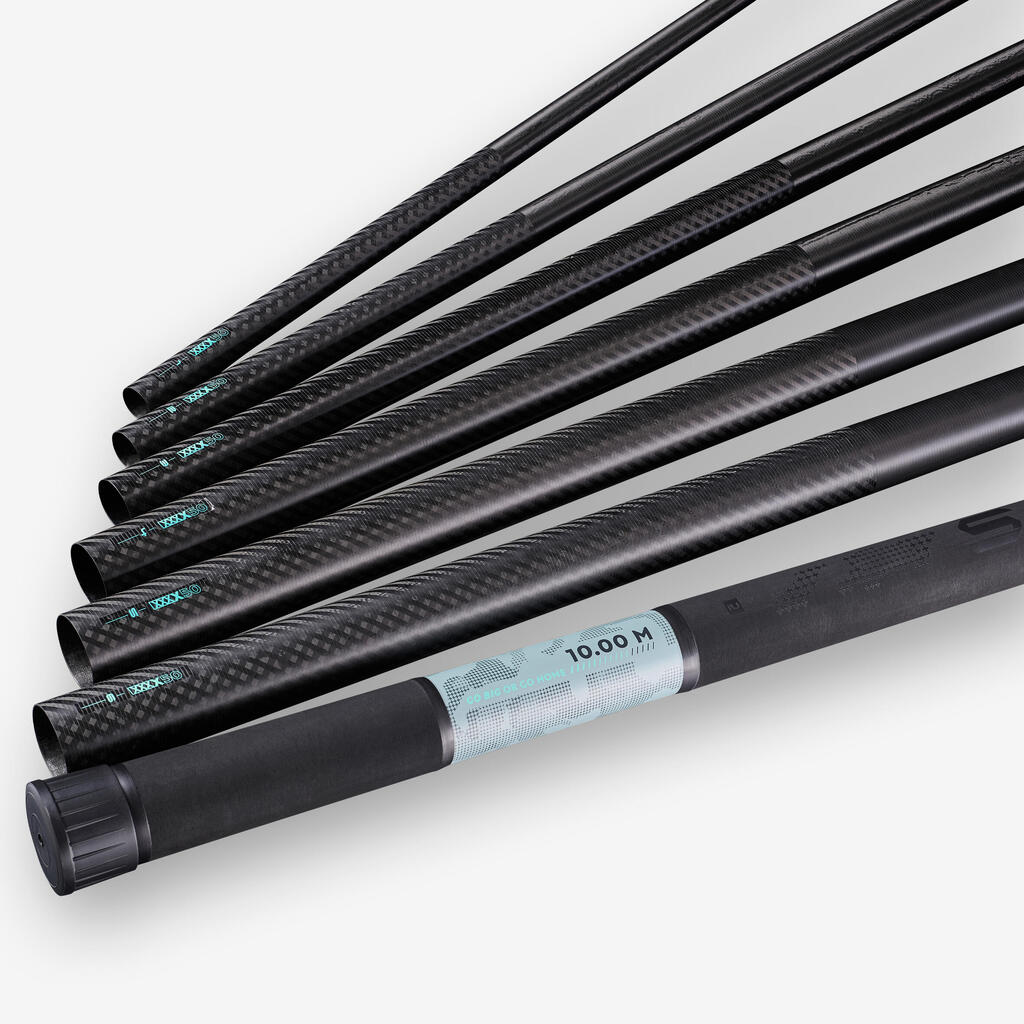

This robust rod also has 2 sections with EVA.

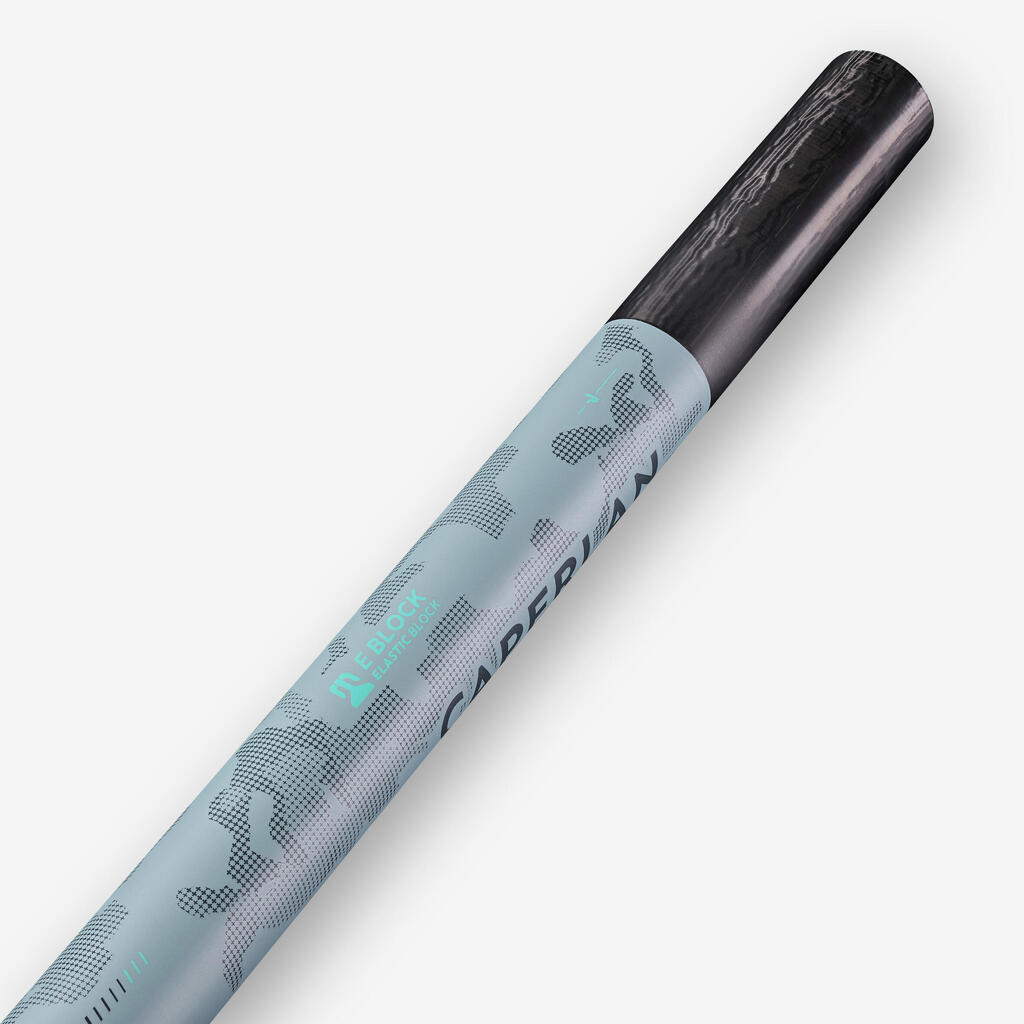

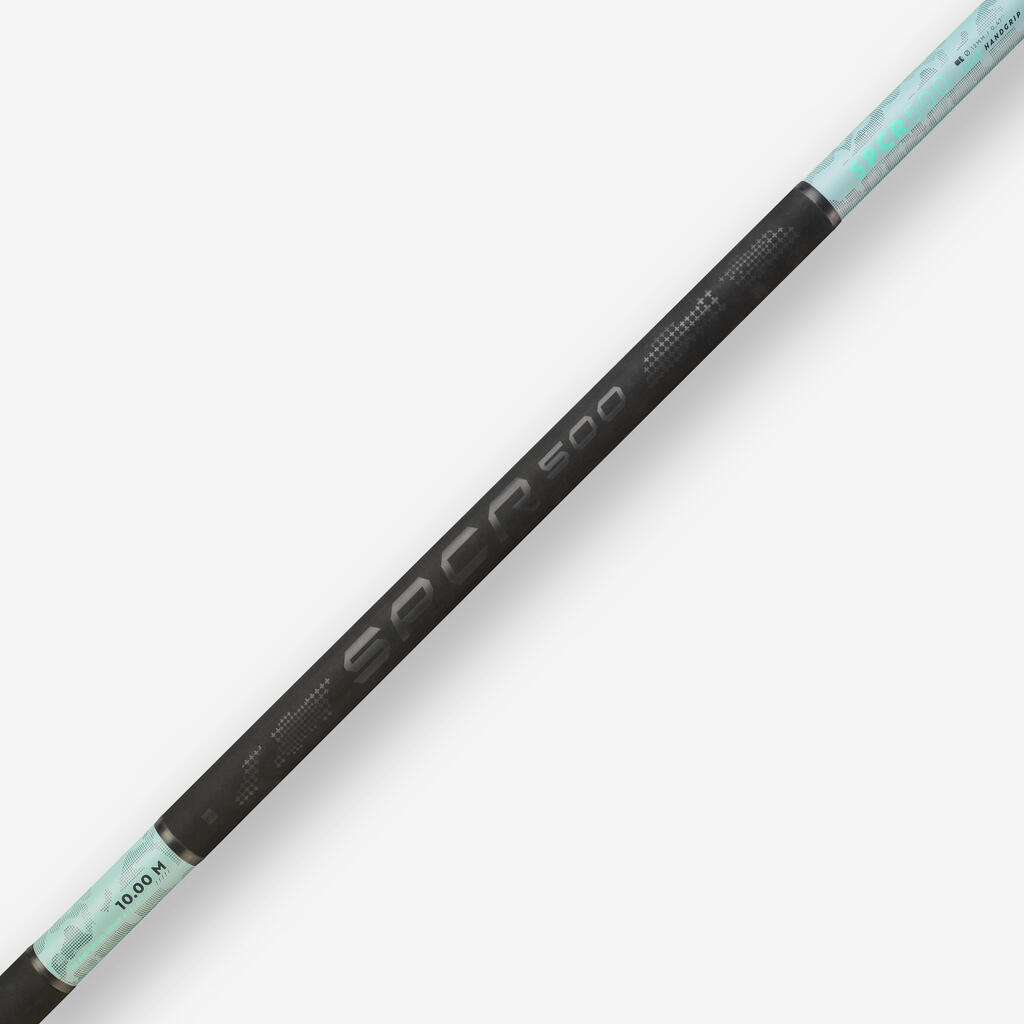

70 cm of EVA on the middle of the butt for a better grip and to prevent your hands from slipping in damp weather (35 cm starting from the bottom)
15 cm on the lower section for a better grip under the seat when in a position to combat the fish.
AFTER-SALES SERVICE
4578189 SPARE SPCR 500 PLUG X2 10 M
4899452 SPCR 500 POLE BUSH 12 MM
4562962 SPARE SPCR 500 DETACHABLE EBLOCK X2 SIZES
4578142 SPARE SPCR 500 SECT. 1 TEFLON POLE BUSH 50 G/130 CM
4578141 SPARE SPCR 500 SECT. 2 68.6 G/145 CM
4578140 SPARE SPCR 500 SECT. 3 112.8 G/149 CM
4578139 SPARE SPCR 500 SECT. 4 WITH DETACHABLE EBLOCK 175.6 G/152 CM
4578138 SPARE SPCR 500 SECT. 5 WITH DETACHABLE EBLOCK 291.5 G/155C M
4578137 SPARE SPCR 500 SECT. 6 278 G/160 CM
4873998 SPARE SPCR 500 SECT. 7 499 G/172 CM
COMPATIBILITY
To help you to use this rod with ease, we have also developed an elastic rig kit that is attached to SECT. N°5.
Reference: 8759505 5 MM SPCR 500 ELASTIC KIT
This pack contains two 5 mm elastics with pre-rigged loops (5 m long), a made-to-measure elastic thread, a spare 12 mm pole bush and an innovative fastening system!
REINFORCEMENTS ON THE SECT.S
We have developed reinforcements for very high strength:

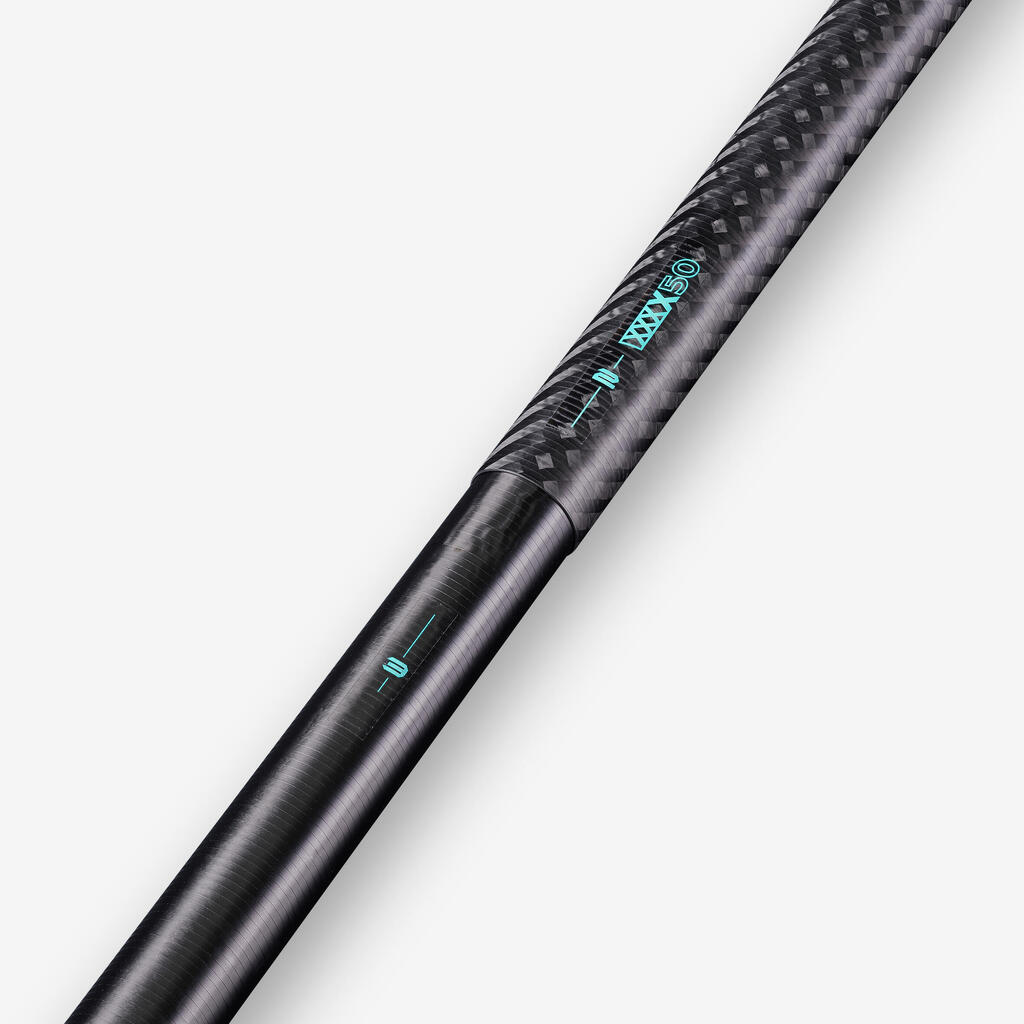

-20 cm at the top of the tip,
-30 cm at the bottom of SECT.s 1 and 2
-50 cm on SECT.s 3, 4, 5 and 6
Butt made of a mix of carbon and fibreglass to withstand the pressure during the combat with the fish.
