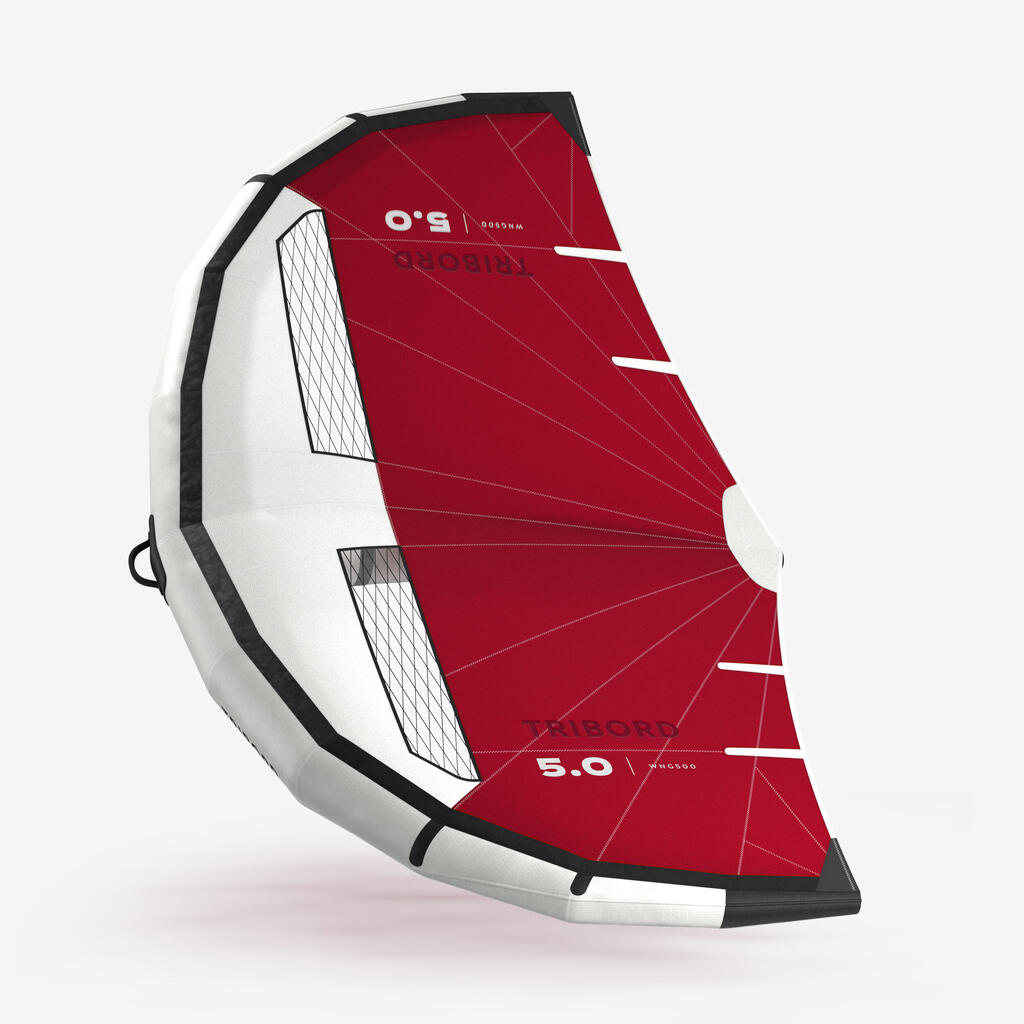

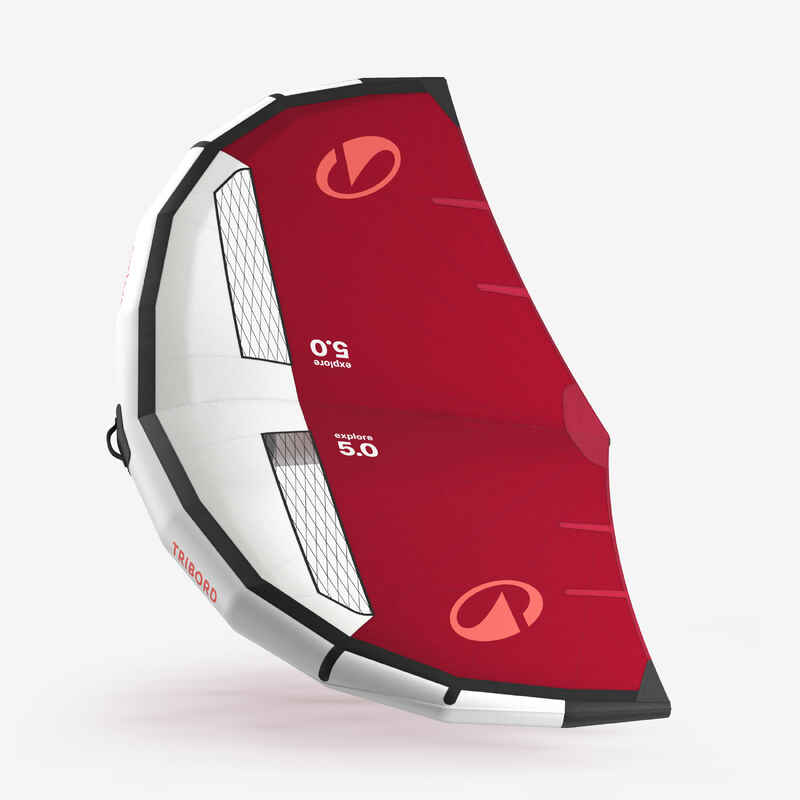

Wing foil wing explore V2 - wing 500
Get out and discover your favourite bodies of water and escape with our new-generation wing made even more efficient thanks to your feedback!
The WING 500 is stable and stiff for comfortable riding so that you can enjoy your freeride sessions for longer. Your playground will soon have no limits!
BENEFITS
Power
Its stiffness provides excellent power delivery.
Abrasion resistance
Thanks to its Kevlar reinforcements, particularly on the wingtips.
Stability
The optimised dihedral provides good stability.
Cycling comfort
Soft, ergonomic handles.
TECHNICAL INFORMATIONS
Shape 2/2
The shape of the 6 m² wing has been designed with a lower ratio than the rest of the range. This makes it possible to reduce its wingspan and lower the risk of touchdowns encountered by wings with a large surface area.
Canopy
Canopy tension has been maximised to give you direct feedback from your wing.
Its radial cuts, directional material as well as strategically placed reinforcements have been designed to ensure your wing keeps its shape session after session.
Thick woven monofilm windows placed vertically on the wing let you see downwind whatever direction your wing is pointing.
Handles
The WNG500 wing has soft handles, for greater comfort while reducing the risk of damaging your board.
The ergonomic handles with a 27 mm semi-circular profile have been stiffened to make them more responsive.
The front handle, positioned forward on the strut, provides ideal balance and power management.
The rear handle has been extended to make it easier to adjust the power of your wing.
Freefly handle
The smaller diameter freefly handle provides better control of your wing.
The back of the handle is neoprene lined to reduce friction and discomfort when surfing.

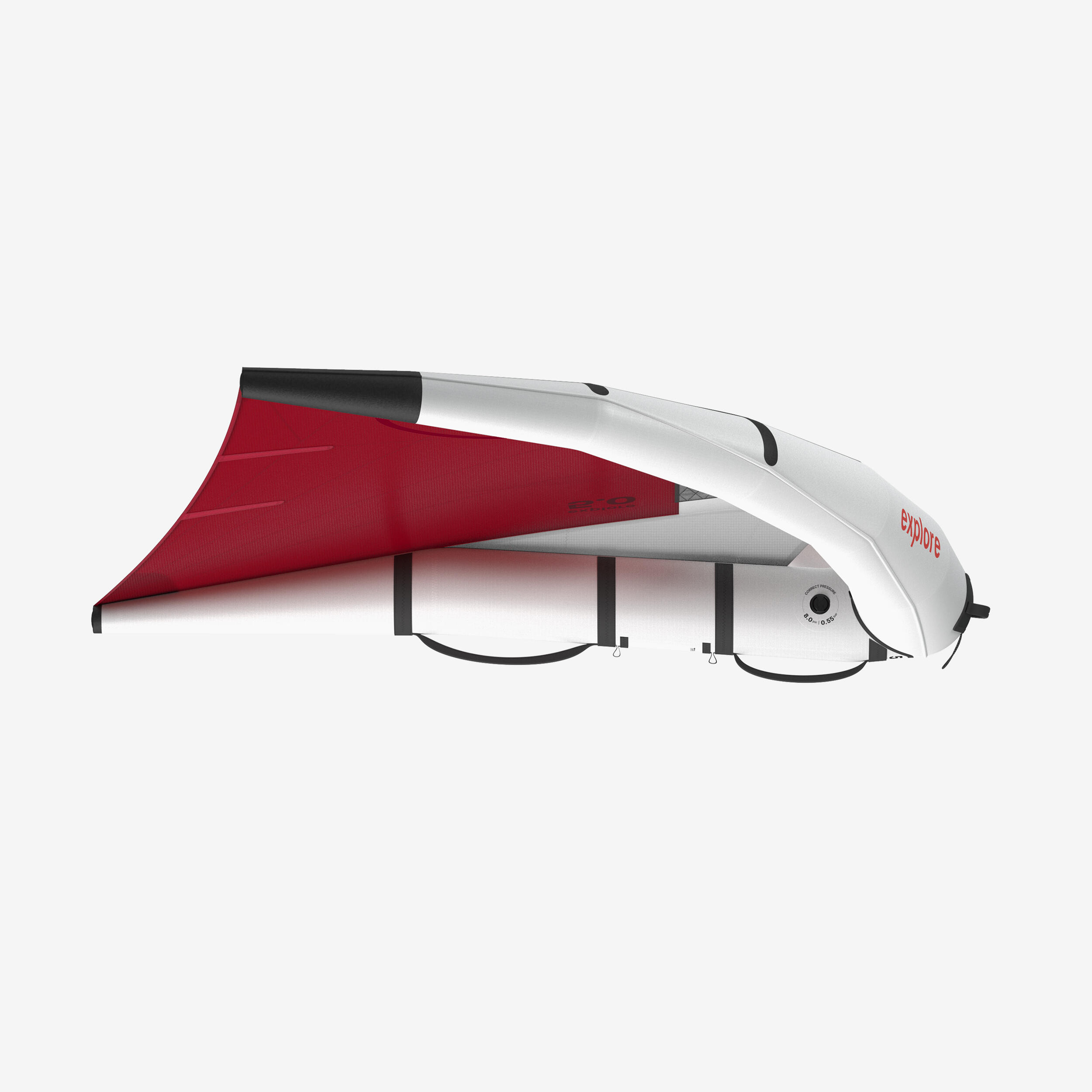

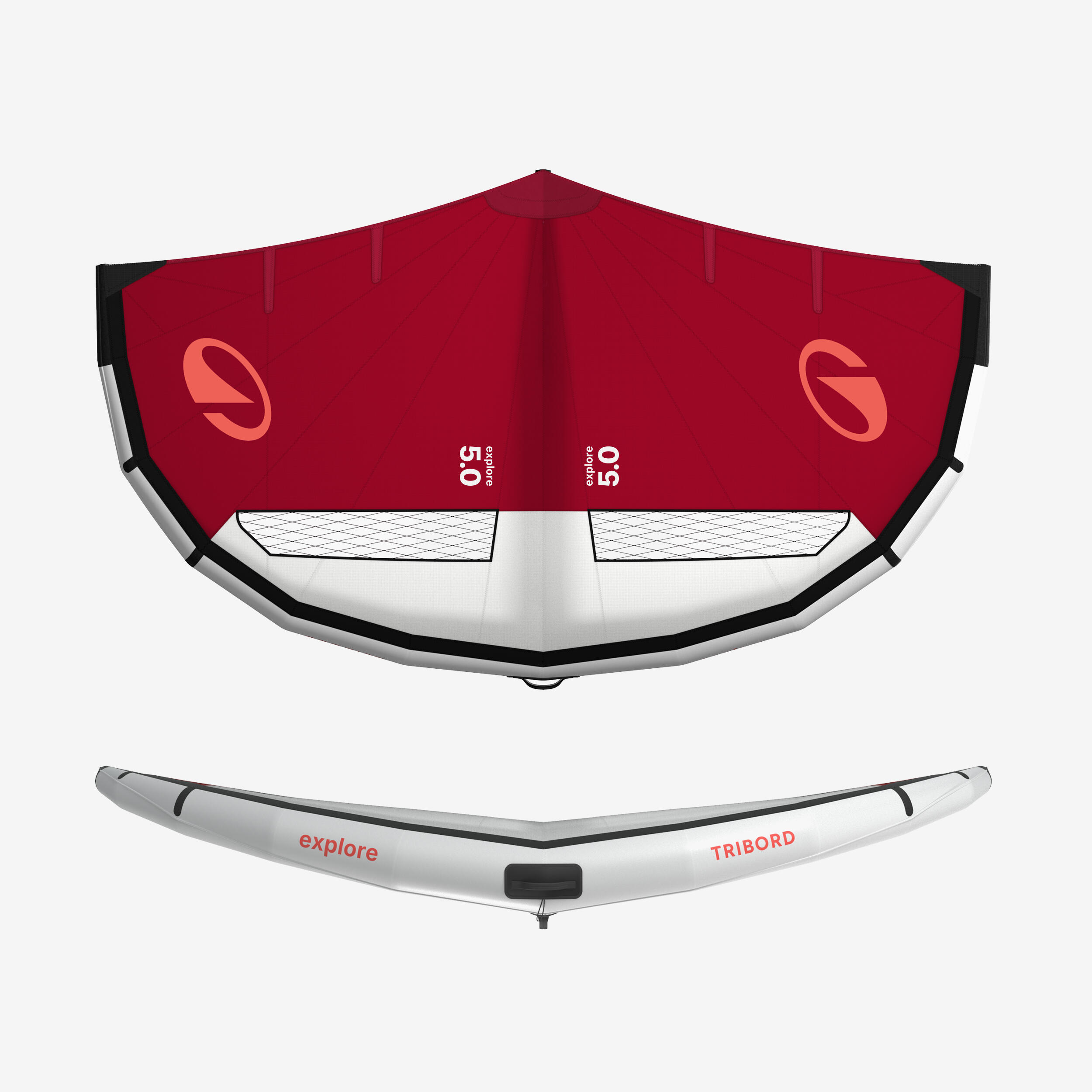

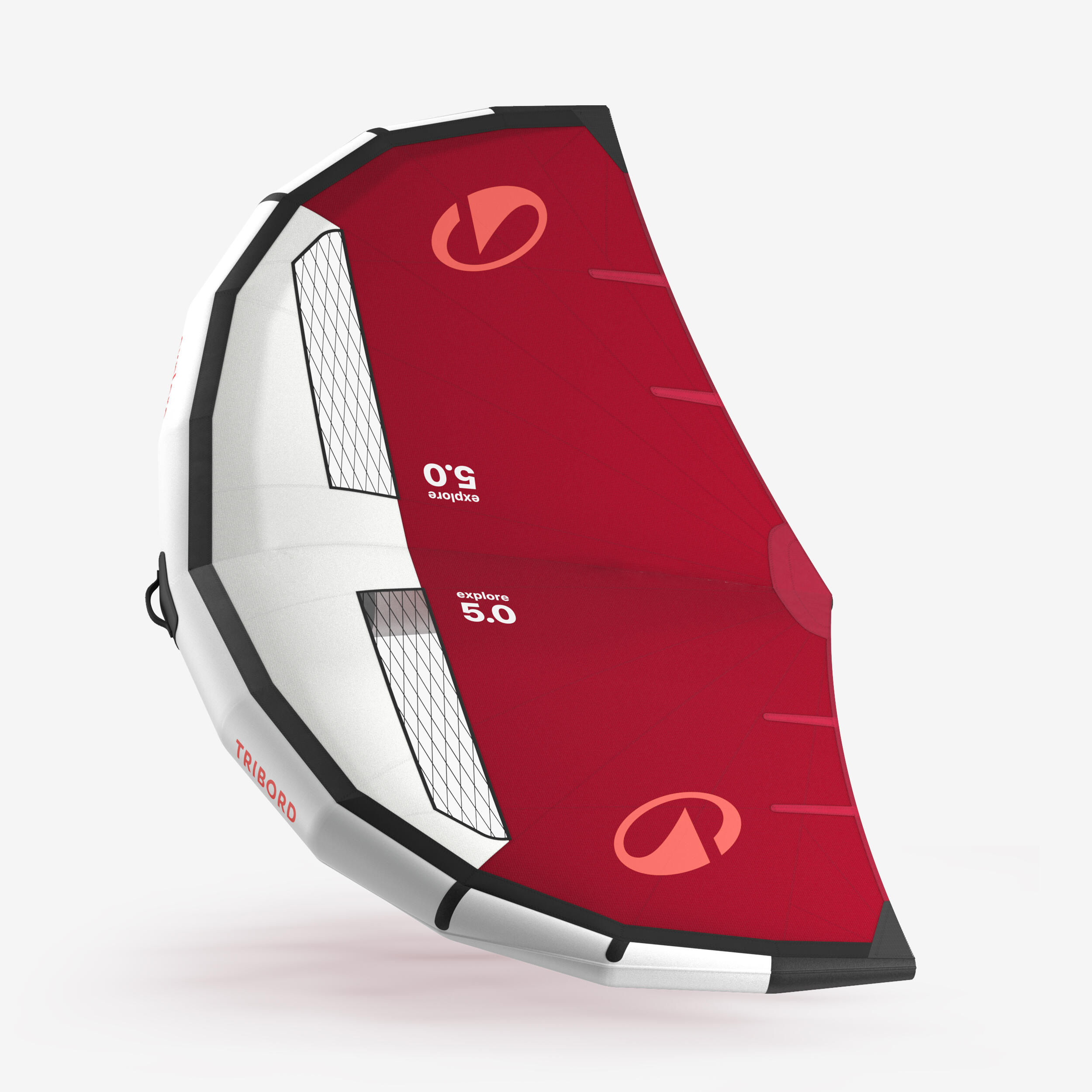

Shape 1/2
Our WNG500 wing has been designed with a compact shape, its reduced wingspan saves space and makes it easy to handle.
Its sweeping outline combined with an increased tube diameter gives your wing plenty of stiffness.
Its progressive dihedral allows great stability without blocking the yaw too much, for easy manoeuvres.

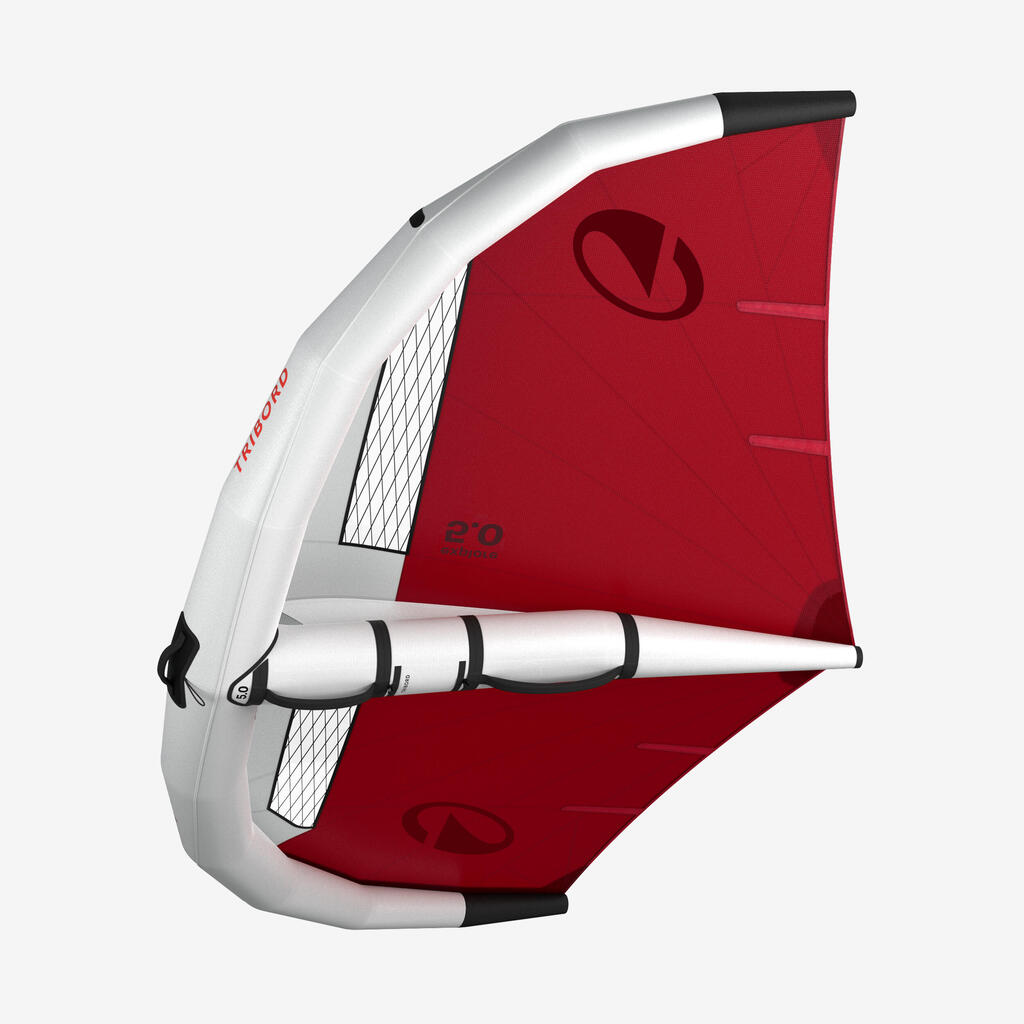

Its S-shaped strut optimises riding comfort while maximising canopy tension.
WING characteristics
3 m2:
Wingspan: 2.60 m
Rope: 1.53 m
Weight (wing only): 1.9 kg
4 m2:
Wingspan: 3.00 m
Rope: 1.77 m
Weight (wing only): 2.4 kg
5 m2:
Wingspan: 3.33 m
Rope: 1.96 m
Weight (wing only): 2.8 kg
6 m2:
Wingspan: 3.60 m
Rope: 2.25 m
Weight (wing only): 3 kg
Inflation system
The leading edge and the centre strut are separate, this allows you to manage the pressure of the 2 tubes independently, reduces the risk of failure caused by the One Pump, makes it easier to replace your tube if necessary and allows for faster deflation.
The recommended inflation pressure is 8 psi, this can be reduced to 6 psi in the leading edge to improve comfort in strong winds.
Valves
The WNG500 wing has integrated high pressure valves.
They make inflation easier by giving you better pressure control and allowing you to deflate your wing in one step.
Integrating them into the bladder reduces the risk of them getting tangled with the leash.
Compatible pumps:
ref.8642249 - recommended for rigid boards
ref.8543028 - recommended for inflatable boards: use the same pump to inflate your board and your wing.
Reinforcements
Kevlar reinforcements are strategically placed in areas that could come into contact with the ground for maximum strength.
The reinforcements reduce canopy flapping and damage.
Product features
- Triple ripstop spinnaker.
- Dacron.
- Anti-abrasion "KEVLAR/NYLON" reinforcement.
What level is it best for? For what discipline?
Whether you are an advanced or beginner rider, this wing foil wing will allow you to have fun on the water without getting tired during your freeride sessions, thanks to its reduced wingspan and its comfort.
What is freeride? It’s about enjoying the ride in complete freedom! The versatility of our wing will allow you to enjoy the elements, unrestricted and in comfort, session after session. Guaranteed to help you get away from it all!
About the WING 500
Comfort and stiffness, the perfect combo to enjoy wing foiling in all conditions!
Its stiffness and shape provide excellent power delivery for easier take-off while remaining controllable in stronger winds.
Its ergonomic handles and reduced wingspan provide ideal comfort during your longest sessions.
Available in 3 m² / 4 m² / 5 m² and 6 m²
Contact
If you have any questions, please don’t hesitate to get in touch via the following address:
[email protected]
How to choose your wing
User <55 kg
3 m: 18<35 kt (33<65 km/h)
4 m: 13<26 kt (24<48 km/h)
5 m: 9<20 kt (17<37 km/h)
6 m: 7<18 kt (13<33 km/h)
User 55<70 kg
3 m: 22<40 kt (41<75 km/h)
4 m: 17<30 kt (31<56 km/h)
5 m: 10<22 kt (19<41 km/h)
6 m: 8<20 kt (15<37 km/h)
User 70<85 kg
3 m: 27<45 kt (50<83 km/h)
4 m: 19<35 kt (35<65 km/h)
5 m:12<26 kt (22<48 km/h)
6 m: 9<22 kt (17<41 km/h)
User >85 kg
3 m: 30<45 kt (56<83 km/h)
4 m: 21<42 kt (39<78 km/h)
5 m: 12<26 kt (28<54 km/h)
6 m: 12<24 kt (22<44 km/h)
The wing comes with:
- Elasticised leash with swivel (extendable and suitable for all wing sizes)
- Repair kit (Insigna)
- Insigna white square patch for equipment identification (contact details)
- Carry bag - sleek design, no zips or rip tabs, large "canyon" type opening for ultra practical storage. It can be used to store 1 or 2 wings and adapts to fit the capacity you need. The pump can easily be attached to it using an elastic system
How to get your wing repaired (our after-sales service) and repair kit
Our wings are designed to be hardwearing and repairable.
2 zips on each of the tubes allow you to easily replace the bladders of your wing.
Feel free to contact the workshops of our DECATHLON stores if necessary.
composition
composition
Main fabric: 100.0% Polyester; Bladder: 100.0% Thermoplastic Polyurethane Polyether Based
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
TESTS AND WARRANTY
Test product
+15 PSI strength tests Handles
Warranty
2 Years
Our Ecodesign Approach
Our ecodesign approach reduces the environmental impact of our products.
We’ve examined the environmental footprint of this product in order to identify how we can produce it in a more sustainable way. With this knowledge, our design teams were able to develop this product while significantly reducing its environmental impact.
Sustainable design measures implemented on this product.
-
ProcessGreige
Product made from 50% undyed yarn
Using this finishing process enables us to reduce CO2 emissions linked to the production of undyed textiles by at least 53% compared to conventional dyeing.
