How do I connect the pump?
Works when plugged into your vehicle’s 12 V cigarette lighter socket with the engine running (13.8 V).
Pressure of up to 15 PSI (1 bar) provided.
Compatible with minimum 10 amp fuses.
How do I start inflation?
1/ Plug the pump into the cigarette lighter with the car engine running.

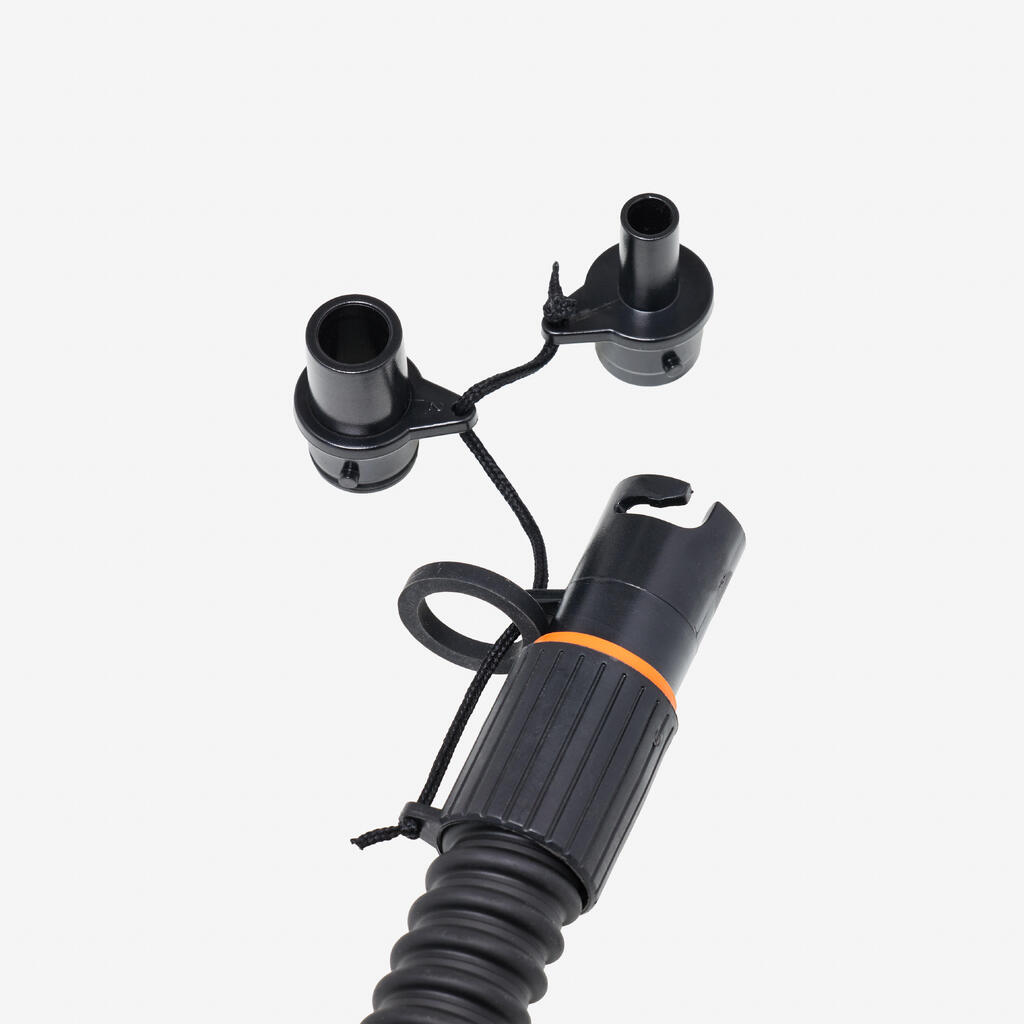

2/ Connect the pump hose to the craft

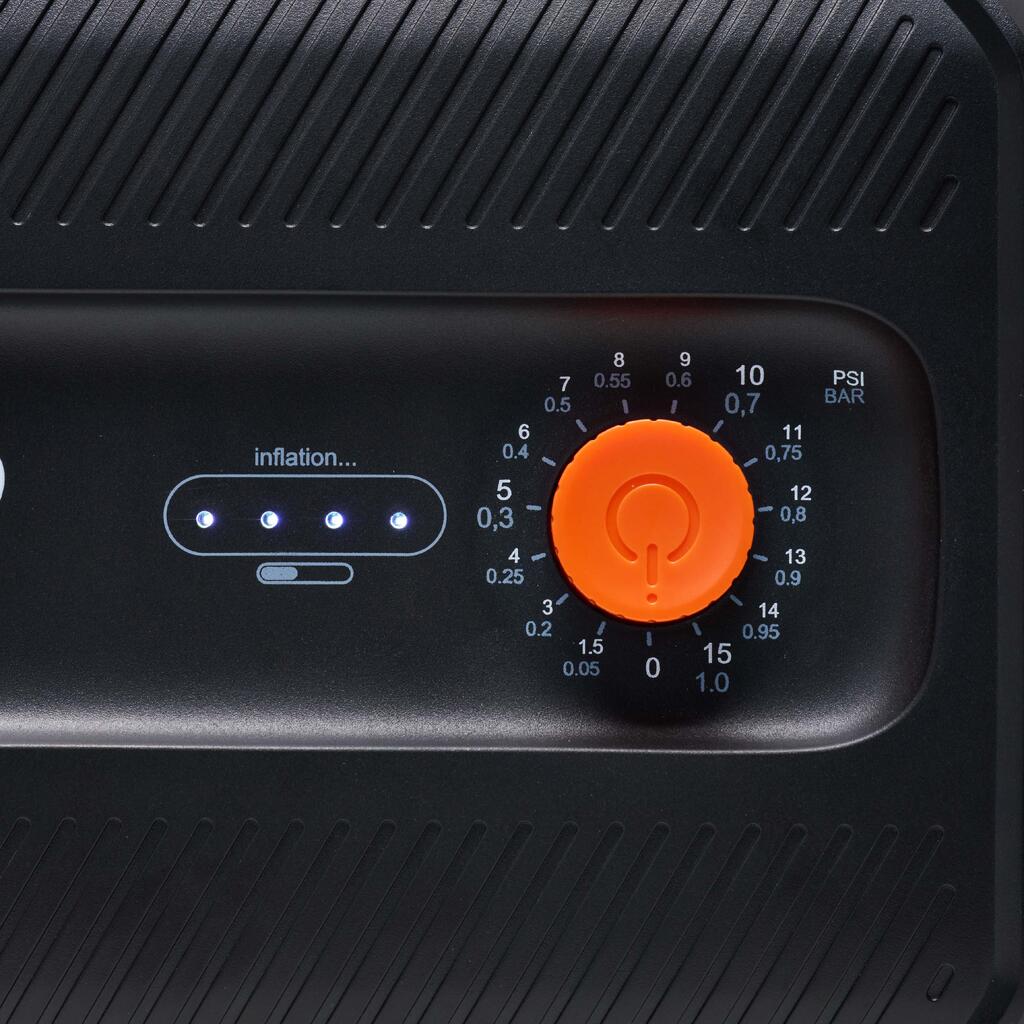

3/ Turn the button to the desired pressure
4/ Click the middle of the orange button
5/ The lights come on and inflation starts
6/ The pump stops automatically at the set pressure.
Set the target pressure to between 1 psi (0.068 bar) and 15 psi (1 bar)
How do I secure the connection?

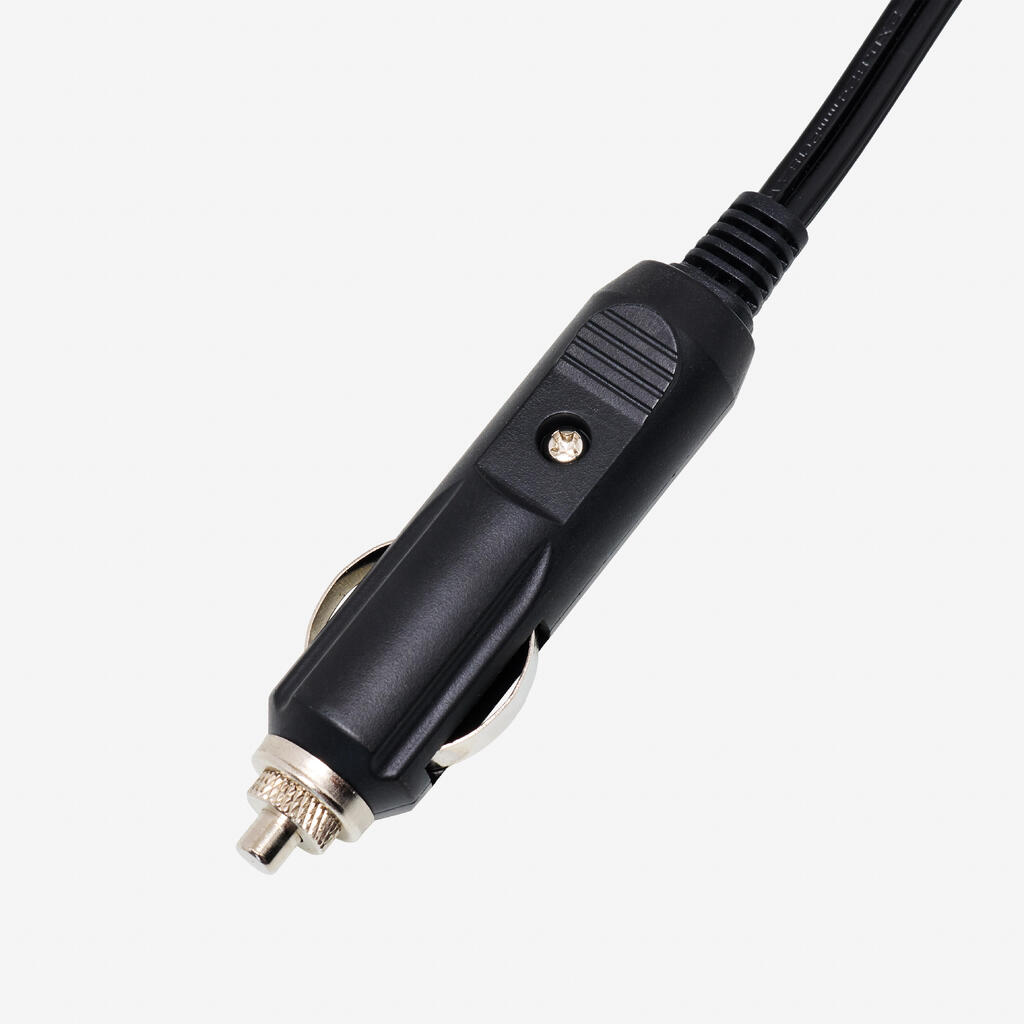

Make sure that the cigarette lighter plug is fully pushed in to avoid overheating caused by a poor electrical connection.
Does the pump have a deflation mode?
The PEHP 15 psi pump does not have a deflation mode, it can only inflate.
If you want a double-action electric pump: inflate/deflate, opt for the PEHP 20 psi: 8552993
What are the dimensions of the pump?
Length: 30 cm
Width: 20 cm
Height: 9 cm
Weight: 1.100 kg
