FRAME
Aluminium frame
Built-in battery, vertical output (from the bottom)
Clean the down tube thoroughly before unlocking the battery.
30.9 mm seat tube diameter
Bottle cage mount:yes (1 bottle)
Suspension
Suntour XCM 34 fork
Travel: 120 mm
Dampers: 34 mm
Axle: 15mm thru-axle
Size: 15 x 110 mm
Offset: 51 mm
Technology: Spring with preload adjustment
Adjustment: preload
Weight
S: 25.5 kg
M/L25.7 kg
XL: 26.1 kg
Net weight without pedals
Tyres
CST
PATROL
29"" X 2.40"
"
PEDALS
SIGNUM
Material:resin

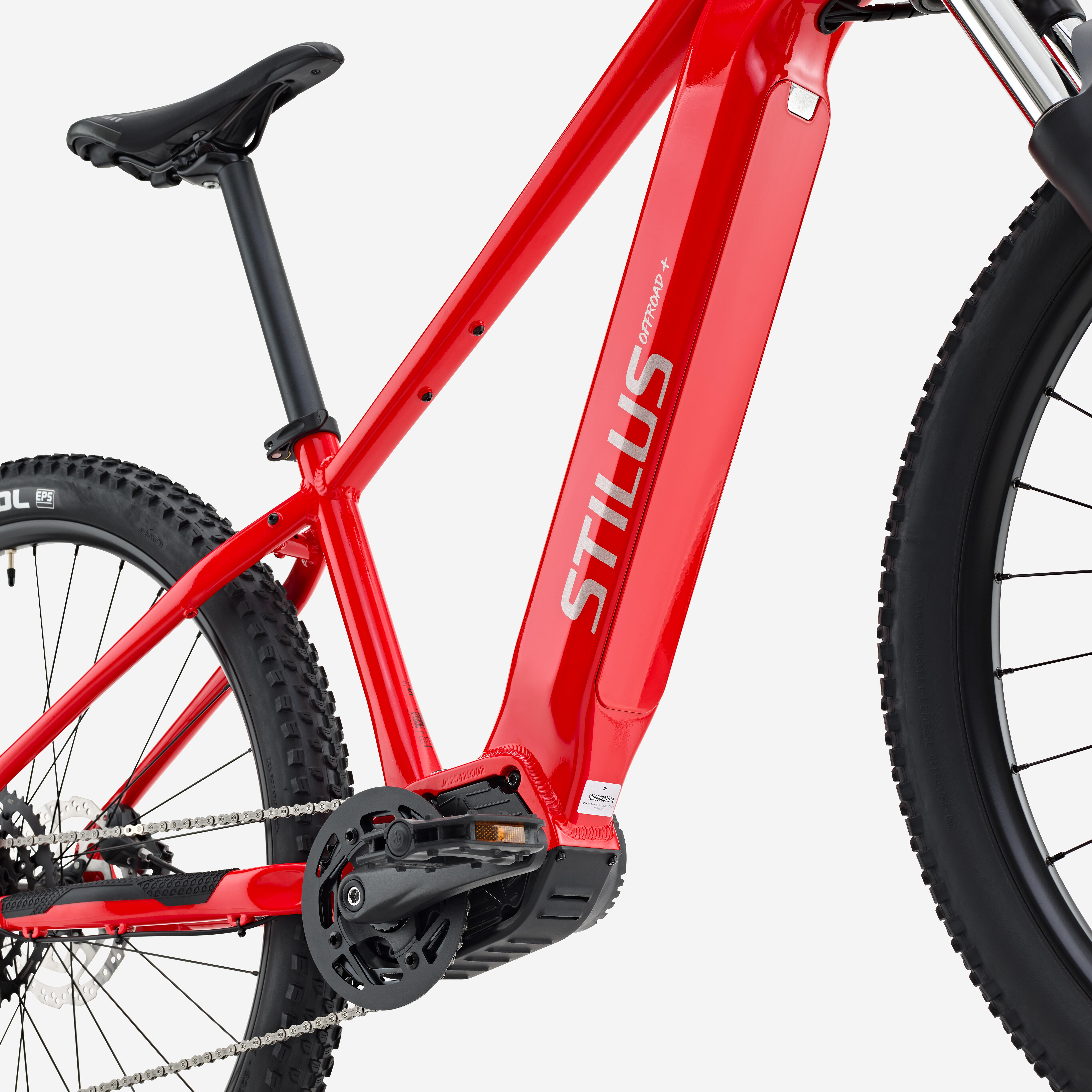

Battery
Battery built into the down tube. It features a compact design with a low centre of gravity to give you a more natural sensation as you ride.
Samsung cells
Capacity: 720 Wh (36 V, 20 Ah)
Weight: 3.96 kg
Type:Lithium-ion
Full charge: 7 hours with the 2A charger
Charge cycles: 1,000 (more than 60%)
Temperature: 0°C to +40°C (during charging), -10°C to +50°C (in use)
Water resistance: IPX5
Display
Compact 2" colour LCD screen installed on the left side
Assistance modes:1 to 5
Pedestrian mode with walking assistance
Built-in control
Wheels
‘SIGNUM 29" wheels
(tubeless compatible with optional rim tape and tubeless valve)
29" size compatible with wide tyres:up to 2.4"
30 mm (width between brackets), 32 spokes
hubs: Shimano TX505
Discs:6-hole
Cassette body: HG
Riding position
Handlebar: SIGNUM
Material:Aluminium
Diameter: 31.8 mm
Width: 740mm
Rise: 12mm rise
backsweep: 9°
Stem: SIGNUM
Material:Aluminium
Size: 50mm for S & M/L, 60mm for XL
In a nutshell
Weight: 25.7 kg in size M
Mid-drive motor: STAR UNION
Battery: 720 Wh
Frame material: Aluminium
Type: Hardtail
Wheel size: 29"
Fork travel: 120 mm
Drive train: 1 x 9
Brakes: Hydraulic
Seatpost: Fixed
Frame, handlebar and stem warranty: 2 years

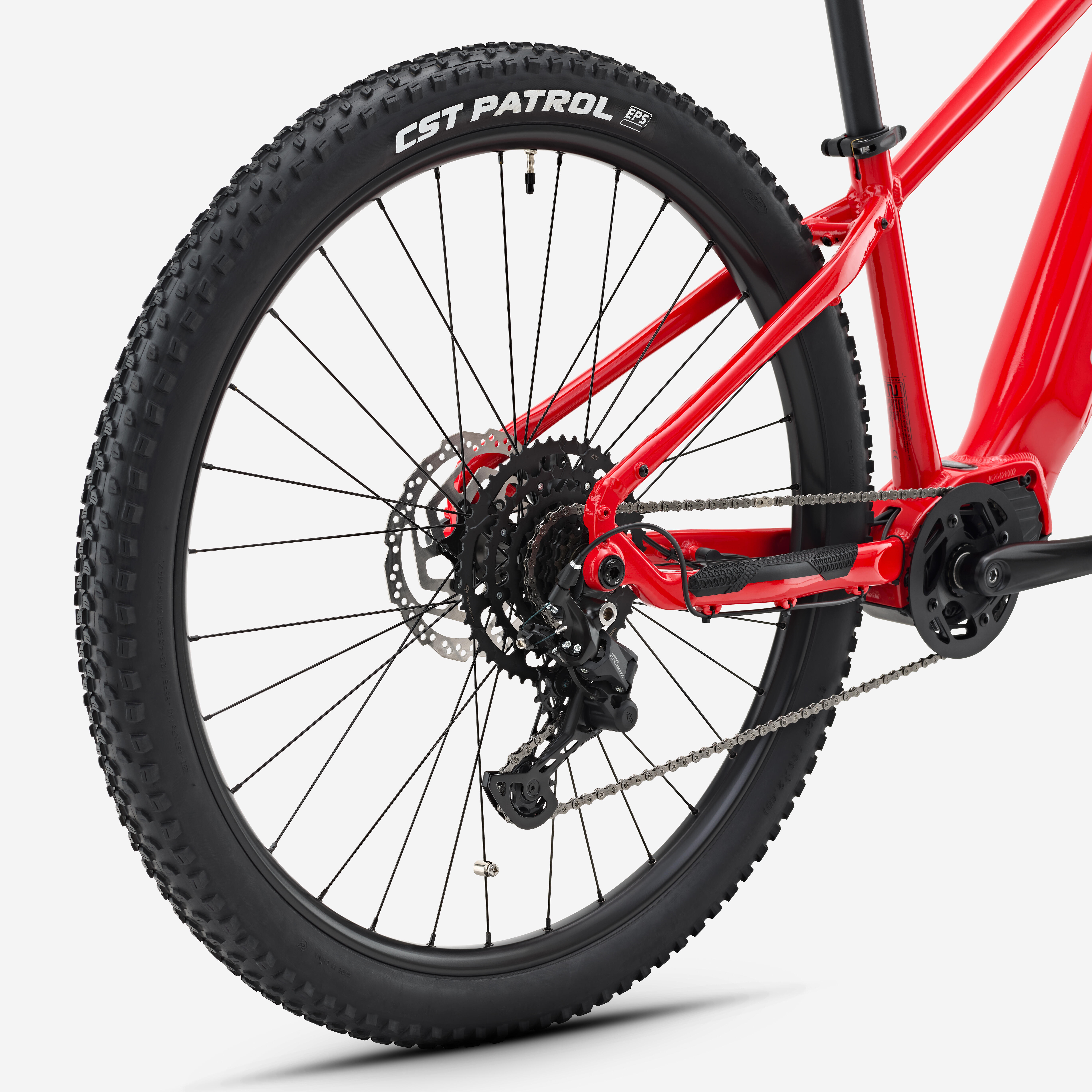

TRANSMISSION
SHIMANO CUES 9-speed
Chainring: 34 teeth with anti-derailment
Rear derailleur:SHIMANO CUES U4000
Right-hand shifter:SHIMANO CUES with indicator
Cassette: SHIMANO CUES LG300 11-46
Chain: SHIMANO LinkGlide CUES
Motor
STAR UNION CM5001 motor
Centre position
Max torque 110Nm on start-up (3 RPM) and 76Nm in use (50 RPM)
Maximum power:500 W
In accordance with EU regulations, the electrical assistance cuts out above 25 km/h
ACCESSORIES INCLUDED
Your mountain bike comes with a charger, 2 keys, bell, lights, wheel reflectors and pedals
Brakes
SHIMANO MT200 hydraulic disc brakes
Number of pistons: 2
Front disc: 180 mm
Rear disc: 180 mm
Centerlock attachment
/ Seat post
Saddle: SIGNUM
Seat post: SIGNUM
Material:Aluminium
Diameter: 30.9 mm
Length: 350 mm for size S and 450 mm for size M, L, XL
