Press-fit bottom bracket removal tool road MTB gravel

Product Description

Press-fit bottom bracket removal tool: designed for safe and effortless disassembly of internal bearings, compatible with road, MTB, gravel, and both aluminium and carbon frames.

Technical specifications

• Compatibility: BB86, BB92, BB90, BB30, PF30, BBright press-fit, Rotor UBB, SRAM GXP, Shimano press-fit

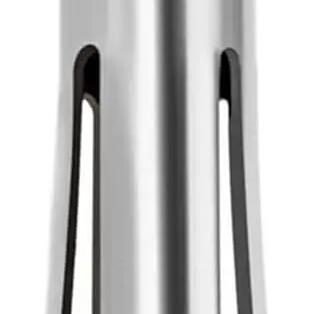

• Mechanism: flexible blades lock automatically behind inner cups
• Extraction: clean and fast using a rubber mallet (not included)
• Working diameter: adjustable with elastic slot

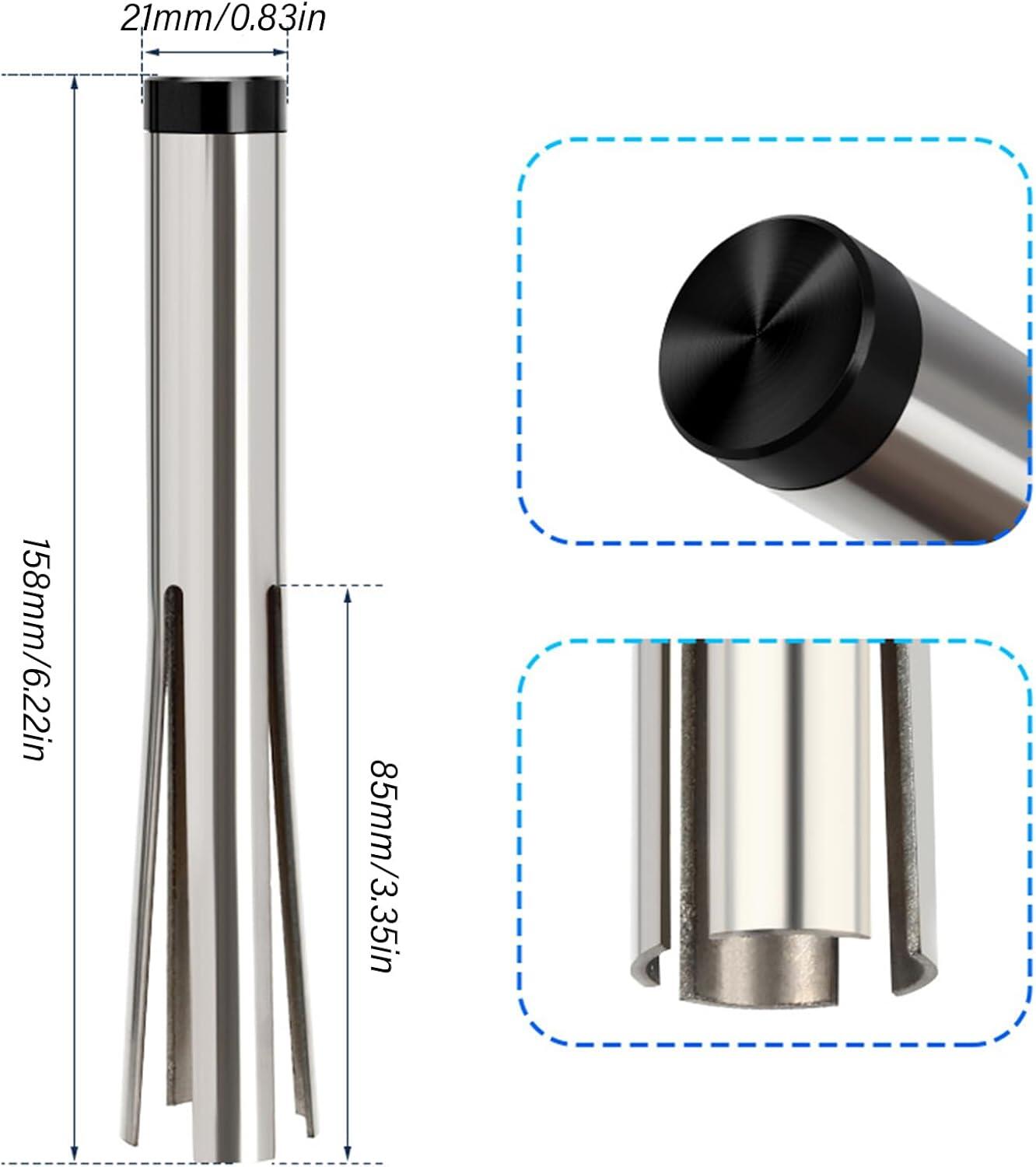

• Length: 158 mm
• Diameter: 21 mm
• Materials: stainless steel + aluminium striking head
• Weight: ~91 g (with packaging)

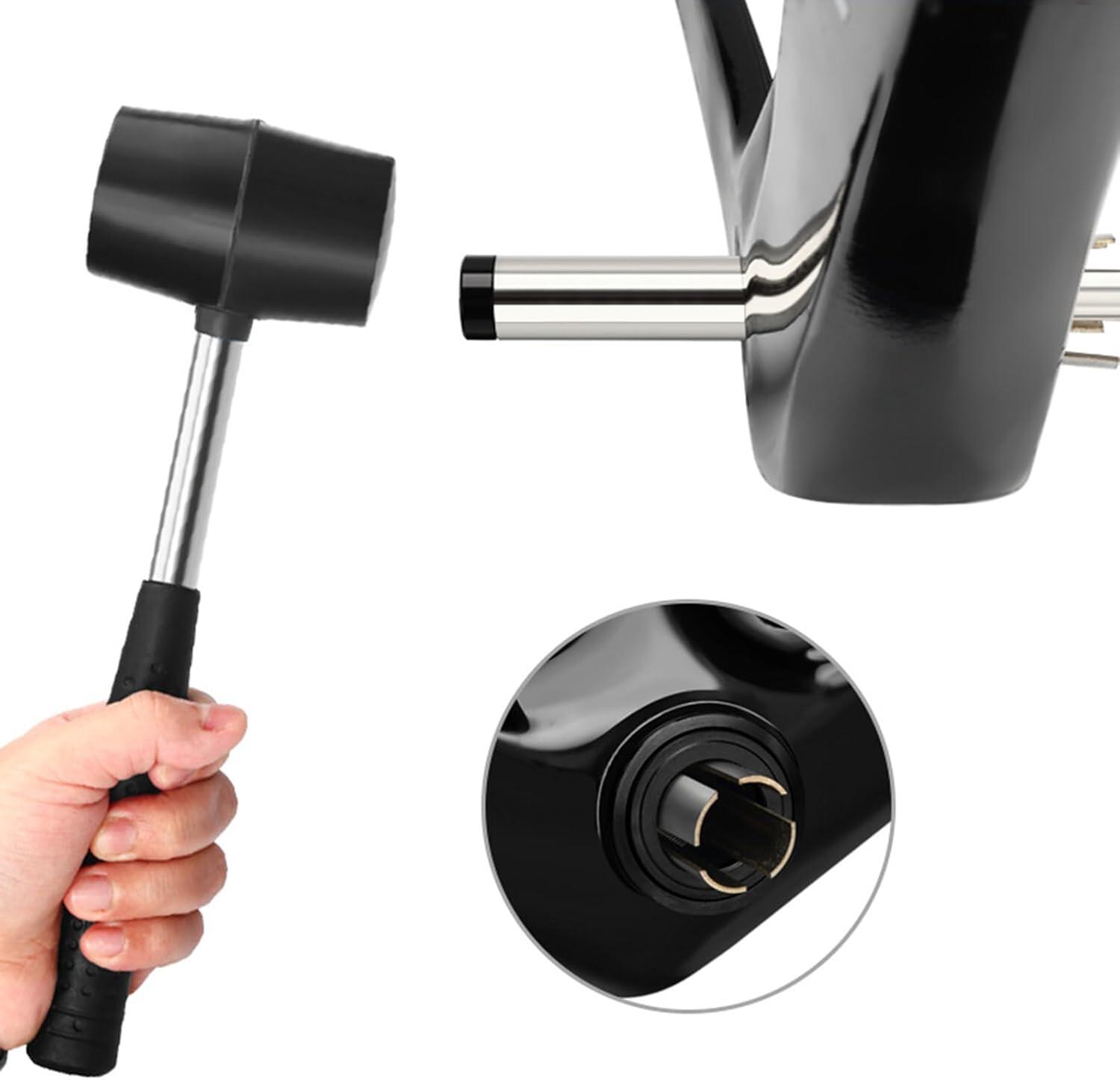

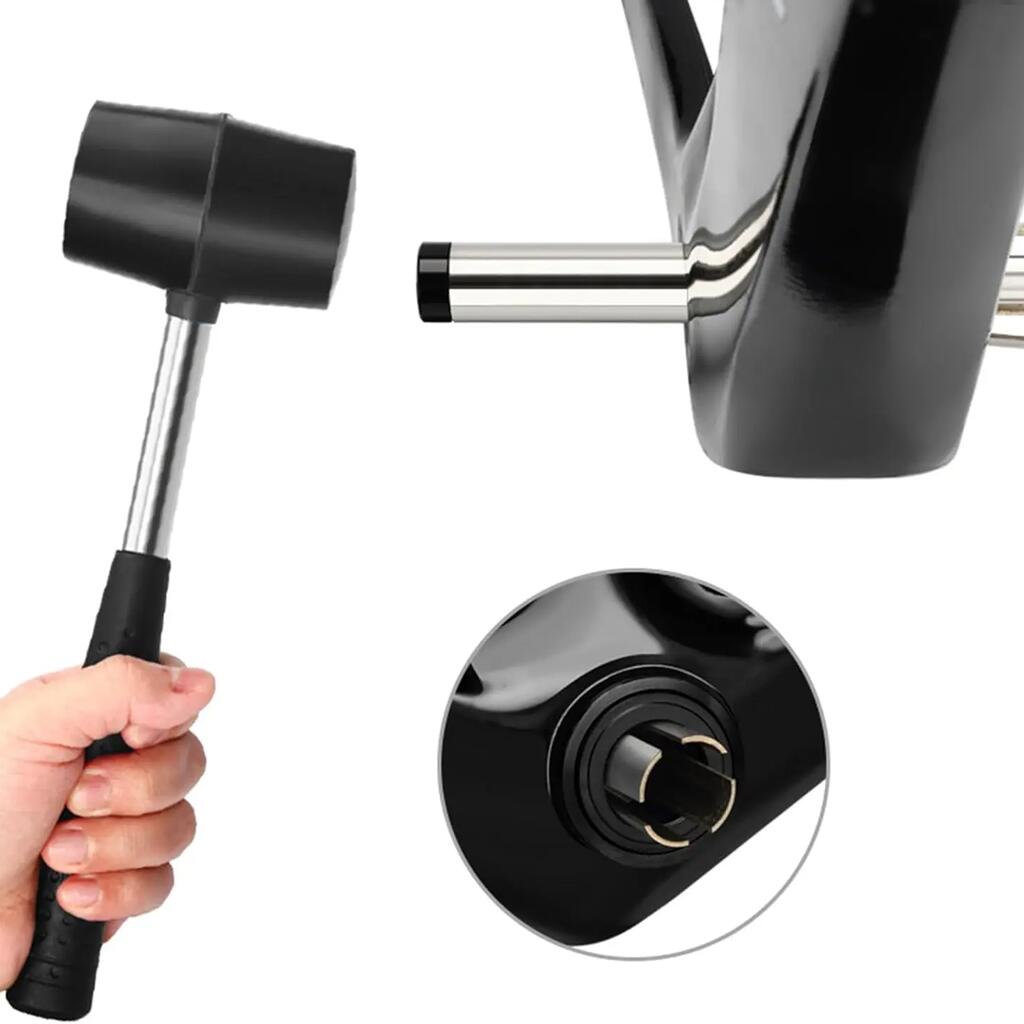

How to use

1. Insert the tool into the bottom bracket
2. Blades lock automatically behind the inner cups
3. Tap gently with a rubber mallet (not included)

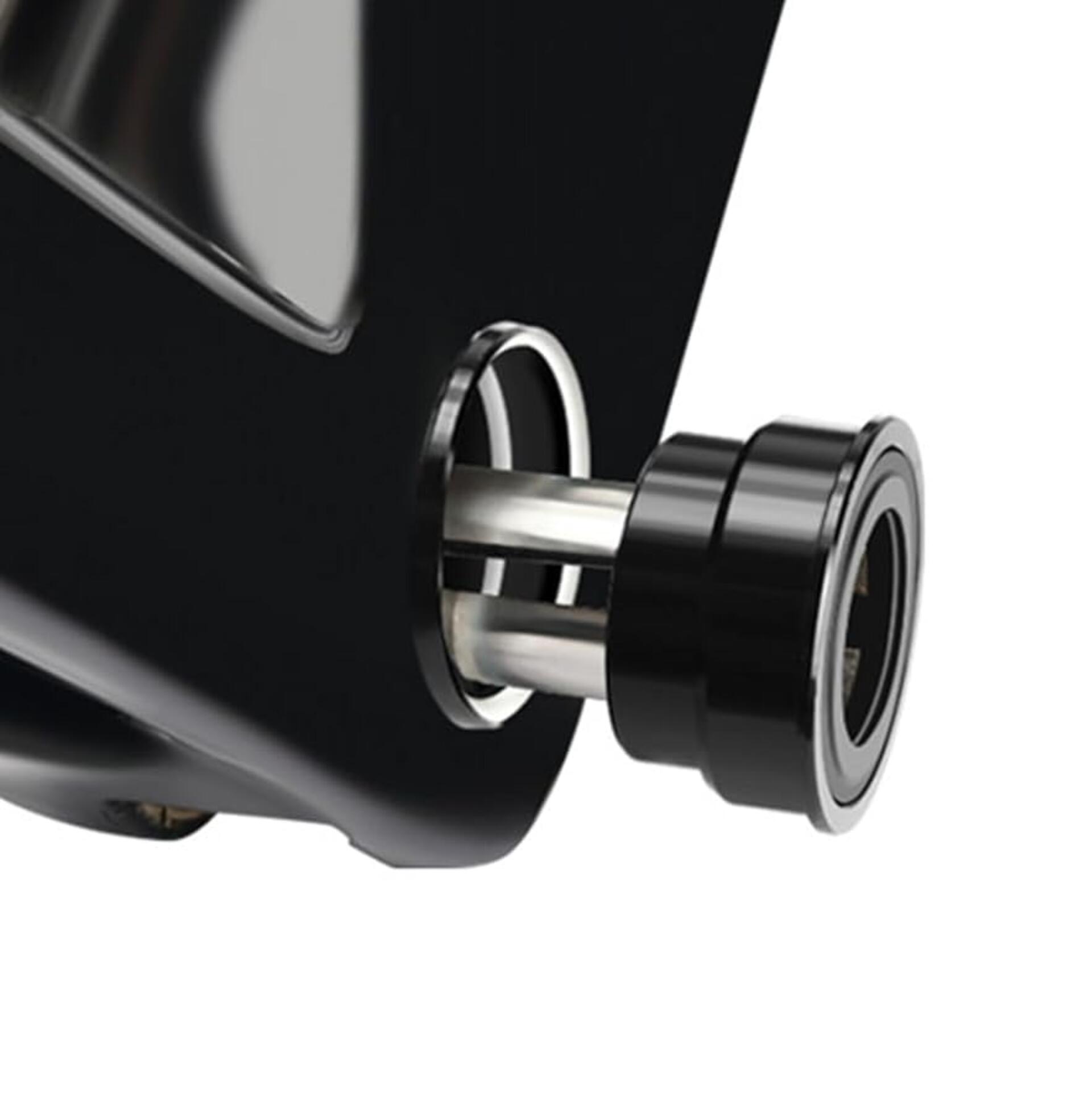

4. Remove the bearing cleanly without damaging the frame

Pack contents

• 1x press-fit bottom bracket extractor
• 1x aluminium striking head
• (Mallet not included)

A robust and precise tool: ideal for press-fit bearing maintenance or replacement, for both amateur and professional mechanics.
