Product Description

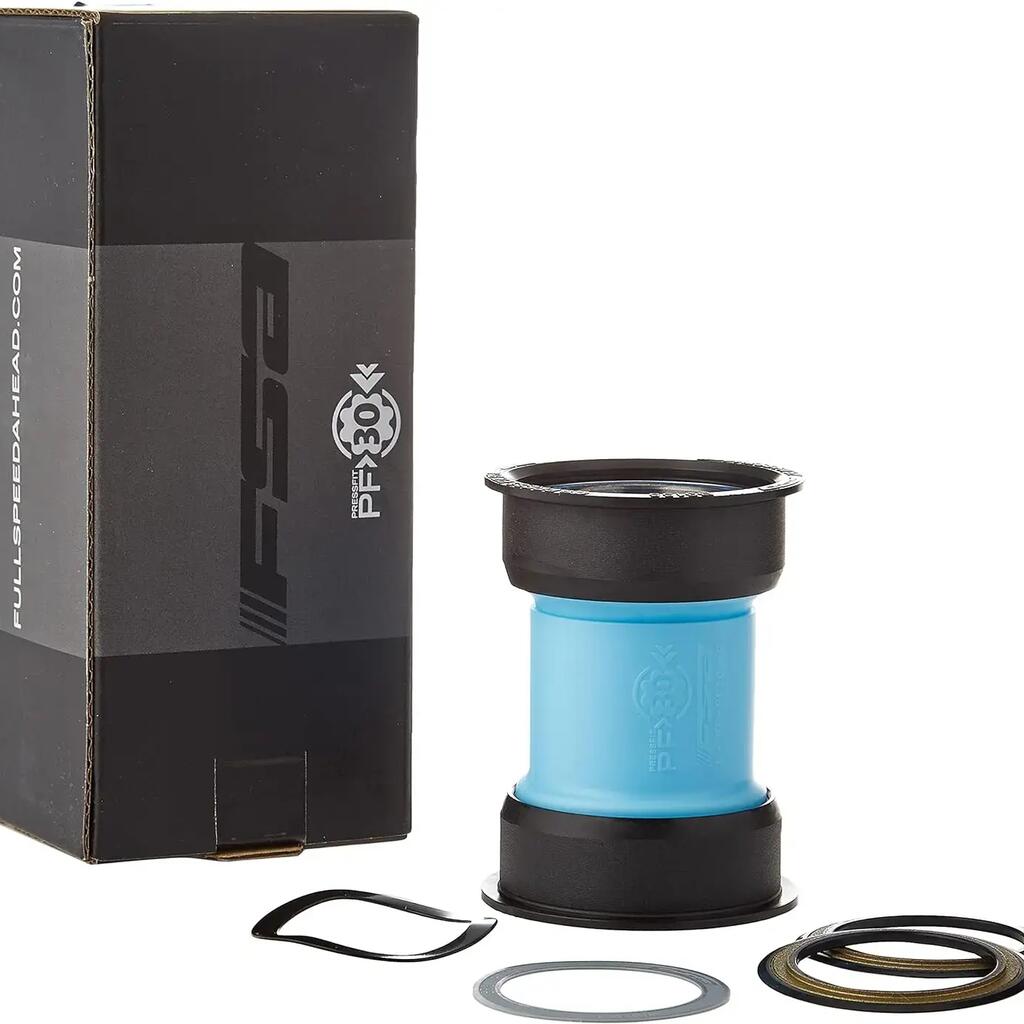

Suitable for mounting on a Press Fit frame with a crankset fitted with a long BB30 axle (standard BB386 Evo, PF30, and BBRight)
Details:
- Compatible with frames from 68 to 86.5mm
- Weight: 76g
How to identify my bottom bracket? To know more about it
Your bike creaks when you press hard on the pedals, the movement of the crankset has lost its fluidity or has become loose? The symptoms are clear: it's time to change your bottom bracket. Like all the parts that make up your bike, the bottom bracket and especially its bearings are subject to wear.
Its replacement is a simple operation if it is well prepared, indeed the multiplication of the standards of bearings, bottom bracket and frame will discourage some. We will try to guide you through this jungle of standards. The bottom bracket is
the interface between your crankset and your frame , so the first thing to do is toidentify which crankset you want to fit in which frame ?
Internal case diameterBox widthMountingStandardRecommended bottom bracket axle34.8 mm68 mmScrew onBSA / BSC24 mm / GXP / Dub 29 mm36 mm70 mmScrew onItalian24 mm37 mm90.5 mmPress onBB 90 (Trek)24 mm / GXP / Dub 29 mm41 mm86.5 mmPress onPF 86 (Shimano)24 mm / GXP / Dub 29 mm41 mm89,5 mmÀ PresserPF 90 (Shimano)24 mm / GXP / Dub 29 mm42 mm68 mmÀ PresserBB 3030mm / Dub 29 mm42 mm79 mmÀ PresserBB Right30mm / Dub 29 mm46 mm61 mmÀ PresserSpecialized30mm / Dub 29 mm46 mm68 mmÀ PresserPF 3030mm / Dub 29 mm46 mm79 mmÀ PresserBB Right PF 36030mm / Dub 29 mm46 mm86,5 mmÀ Presser386 EVO30mm / Dub 29 mm
We advise you to dismantle your original box to measure with precision the dimensions of the bottom bracket of your frame This compatibility is given as an indication, there are also boxes 'adapters' which make it possible to mix the standards.
Specifications
Caster width 86.5
68 Caster standard 386 Evo Internal diameter 46 Bearing quality Steel Bottom bracket axle 30 mm Crankset standard BB386 EVO (BB30 long axle)
