Product Description
The most affordable model in the Munroe range, the AL is a fun urban bike, happy to take you to work and back in comfort thanks to its upright position, 1 x 8 Microshift transmission and high-volume 650 x 45 mm Kenda Tyres. But the Munroe AL is capable of so much more. The lightweight Frame and Fork are fitted with the obligatory luggage rack and mudguard mountings, if you want to ride through the winter. If the weekly grind becomes too much, we've added bottle cage and triple cage mounts so you can escape at the weekend with just a few pedal strokes.
Product benefits:
Tubeless mounting with 650B x 45C Tyres
Microshift single-plate 8-speed transmission.
Hydraulic disc brakes, 160/160 mm.
100% aluminum frame for an ultra-light bike (10.7kg).
Details :
Frame
6061-T6 triple butted Aluminium, QR, carrier/mudguard mounts, 68 mm BSA shell
Fork
6061 aluminum, QR dropouts, with mudguard/rack/triple cage mounts,
internal cable routing for lighting
Derailleur lever
Microshift TS39-8 shifter 1 x 8
Rear derailleur
Microshift RD-M36S
Cassette
Microshift CS-H81 8-speed, 11 - 34 T
Chain
KMC X8 chain, 1/2" x 3/32
Crankset
Bombtrack Aude aluminium crank, square taper
Chainring
Forged steel, 34 T
Bottom bracket
BSA sealed BB, 119 mm, square taper

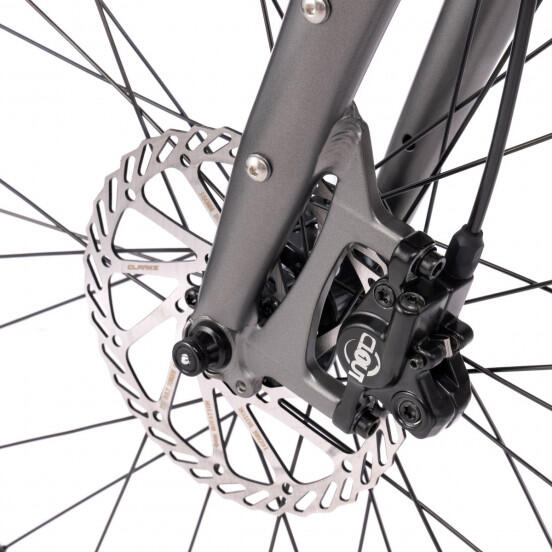

Brakes
Clarks Clout post mount hydraulic disc brake, 160mm
Wheels
WTB ST i21 double wall, TCS 2.0, 32h
Hubs /axles
F: Bombtrack Arc sealed hub, 6-bolt disc, hex key skewer, R:11-speed, 6-bolt disc, hex key skewer
Tyres
Kenda Kwick Seven.5 650B x 45C
Handlebars
Bombtrack Origin flat bar, 31.8 mm, 8° backsweep
Handles
Bombtrack Scroll grips
Stem
Bombtrack Roam forged aluminium stem, -7°, -7° backsweep
Headset
Neco H282 sealed external aheadset, 1.1/8
Saddle
Bombtrack Fuzz saddle
Seat post
Bombtrack Beech 27.2 mm x 300 mm
Saddle clamp
Bombtrack Origin 31.8 mm
Weight
10.7 kg (size M)
Max. weight
110 kg including rider weight and luggage
Color
Matt Pebble Grey
Geometries :
Frame size
S
M
L
Wheel size
650 B
650 B
650 B
Seat tube (mm)
490
520
550
Top tube (mm)
540
563
588
Base length (mm)
440
440
440
Steering bushing (mm)
130
150
175
Steering angle (°)
70,5°
70,5°
70,5°
Seat tube angle (°)
73,0°
73,0°
73,0°
Wheelbase (mm)
1025
1049
1075
Stack (mm)
565
583
607
Reach (mm)
368
385
403
