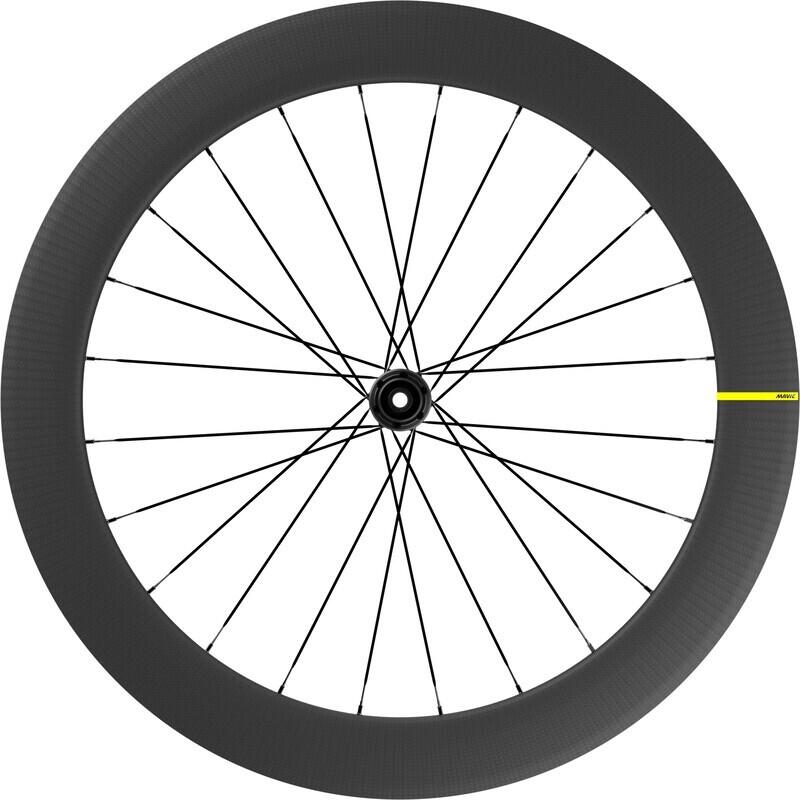

Product Description
Main Features:
Proven Aerodynamics
NACA rim profile 65 mm high and 26 mm wide reduces drag and increases stability in crosswinds Optimised for 25 mm tyres Flat spokes.
Better Acceleration, Better Handling
The rim's light weight reduces inertia and allows for immediate acceleration The lightness of the spokes makes the wheel more responsive Optimised spoke design for disc brakes, compatible with thru-axles
The optimised UST Road system allows for more speed, more comfort and better handling, all with an easy-to-use tubeless system
No inner tube means less friction, more efficiency and grip, and better protection against punctures.
The new upper bridge profile of the rim makes mounting and changing tyres easier
Compatible with Center Lock brake discs
Weight:
- 1750 grams (Pair)
- 820 grams (Front)
- 930 grams (Rear)
Specifications:
Rim
- Material: 100% carbon fibre
- Height: 64 mm
- Drilling: traditional
- Specific profile for disc brakes
- Tyre: UST Tubeless and inner tube
- Internal width: 19 mm
- ETRTO size: 622 x 19TC
- UST Tubeless technology
Spokes
- Material: steel
- Shape: straight, flat, tapered
- Nuts: copper, ABS
- Number: 24 at the front and rear
- Front and rear spoke pattern crossed by 2 without contact

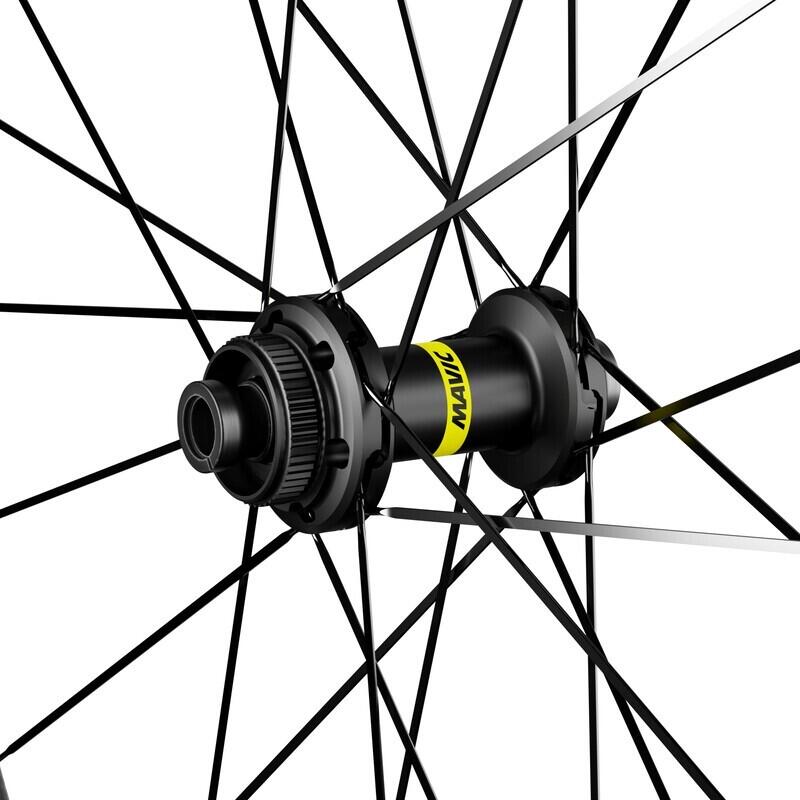

Hubs
- Front and rear body: aluminium
- Axle material: aluminium
- Front: compatible with quick release and thru-axle 12 x 100
- Rear: compatible with quick release and thru-axle 12 x 142 and 12 x 135
- Infinity hubs
- Instant Drive 360 freehub system
- QRM Auto automatic bearing adjustment technology
Versions
- Standard disc: Center Lock® only
- Freehub: Shimano/Sram or XD-Road
Delivered with:
- Front quick release adapters
- Rear quick release adapters for Instant Drive 360
- Valve and UST accessories
- Tubeless rim tape pre-installed
- User guide
Compatibility
- Freehub: Shimano/Sram, convertible to Campagnolo ED11, N3W and XD-R with optional freehub bodies
- Front axle: 12 x 100 thru-axle, easily convertible to quick release with included adapters. Incompatible with 15 mm thru-axles
- Rear axle: 12 mm thru-axle, convertible to quick release using the included adapters
Usage
- ASTM CATEGORY 2: road and paths, jumps lower than 15 cm
- To optimise the longevity of the wheels, Mavic recommends that the maximum weight supported by the wheels does not exceed 120 kg, including the weight of the bike
- Recommended tyre widths: 25 to 32 mm
- Max pressure: refer to indications on the wheel and tyre. If they differ, choose the lower one
