Product Description
The right wheel-tire combination can help you refine your technique and enhance the performance of your electric mountain bike on challenging off-road trails. The new E-Deemax S is specifically designed for electric mountain bikes, featuring unique technologies for smoother handling and guaranteed enjoyment.
Our patented PFP (Pinch Flat Protection) technology works with rims that have an increased contact surface between the tire and the rim, greatly reducing the risk of cuts and punctures. The rim width of 30 mm allows you to lower your tire pressure for better traction, and the rims are perfectly compatible with trail tires from 2.6'' to 3.2''. Our patented Fore technology includes a completely sealed upper rim bridge, eliminating the need for rim tape, making it the simplest system for tubeless tire mounting.
The ISM machining removes material from strategic spots on the rim to reduce weight without compromising strength. Our new Black Shield treatment protects them against scratches and abrasion. We use 28 straight spokes (the same length throughout) to ensure a solid connection between the rim and the hub. This hub is equipped with our highly reliable ID360 dual ratchet system for quick engagement and effective acceleration. Designed for either 6-bolt or Center Lock brake discs, these 27.5'' wheels are compatible with Shimano HG9, XD, and Micro Spline freehub bodies and come with UST Tubeless valves, spare spokes, and accessories.
Key Features
Significantly reduces the risk of tire cuts and punctures.
With PFP rims (Pinch Flat Protection), this wheel is reinforced to withstand the toughest obstacles.
Most straightforward tubeless system on the market.
Fore technology: stronger rim profile thanks to reduced spoke holes.
Completely sealed rim with no rim tape for the best system on the market offered by the pioneers of tubeless.
Reinforced hub
Specifically designed to handle the additional torque from electric bike motors, validated for a total supported weight of 180 Kg.
Specifications
Weight
Weight Pair: 1965 g
Front Weight: 890 g
Rear Weight: 1075 g
Rim
Material: Maxtal
Height: 22 mm
Joint: SUP welding technique
Internal Width: 30 mm
Drilling: Fore tubeless technology without rim tape (front/rear 28 holes)
Braking: disc
Profile: asymmetrical
ETRTO Size: 584x30TC
Tire: UST Tubeless Ready
Spokes
Material: steel
Shape: straight, extra-flat, tapered, anti-rotation (front)
Shape: straight, flat, anti-rotation (rear)
Nuts: brass, black
Screws: M7
Spoking: crossed by 3 (rear)

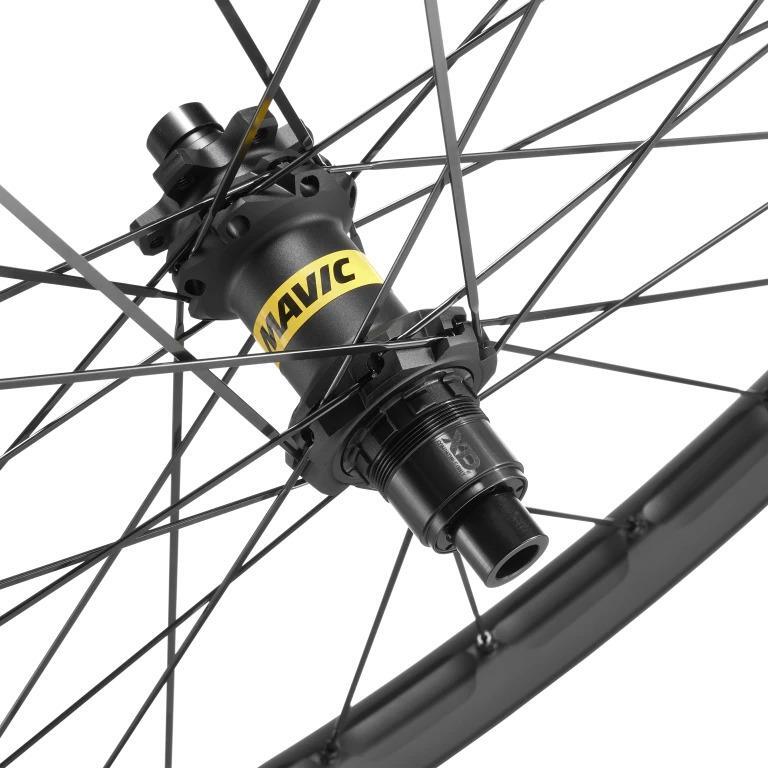

Hubs
Body Material: aluminium
Body Design: INFINITY
Disc Standard: 6 holes or Center LockĀ®
Axle Material: aluminium
Axle Size: front 15x110 / rear 12x148
Freehub Technology: Instant Drive 360
Freehub: Shimano MS / Sram XD MTB
Bearing Technology: QRM automatic adjustment - sealed cartridge
Compatibility
Freehub body: convertible SHIMANO HG MTB aluminium (kit V3780101 sold separately)
Freehub body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
Included with
User guide
UST valve not mounted on the wheel
2 spare spokes per wheel
2 multi-tool keys with the rear wheel
Intended use
Minimum tire size: width 52mm - max pressure 2.95Bar/43PSI
Maximum tire size: width 76mm - max pressure 2.45Bar/36PSI
ASTM category 5: gravity riding focused on downhill
