Product Description
The Ksyrium 30 Disc is a perfect entry point into high-level racing performance. This brand new UST Road Tubeless system offers a smoother ride and better puncture resistance, while still providing a light feel for climbing and acceleration.
By removing the inner tube, we’ve also eliminated friction, which reduces rolling resistance and therefore the energy needed to reach higher speeds.
The 30 mm deep rim optimises aerodynamic performance and improves stability in crosswinds. The alloy rim benefits from our unmatched experience in creating both lightweight and durable rim extrusions. To achieve this, we carefully adjust the rim wall thickness to strike the right balance between stiffness, strength, and weight.

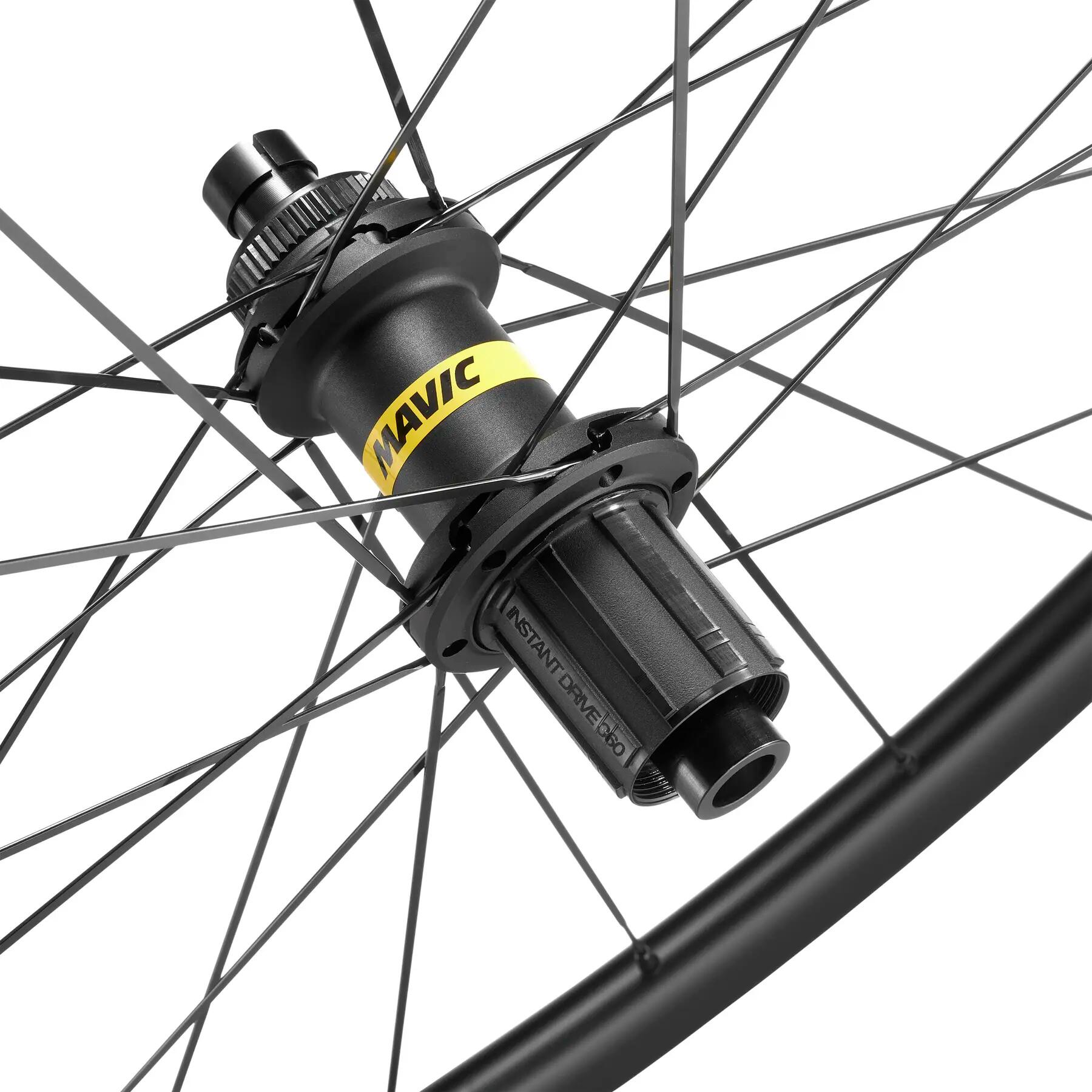

The straight spokes are attached to our premium Infinity hubs: the optimal balance of spoke tension ensures perfect stiffness and great longevity, with a single spoke length for both wheels. The Instant Drive 360 freehub system engages quickly and offers minimal friction. This hub easily converts from a Shimano/SRAM cassette to a Campagnolo or XD cassette and is compatible with Center Lock discs.
Main features
Dynamic and agile thanks to the bladed spokes and Infinity hub
ID360 freehub technology
Infinity hub platform: stiffer axle, durable bearings, and new design
Lightweight and aerodynamic rims with a height of 30 mm
30 mm deep, 19 mm wide (internal)
Lightweight welded rim
Traditional drilling
Refined UST rim tape for easy tyre mounting
Light double-butted flat spokes
The refined tubeless technology helps you ride faster and smoother, while being easy to install and maintain.
Optimised UST rim shape
Durable and perfectly airtight rim tape system
Specifications
Weight
Pair Weight: 1796 g
Front Weight: 833 g
Rear Weight: 963 g
Rim
Material: Maxtal
Height: 30 mm
Joint: SUP welding technique
Internal Width: 19 mm
Drilling: traditional (front/rear 24 holes)
Braking: disc
ETRTO Size: 622x19TC
Tyre: UST Tubeless Ready - Use with tubeless rim tape Mavic
Spokes
Material: steel
Shape: straight, extra-flat, butted, anti-rotation (front and rear)
Nuts: steel, ABS, black
Spoke pattern: crossed by 2 (front and rear)
Hubs
Body Material: aluminium
Body Design: INFINITY
Disc Standard: Center Lock® only
Axle Material: aluminium
Axle Size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included)
Freehub Technology: Instant Drive 360
Freehub: Shimano HG road
Bearing Technology: QRM automatic adjustment - sealed cartridge
Compatibility
Freehub body: convertible to SRAM XD road (kit V2580101 sold separately)
Freehub body: convertible to SHIMANO HG light road (kit V3850101 sold separately)
Freehub body: convertible to SHIMANO MS (kit V3990101 sold separately)
Freehub body: convertible to CAMPAGNOLO ED (kit V3440101 sold separately)
Freehub body: convertible to CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
Included with
User guide
UST rim tape installed on the wheel
UST valve not mounted on the wheel
Front axle adapters: 12x100 convertible to 9x100
Rear axle adapters: 12x142 convertible to 9x135
Multi-tool with the rear wheel
Intended use
Maximum tyre size: width 62mm - max pressure 3.8Bar/55PSI
ASTM category 2: road and trails with jumps less than 15 cm high
Maximum weig
