Product Description

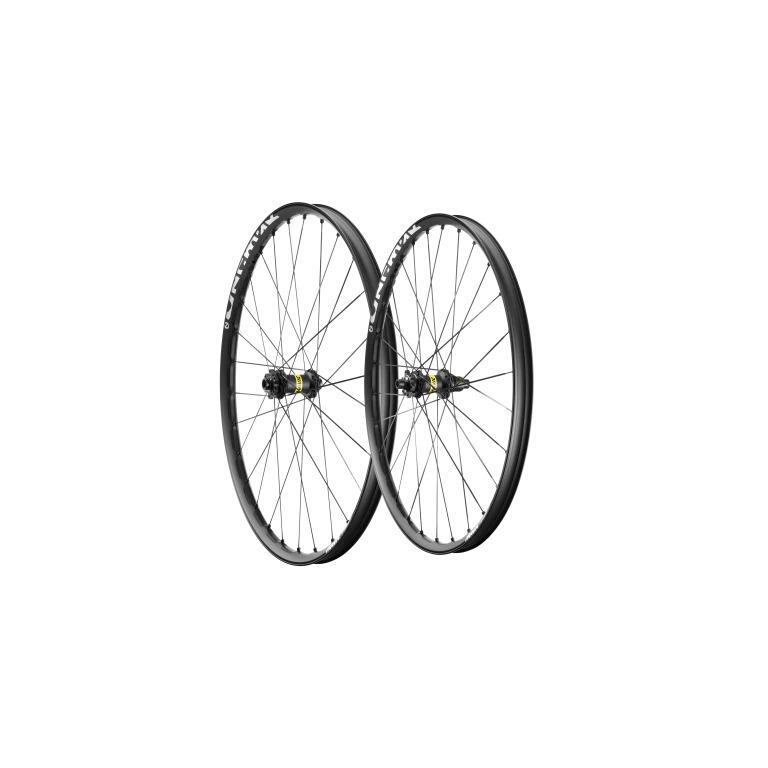

Designed and engineered to meet the demands of E-MTBs, this wheel features aluminium rims with a wider rim bed and puncture protection. Available in 29, 27.5, and Mullet sizes.
Main features
Significantly reduces the risk of tyre cuts and punctures
With its PFP (Pinch Flat Protection) sidewalls, this wheel is reinforced to withstand the toughest obstacles.
Market's simplest tubeless system
Fore technology: stronger rim profile thanks to the reduction in the number of spoke holes,
Completely sealed rim without a rim tape for the best system on the market offered by the pioneers of tubeless.
Reinforced hub
Specifically designed for the extra torque from electric bike motors, validated for a total supported weight of 180 Kg.
Specifications
Weight
Pair Weight: 1990 g
Front Weight: 915 g
Rear Weight: 1075 g
Rim
Material: Maxtal
Height: 22 mm
Joint: SUP welding technique
Internal Width: 30 mm
Drilling: Fore tubeless technology without rim tape (front/rear 28 holes)
Braking: disc
Profile: asymmetric
ETRTO Size: 622/584x30TC
Tyre: UST Tubeless Ready
Spokes
Material: steel
Shape: straight, extra-flat, tapered, anti-rotation (front)
Shape: straight, flat, anti-rotation (rear)
Nuts: brass, black
Bolts: M7
Spoke pattern: crossed by 3 (rear)
Hubs
Body Material: aluminium
Body Design: INFINITY
Disc Standard: 6 holes or Center LockĀ®
Axle Material: aluminium
Axle Size: front 15x110 / rear 12x148
Freehub Technology: Instant Drive 360
Freehub: Shimano MS / Sram XD MTB
Bearing Technology: QRM automatic adjustment - waterproof cartridge
Compatibility
Freehub body: convertible SHIMANO HG MTB aluminium (kit V3780101 sold separately)
Freehub body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
Included
User guide
UST valve not installed on the wheel
2 spare spokes per wheel
2 multifunction adjustment keys with the rear wheel
Intended use
Minimum tyre size: width 52mm - max pressure 2.95Bar/43PSI
Maximum tyre size: width 76mm - max pressure 2.45Bar/36PSI
ASTM category 5: gravity riding focused on downhill
Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
