Product Description

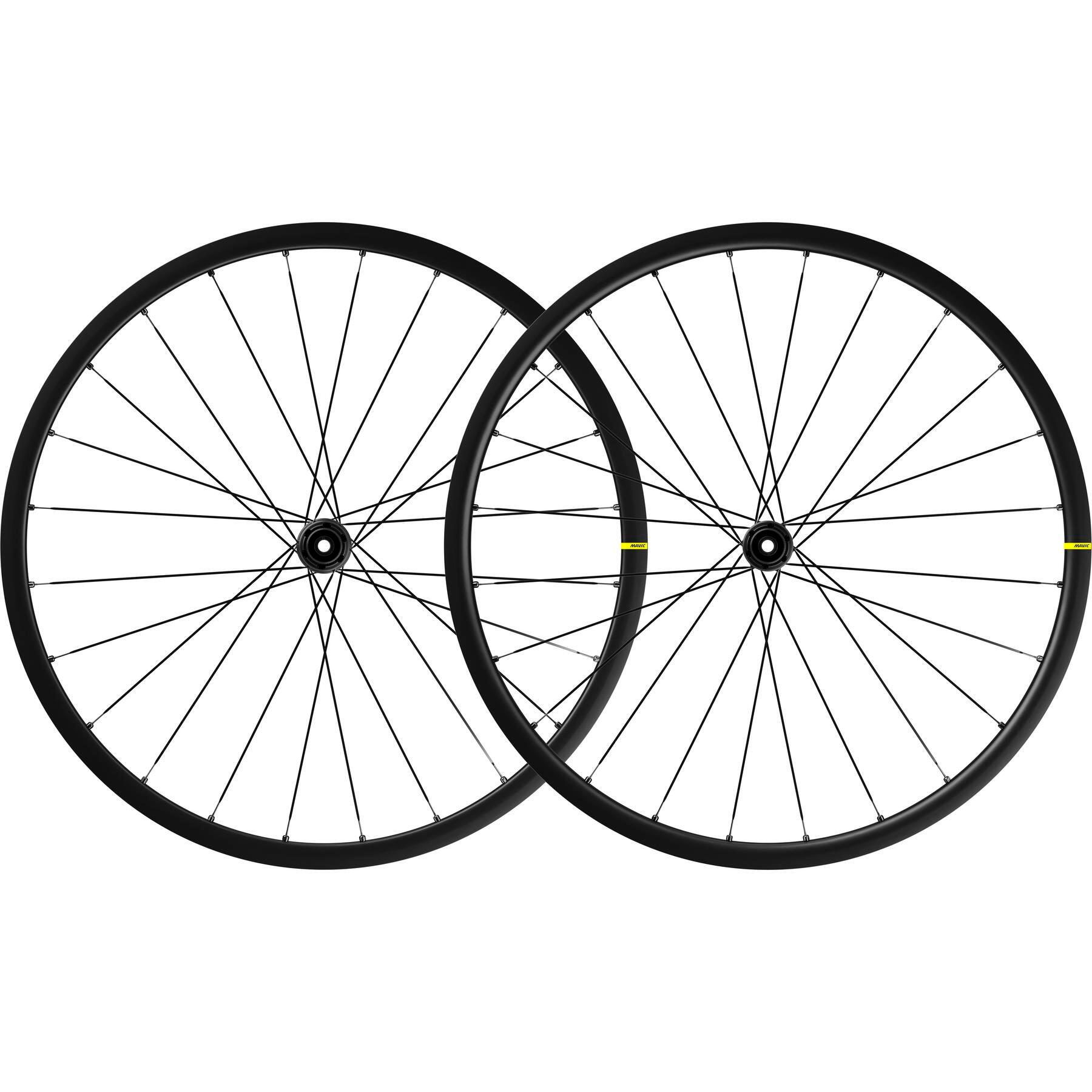

This pair of lightweight aluminium wheels is a no-brainer for anyone looking to easily replace original wheels. The Ksyrium S Disc can significantly improve the performance of any bike and offers an easy entry point to Mavic quality that takes no shortcuts.
The Ksyrium S Disc is 40g lighter than the old Ksyrium UST Disc, while being stronger and stiffer laterally. Stiffness is optimised thanks to Fore technology. The upper bridge is not drilled, which optimises strength and stiffness, and eliminates the need for a rim tape, saving an additional 30g per wheel. The new rim shape makes mounting and removing tyres easier than ever, and our UST Tubeless technology improves rolling resistance and grip while reducing the risk of punctures. These rims are made in France at our aluminium rim factory.
Our new Infinity hub platform optimises stiffness and power transfer with highly controlled spoke tension, while our Instant Drive 360 freehub, combined with our automatic bearing preload adjustment (QRM Auto), provides quick engagement and great longevity. The Ksyrium S Disc not only rides fast but also looks fast. The matte painted hubs, invisible welds on the rim, and deep black spokes give this wheelset a premium look that stands out from the crowd. Specifically designed for disc brakes, it is compatible with a 12x100 axle at the front and 12x142 at the rear, and can be converted to Quick Release with the included adapters. It is available for Shimano and Sram XD-Road cassettes and can be converted for Campagnolo with an optional drive body. For Center Lock discs only.
Main features
Light and durable for everyday performance
The rim weighs only 430g
No rim tape is needed, saving 60g compared to a traditional wheel set.
Flat and lightweight spokes along with ID360 freehub technology
Lateral stiffness, vertical compliance for a more dynamic ride
The Fore technology keeps the upper bridge of the rim solid, making the 19mm wide rim stiffer.
New Infinity hub shape: stiff axle, durable bearings, and new hub design
The improved UST Road offers more speed, comfort, and control in an easy-to-use tubeless system.
The absence of an inner tube reduces friction, improves efficiency and grip, while reducing the risk of punctures.
The new rim shape makes it easier to mount and change tyres.
The Fore drilling technology eliminates the need for rim tape.
Specifications
Weight
Weight Pair: 1670g
Front Weight: 750g
Rear Weight: 920g
Rim
Material: Maxtal
Height: 22mm
Joint: SUP welding technique
Internal width: 19mm
Drilling: Fore tubeless technology without rim tape (front/rear 24 holes)
Braking: disc
ETRTO size: 622x19TC
Tire: UST Tubeless Ready
Spokes
Material: steel
Material: stainless steel
Shape: straight, extra-flat, narrowed, anti-rotation (front and rear)
Nuts: brass, black
Vis: M7
Spoke lacing: crossed by 2 (front and rear)
Hubs
Body Material: aluminium
Body Design: INFINITY
Disc Standard: Center Lock® only
Axle Material: aluminium
Axle Size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included)
Freehub Technology: Instant Drive 360
Freehub: Shimano HG road
Bearing Technology: QRM auto-adjust - sealed cartridge
Compatibility
Freehub body: convertible SRAM XD road (kit V2580101 sold separately)
Freehub body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freehub body: convertible SHIMANO MS (kit V3990101 sold separately)
Freehub body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freehub body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 conv
