Product Description
This pair of lightweight aluminium wheels is a clear choice for anyone looking to easily replace their original wheels. The Ksyrium S Disc can significantly enhance the performance of any bike and provides an easy entry into Mavic quality that doesn't cut corners.
The Ksyrium S Disc is 40g lighter than the previous Ksyrium UST Disc, while being stronger and stiffer laterally. The stiffness is optimised thanks to Fore technology. The upper bridge is un-drilled, which improves strength and stiffness and eliminates the need for a rim strip, saving an additional 30g per wheel. The new rim shape makes fitting and removing tyres easier than ever, and our UST Tubeless technology enhances rolling resistance and grip while reducing the risk of punctures. These rims are made in France, at our aluminium rim factory.
Our new Infinity hub platform optimises stiffness and power transfer with highly controlled spoke tension, while our Instant Drive 360 freehub combined with our automatic bearing preload adjustment (QRM Auto) offers quick engagement and great durability. The Ksyrium S Disc not only rolls fast but also looks fast. The matte-painted hubs, invisible welds on the rim, and deep black spokes give this wheelset a premium look that stands out from the crowd. Designed specifically for disc brakes, it is compatible with a 12x100 axle at the front and 12x142 at the back, and can be converted to Quick Release with the provided adaptors. It is available for Shimano and Sram XD-Road cassettes, and can be converted for Campagnolo with an optional driver body. For Center Lock discs only.
Main features
Lightweight and durable for everyday performance
The rim weighs only 430g
No rim strip is required, saving 60g compared to a traditional wheelset.
Flat and lightweight spokes and ID360 freewheel technology
Lateral stiffness, vertical compliance for a more dynamic ride
The Fore technology keeps the upper bridge of the rim solid, making the 19mm wide rim stiffer.

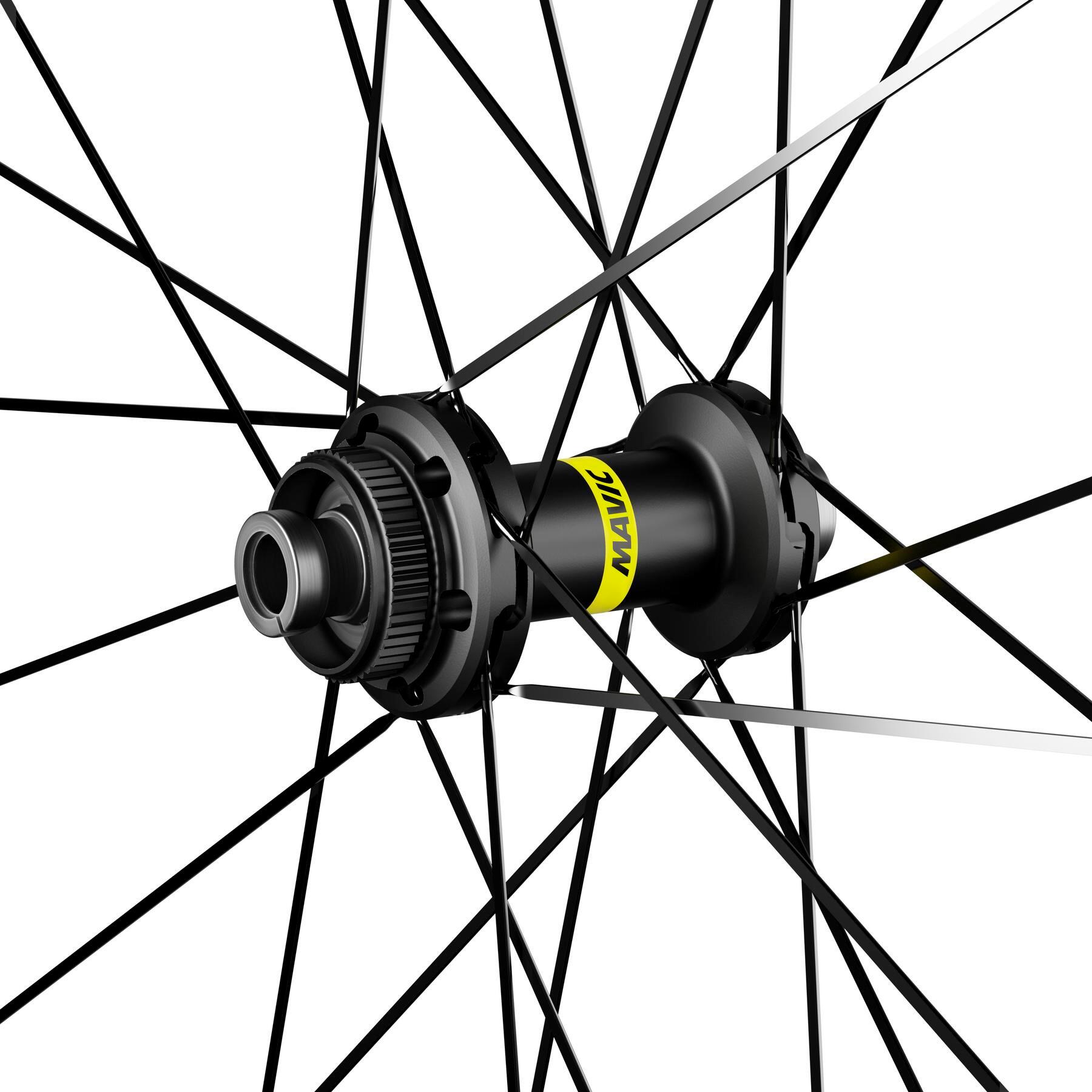

New Infinity hub shape: stiff axle, durable bearings, and new hub design
The improved UST Road offers more speed, comfort, and control in an easy-to-use tubeless system.
The absence of an inner tube reduces friction, improves efficiency and grip, and lowers the risk of punctures.
The new rim shape makes mounting and changing tyres easier.
The Fore drilling technology does not require the use of a rim strip.
Specifications
Weight
Weight Pair: 1670g
Weight Front: 750g
Weight Rear: 920g
Rim
Material: Maxtal
Height: 22mm
Joint: SUP welding technology
Internal width: 19mm
Drilling: Fore tubeless technology without rim strip (front/rear 24 holes)
Braking: disc
ETRTO size: 622x19TC
Tyre: UST Tubeless Ready
Spokes
Material: steel
Material: stainless steel
Shape: straight, extra-flat, tapered, anti-rotation (front and rear)
Nipples: brass, black
Screws: M7
Spoke lacing: crossed by 2 (front and rear)
Hubs
Body material: aluminium
Body design: INFINITY
Disc standard: Center Lock® only
Axle material: aluminium
Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adaptors (not included)
Freewheel technology: Instant Drive 360
Freehub: Shimano HG road
Bearing technology: QRM auto adjustment - sealed cartridge
Compatibility
Freehub body: convertible SRAM XD road (kit V2580101 sold separately)
Freehub body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freehub body: convertible SHIMANO MS (kit V3990101 sold separately)
Freehub body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freehub body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
