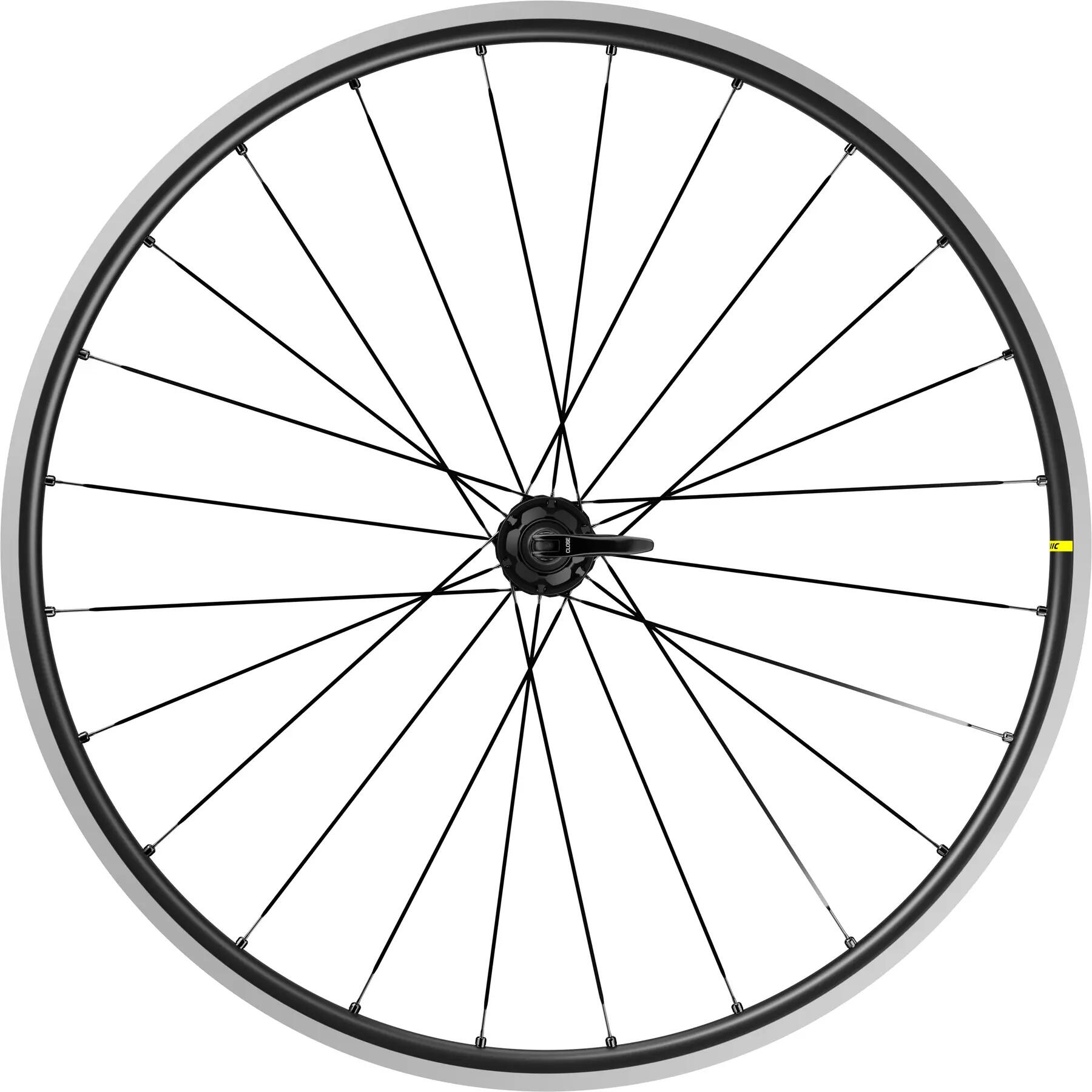

Product Description
This pair of lightweight aluminium wheels is a no-brainer for anyone looking to easily replace their original wheels. The Ksyrium S can significantly improve the performance of any bike and serves as an easy entry point to Mavic quality, without cutting corners.
The Ksyrium S is 60g lighter than the old Ksyrium UST while being wider, stronger, and laterally stiffer. The stiffness is optimized thanks to Fore technology. The upper bridge is undrilled, which enhances strength and stiffness, and eliminates the need for a rim tape, saving an additional 30g per wheel. The new rim shape makes fitting and removing tyres easier than ever, and our UST Tubeless technology improves rolling resistance and grip while reducing the risk of punctures. These rims are made in France at our aluminium rim factory.
Our new Infinity hub platform optimises stiffness and power transfer with highly controlled spoke tension, while the Instant Drive 360 freehub combined with our automatic bearing preload adjustment (QRM Auto) offers quick engagement and long durability. The Ksyrium S not only rolls fast, it looks fast too. The matte painted hubs, invisible welds on the rim, and deep black spokes give this wheelset a premium look that stands out from the crowd. It’s available for Shimano cassettes and can be converted for Campagnolo or XD-Road with optional freehub bodies.
Main Features
Light and durable for everyday performance
The rim weighs only 430g
No rim tape is needed, saving 60g compared to a traditional wheelset.
Flat and lightweight spokes and ID360 freehub technology
Lateral stiffness, vertical compliance for a more dynamic ride
Fore technology keeps the upper rim bridge solid, making the 19mm wide rim stiffer.
New Infinity hub shape: stiff axle, durable bearings, and new hub design
Improved UST Road offers more speed, comfort, and control in an easy-to-use tubeless system.
The absence of an inner tube reduces friction, improves efficiency and grip, and lowers the risk of punctures.
The new rim shape makes tyre fitting and changing easier.
Fore drilling technology doesn’t require rim tape.
Specifications
Weight
Weight Pair: 1570g
Front Weight: 675g
Rear Weight: 895g
Rim
Material: Maxtal
Height: 22mm
Joint: SUP welding technology
Internal Width: 19mm
Drilling: Fore tubeless technology without rim tape (18 holes front and 24 holes rear)
Braking: rim brakes
ETRTO Size: 622x19TC
Tire: UST Tubeless Ready
Spokes
Material: steel
Shape: straight, extra-flat, ADR+ tapered (front and rear opposite freehub side)
Shape: straight, extra-flat, tapered, anti-rotation (rear freehub side)
Nipples: brass, black
Screws: M7
Spoke Lacing: radial (front) - Isopulse (rear)

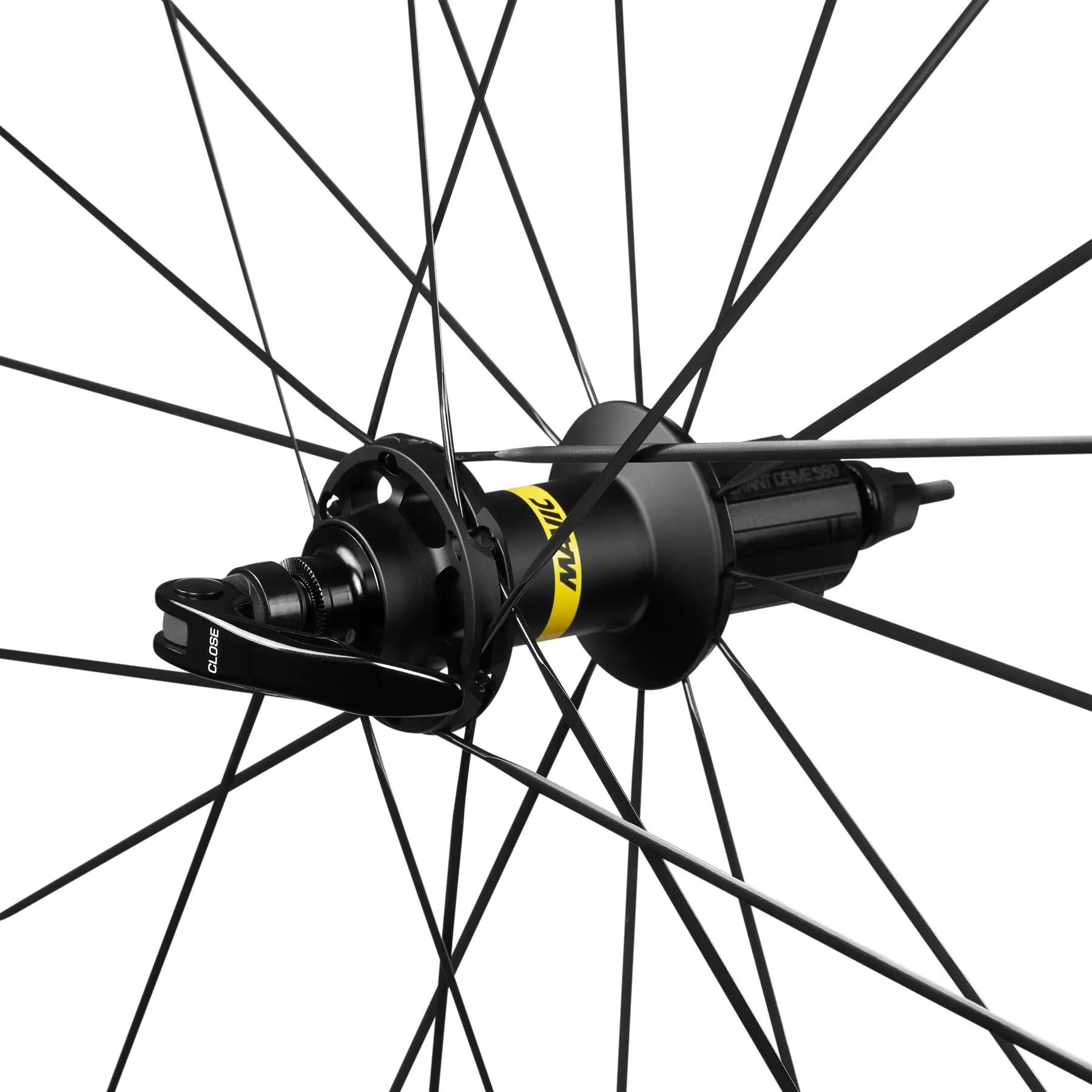

Hubs
Body Material: aluminium
Body Design: INFINITY
Axle Material: aluminium
Axle Size: front 9x100 / rear 9x130 - Quick release only
Freehub Technology: Instant Drive 360
Freehub: Shimano HG road
Bearing Technology: QRM automatic adjustment - sealed cartridge
Compatibility
Freehub Body: convertible SRAM XD road (kit V2580101 sold separately)
Freehub Body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freehub Body: convertible SHIMANO MS (kit V3990101 sold separately)
Freehub Body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freehub Body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Included with
User guide
Quick release level 1
UST valve not mounted on the wheel
2 multifunction adjustment wrenches with the rear wheel
Intended Use
Minimum tyre size: width 23mm - max pressure 6.75Bar/97PSI
Maximum tyre si
